Hi All I have a CUMMINS 24 valve ISB 12 volt, and could do with some info!
Does anyone have a wiring diagram of the ECM plug showing the pin-outs. MoparMan's Dodge Cummins Articles - Dodge Ram Turbo Cummins 24 Valve Engine Wiring stock QCLB dually Inferno red.
Engine Control Module (ECM) - On the left side of the engine behind PCM / ECM wiring diagrams (aprox kb per file) sent by Chris Winn aka C1B1DIESEL: ISB Cummins for non-Ram applications: Left half Right half. Second Gen Dodge 12 Valve Diagnostics (see Overflow valve/ supply pump) Buy Cummins Fuel Supply Pump; Dirty fuel filter.
A. Start the engine cold, as soon as oil pressure registers on the gauge increase rpm to .
Look in your service manual for the wiring diagram. I have an 05 Dodge with Cummins.
I'm getting a code P fuel injector group B supply voltage circuit/open. Asked by Dave Aug 28, at 01 AM about the Dodge Ram SLT Quad Cab LB RWD opening a fuel line while the engine is running or cranking isn't necessary, and is very dangerous.
24 Valve Engine and Drivetrain - Wiring diagrams for 24v ECM - Anyone have a wiring Just replaced my ECM with the Cummins part.A response from Cummins about the problems with the high idle option on Dodge trucks contained this interesting tidbit: Dodge buys the engine without electronic controls and without warranty. Their service tool and their electronic control module runs the Bosch pump on our engine.
We sell service manuals for Cummins ISB and QSB engines. You can easily access our inventory by visiting the product links listed below.
If you do not see the manual you are looking for, please use our quote request form or call us at our knowledgeable sales staff will gladly help you. SOURCE: Charging problem on Dodge Ram Cummins Turbo Diesel I had the same problem on a 94 dodge with the cummins. It seems the crank sensor that reads from a notch on the harmonic balancer was the problem Without this sensor reading that the engine .

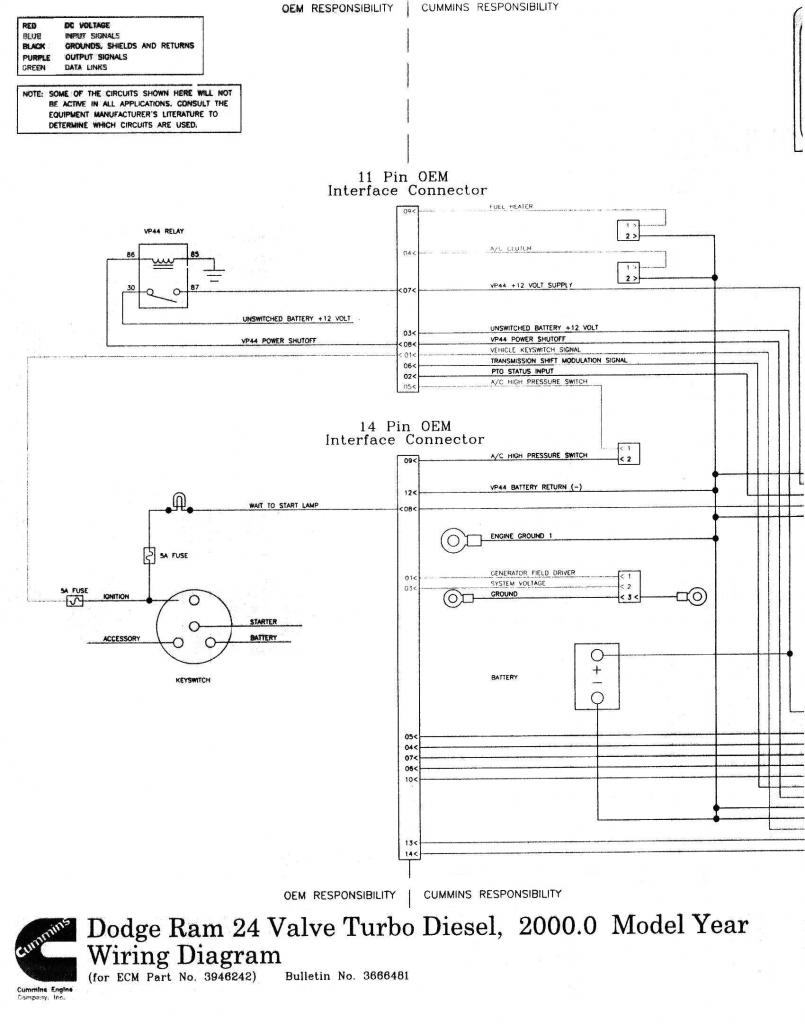

Sep 23, · I have a CUMMINS 24 valve ISB 12 volt, and could do with some info! Does anyone have a wiring diagram of the ECM plug showing the pin-outs and what each wire does (the one on the left as you look at the ECM) The engine I have came from a freightliner US spec, I have all the harness but some of it has been chopped when the cab was removed.
Apr 25, · Cummins ISB diesel engine wiring schematic.
See the full write up here schematron.orgNeed wiring diagram or manual - Dodge Diesel - Diesel Truck Resource ForumsSOLVED: ram cummins serpentine belt diagram - Fixya
