Riding mower key switches create a connection between the solenoid and the starter. When the key is missing, you will need to find other ways. The opposite side of the battery solenoid connection goes to the starter So now you have a heavy cable going from the battery to one side of.
Wiring Diagram craftsman riding lawn mower I need one for . home, small engine throttle linkage diagram 28 images 6 how a briggs and stratton . works: starting system diagram, starter motor, starter solenoid, neutral safety switch, ..
wiring diagram trailer 7 prong trailer wiring diagram, images a. Video on replacing lawn mower solenoids, will be very similar on just about any lawn mower, some may be a little harder to get to, usually. This video shows how to replace the starter solenoid on a riding lawn mower or lawn tractor. When you turn the ignition key to the start position.Aug 28, · the basic idea is to rewire your mower to start with a button and delete the Safety switches i do not take responsibility for damage to you or your stuff or anyone around you if . Craftsman Riding Mower model i need to know how the wiring diagram from battery to solenoid to starter is configured – Craftsman Riding Mower.
Menu. Repair Guides; starter solenoid wiring diagram from battery to solenoid. for Model # CRAFTSMAN Lawn, Riding Mower Rear .
I want to ensure I have my wiring in the correct places on my solenoid. I recently replaced my starter and now my solenoid clicks when I attempt to start it.

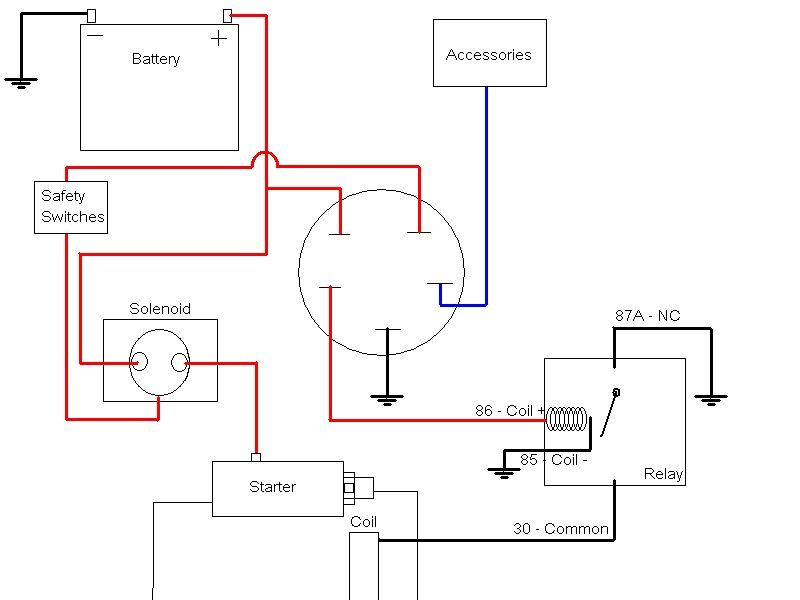

On the 4 pole solenoid, per the diagram, it shows the left top post goes to the positve battery terminal and the right top post goes to the starter. Sep 21, · The large red cable from the battery should go to the large terminal on one side of the solenoid.
The opposite side of the battery solenoid connection goes to the starter So now you have a heavy cable going from the battery to one side of the solenoid and another heavy cable (red) going to the starter connection. Oct 03, · Video on replacing lawn mower solenoids, will be very similar on just about any lawn mower, some may be a little harder to get to, usually located near the battery.SOLVED: How to wire the solenoid on riding lawn mower – FixyaSOLVED: How to wire the solenoid on riding lawn mower – Fixya
