Focus on the role of light and mitochondria when analyzing energy flow in biological systems. In green organisms, solar input initiates the synthesis of glucose and oxygen, fueling biomass growth. In contrast, cellular components utilize oxygen to decompose these molecules, releasing ATP for vital activities. Understanding these complementary functions reveals how ecosystems maintain energy balance.
Examine oxygen involvement on both sides of the process chart. In chloroplasts, this gas emerges as a by-product, while in internal cellular compartments, it serves as a crucial reactant. This distinction highlights the directional flow of matter and the transformation of energy from radiant to chemical and then to kinetic or thermal forms.
Assess carbon dioxide exchange. In one stage, atmospheric CO₂ is absorbed to generate sugars; in the other, it is released as a waste product during fuel breakdown. This cyclical exchange underpins global carbon dynamics and is vital for climate modeling and agricultural planning.
Compare location, input materials, by-products, and energy carriers to structure an effective two-circle chart. Use glucose, oxygen, ATP, CO₂, and water as central comparison points to distinguish shared and unique features. This approach ensures clarity in understanding how life processes complement each other in sustaining organisms and ecosystems.
Photosynthesis and Respiration Venn Diagram
Use a two-circle comparison chart to clearly distinguish between light-driven synthesis processes and cellular energy-releasing mechanisms. In the left section, include characteristics such as conversion of carbon dioxide and water into glucose using solar input, occurrence in chloroplasts, and production of oxygen.
On the right, list traits like breakdown of glucose to release ATP, operation within mitochondria, and generation of carbon dioxide and water as byproducts. For the shared zone, focus on aspects like involvement of electron transport chains, ATP as a common energy molecule, and reliance on organic compounds.
Highlight contrasting inputs and outputs: one utilizes solar rays and emits oxygen; the other consumes oxygen and produces chemical energy. This layout ensures efficient retention of distinctions and parallels in biochemical pathways.
How to Construct a Venn Diagram Comparing Photosynthesis and Respiration
Start by drawing two intersecting circles to represent the two biological pathways. Use the left circle for the synthesis process occurring in chloroplasts, and the right circle for the energy-releasing sequence that takes place in mitochondria.
- In the left zone, include elements such as light energy usage, carbon dioxide intake, glucose formation, and oxygen emission.
- In the right section, list features like glucose breakdown, oxygen consumption, carbon dioxide release, and ATP generation.
- In the overlap, note shared traits like reliance on electron transport chains, production of energy molecules, involvement of enzymes, and exchange of gases.
Ensure precise terminology by referencing specific steps such as glycolysis, Calvin cycle, Krebs cycle, and oxidative phosphorylation. Differentiate clearly between anabolic and catabolic roles, storage versus release of energy, and day versus night activity patterns.
- Label each part accurately using concise scientific terms.
- Avoid repetition by using synonyms like synthesis versus degradation, or construction versus decomposition.
- Cross-check facts using trusted biology resources or textbooks.
Conclude by reviewing the similarities and distinctions to ensure clarity and accuracy in representation.
Which Processes Belong Exclusively to Photosynthesis or Respiration
Light-dependent reactions occur solely in chloroplasts, utilizing solar input to split water and generate ATP and NADPH. This mechanism does not function in mitochondrial pathways.
Carbon fixation, specifically the Calvin cycle, is confined to autotrophic cells. It converts atmospheric CO2 into glucose precursors using enzymatic activity unique to green pigments.
Oxidative phosphorylation is exclusive to mitochondrial matrices, using an electron transport chain powered by NADH and FADH2 to synthesize ATP. This cascade depends on oxygen as the final electron acceptor.
Glycolysis, although shared across many pathways, is a prerequisite for mitochondrial energy release and does not occur during anabolic light capture processes.
Photoactivation of chlorophyll molecules initiates electron transfer specific to light-harvesting systems. No such excitation mechanism exists in cellular fuel breakdown stages.
Krebs cycle operates only in aerobic decomposition, producing CO2, ATP, and reduced coenzymes. No fixation or light reaction steps are involved here.
What Shared Functions Exist Between Photosynthesis and Respiration

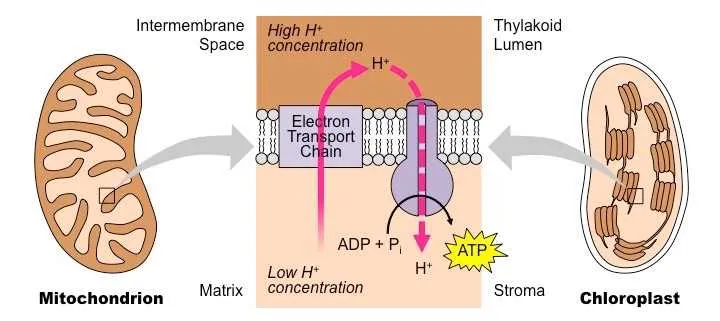

Utilize ATP synthesis as a core intersection – both cellular mechanisms generate adenosine triphosphate through chemiosmotic processes involving proton gradients across membranes. In chloroplasts and mitochondria alike, ATP synthase facilitates this production by harnessing the electrochemical potential of hydrogen ions.
Track electron movement via redox reactions. In each process, electrons transfer through specific chains – plastoquinone and cytochrome complexes in one, NADH dehydrogenase and ubiquinone in the other. This electron transport is crucial for establishing the necessary gradient for ATP formation.
Measure dependency on membrane-bound organelles. Inner membranes in both organelles serve as platforms for energy transformation. Thylakoid structures and cristae function analogously by hosting essential protein complexes and facilitating compartmentalization.
Compare utilization of coenzymes such as NAD(P)+ and FAD. These carriers alternate between reduced and oxidized forms, enabling efficient transfer of energy and matter within each cycle.
Recognize regulation by feedback inhibition. Enzymes involved in both pathways are modulated by the concentration of end products like ATP and NADH, ensuring metabolic balance and resource efficiency.
