To ensure proper installation of the multi-ribbed engine loop on this mid-decade sedan, consult the exact routing for all pulleys, including the alternator, power steering pump, and air conditioning compressor. The tensioner placement is critical to maintain correct belt tension and prevent premature wear.
Visual guides specific to this model year provide a clear path for the continuous loop, helping avoid common errors such as reversing pulley direction or missing the idler wheel. Following the factory-approved arrangement guarantees optimal performance and longevity of the accessory drive system.
When replacing the engine’s drive loop, always verify the exact path through the crankshaft pulley, water pump, and tensioning components. Incorrect alignment can lead to slipping, noise, or complete failure. Use recommended tools to relieve tension and position the belt precisely as outlined in the service references for this particular four-cylinder or V6 sedan.

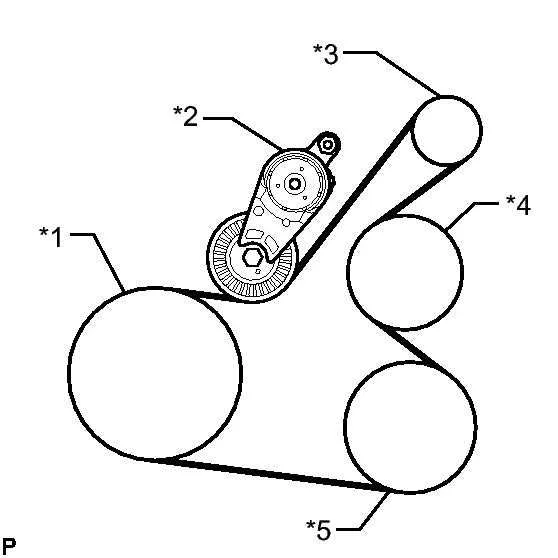

Engine Drive Pulley Routing for 2005 Camry
Locate the accessory belt routing by referencing the tensioner pulley near the alternator. The loop runs clockwise around the crankshaft pulley, then up to the water pump, followed by the power steering pump. Next, it passes over the tensioner roller and finally wraps around the air conditioning compressor pulley before returning to the crankshaft. Ensure the belt is seated properly in all pulley grooves to avoid slippage or premature wear.
When replacing the belt, use a 3/8-inch ratchet or breaker bar to rotate the automatic tensioner counterclockwise, releasing tension. Carefully slide the old belt off the pulleys, noting the exact path. Install the new belt following the same routing, confirming alignment on every pulley. Double-check that the tensioner maintains correct pressure after installation.
Locating the Drive Belt and Essential Parts on the Vehicle
The main accessory drive loop is found at the front of the engine, wrapping around several pulleys. Start by identifying the crankshaft pulley at the bottom center, as it powers the entire system. Above it, locate the alternator pulley on the passenger side, which is typically smaller and connected to the electrical charging system.

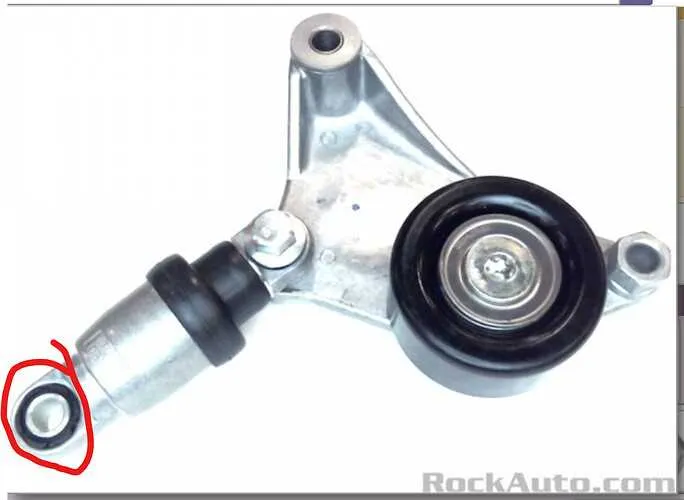

Next, find the tensioner pulley near the center-left area of the engine bay. This spring-loaded component maintains proper tension on the loop to prevent slipping. Adjacent to it is the idler pulley, a smooth, free-spinning wheel that guides the belt along its path.
The water pump pulley is positioned near the front center, responsible for circulating coolant through the engine. The air conditioning compressor pulley, larger and often mounted lower on the driver’s side, drives the HVAC system. Tracing the routing visually helps confirm correct alignment of the drive loop across all these components.
Step-by-Step Guide to Reading the Engine Accessory Drive Layout
Start by locating the schematic on the vehicle’s service manual or under the hood. This illustration shows the routing for the continuous loop connecting the pulleys.
- Identify the crankshaft pulley: This is the primary driver, usually the largest pulley at the bottom center of the engine block.
- Trace the path to the alternator pulley: Follow the belt as it wraps around the alternator, which charges the battery and powers electrical systems.
- Locate the power steering pulley: This pulley drives the hydraulic pump; note its position relative to the belt routing.
- Find the air conditioning compressor pulley: Important for climate control, confirm how the belt engages this component.
- Check the idler and tensioner pulleys: These maintain proper tension and guide the belt. Their placement and spring mechanism are critical for correct alignment.
- Confirm belt routing direction: The arrows on the schematic indicate belt travel, ensuring you install it correctly to avoid premature wear.
When following the layout, pay attention to any annotations about pulley sizes or specific belt types, as these affect tension and fit. Cross-reference the schematic with actual engine components to verify alignment before installation.
Troubleshooting Common Issues Using the 2005 Toyota Camry Serpentine Belt Diagram
Start by inspecting the routing chart to verify the correct path of the accessory drive loop. Misalignment or improper threading often causes noise and premature wear.
Check tensioner positioning according to the schematic. An incorrect tension level results in slippage or squealing sounds during engine operation.
Use the layout to identify each pulley–water pump, alternator, power steering, and air conditioning. Confirm none exhibit excessive play or damage, which can affect the belt’s performance.
Refer to the routing illustration to locate idler pulleys and inspect them for smooth rotation and absence of roughness, which often leads to uneven belt wear.
If the loop shows signs of glazing or cracking, cross-reference with the routing map to ensure the belt is compatible with the specified components and tensioner design.
Follow the path detailed in the guide to verify clearance between the belt and surrounding parts, preventing rubbing or interference that accelerates degradation.
When replacing the drive loop, always use the provided routing chart to avoid installation errors that cause engine accessory malfunctions or noise issues.
