When replacing or maintaining the serpentine system of a compact sedan, it’s crucial to follow the exact routing pattern for smooth operation. The proper arrangement ensures that the engine components, including the alternator, water pump, and power steering pump, work efficiently, preventing misalignment and premature wear.
The routing for this specific model follows a standard configuration. Ensure that the main drive belt loops over the crankshaft pulley, aligning correctly with the tensioner and idler pulleys. The belt should be positioned to ensure consistent contact with all driven accessories, minimizing stress on the components.
Double-check the tensioner before final installation. A faulty tensioner can lead to improper belt tension, which can result in slippage, causing engine performance issues and increased wear on the components. Keep an eye on the alignment marks during installation for an accurate setup.
Refer to the pulley arrangement diagram for further details, as slight differences in routing can affect engine performance. For those unfamiliar with belt configurations, visual aids often help when attempting to map out the system on the engine block.
Engine Serpentine Routing for 1.8L Models
For the accurate installation and maintenance of your engine’s accessory drive system, follow these key steps:
- Ensure the tensioner pulley is properly set before beginning installation.
- Double-check the alignment of the main crankshaft pulley to avoid any misalignment issues.
- The alternator, power steering, and air conditioning compressor are powered by the same continuous loop, making it essential to follow the correct order.
The correct routing pattern is crucial for proper functioning, especially for maintaining optimal belt tension and avoiding premature wear.
To simplify installation, start from the crankshaft pulley and route the drive loop as follows:
- Start at the bottom, moving from the crankshaft to the tensioner pulley.
- Wrap it over the alternator, ensuring it sits firmly without slack.
- Pass it around the power steering pump and then to the air conditioning compressor pulley.
- Complete the loop by bringing it back to the tensioner pulley, ensuring proper tension.
Consult your repair manual for specific torque specifications, as over-tightening can lead to premature pulley wear.
Properly maintaining the tension of the drive loop is essential to prevent slippage and unnecessary strain on components.

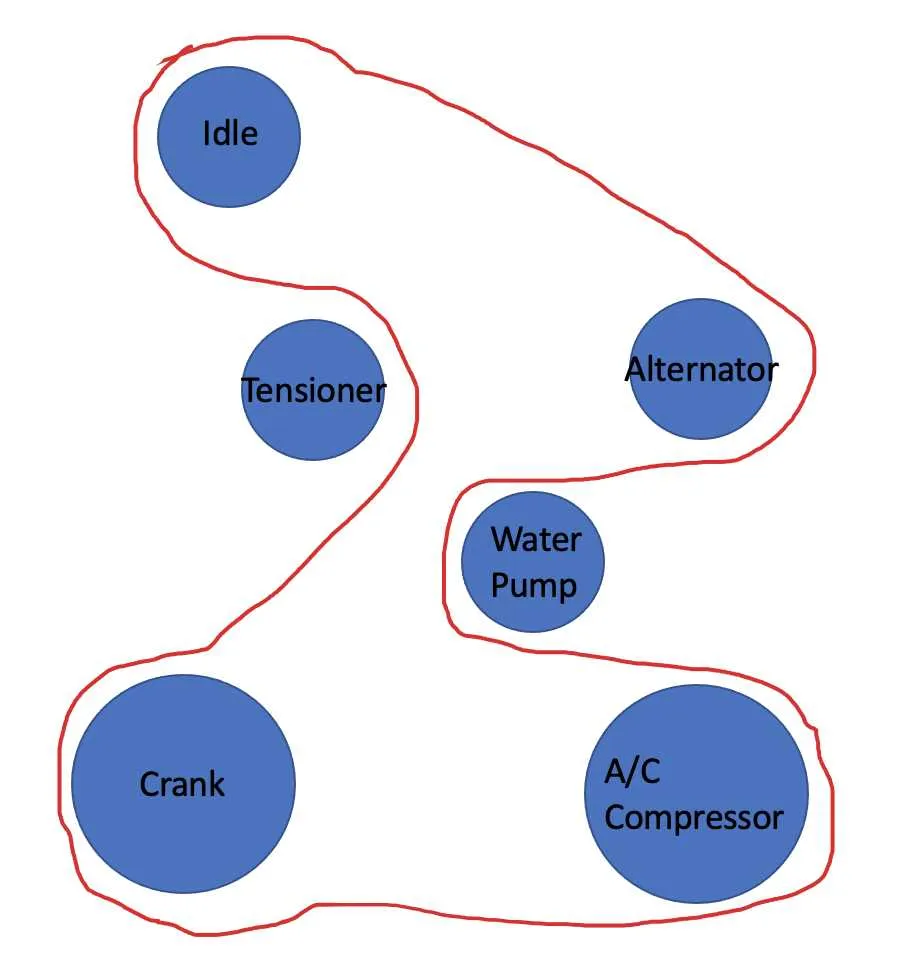

How to Read the 2008 Honda Civic 1.8 Belt Diagram
Start by identifying the components connected to the serpentine loop. Focus on the alternator, power steering pump, water pump, and the crankshaft pulley. These are the key elements that the loop interacts with. Trace the route, noting how the loop wraps around the pulleys. Pay special attention to the tensioner and idler pulleys, which help maintain correct tension in the system. If the tensioner is visible, observe its position–this is often where the diagram shows adjustments.
Check for any arrows indicating the direction of rotation. Ensure the diagram clearly shows the proper alignment to avoid misplacing the loop. The correct placement ensures smooth operation and prevents damage to other parts. If the diagram includes the timing marks, align them precisely with the camshaft and crankshaft sprockets.
If troubleshooting, verify whether the loop needs replacement by inspecting wear marks on the pulleys. Refer to the diagram’s guide for a step-by-step visual, ensuring each component is placed properly to guarantee functionality.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Honda Civic 1.8

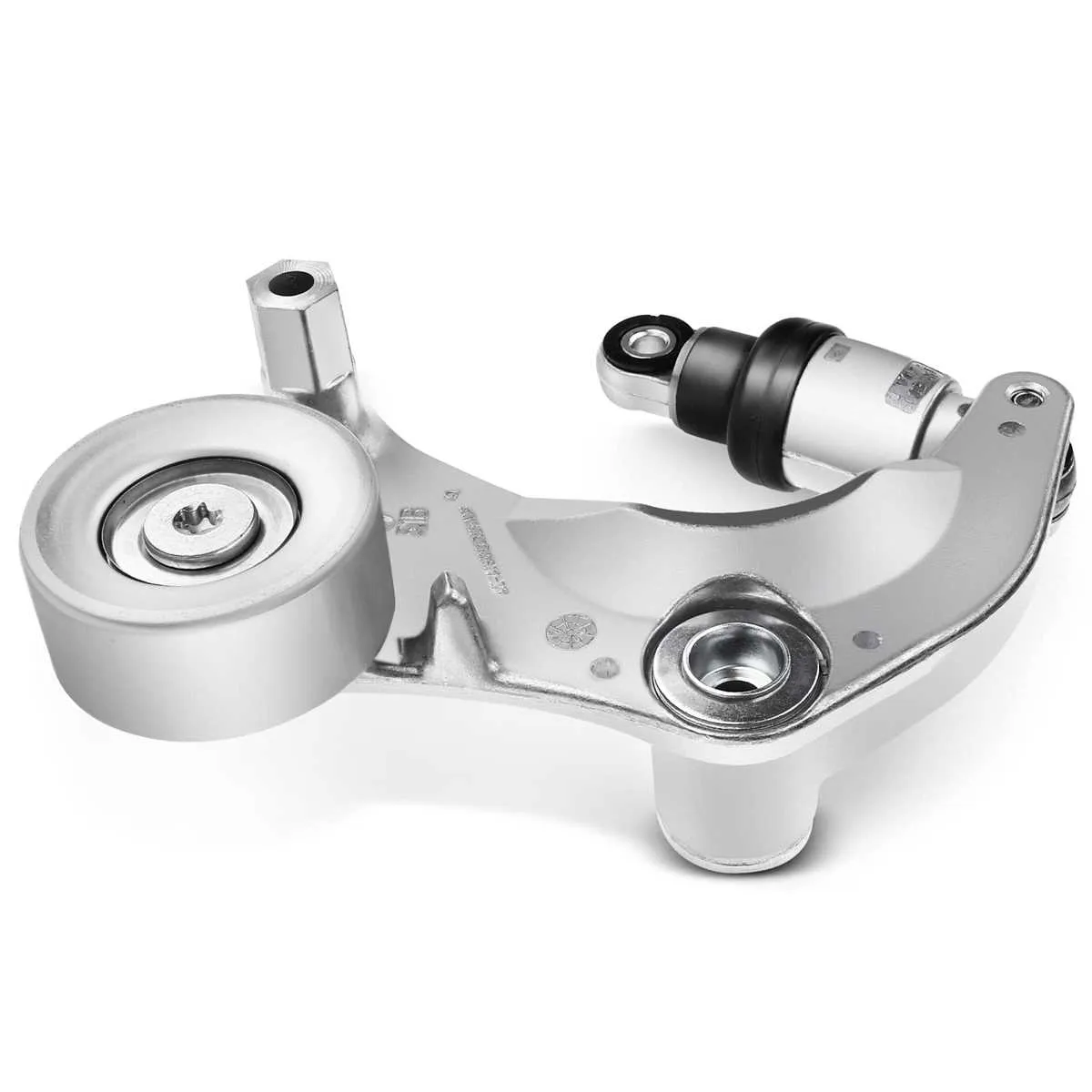

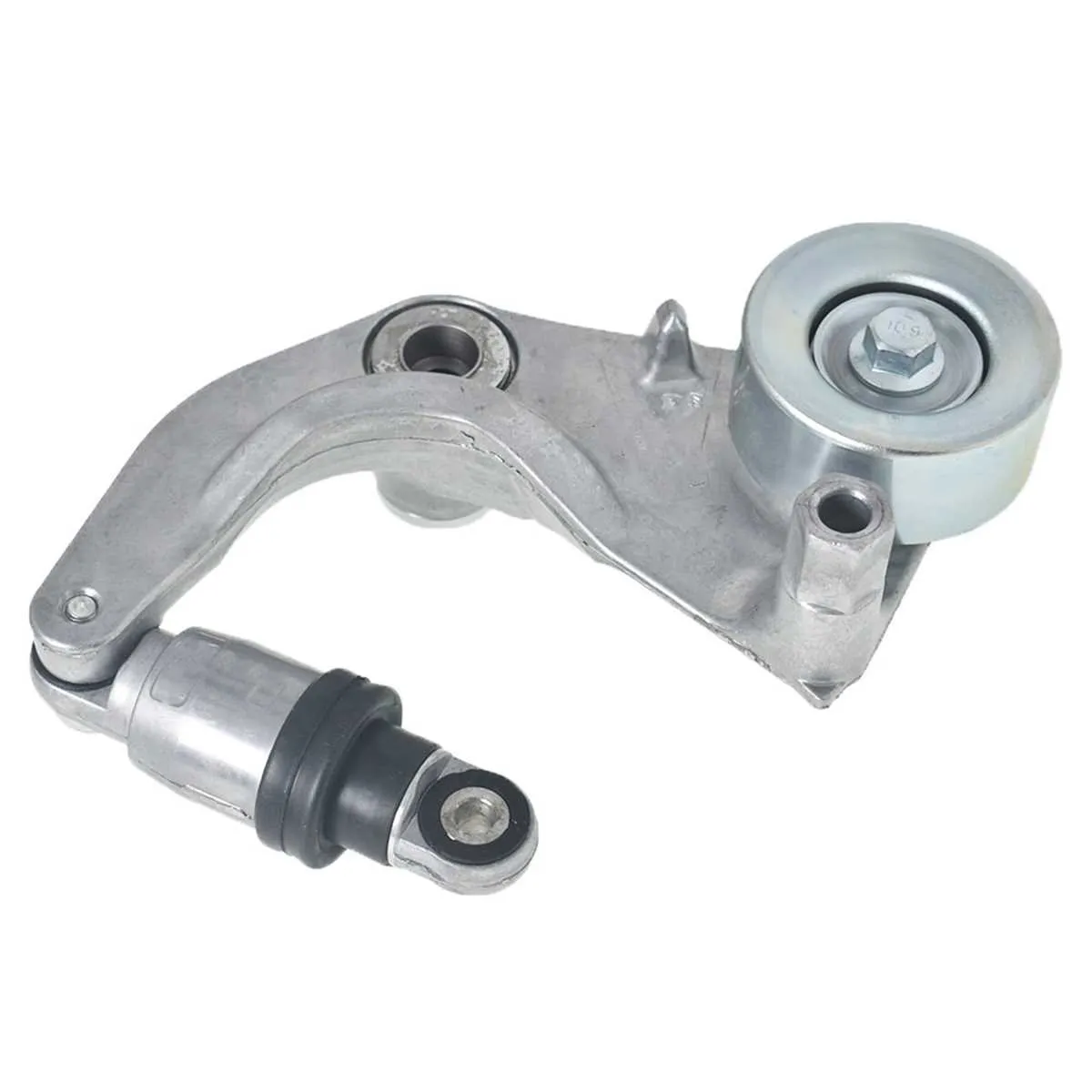

Step 1: Begin by locating the tensioner pulley. You will need to relieve the tension on the pulley before removing the old accessory drive component. Use a socket wrench or breaker bar to rotate the tensioner in the direction specified in the vehicle’s manual to slacken the belt.
Step 2: Once tension is released, remove the old component by simply sliding it off the pulleys. Pay attention to the routing path and the direction of each pulley. It is a good idea to refer to the manufacturer’s instructions or a visual guide to avoid re-routing issues.
Step 3: Before installing the new part, inspect all pulleys and accessories for wear or damage. If any pulleys are faulty or if the accessory system shows signs of wear, replace those components first.
Step 4: Begin placing the new component onto the pulleys, following the correct routing path. Ensure the new part is aligned properly with each pulley, and do not force it onto any part of the system if it does not align easily.
Step 5: Once the component is in place, rotate the tensioner pulley again to apply tension and secure the new part. Confirm that the part is properly aligned on all pulleys and that there is no slack in the system.
Step 6: Start the engine and let it idle for a few minutes while you listen for unusual noises. Check the alignment and tension again, ensuring everything is running smoothly.
Step 7: Finally, double-check the installation after a few drives to confirm proper operation. If any abnormal sounds persist, the part might need reinstallation or further inspection.
Troubleshooting Common Belt Issues
Inspect the accessory drive for wear signs such as cracking, fraying, or excessive slack. If any of these are noticeable, replacement is necessary. The serpentine component should remain taut, so any significant sag could indicate an issue with tension. A loose setup can lead to inefficient performance, such as overheating or electrical failure due to improper alternator function.
Check the pulleys for misalignment. If they appear skewed or show uneven wear, this could be the root of the issue. Misalignment often stems from a damaged tensioner or idler. Using a straightedge or laser alignment tool can provide a more precise check for misaligned components.
Examine the tensioner for proper function. The tensioner should apply a consistent force. A faulty tensioner may fail to maintain appropriate pressure, causing slippage. In some cases, a sticking or worn-out spring will fail to keep enough tension, making the drive system unreliable.
Inspect for noises such as squealing or chirping. These sounds often indicate that the system is either over-tightened or under-tightened. Additionally, noises can arise from worn-out components in the drive, such as pulleys or the tensioner bearing.
If you experience inconsistent power delivery or poor vehicle performance, it could point to a misfunctioning drive system. The alternator or power steering pump might be underperforming due to the compromised drive system. Inspect for overheating, poor air conditioning, or irregular power steering response as signs of this issue.
Regularly clean the drive path of any debris and check the system for oil contamination. Oil or coolant leaks can degrade the rubber, leading to quicker wear and eventual failure. Be proactive by replacing seals and gaskets to prevent such damage.
In rare cases, pulley bearing failure can cause slipping or uneven motion. You may need to check these with a mechanic if the issue persists despite replacing the visible components.
