If you’re tackling the engine belt routing on your vehicle, start by identifying the components that require attention. The correct placement and tension of each component are essential for proper functionality. Ensure that all parts, from the crankshaft pulley to the alternator, are aligned accurately, as this will prevent premature wear and failure.
Attention to Detail is critical when working with the engine’s serpentine system. Be sure to follow the manufacturer’s recommendations for routing the belts. In some cases, misalignment can cause squeaking noises or, worse, component damage that could lead to a breakdown.
Replace worn or damaged belts immediately to prevent further damage. Check for cracks, fraying, or excessive wear that may compromise their function. Regular maintenance will save time and money in the long run.

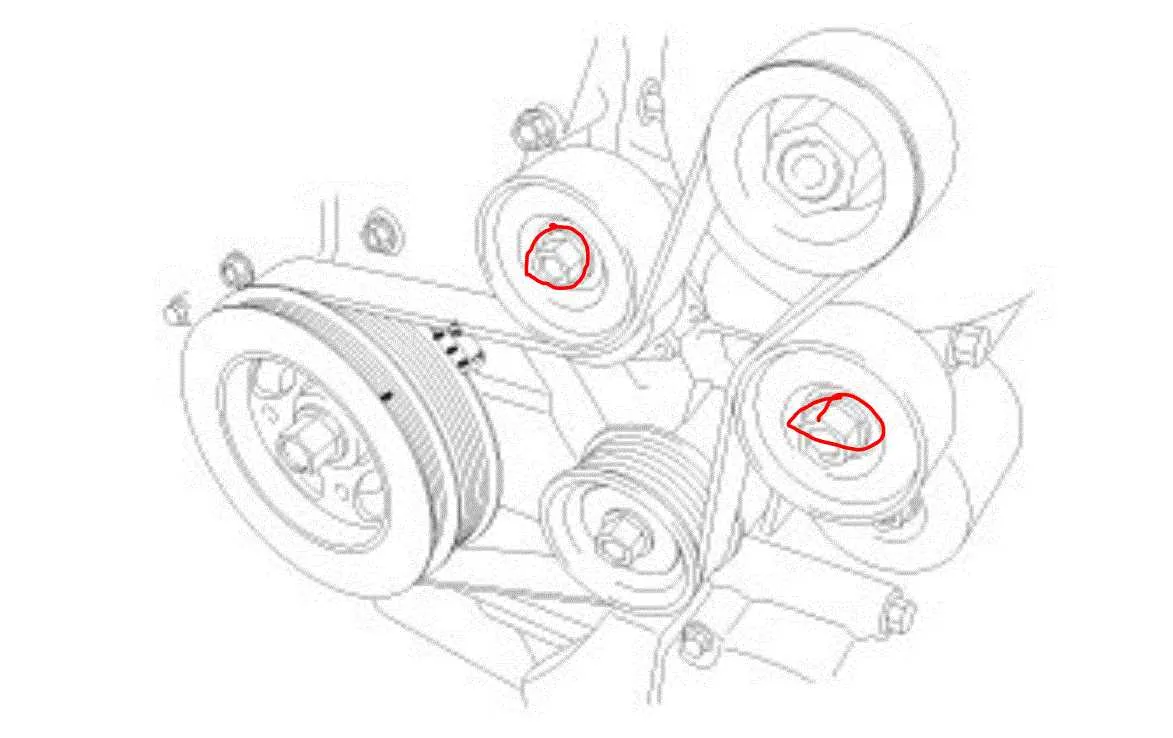

Serpentine System Overview
For efficient engine operation, it is crucial to ensure the proper routing of the accessory drive system. Misalignment or wear on the components may result in reduced performance or complete failure. Below is the correct setup for the serpentine configuration.
- Ensure all pulleys are aligned correctly to avoid strain on the tensioner.
- Double-check the condition of the idler and tensioner pulleys. Replace if there are signs of wear or noise.
- Ensure that the main drive belt is properly tensioned to maintain optimal function of accessories such as the alternator, air conditioning compressor, and power steering pump.
The routing path should follow these key steps:
- The belt should wrap around the crankshaft pulley first.
- Proceed with the alternator pulley, followed by the air conditioning compressor pulley.
- Route the belt through the power steering pump pulley, ensuring it remains tight and aligned.
- Conclude by wrapping around the idler pulley and tensioner assembly.
Before final installation, verify all tensioning is within specifications. If using a new belt, check the alignment once more after a short test run. Ensure no squealing or slippage is present during operation.
Understanding the Pulley and Serpentine System Components
Ensure all components in the drive system are properly aligned and tensioned for optimal engine performance. The serpentine belt works with various pulleys, each having a specific function. The primary pulleys include the crankshaft pulley, alternator pulley, and air conditioning compressor pulley. If any of these components wear out or become misaligned, it can lead to operational inefficiencies or even complete system failure.
The tensioner plays a crucial role in maintaining the correct tightness of the system, preventing the belt from slipping. Over time, the tensioner’s spring can lose its effectiveness, requiring replacement. Additionally, the idler pulleys guide the belt along its route and prevent it from deviating off track. Regular inspection of these pulleys for wear and bearing smoothness is essential to avoid premature failure.
Another vital component is the water pump pulley, which keeps the engine cooling system functioning. Any failure in this pulley can cause the engine to overheat, so ensuring it’s in good condition is critical for long-term engine health. Routine maintenance, including the inspection of the pulleys and the drive components for signs of wear or cracks, will extend the life of the entire system and maintain vehicle reliability.
Step-by-Step Guide for Replacing the Drive System

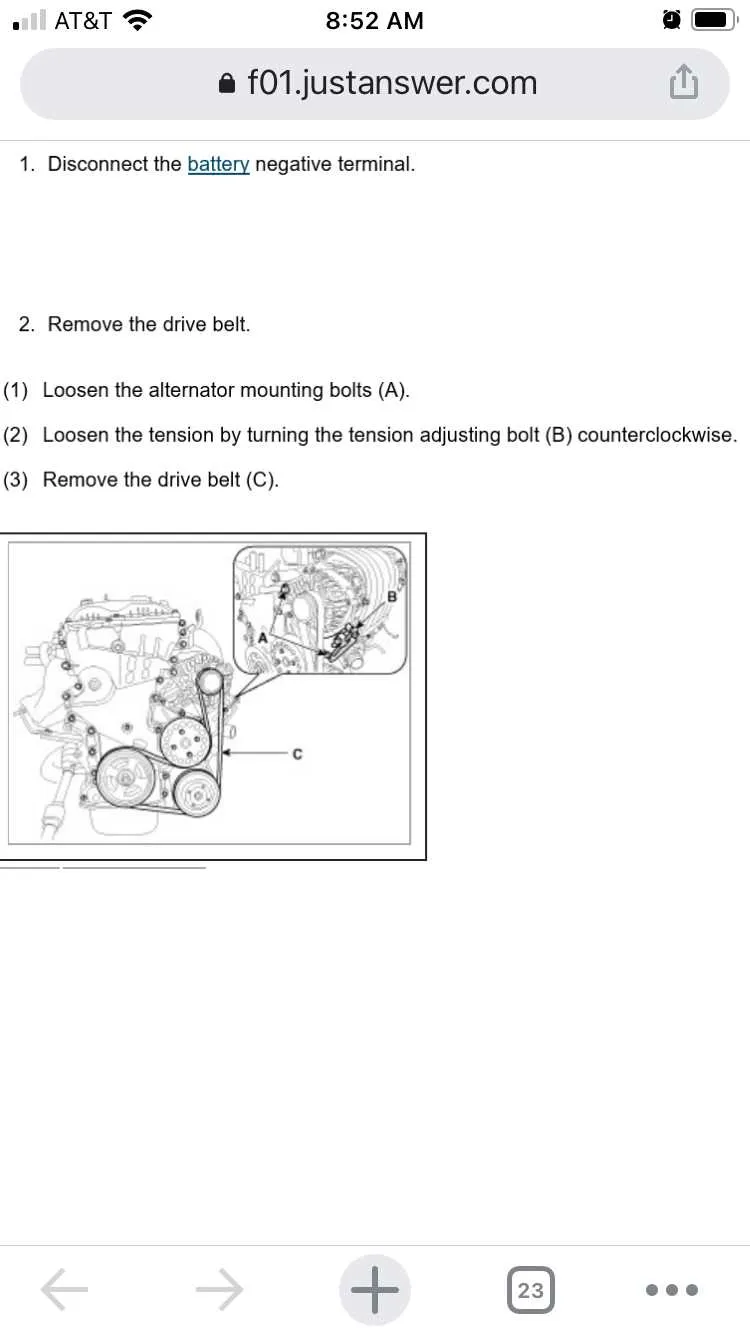

Start by loosening the tensioner pulley using a ratchet and socket. This will relieve the pressure on the system. Carefully remove the old component from the pulleys, taking note of its path to ensure proper installation of the new part.
Inspect all the surrounding pulleys and components for wear or damage. If any part seems worn out or damaged, replace it to prevent further issues. It’s recommended to replace the tensioner along with the new part to maintain optimal performance.
Place the new component over the pulleys, following the exact routing as the previous part. Ensure it is aligned correctly and does not sit unevenly. Use a pry bar or similar tool to gently work the new component into place if needed.
Once the new component is in place, tighten the tensioner pulley to the specified torque using a torque wrench. Double-check the tension of the new part to ensure it has the correct tightness.
Finally, start the engine and listen for any unusual noises or vibrations. If everything sounds smooth, take the vehicle for a short test drive to verify that the replacement was successful. If any issues persist, recheck the alignment and tension of the new component.
Troubleshooting Common Belt Issues
Check for proper tension if you notice squealing noises or reduced accessory function. A loose or misaligned serpentine component can cause these symptoms. Inspect for visible cracks, wear, or glazing, as these indicate premature degradation. If the surface looks smooth or shiny, it’s time to replace the component to avoid further damage to surrounding parts.
Ensure that pulleys are aligned correctly and spinning smoothly. Misalignment often leads to premature wear and could cause the accessory to fail. Check for any obstructions or debris in the path of the system that could hinder motion.
Inspect the tensioner for proper spring action. If it seems weak or stuck, the tensioner may need replacement. Over-tightening can also damage the components, leading to premature wear. Verify the system maintains consistent tension across the length of the component.
If the engine is overheating or the air conditioning is malfunctioning, it may indicate a problem with the drive system, possibly involving friction or blockage. A malfunctioning pulley can lead to poor performance of the alternator or water pump, so it’s crucial to address the issue immediately to avoid engine strain.
For any visual wear or unusual noise, always replace the component as soon as possible to prevent further complications and ensure proper operation of the engine’s auxiliary systems.
