For optimal control of water flow between different outlets, consider using a three-position switch that directs water to the desired fixture. This setup is ideal for switching between a handheld unit, overhead shower, or bath spout with ease.

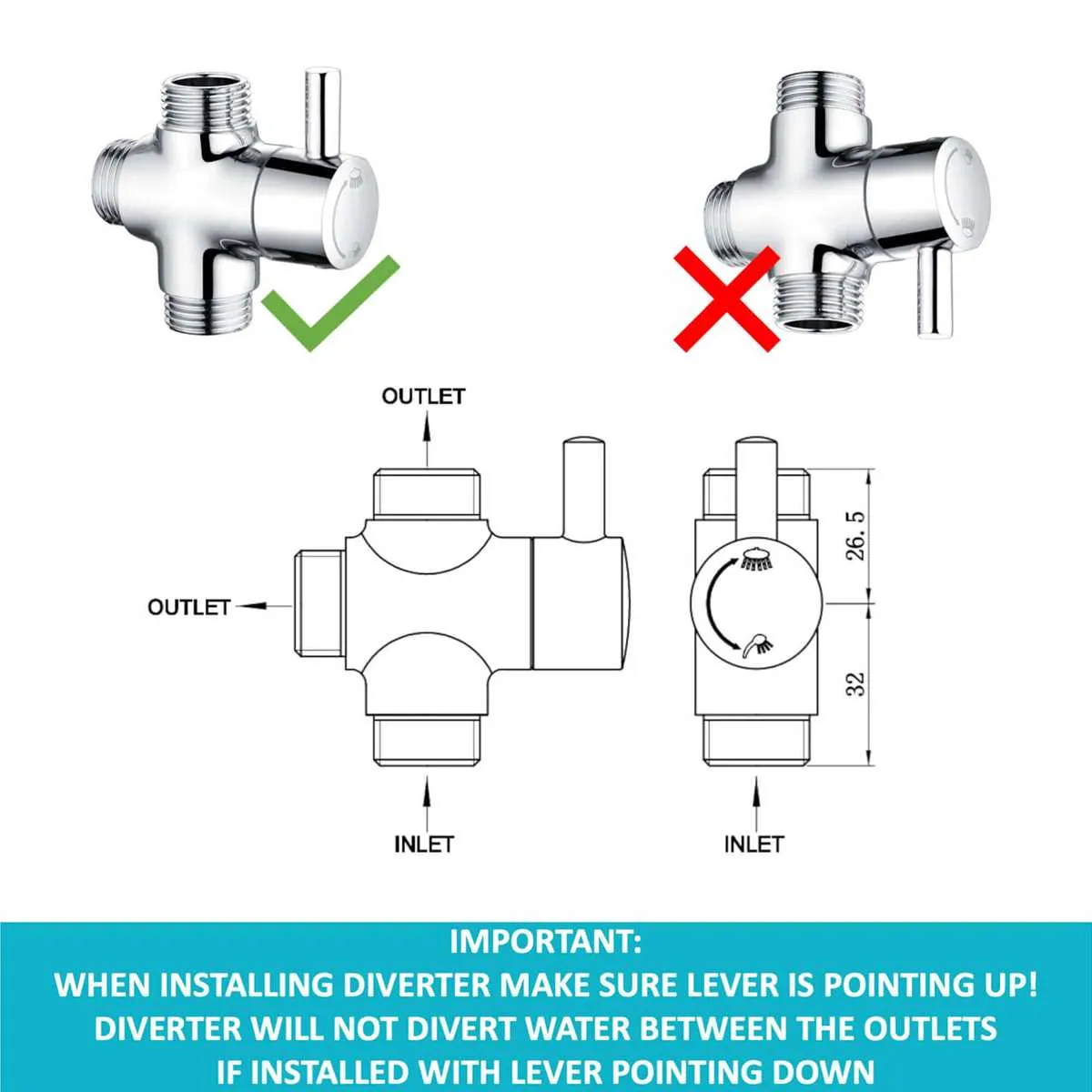

Installation process: Begin by shutting off the main water supply. Identify the correct inlet for the water feed and connect it to the central port of the control unit. Each of the three output connections should be securely attached to their respective outlets (e.g., a bathtub faucet, showerhead, or hand shower). Ensure each connection is leak-proof.
Functionality check: Once installed, test the unit by rotating the knob or lever through all available settings. Ensure smooth transitions between the different outlets without any water leakage or obstruction. If any irregularities are found, recheck the connections or replace faulty components.
Tip: Regular maintenance of the mechanism is recommended to prevent mineral buildup, which can obstruct the flow of water. A periodic cleaning routine ensures continued smooth operation for years.
Understanding a 3-Port Diverter Mechanism

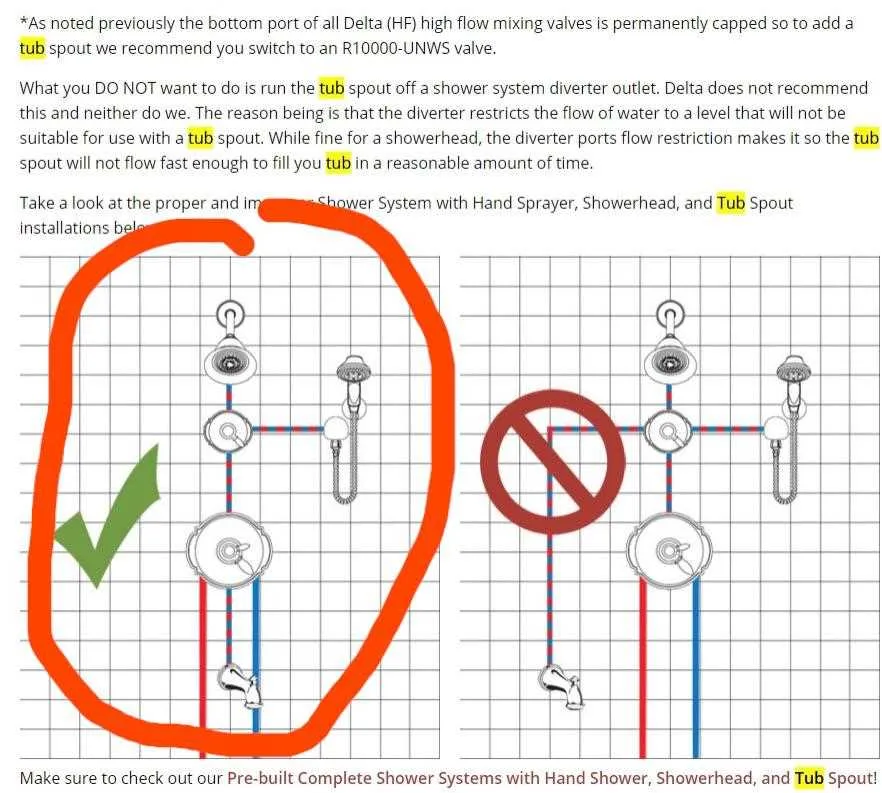

When setting up a system with multiple water outputs, it’s crucial to select the right diverter mechanism to control the flow between them. A 3-port diverter enables smooth transitions between a bathtub spout, hand shower, and overhead fixture with minimal effort.
The key components include a rotating handle or lever that manipulates the internal passageways. Each path directs water to the selected outlet, ensuring a steady and consistent flow. Understanding the internal structure will help in troubleshooting, ensuring proper water distribution with no leaks or blockages.
Typically, these systems are installed in areas where multiple water delivery points are needed, offering increased functionality without excessive plumbing. Proper installation is essential for maintaining pressure and preventing unnecessary strain on the system.
Check that the connections are tight and the internal seals are intact to prevent leaks. Periodic maintenance and cleaning of the mechanism can help extend its lifespan and ensure smooth performance.

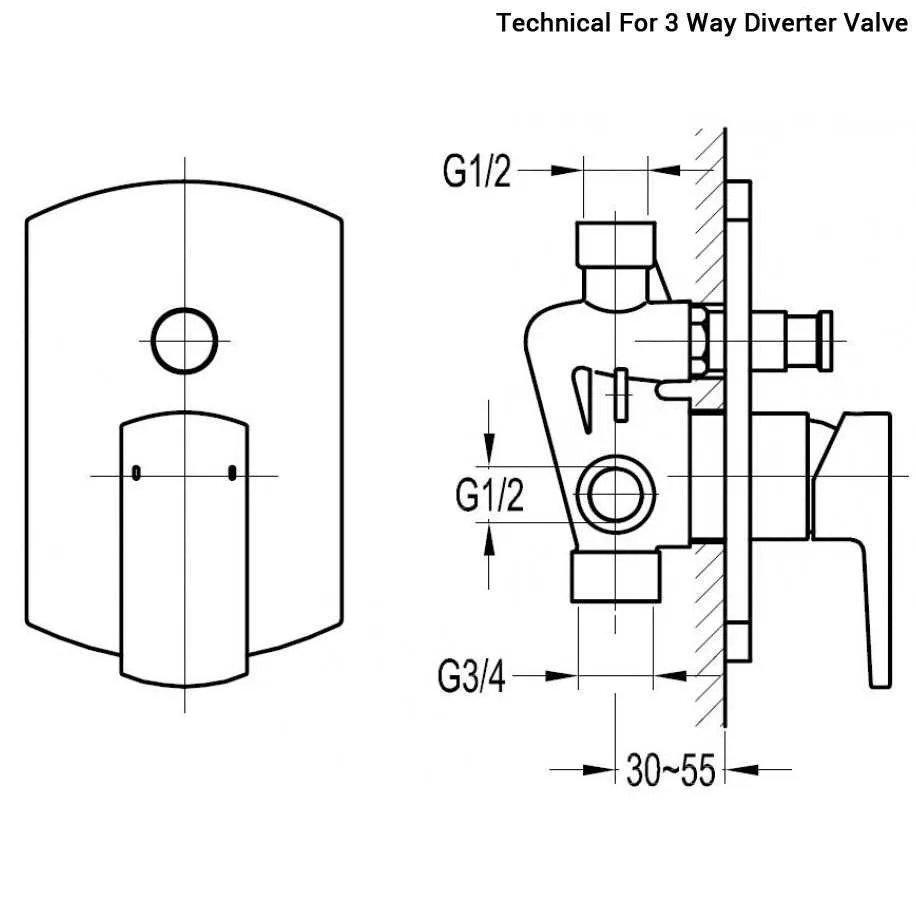

Understanding the Components of a 3-way Switching Mechanism
The primary element is the central actuator, which directs water flow by controlling multiple pathways. It features a lever or knob that shifts between different positions, guiding the liquid to either the faucet or the bathtub spout. Pay attention to the material of the actuator, as brass and stainless steel ensure durability and resistance to wear.
Another crucial component is the inner cartridge, responsible for regulating pressure and temperature balance. It incorporates ceramic disc technology, which provides smooth operation and prevents leaks. Regular inspection of the cartridge is essential to avoid malfunction or uneven water distribution.
The third integral part is the housing, a sturdy casing that encloses the internal mechanisms. It’s typically made from corrosion-resistant materials such as brass or high-quality plastic. Proper installation of the housing ensures that the system remains watertight and prevents any leakage that could damage surrounding areas.
Finally, the inlet and outlet ports control the incoming and outgoing water flow. They are designed to fit specific plumbing configurations, so choosing the correct port size is necessary for optimal performance. Over time, mineral build-up in these ports can restrict flow, so routine maintenance is advised.
How to Install a 3-Position Water Flow Control Mechanism
Start by shutting off the main water supply to avoid leaks. Use a wrench to remove the existing control unit from the wall. You may need to unscrew a trim plate and detach any remaining connections. Once the old component is removed, clean the exposed pipe thoroughly.
Next, connect the new device by aligning its inlet and outlet ports with the existing pipes. Tighten the connections securely using plumbing tape or pipe dope to ensure a leak-free seal. If you’re replacing a trim kit, ensure the new cover fits the existing mounting holes or modify them as needed.
Once everything is connected, turn the water supply back on slowly and check for leaks. Test the new control mechanism by turning it through its full range of functions to ensure proper water flow switching between the different outlets.
If any leaks appear, tighten the connections and recheck. Once confirmed that everything is sealed and working properly, reinstall the trim plate and finish by cleaning up any debris.
Troubleshooting Common Issues with a 3-Way Diverter
If water is not properly switching between the outlets, the issue is likely a malfunctioning internal mechanism. Follow these steps to address it:
- Inspect the handle for any obstructions or damage that may prevent it from moving smoothly.
- Check if the internal parts are misaligned or stuck due to mineral buildup.
- Ensure the connections to the plumbing are secure and there are no leaks around the unit.
When there’s insufficient water pressure at the selected outlet, it often points to a clog. Resolve this by:
- Removing the filter screen to clear any debris.
- Flushing the system with water to dislodge any blockages.
- Replacing any damaged seals or gaskets that may hinder flow.
If the flow direction is inconsistent, check the switch mechanism:
- Examine the switch for any internal damage or wear.
- Lubricate the moving parts to improve performance if there’s excessive friction.
- Confirm the diverter is not obstructed by buildup, which may require descaling or a deep clean.
If the system is leaking, most likely the seals have worn out. To fix this:
- Replace the O-rings or gaskets around the diverter to restore a tight seal.
- Inspect the threaded connections for any signs of cracks or degradation.
Regular maintenance of these components will help prevent further malfunctions and ensure long-term performance.
