If you’re looking to modify or fix your guitar’s pickup selector, this guide will walk you through a proven method for achieving clear, reliable results. Understanding the connections and their functions will save you time and ensure you avoid common mistakes.
First, focus on the key connections: the ground, the pickups, and the hot lead. Each of these has a specific role in delivering the right signal. A solid ground connection is crucial for reducing noise, while correctly linking your pickups to the output ensures clear tone transmission.
For optimal performance, it’s essential to follow a consistent pattern when connecting the terminals. The placement of each wire directly impacts tone clarity and the overall reliability of the system. Using quality components such as conductive materials and robust solder joints will prevent future issues.
By following these specific steps, you’ll have the right setup to switch between the desired pickups smoothly. A precise approach guarantees your instrument performs at its best, with each toggle delivering the sound you expect.

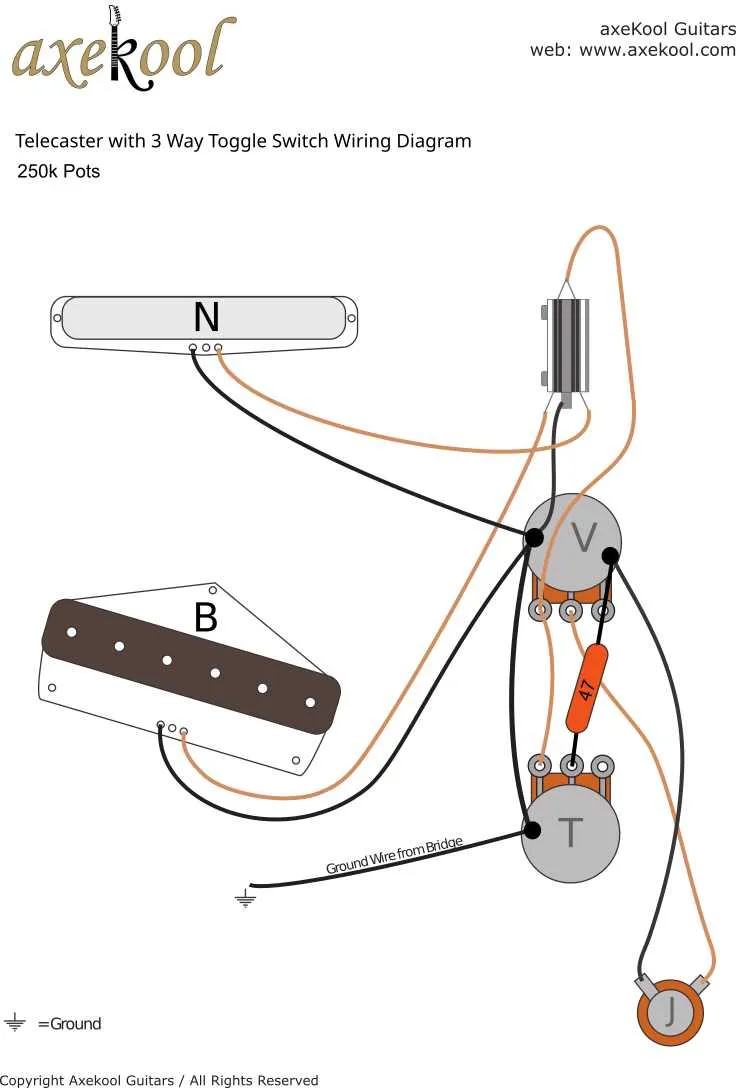

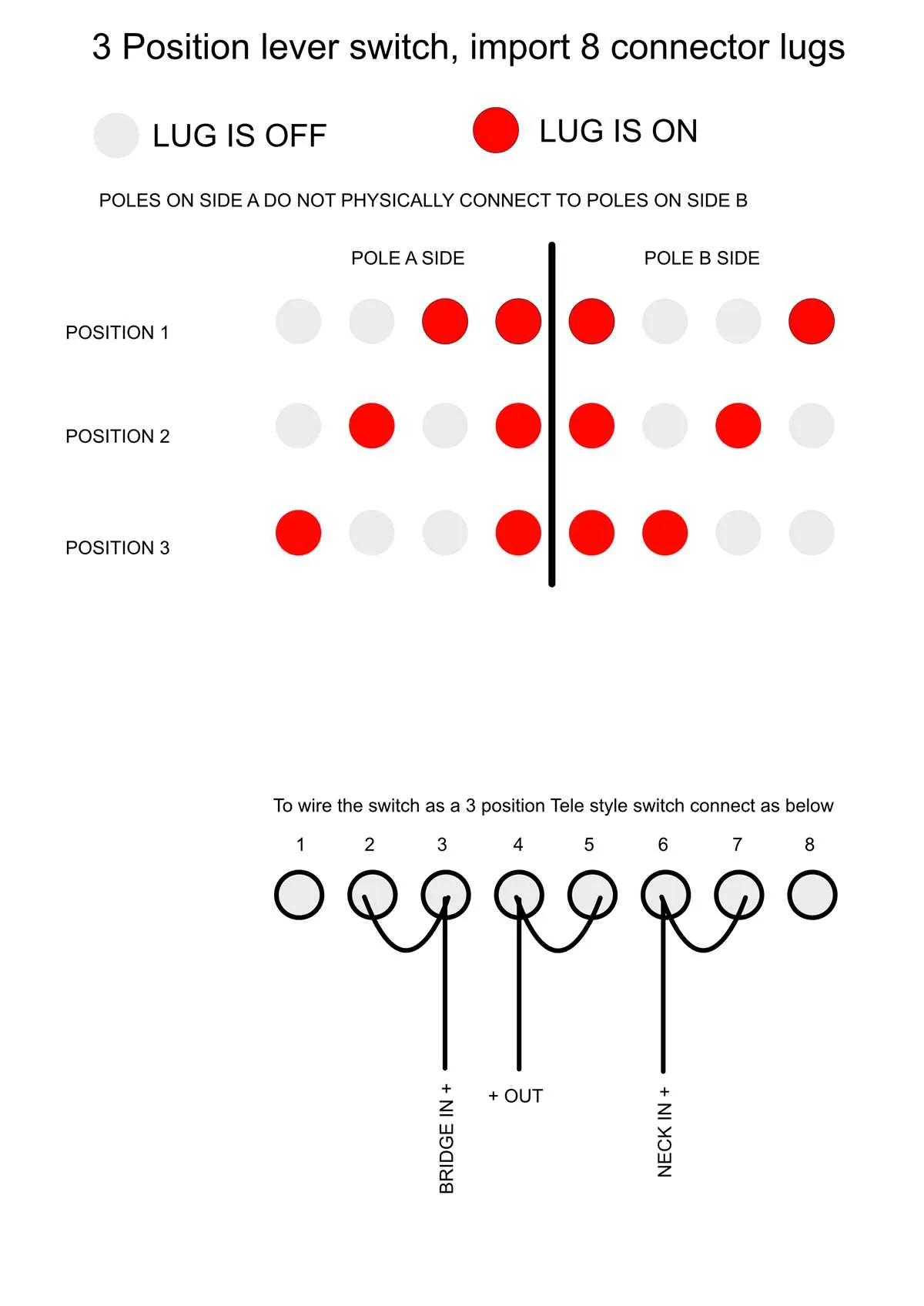

3-Position Pickup Selector for Telecaster
To achieve optimal tonal versatility on your guitar, correctly configuring the 3-position selector is essential. In the first position, connect the bridge pickup directly to the output for bright, sharp tones. In the second position, combine the bridge and neck pickups in parallel, delivering a balanced, full sound. The third position should connect only the neck pickup, providing a warmer, smoother tone ideal for rhythm playing. Ensure proper grounding to avoid noise and hum. Pay attention to the correct orientation of the terminals for each pickup to ensure precise function and tonal clarity.
How to Wire a Standard Pickup Selector
To achieve the classic configuration, connect the neck pickup to the middle terminal of the selector. The bridge pickup should be connected to the leftmost terminal. The output from the selector goes to the volume pot’s input. Ensure a clean connection from the output terminal to the tone control.
For the ground connection, use the back of the volume potentiometer, connecting it to the bridge and other metal components. The tone control should be linked to the output terminal on the selector, and the final link from the tone pot goes to the ground. Double-check the connection on the first terminal for proper pickup selection when toggled.
Important: Always test the functionality before finalizing the installation, checking the sound response in both pickup positions.
Identifying Common Installation Mistakes in Telecaster Electrical Setup
Ensure proper grounding to avoid noise interference. A loose ground connection is a common error that can lead to hum or buzz. Check that the ground wire is securely attached to the control plate and any metal components.
Incorrect soldering can lead to weak or intermittent connections. When soldering the leads to the contacts, avoid excessive heat, as it can damage components. Aim for clean, solid joints to ensure stable operation.
Incorrect lead placement often causes malfunctions. Double-check that the hot and ground leads are connected to the correct terminals on the component. Misplaced connections can lead to non-functional controls or reversed polarity.
- Ensure proper contact between the leads and terminals to avoid loss of signal or control failures.
- Use the correct gauge wire to maintain consistent electrical flow. Too thin a wire can cause resistance issues.
Another common mistake is poor shielding. Inadequate shielding can result in unwanted electrical noise. Make sure all exposed areas are properly shielded with copper tape or conductive paint.
Finally, double-check the configuration of the components. Verify that each part is oriented correctly according to the specific setup. Misaligned components can lead to malfunctioning tone controls or erratic signal behavior.
Optimizing Tone with Electric Guitar Selector Modifications
To enhance your sound, consider reconfiguring the pickup selector for more tonal versatility. One effective approach is the addition of a series-parallel mod, which changes the wiring for pickups. In series mode, the signal becomes more powerful and mid-heavy, ideal for rock or jazz. Parallel, however, results in a clearer, more open tone suitable for blues or clean playing.
Another modification is the blending of pickups in certain positions. For instance, incorporating a resistor between two pickups creates a smoother transition, balancing the output levels. This can also minimize harshness or muddiness, offering a cleaner mix when switching between the neck and bridge positions.
If you’re seeking a more aggressive tone, a common trick is to add a capacitor across the neck pickup, enhancing high frequencies. For a warmer, darker sound, a high-value tone pot can help you cut the treble and focus on low-end richness without losing clarity.
Ensure to test your changes incrementally to find the optimal setting. Each adjustment will impact the tonal balance, so experiment with different component values (resistors, capacitors, potentiometers) to find the sweet spot for your desired sound.
