To achieve greater tonal versatility with your electric guitar, consider utilizing a simplified circuit setup. This modification allows you to seamlessly switch between multiple pickup combinations, enhancing your ability to adapt to various musical styles.
First, ensure that your guitar has a reliable selector switch with three distinct positions. This setup enables a smooth transition between pickups, offering more control over your sound. Whether you’re seeking a brighter tone or a fuller, warmer sound, this adjustment can provide both flexibility and precision.
Next, opt for high-quality wiring to minimize signal loss. Use premium copper wire and avoid unnecessary twists or loops that could impact your signal clarity. Proper grounding is crucial–ensure all components are securely grounded to avoid unwanted hum or interference.
Finally, experiment with the placement of your components, such as potentiometers and capacitors, for an optimal configuration. Minor tweaks can significantly influence your overall tone, providing a personalized setup that suits your playing style.

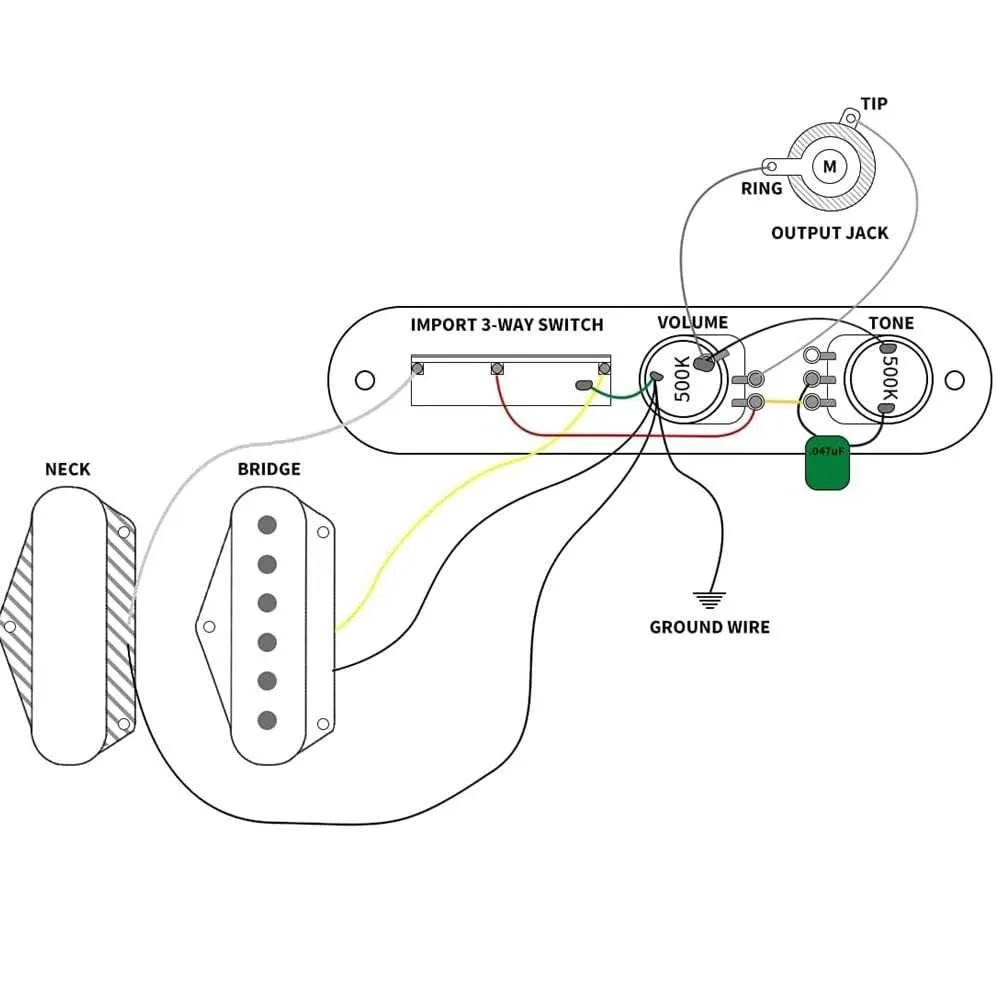

Switching Circuit Setup for Classic Guitar Models
For a traditional instrument setup with a 3-position selector, ensure the bridge and neck pickups are wired to distinct points on the switch. The middle position connects both pickups in parallel for a balanced tone, while the outer positions route signal through the respective pickup. Focus on achieving clarity and minimizing interference by maintaining clean, direct connections between the components.
The common switch arrangement for these instruments includes a 3-pole lever switch, with the central pole controlling the output. For a bright and clear sound from the bridge pickup, wire it to one side of the switch, and for a fuller tone from the neck pickup, wire it to the other. Each position’s output is then directed to the tone and volume pots, which can be fine-tuned based on desired tonal response.
When implementing the configuration, consider grounding both pickups effectively to prevent noise. Insulating the wiring properly and keeping it as short as possible will reduce hum and interference. Also, ensure the solder points are clean and secure, preventing unwanted signal loss or distortion.
Understanding the Basic 3-Position Switch Configuration
The 3-position selector switch allows you to choose between three distinct pickup combinations. In the first position, the bridge pickup is engaged, delivering a sharp, bright tone. The second position activates both pickups in parallel, providing a balanced sound with a mix of warmth and clarity. The third position switches to the neck pickup, resulting in a smoother, more mellow tone ideal for rhythm playing.
This setup is widely appreciated for its simplicity and versatility, especially for guitarists who want easy access to a range of sounds without complex modifications. Each setting provides a clear tonal difference, giving musicians quick options to adapt to various playing styles or genres.
For those interested in modifying their setup, it is important to ensure the switch is wired correctly to avoid any unwanted noise or loss of signal. Keep in mind that some variations of this configuration allow for different pickup connections, affecting tone and output levels. It’s always a good idea to check the internal components for proper grounding to maintain clarity in sound.
How to Modify the Standard Setup for Enhanced Tone Control
Start by replacing the standard 250k potentiometers with 500k ones for a brighter and more responsive sound. This tweak increases the high-end frequencies and provides greater clarity, especially when using neck pickups. Consider adding a treble bleed capacitor (typically 220k) across the volume pot to preserve high frequencies when turning down the volume.
Next, swap the stock capacitor for a higher quality one, like an orange drop capacitor. Choose values between .022uF and .047uF for more dynamic tonal shifts, depending on your preferences for brightness or warmth. For greater control over your tone, install a no-load potentiometer for the tone control, which bypasses the circuit entirely when turned up fully, allowing for a more transparent, uncolored sound.
If you’re looking for more versatile tonal options, adding a switch for capacitor switching can be a game-changer. It allows you to select different capacitor values in the circuit, giving you more flexibility in shaping your sound across various styles and genres. Finally, consider using a shielded cable for the output to reduce noise and ensure a cleaner signal throughout the entire setup.
Step-by-Step Guide to Soldering the 3-Position Selector Switch on a Guitar
Follow these precise steps to correctly solder the 3-position switch on your instrument:
- Gather the Required Tools and Materials:
- Soldering iron
- Solder wire
- Flux (optional)
- Wire cutters/strippers
- Heat shrink tubing or electrical tape
- Small screwdrivers (if needed for disassembly)
- Prepare the Switch and Wires:
Ensure the switch is clean and free of any previous solder. Cut and strip the wires to the appropriate lengths, making sure they are clean and free of insulation at the ends.
- Heat the Soldering Iron:
Plug in the soldering iron and let it heat up for 3-5 minutes. The tip should be hot enough to melt solder, but not so hot that it damages components.
- Soldering the First Connection:
Position the wire onto the desired terminal and apply the heated tip of the soldering iron to both the terminal and the wire for 1-2 seconds. Once heated, feed a small amount of solder onto the joint. Remove the soldering iron and let it cool for 2-3 seconds before moving to the next connection.
- Repeat for Additional Connections:
Move on to the next terminal and wire, following the same procedure. Always make sure the wires are positioned securely and make clean, strong solder joints.
- Check for Cold Solder Joints:
Inspect the connections for any signs of poor soldering, such as dull or cracked joints. Reheat and add solder if necessary.
- Insulate and Secure the Wires:
After confirming all connections are secure, insulate the exposed solder joints with heat shrink tubing or electrical tape to prevent short circuits.
- Reassemble the Instrument:
Reinstall the switch into its housing, ensuring the wires are routed properly. Tighten any screws if needed and double-check the functionality of the switch.
After completing these steps, you should have a solid and reliable connection for your selector switch. Test the switch for correct functionality before putting the guitar back together fully.
