When connecting a three-conductor device, ensure that the phases are correctly positioned to avoid short circuits. The first lead should be securely linked to the live terminal, which supplies current to the device. The second conductor is intended for neutral, ensuring the circuit remains balanced and completes the path for electricity to return. Finally, the third conductor is for grounding, which protects users from electrical shocks by directing excess current safely to the earth.
Always verify the polarity before proceeding with the connection to guarantee safe and efficient operation. For most setups, the live conductor is either colored brown or black, the neutral is blue, and the ground is typically green/yellow. However, variations in color coding exist depending on the region, so always consult local electrical codes.
Double-check the physical connections to make sure there are no loose contacts, as this can lead to power interruptions or create a fire hazard. Use proper insulation and secure each connection with the correct terminal screw to avoid any accidental disconnections or exposure to live parts.
Understanding 3-Terminal Electrical Setup
To ensure proper installation, follow these steps for connecting the three conductors correctly:
- Live (Hot) Connection: The conductor connected to the brass terminal carries the current from the power source. It is essential to securely attach this conductor to avoid any contact issues.
- Neutral Line: This conductor connects to the silver terminal. It completes the circuit by returning the current to the power supply. Make sure it’s firmly attached and isolated from other parts.
- Grounding Terminal: The green or green-yellow conductor is attached to the ground terminal, ensuring that any stray electricity is directed safely to the earth. This is critical for electrical safety.
Double-check all connections before securing the terminals. It’s important to use a screwdriver to tighten the screws on each terminal firmly. Ensure that no exposed metal from the conductors can cause short circuits or electrical shocks.
After connecting, test the setup with a continuity tester to ensure everything is properly linked. Always prioritize safety when handling electrical systems.
Understanding the Three Wires in a Plug
The first conductor, typically colored brown, carries the live current from the power source to the device. It’s essential to connect this to the appropriate terminal in the socket to ensure proper function.
The second conductor, usually blue, serves as the neutral, returning electricity back to the source after it passes through the appliance. It should be connected to the terminal designated for neutral flow.
The third conductor, often green or green with a yellow stripe, is the earth conductor. This provides safety by grounding the appliance, directing any stray electrical current to the ground, preventing potential hazards. Ensure it is securely attached to the earth terminal.

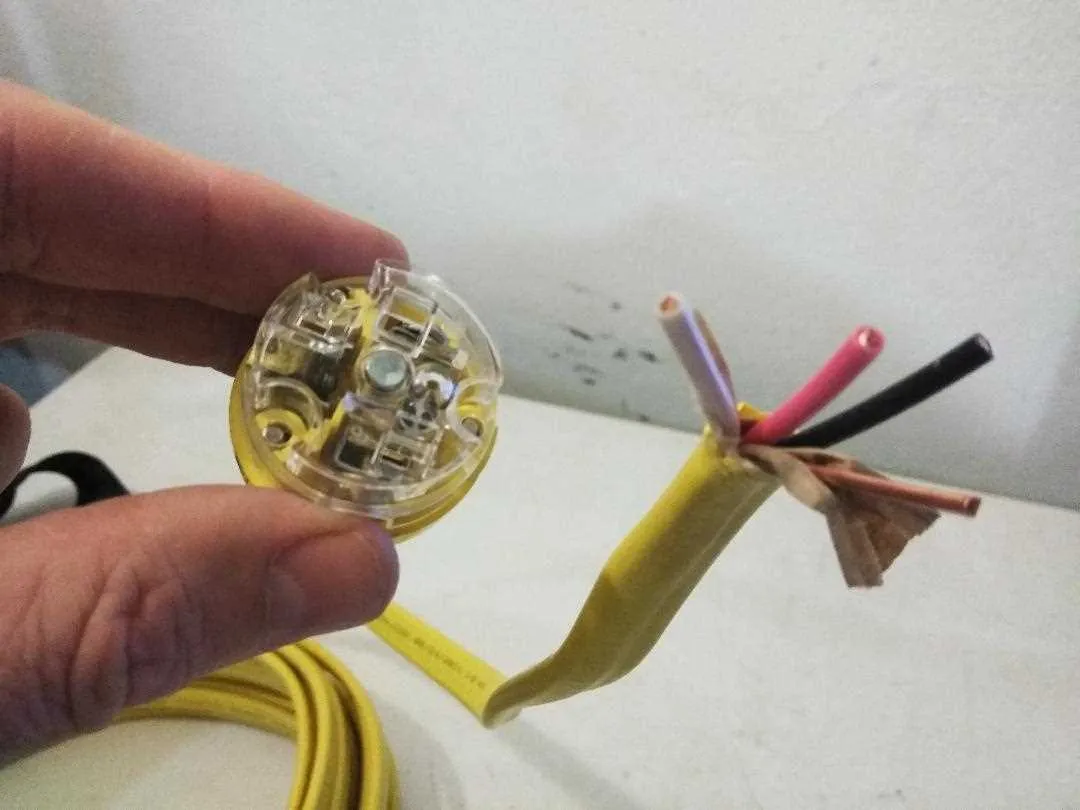

Step-by-Step Guide to Wiring a 3-Wire Plug
Begin by ensuring that the power is turned off to avoid any electrical accidents. Use a screwdriver to remove the cover of the component, exposing the internal terminals.
Identify the three terminals: one for the live conductor, one for the neutral conductor, and one for the earth connection. The live terminal is typically brass, the neutral one is silver, and the earth terminal is green or yellow-green.
Strip the ends of the conductors to expose about half an inch of the metal. Ensure you have enough exposed conductor to make a secure connection without excess copper sticking out.
Connect the live conductor to the brass terminal by twisting it around the screw in a clockwise direction. Tighten the screw firmly to ensure a solid connection.
Next, attach the neutral conductor to the silver terminal in the same manner, ensuring the connection is tight and secure.
Finally, connect the earth conductor to the green or yellow-green terminal. This connection is crucial for safety, so ensure the conductor is firmly attached and free of frays.
After all connections are made, double-check that the terminals are tight and that no copper is exposed. Replace the cover and tighten the screws to secure it. Test the installation by restoring power and checking for proper function.
Common Mistakes to Avoid When Installing 3-Terminal Connectors
Ensure proper polarity when connecting terminals to avoid reversing the neutral and live connections. Reversing these can cause malfunction or even damage to the connected equipment. The neutral terminal should always be clearly identified and connected to the correct slot on the device.
Check for secure connections at both ends. Loose contacts can lead to overheating or a potential fire hazard. Make sure all screws are tightened properly and there is no exposed metal that could cause a short circuit.
Insulate properly to prevent accidental contact with exposed conductive parts. Using heat shrink tubing or electrical tape ensures safety, especially in high-use environments. Failing to do so can increase the risk of electric shock.
Verify grounding is properly connected to prevent electrical faults. The ground terminal should be linked to the metal body or frame of the device. Neglecting this step can lead to an increased risk of electrocution if a fault occurs.
Choose the correct gauge for conductors. Using a wire that is too thin can result in overheating and potential failure. Always consult the manufacturer’s specifications for the correct size, ensuring the conductors are capable of handling the required current load.
Test the completed installation before use. Always check the connections with a multimeter to confirm there are no faults, especially regarding continuity and grounding. Testing can save time and prevent future issues.
