For effective operation of a cooling system, ensure you have a solid grasp of its electrical configuration. First, identify the key components involved in the power flow, particularly the core unit responsible for heat exchange. A typical setup requires precise connections between the relay, capacitor, and switching mechanism to ensure optimal functionality.
Start with the main connection terminals: These are critical points for power input, typically connected to a dedicated circuit breaker. It’s essential that the wire gauge corresponds to the power rating of the unit, with adequate insulation to prevent short circuits. Pay attention to the grounding wire to minimize the risk of electrical shock and to stabilize the unit’s performance over time.
Next, trace the signal lines: These lines communicate the operational status to the system. They direct the switching and timing signals between the control panel and the component responsible for thermal management. Check these connections regularly for signs of wear or loose connections that could disrupt system performance.
Capacitor and relay configurations: Proper capacitor size is crucial for efficient startup. Incorrect capacitor values can lead to delayed system response or even failure to start. The relay serves as a vital switch for activating the unit when conditions are met, ensuring smooth transitions between operational stages.
With a clear understanding of these electrical links, troubleshooting becomes more manageable, and you can ensure continuous and reliable performance from your cooling device. Regular maintenance checks are recommended to catch any potential issues early and prevent larger, costlier repairs later on.
Proper Connection of Cooling Unit Motor System
For efficient operation of the cooling unit, ensure the motor is connected to the control panel via the correct terminals. The primary power supply should come from the main relay switch, with a dedicated line for the motor’s startup current. Utilize a capacitor for the motor’s power surge at startup, ensuring it’s rated for the unit’s voltage. The motor must be grounded to the vehicle’s chassis or a dedicated grounding point to avoid electrical shock or malfunction.
The control signal from the thermostat is routed through a relay, which activates the motor. Ensure that the relay is rated for the voltage and amperage of the motor’s operational load. The signal wire should be isolated from high-voltage lines to prevent interference. Double-check connections on the terminal block for secure contact to avoid power interruptions.
For safety, install a fuse or circuit breaker to protect against short circuits or overcurrent. This is critical, as a fault in the system can cause severe damage. If there is a thermal switch in the system, make sure it’s correctly wired to interrupt power flow in case of overheating.
Always verify that the connections are tight and free from corrosion or wear, as poor connections can lead to system inefficiency or failure. For more reliable long-term performance, use high-quality connectors and insulators designed for continuous high-load operation.
Understanding the Main Components in the Compressor Electrical Schematic
When analyzing an electrical schematic for refrigeration systems, focus on key components to ensure correct installation and operation. The primary parts include the motor, contactor, capacitor, and thermal overload protector. These elements interact to regulate the cycle and maintain optimal performance.
Motor: This is the heart of the system, responsible for driving the pump. It is typically a high-efficiency unit designed for constant operation. Ensure the wiring is properly sized to avoid overloading or underperformance.
Contactor: The contactor controls the flow of electricity to the motor. It must match the motor’s current rating, preventing overheating. A defective contactor can lead to system failure, so always check its condition during troubleshooting.
Capacitor: Often located near the motor, the capacitor provides an initial jolt to start the motor. If the motor struggles to start, the capacitor could be faulty. Ensure it is rated correctly for the motor’s specifications.
Thermal Overload Protector: This component prevents damage to the motor by cutting off the power if the temperature exceeds safe limits. It acts as a safety feature, ensuring the system doesn’t overheat. Regular checks are necessary to ensure it functions correctly under high loads.
Familiarity with these components and their roles in the electrical schematic is essential for diagnosing issues and maintaining system longevity. Always refer to the manufacturer’s manual for precise component specifications and ratings.

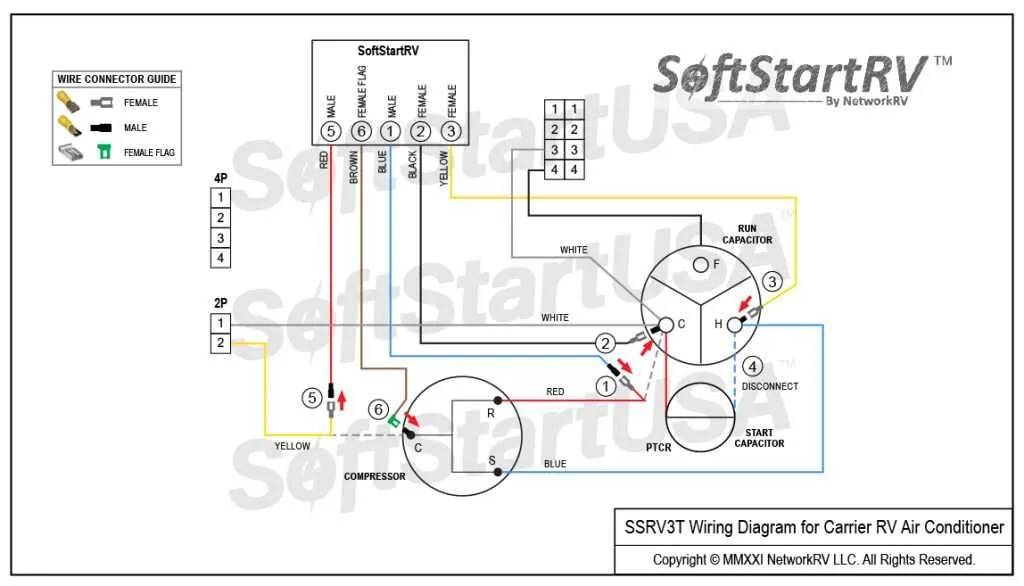

Step-by-Step Guide to Reading the Wiring Schematic for Air Conditioners
Begin by locating the legend, usually positioned in a corner of the schematic. It defines all symbols and abbreviations–ensure each symbol is understood before proceeding.
Identify the power source lines marked as L1 and L2. These indicate incoming voltage and serve as a reference for tracing the rest of the layout.
Follow control components such as contactors, relays, and capacitors. Lines between them show electrical continuity. Pay attention to normally open (NO) and normally closed (NC) contacts–symbols typically include a diagonal line or hinge to distinguish state.
Trace low-voltage paths separately from high-voltage ones. Low-voltage circuits often control thermostats and sensors and may be represented by dashed lines.
Examine each device label (e.g., C for contactor, R for relay, M for motor) and cross-reference it with terminal markings on the physical unit to confirm actual connections.
Observe color codes if available; some schematics include wire colors for easier field verification–these often appear next to line paths using abbreviations like BLK (black), RED (red), or YLW (yellow).
Ensure to match the sequence of operations. For example, thermostat signals pass through safety switches before energizing a motor contactor–an interruption here can halt the entire system.
Conclude by checking ground paths and ensuring protective elements such as fuses or circuit breakers are properly identified and matched to their rated positions.
Common Wiring Issues and Troubleshooting Tips for AC Compressors
Start by verifying that all connections are secure and terminals are free from corrosion. A loose terminal at the contactor or capacitor can cause intermittent operation or total failure.
- Contactor coil not energizing: Measure voltage at the coil; if below 24V AC, inspect control board, thermostat signal, or low-pressure switch.
- Run capacitor failure: If the component hums but doesn’t start, check microfarad rating with a multimeter. Replace if more than 6% off the nominal value.
- Short to ground: Use a megohmmeter to test windings. Resistance below 2 MΩ between winding and ground indicates insulation breakdown.
- Misidentified terminals: Use color-coded diagrams or manufacturer-specific markings. “C” (common), “R” (run), and “S” (start) must not be confused, or components may burn out.
- Overheated connections: Brown or melted wire insulation near relays or capacitors suggests excessive current. Replace both the wire and faulty device.
- Disconnect all power sources.
- Label and map all wire routes before disconnecting.
- Inspect for broken insulation or exposed conductors.
- Test continuity across overload protector; an open reading means internal thermal fuse is triggered.
- Check voltage drop under load; a drop over 10% suggests undersized or damaged supply wiring.
Always replace damaged conductors with identical gauge and temperature rating. If in doubt, consult technical documentation for exact connection layout and safety thresholds.
