Before starting any installation or troubleshooting of your vessel’s electrical components, it is crucial to have a clear visual representation of the system’s layout. These technical charts provide the most direct way to follow connections, ensure safety, and avoid costly mistakes. Having access to detailed maps helps with both planning and diagnostics, whether you are upgrading existing features or replacing worn-out parts.
When reading through these visuals, always look for color-coding schemes, which indicate the purpose of each wire or connection. For example, red typically denotes power, while blue often represents ground. Follow these conventions closely to avoid confusion when working with components such as lights, pumps, or navigation systems. If in doubt, consult a professional to cross-reference your interpretations and ensure compliance with industry standards.
Having a well-documented schematic also helps in reducing unnecessary troubleshooting time. It’s essential to check for signs of wear and corrosion, especially in high-moisture areas. Any corrosion can disrupt the current flow, leading to malfunction. Furthermore, organizing connections according to a structured map ensures that modifications can be made quickly without needing to reverse-engineer the system each time. Prioritize maintenance regularly to extend the life of critical parts.
Effective Marine Circuit Layouts

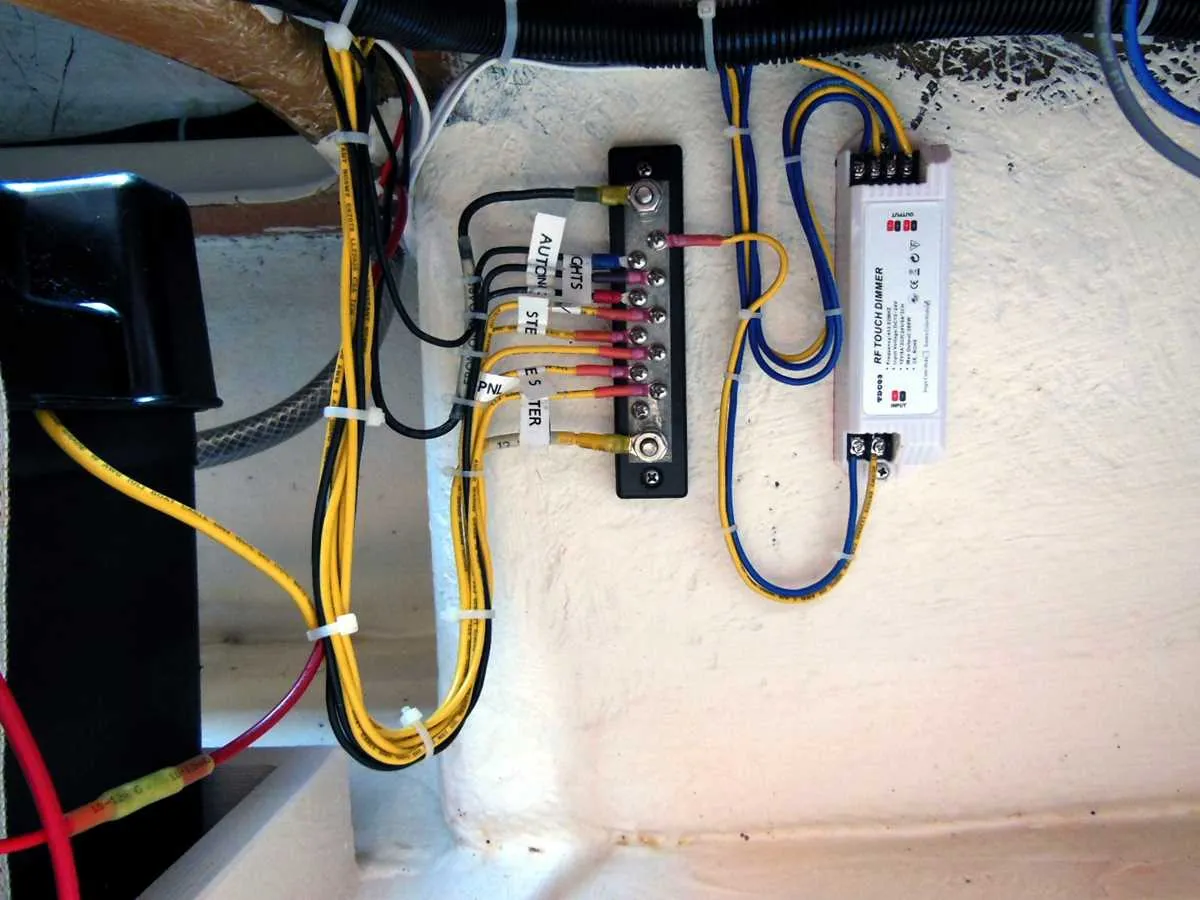

Ensure a clear separation between high and low voltage systems to prevent interference and minimize risks. Use marine-grade wire connectors and waterproof fuses to protect all components. Start with a power distribution panel that routes energy efficiently to your onboard systems. Incorporate a ground bus bar for all negative connections, keeping the setup organized and reliable.
Label each wire carefully to simplify future troubleshooting. Use color-coded insulation to easily distinguish between various circuits. For enhanced durability, choose tinned copper wires to resist corrosion in the marine environment. When installing a battery, ensure proper ventilation and mount it securely to avoid movement that could cause short circuits.
Prioritize accessibility to all key components, such as switches, breakers, and terminals. Install dedicated circuits for critical systems like navigation lights, communication devices, and bilge pumps to prevent overloads. Always include a main shut-off switch to disconnect all power in case of emergency.
Incorporate surge protection to safeguard sensitive devices from voltage spikes, particularly when using generators or shore power. Verify all connections are tight and secure to avoid power loss or arcing. Regularly inspect and maintain the system to ensure long-lasting performance and safety.
Understanding Power Distribution Systems
Start by ensuring all connections are secure and use appropriate fuses for each circuit. Always size the cables based on the current demand of each device and the distance they need to travel. For instance, use a larger gauge wire for longer distances to avoid voltage drops.

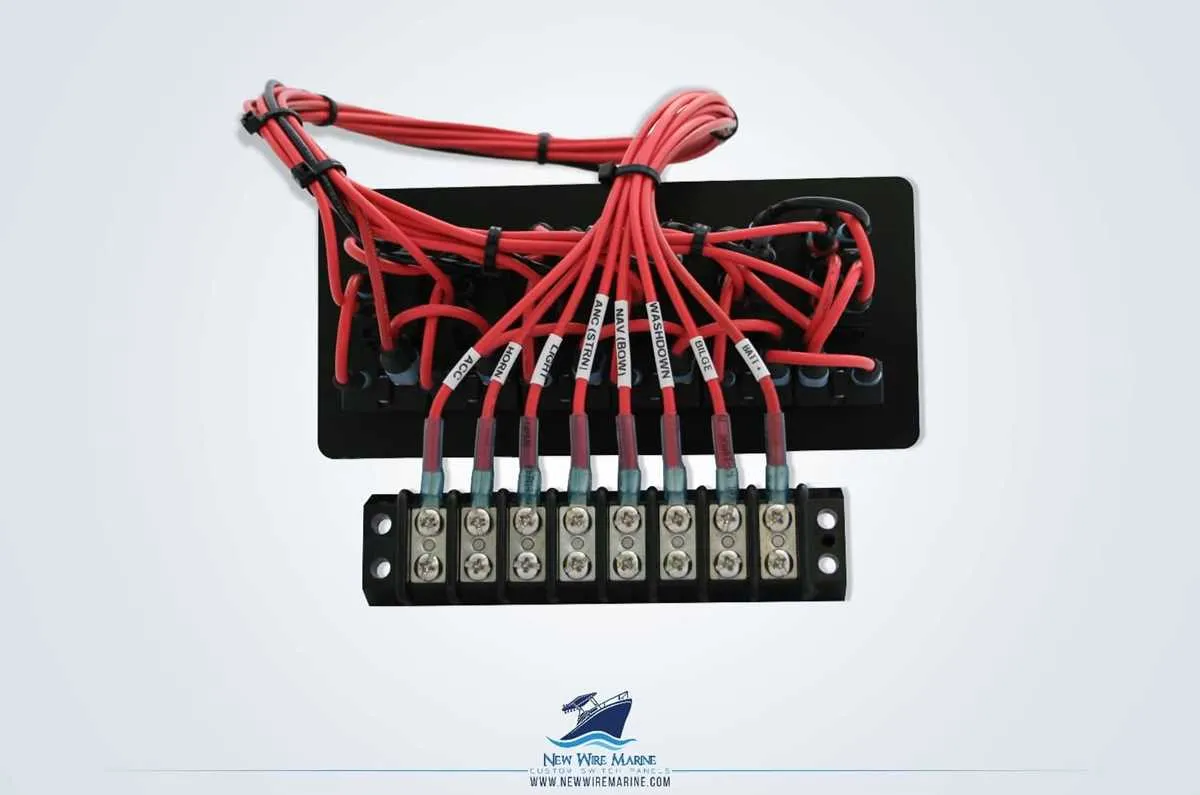

Integrate a main power panel with a clearly labeled switchboard. This allows for easy identification and control of each circuit. The panel should include breakers for each device or system, with dedicated lines for high-draw components like motors or pumps.
Ensure that the system is grounded properly to prevent electrical hazards. The ground should be as short and direct as possible to ensure safety and reduce resistance.
Use a battery bank with sufficient capacity to handle the peak power needs, while maintaining an adequate margin for unexpected demand. Always check the battery voltage regularly, and consider a monitoring system to provide real-time feedback on power consumption.
Consider a voltage regulator to maintain a stable power supply, particularly when using alternators or generators. This will prevent damage to sensitive equipment and ensure consistent operation.
For redundancy, it’s advisable to have backup systems in place, such as an auxiliary power source or an inverter that can step in during an emergency. Always ensure that the back-up power is capable of supporting critical systems.
How to Wire and Troubleshoot a Boat’s Lighting Circuit
Start by ensuring proper power source connections. Confirm that the battery terminals are secure and that there is no corrosion. Use marine-grade connectors to prevent future issues.
Identify and label each component. Ensure all switches, fuses, and fixtures are clearly marked. This step will help during troubleshooting and maintenance.
Use appropriate gauge wires. For lighting, typically a 14 AWG wire is sufficient, but ensure it’s rated for marine conditions and able to handle the specific load requirements of your lights.
Install a fuse close to the power source. This prevents overloads from damaging the circuit. Choose a fuse rating based on the total amperage of the lights you’re using, with a margin of safety.
Test each connection. Use a multimeter to check for continuity and verify voltage levels. Any irregularities indicate a faulty connection or component that needs attention.
Troubleshoot with the following steps:
- Check the fuse first. If blown, replace it with the correct rating.
- Inspect the switches for any loose wires or signs of wear.
- Test the light bulbs. If they’re burnt out, replace them with new ones of the correct wattage.
- Inspect the ground connections. A poor ground is a common source of issues.
- Ensure there are no frayed or damaged wires, especially in high-moisture areas.
Finally, verify proper operation under load. Turn on all lights and monitor for any flickering or dimming, which may indicate voltage drop or faulty wiring.

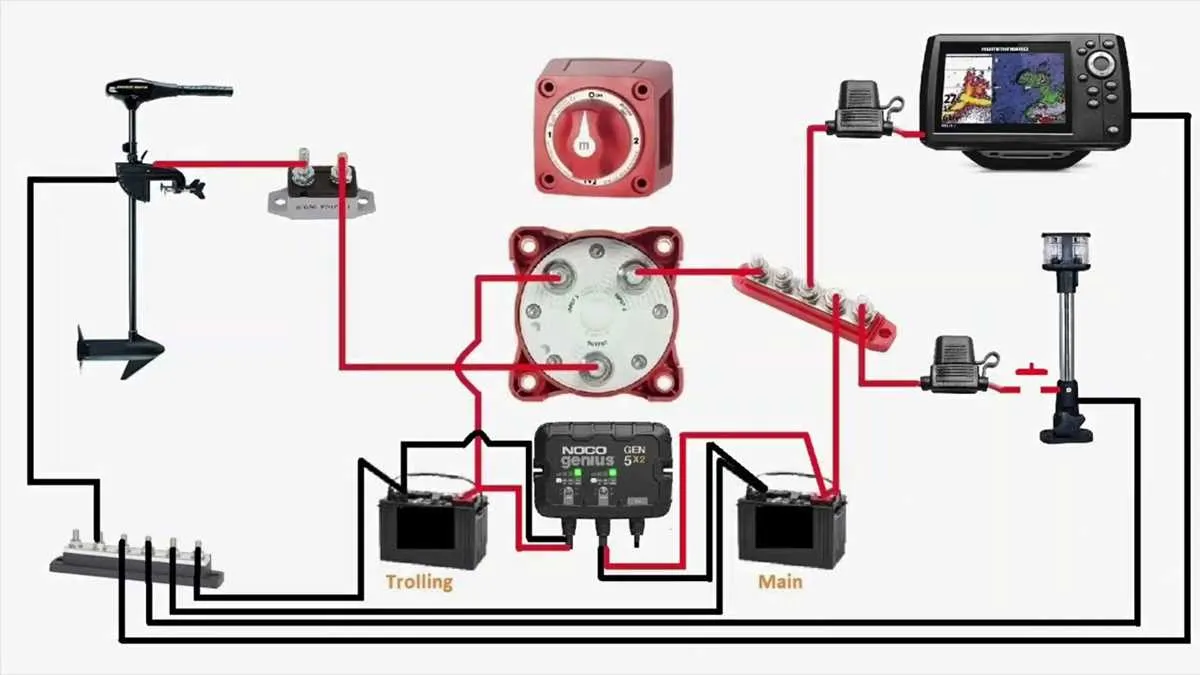

Connecting a Marine Battery to Power Systems
To properly connect a marine battery to your vessel’s power systems, follow these steps to ensure reliability and safety.
- Choose the Right Battery: Select a deep-cycle marine battery suitable for your vessel’s needs. AGM or gel batteries are recommended for their durability and safety.
- Battery Placement: Position the battery in a secure, dry location away from direct exposure to water. Ensure proper ventilation to prevent gas buildup.
- Connection of Terminals: Always connect the positive terminal (+) first, followed by the negative terminal (-). This reduces the risk of accidental short circuits.
- Use Marine-Grade Cables: Use cables with appropriate gauge (thickness) for your system’s power demand. Avoid using household cables, as they are not designed for marine conditions.
- Install a Battery Switch: A battery disconnect switch allows you to isolate the battery from the system when not in use, preventing drainage and enhancing safety.
- Fuses and Circuit Breakers: Install appropriate fuses or circuit breakers between the battery and power-hungry devices (e.g., engines, pumps) to prevent overcurrent situations.
- Check Connections Regularly: Inspect terminals and cables frequently for corrosion or loose connections. Clean terminals with a solution of baking soda and water if corrosion is found.
- Grounding: Ensure all negative connections are grounded to the vessel’s metal structure, not just the battery’s negative terminal, to avoid power issues.
- Monitor Voltage: Use a voltage meter to monitor the battery charge regularly, ensuring it stays within recommended levels to prevent overcharging or deep discharge.
By following these steps, you ensure that your battery is safely integrated into the power system, providing reliable performance over the long term.
