When setting up an outdoor water structure, it’s crucial to ensure that all electrical components are properly grounded to prevent electrical hazards. Start by connecting the electrical system to a suitable grounding electrode, ensuring that all metal parts of the installation are linked to the grounding system using appropriate conductors. This is essential for safety, especially in areas where water contact is frequent, as it minimizes the risk of electric shock.
Ensure secure connections for all metallic elements. This includes ladders, railings, and any other conductive parts. A reliable grounding system will help dissipate any stray electricity from malfunctioning equipment, effectively reducing the chances of electrocution. Use corrosion-resistant materials for wiring and connectors to enhance longevity and safety over time.
Testing the system regularly will help ensure that the connections remain intact and functional. Perform a continuity test using a multimeter to verify that all grounding points are properly connected. It’s also advisable to consult local electrical codes for specific requirements based on your location to ensure full compliance.
Electrical Safety Setup for Outdoor Pools
Ensure all metal components are securely connected to the electrical grounding system. Start by connecting the frame and any metallic elements to the main ground rod using a suitable copper conductor of at least 8 AWG. Verify that all parts of the structure are linked to avoid any potential electric shock hazards during operation.
Important: A dedicated grounding system must be installed to ensure proper electrical continuity between all conductive materials. Use a copper or tinned copper conductor, as they are highly resistant to corrosion, especially in moist environments.
For correct placement: Run the grounding wire from the metal framework to the ground rod or system at a depth of at least 18 inches. Ensure the wire does not come into contact with any other cables or plumbing. This prevents the risk of electrical faults and enhances overall safety.
Also, ensure that all electrical equipment such as pumps, heaters, and lighting fixtures are properly connected to the grounding system. Regularly inspect the connections for wear and corrosion, and replace any damaged wires or connectors promptly to maintain safety standards.
Finally, it’s crucial to test the system for electrical continuity. Use a multimeter to confirm that all metal parts are properly grounded before operation. This reduces the risk of dangerous electrical surges or shocks while the facility is in use.
How to Properly Bond an Above Ground Pool Frame
Ensure a secure connection between the frame and electrical system by using a copper wire of at least #8 AWG. This will allow for safe dissipation of any stray electrical currents that may accumulate. Begin by locating the metal components of the structure that require grounding. These typically include the legs, horizontal supports, and other conductive parts in contact with water.
Step 1: Attach a grounding wire to the metal frame. Use a wire clamp or ground rod to ensure a firm and reliable connection. It is crucial that this connection is tight to avoid loosening over time due to vibration or environmental factors.
Step 2: Run the wire to the nearest ground rod or electrical panel. Ensure that the path is as short and direct as possible to reduce resistance and prevent electrical interference. Make sure the wire is not exposed to excessive wear or damage from movement or weather.
Step 3: If necessary, use a bonding lug to connect the wire to the frame. A bonding lug is an essential tool for ensuring a secure electrical connection between the wire and the metal frame. Tighten the lug appropriately using a wrench to prevent accidental disconnections.
Step 4: Check continuity with a multimeter. Test the resistance between the frame and ground to confirm the connection is effective. The reading should be low, indicating a good connection. If resistance is high, inspect the wire and connection for issues such as corrosion or loose fittings.
Step 5: Verify compliance with local codes and safety standards. Local regulations may have specific requirements for grounding systems, so ensure all steps align with these standards. Consult a licensed electrician if unsure.
Remember, a proper grounding system reduces the risk of electrical shock, prevents potential damage to equipment, and complies with safety regulations, protecting you and your family.

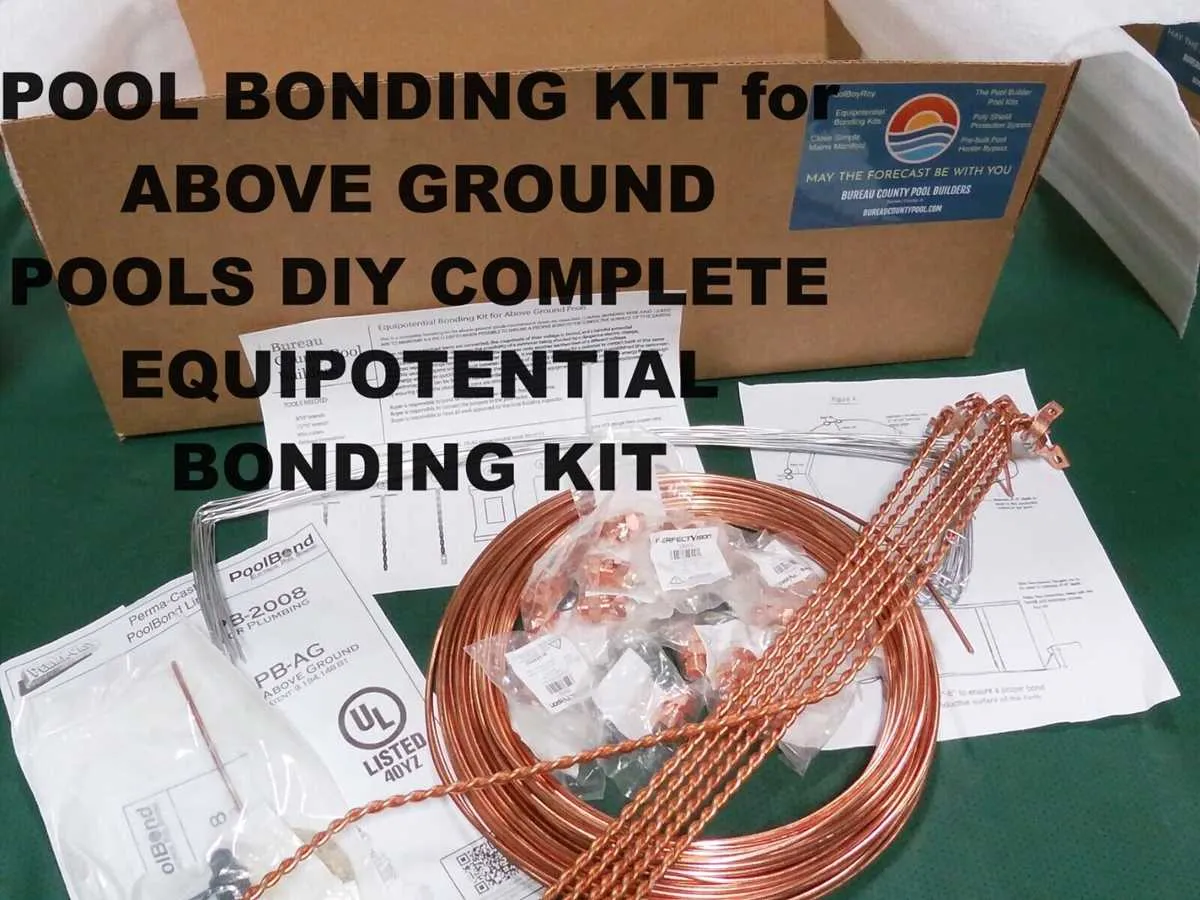

Tools and Materials Needed for Installation
For proper installation of the electrical system for an outdoor swimming structure, ensure you have the following tools and materials:
Tools:
- Wire stripper and cutter for preparing conductors
- Hammer for securing grounding rods
- Drill with appropriate bits for making holes in the structure
- Wrenches and pliers for tightening connections
- Soldering iron for certain electrical connections
- Measuring tape to ensure correct placement of components
- Multimeter for testing electrical continuity and grounding integrity
Materials:
- Grounding wire, preferably copper, of adequate gauge
- Metallic grounding rods or plates for proper earthing
- Conduit to protect the wiring from external damage
- Bonding lugs to secure wire connections
- Corrosion-resistant screws and fasteners
- Electrical tape for insulation where necessary
- Grounding clamps to ensure solid connections
Check local electrical codes before purchasing materials to ensure compliance with safety standards.
Common Bonding Mistakes and How to Avoid Them
Ensure all metallic components are connected to a single point to prevent electrical faults. Poor connections can lead to uneven grounding and increase the risk of electrocution.
- Inadequate Grounding: Not grounding metallic parts properly is one of the most common errors. Every exposed metal, including ladders and pumps, must be linked to the main grounding system.
- Using Incorrect Materials: Avoid using non-corrosive materials that may not maintain a secure connection over time. Always use copper or other approved conductors to establish a safe path.
- Overlooking Local Codes: Different regions have specific electrical codes. Check local regulations before starting any installation to avoid costly corrections later.
- Neglecting to Test Connections: After installation, test all links to ensure a proper connection. A multi-meter should be used to verify continuity.
- Ignoring Bonding for Safety Equipment: Don’t forget safety devices like heaters or filtration systems. These must be properly linked to the bonding system to prevent voltage build-up.
- Failure to Update Over Time: If any components are replaced or upgraded, ensure the grounding connections are reassessed and updated as needed.
