Ensure accurate connections by following the provided schematics. The key is to identify the battery pack and make sure the terminals are properly connected to the motor and controller. Double-check polarity to avoid malfunctions.
Important components include the controller, fuse, and accelerator pedal wiring. Make sure the wire gauge is correct for each component to ensure optimal performance and prevent overheating.
Connection tips: Use corrosion-resistant connectors for a long-lasting setup. Tighten all terminals securely but avoid over-tightening, which could cause damage to the wiring or connectors.
Common issues to watch out for: voltage drops, poor contact, or frayed wires. Inspect the system regularly and replace any worn-out parts immediately.

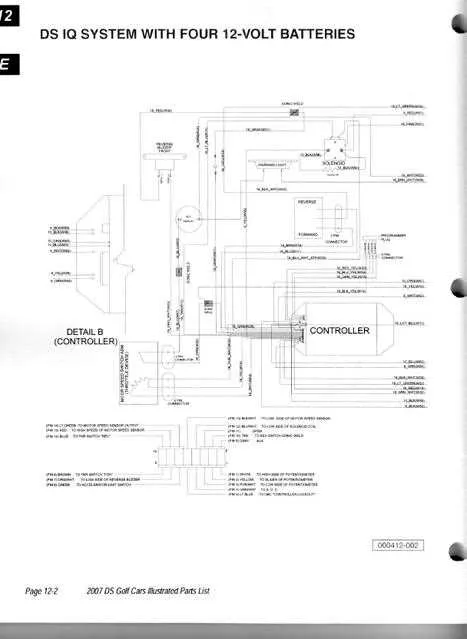

48V Electrical Setup for DS Model
Ensure to connect the battery pack terminals correctly, with the negative side linked to the frame. The positive terminal should be connected to the main contactor. This setup is crucial for preventing short circuits and ensuring proper function.
Battery Pack: For optimal performance, use a 48-volt lead-acid or lithium battery pack. Verify all connections for corrosion and ensure tightness to avoid power loss or unsafe operation.
Controller and Motor: The controller should be connected to the motor’s terminals following manufacturer instructions. Ensure the connections are secure and free from any signs of wear or damage.
Power Flow: When wiring the system, ensure the flow follows from the battery to the motor through the controller, with the correct polarity. This will maintain consistent performance and prevent electrical failures.
Key Switch and Fuses: Check the key switch wiring to ensure it cuts off power when turned off. Additionally, confirm all fuses are in place and rated appropriately for the system’s needs to prevent damage to the components.
Understanding the Battery Connections
Start by ensuring the connections are clean and free from corrosion. A poor connection can lead to inefficiency and potential damage to the system. Below are key steps to follow:
- Always connect the negative terminal of the battery first to avoid accidental short-circuits.
- Ensure that all terminals are tightly secured but not over-tightened to prevent damage to the battery posts.
- Use a multimeter to check for proper voltage and verify all connections are delivering the required power.
- Check that the battery cables are in good condition. Any fraying or damage can cause power loss or risk of fire.

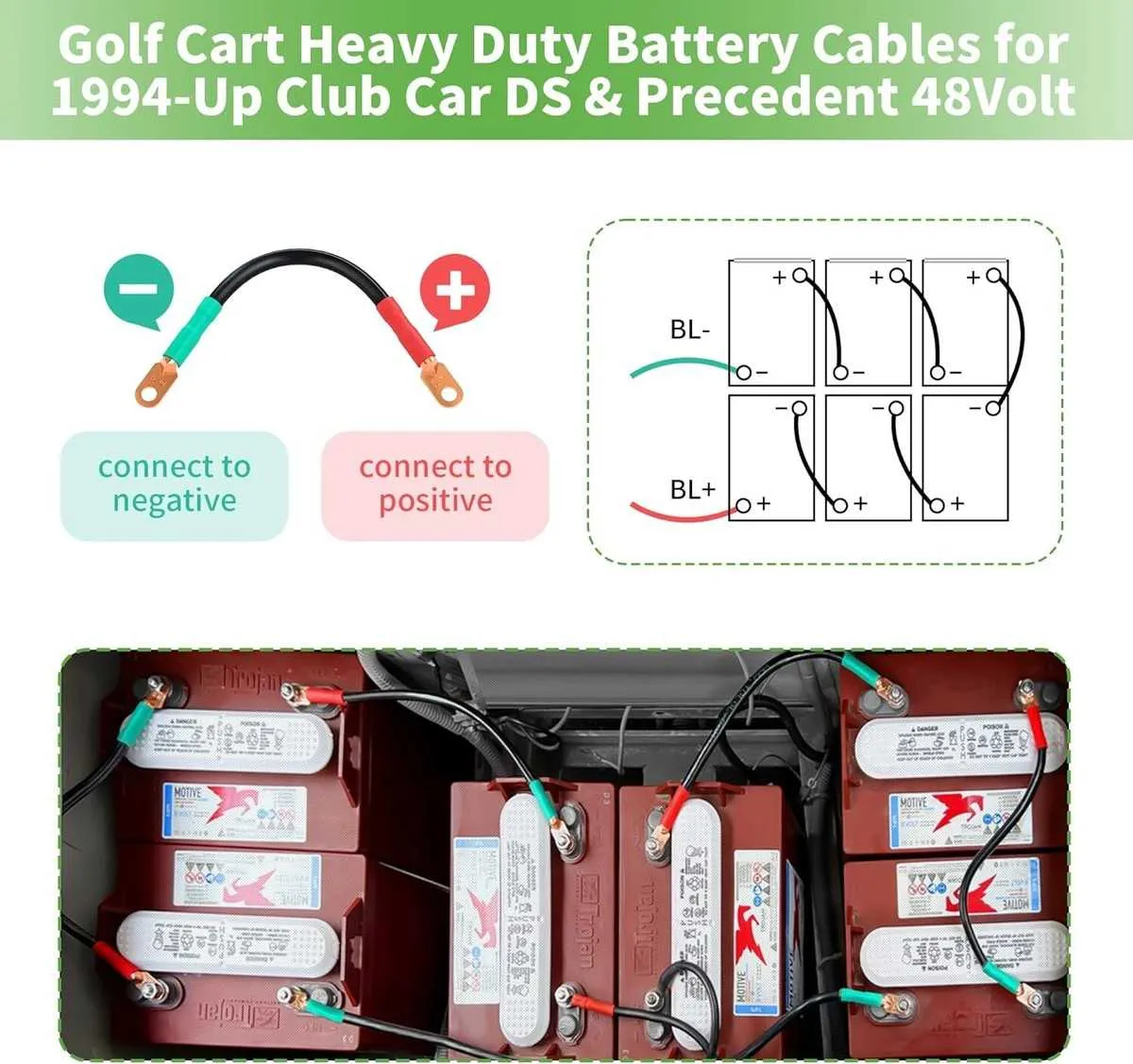

Properly configure the battery bank by connecting each cell in series, ensuring that the positive terminal of one battery is connected to the negative terminal of the next. This setup ensures a consistent flow of energy to the rest of the system.
- For parallel connections, connect the positive terminals of the batteries together and do the same with the negative terminals.
- Use high-quality connectors designed specifically for battery terminals to avoid resistance or overheating.
Lastly, always double-check that the battery pack is configured as per the system’s power requirements. Incorrect configuration can lead to system malfunctions or reduced performance.
Identifying Key Components in the 48V System
To effectively troubleshoot or maintain a 48-volt electric vehicle system, focus on the primary components that control power distribution and ensure proper operation. Understanding each part’s role helps prevent errors and enhance performance.
| Component | Description | Common Issues |
|---|---|---|
| Battery Pack | Provides the electrical energy needed for the system. Typically composed of lead-acid or lithium cells. | Corrosion, poor charge retention, aging cells. |
| Controller | Regulates the power flow from the battery to the motor. Often includes features like regenerative braking. | Overheating, failure to respond to inputs, erratic behavior. |
| Solenoid | Acts as a switch to control the flow of electricity between the battery and the motor. A key part of the system’s on/off mechanism. | Inconsistent connection, failure to engage, mechanical wear. |
| Motor | Converts electrical energy into mechanical movement, driving the wheels. | Excessive wear, overheating, poor performance due to voltage irregularities. |
| Fuses | Protects the system from overcurrent conditions by breaking the circuit when a fault occurs. | Blown fuses due to short circuits or overloads. |
Always verify connections before troubleshooting specific components. Damaged or poorly connected parts can mimic failure symptoms of other parts.
Troubleshooting Common Electrical Issues
Check for loose connections at both the battery terminals and motor. Ensure all contacts are tight and free of corrosion. If the vehicle isn’t starting, test the switch contacts for continuity.
Fuses should be checked regularly for damage. If a fuse is blown, it can interrupt the flow of power to critical components. Replace any damaged fuses with the correct rating to prevent further damage to the system.
Inspect cables and connectors for visible wear or fraying. Faulty or broken cables are common culprits behind power loss. Repair or replace any damaged wires immediately.
Ensure the battery pack is correctly charged and the individual cells are in good condition. A weak battery can lead to low output and operational failures.
If the motor is not receiving sufficient power, verify that the controller is receiving voltage from the battery and is delivering it properly to the motor terminals.
