For those seeking efficient, space-saving solutions for generating hot fluid without the need for a large storage tank, on-demand heating systems are an optimal choice. These units work by heating the liquid directly as it passes through, eliminating the need for pre-heated storage. To properly set up and maintain such systems, it’s crucial to comprehend the internal workings and connections that make these devices functional.
First, focus on the key components: a flow sensor, heating elements, and a thermostat. The flow sensor detects the liquid flow and activates the heating elements only when needed. The heating elements, typically powered by electricity or gas, provide rapid temperature adjustments. The thermostat regulates the system’s output, ensuring the desired temperature is consistently maintained.
Key to effective installation is understanding the power requirements of the system and ensuring compatibility with local electrical or gas supply systems. Proper sizing is also essential, as a mismatch between system capacity and demand can lead to inefficiency or inadequate performance.
Efficient use of energy can be achieved by configuring the unit in a way that minimizes idle time. For systems installed in homes or commercial spaces, adjusting the flow rate and integrating energy-saving features can provide long-term savings without sacrificing performance.

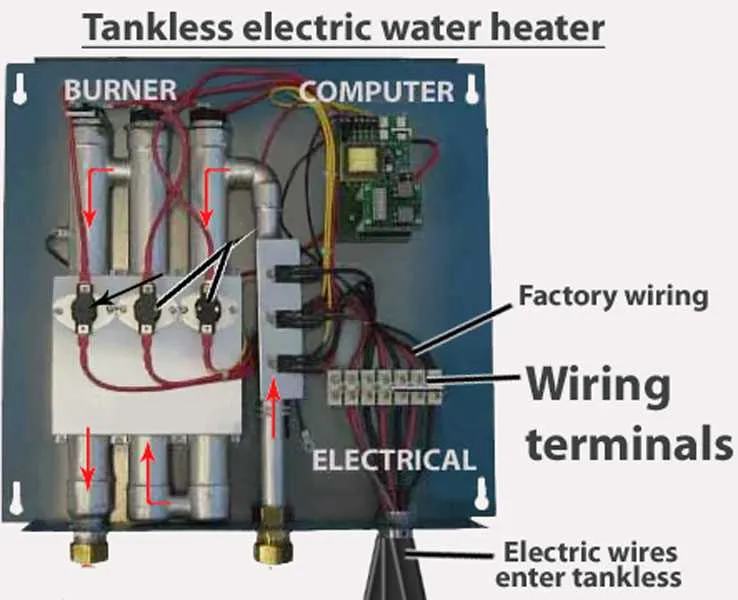

Efficient Heating System Schematic
The optimal configuration of a flow-through heating device consists of a few key components that ensure rapid thermal regulation. The main part of the system is the coil or heating element, which directly interacts with the fluid. This is powered by electrical current, and its design maximizes the thermal transfer by maintaining an appropriate distance between the conductive surface and the fluid flow.
The cold fluid enters the unit through an inlet, passing through a series of heat exchangers before being distributed at the desired temperature. The element is controlled by a thermostat or a digital control system that monitors the incoming temperature and adjusts the power supply accordingly to prevent overheating or under-heating.
For energy efficiency, ensure proper insulation around the heat-conducting elements and the casing to minimize heat loss. The system should also have a pressure relief valve to protect against over-pressurization, which could damage the internal components.
A successful setup requires balancing the heating output with the incoming fluid flow rate. Excessive flow can result in inadequate heating, while too little flow can cause excessive thermal stress on the components. Regular maintenance, including cleaning the heating coil and ensuring all seals are intact, will prolong the lifespan of the unit.
Integration with smart systems for monitoring usage patterns can provide further energy savings by adjusting operation based on demand. Additionally, consider the placement of the device to reduce pipe lengths and enhance the overall thermal response time.
Understanding the Flow of Liquid and Heating Mechanism
To achieve efficient thermal energy transfer, it’s crucial to understand how liquid flows and how heat is generated in compact devices. When liquid enters the unit, it passes through a heat exchanger where electrical elements or gas burners rapidly elevate the temperature. The flow rate and temperature difference are key factors in determining performance.
Fluid dynamics inside the system play a critical role. As the liquid flows, it is forced into direct contact with high-temperature surfaces. The faster the fluid passes through these elements, the less time it has to absorb heat, which may affect its final temperature. Therefore, it’s essential to balance the flow rate to achieve the desired heat level without overloading the system.
Heating elements are usually arranged to maximize contact surface area. They typically consist of resistance wires or coils that generate heat as current passes through them. The intensity of the current is regulated by thermostats or electronic controllers, ensuring the thermal output is steady and consistent. In some systems, sensors are integrated to adjust power based on the liquid’s current temperature, optimizing energy consumption and performance.
Efficient temperature rise is achieved when the thermal gradient between the heated surface and the passing fluid is maximized. Insulation around the heating elements ensures minimal heat loss to the environment, directing all thermal energy into the fluid. Proper maintenance of the unit, such as periodic cleaning of internal passages, is essential to maintain high efficiency and prevent clogging, which can hinder flow and reduce heating capacity.

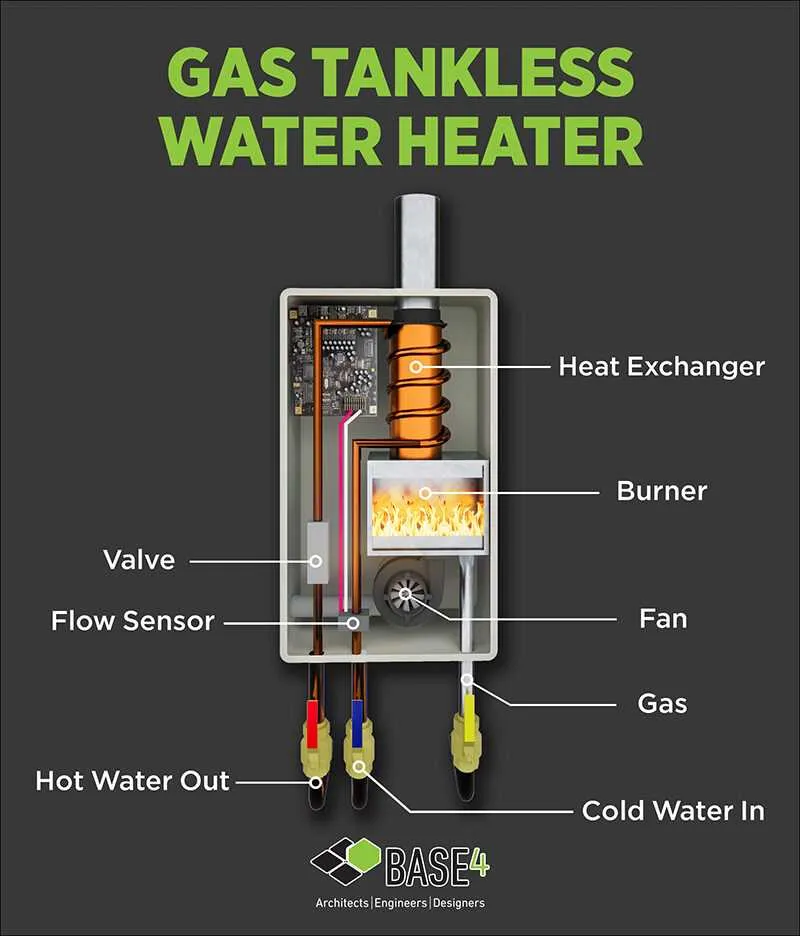

Key Components in a Tankless Heating System
The following elements are essential for the efficient functioning of a tankless system designed to provide on-demand hot fluids:
- Heating Element: Typically electric or gas-powered, this component rapidly heats the fluid as it passes through the unit. For electric systems, coils or resistance heaters are used; gas models rely on burners for combustion.
- Flow Sensor: It detects the amount of fluid flowing through the system. The sensor activates the heating element only when the required flow rate is detected, ensuring energy efficiency.
- Temperature Control Unit: This regulates the desired output temperature. It uses sensors to maintain a consistent temperature based on user preferences, compensating for flow variations.
- Heat Exchanger: A crucial component that transfers heat from the element to the fluid without direct contact. In gas models, a heat exchanger made from copper or stainless steel allows optimal heat transfer while maintaining durability.
- Gas Valve (for gas-powered units): This component regulates the fuel flow to the burner, ensuring that the right amount of gas is used to produce the required heating output.
- Control Board: A microprocessor that manages the operation of the entire system. It coordinates the heating element, temperature sensors, and flow sensors for seamless performance.
- Exhaust System (for gas models): This ensures that gases produced during the combustion process are safely vented out of the unit and the home, preventing carbon monoxide buildup.
- Cold Water Inlet and Hot Water Outlet: The inlet directs cold fluid into the system, while the outlet directs the heated fluid to the plumbing network. These ports must be properly sized to handle the required flow rate and pressure.
How to Troubleshoot Common Issues with On-Demand Heating Systems
Low Temperature Output: If the system is not delivering sufficient heat, check the temperature settings first. Ensure the thermostat is adjusted correctly. If the settings are fine, inspect the power supply and fuse. A tripped circuit breaker can prevent the unit from functioning properly. Additionally, examine the flow sensor for blockages or wear, as it may impact temperature regulation.
No Hot Water: If there’s no hot water at all, confirm that the system is receiving power. If it’s electric, ensure the electrical connection is intact. For gas models, check that the gas valve is open. It’s also possible that the ignition system needs resetting or replacing, particularly in the case of gas-powered units.
Erratic Temperature Fluctuations: Sudden temperature changes can be caused by inconsistent flow rate or electrical instability. Inspect the inlet filter for clogs or debris. If necessary, clean or replace it. Additionally, verify the voltage supply to the system. Unstable electrical input can cause overheating or underheating.
Leaks or Dripping: Leaks around connections or the unit itself usually indicate faulty seals or gaskets. Examine all joints and connections for signs of wear or corrosion. If you detect a leak, replace the faulty seal. For units with a pressure relief valve, ensure it’s not stuck or damaged, as this could also cause unwanted leaks.
Noise or Unusual Sounds: A banging or whistling sound often points to limescale build-up inside the unit. This can obstruct the flow of the heating medium, causing it to make noise. Flushing the system and descaling it can help resolve the issue. Also, check for any loose components that may be vibrating during operation.
Failure to Turn On: If the system is unresponsive, verify that the power source is functional. If it’s electric, check the fuse and wiring for any signs of failure. For gas models, inspect the pilot light or ignition system. If the unit still doesn’t turn on after troubleshooting, consider professional service to check internal components like the control board.
