When planning the water drainage and supply system for your home, precise positioning of key components is essential. Ensure that the waste line is sloped correctly to allow for efficient water removal and prevent blockages. Maintain a slope of at least 1/4 inch per foot for the horizontal pipe, keeping the flow consistent and unobstructed.
Next, position the supply pipes with careful attention to both ease of access and compliance with local codes. Water feed lines should be no more than 6 inches from the final fixture location to minimize pressure loss. Make sure to leave enough space for future adjustments, particularly where elbows and tees are involved, as these will affect water flow.
For venting, always ensure that the vent pipe extends above the highest fixture and follows a direct route to prevent odor buildup and maintain air pressure within the system. A properly sized vent is crucial for the overall performance of the drainage system.
In terms of material, opt for durable options such as PVC or copper, depending on the climate and local building standards. Ensure all connections are tight and leak-free, using the appropriate fittings and seals to guarantee long-term durability.
Taking these steps will help in avoiding costly repairs and ensure the system functions smoothly for years to come. Pay close attention to pipe size and layout, as a small mistake at this stage can lead to significant issues later on.
Proper Setup for Drainage and Water Supply Lines
Ensure the drain line is installed with a consistent slope of 1/4 inch per foot to prevent clogging and ensure proper water flow. The drain should connect to the main waste line, positioned at least 18 inches above the finished floor. The vent pipe must be within 6 feet of the waste line to ensure proper air circulation and avoid pressure issues.
The water supply lines should be routed with enough space for shutoff valves that are easily accessible. Install hot and cold lines with 1/2-inch or 3/4-inch copper or PEX piping, depending on water pressure needs. Both lines should be placed behind the cabinetry to minimize exposure and allow for future repairs if necessary.
Leave adequate clearance between the drain and the water supply lines for easy installation of the fixture. The drain assembly should be positioned 18 to 24 inches above the floor, while the water inlets should be 6 to 8 inches above the floor level to match the height of the faucet fixture.

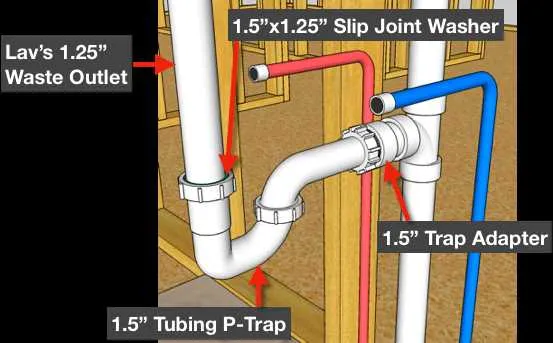

Consider adding a trap assembly below the drain line to prevent odors from escaping into the living area. The trap should be installed directly beneath the drain with the proper configuration to allow water to flow freely without obstruction.

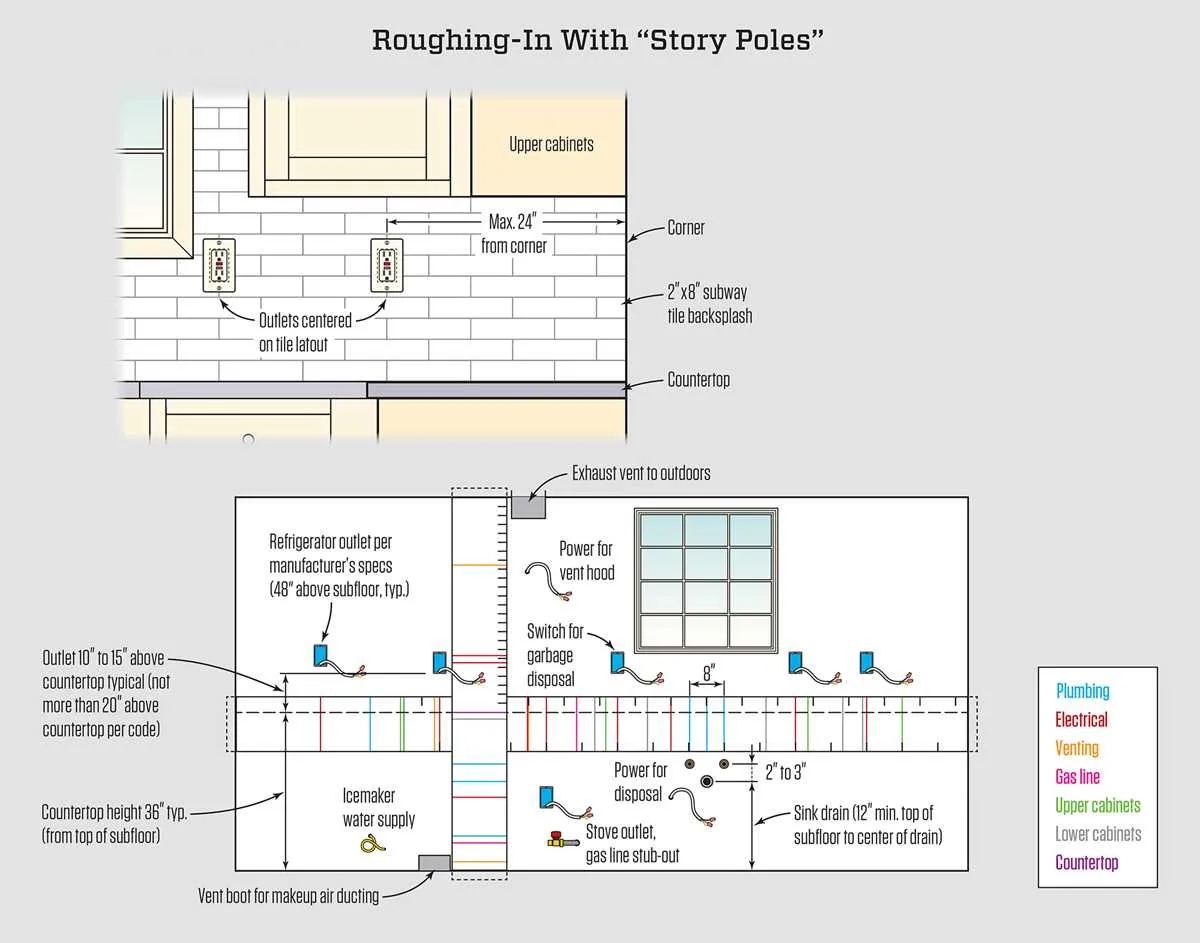

Mark the positions of all necessary cutouts for plumbing lines on the studs and subfloor before installing any cabinetry. This will ensure an accurate and seamless fit during final installation. Always confirm the local building codes regarding water and waste line placement for compliance.
How to Properly Layout Drainage and Venting Pipes for Kitchen Sink Plumbing
Start by ensuring a slope of 1/4 inch per foot for all drain lines. This allows wastewater to flow smoothly without stagnation. Avoid excessive horizontal runs, as they increase the likelihood of blockages. A 2-inch diameter drain pipe is typically sufficient for standard setups.
Place a vent pipe within 5 feet of the trap to maintain proper air pressure and prevent siphoning. Use a 1 1/2-inch diameter vent for most residential installations. The vent should connect to the main stack or vent line at least 6 inches above the highest drain fixture.
The drain line should connect to the trap with a smooth curve, ensuring water can flow freely. Minimize sharp bends, as they can restrict flow and contribute to clogs. Use elbows that are designed with wide radius curves to ensure minimal disruption of flow.
Ensure that the vent is installed vertically or with minimal horizontal sections. Horizontal runs should be limited to under 6 feet, and must have a slight upward slope towards the main vent stack. A properly sized and positioned vent pipe prevents vacuum formation and maintains flow velocity.
Install clean-out access points at key locations along the drainage line to allow for easy maintenance and clearing of potential blockages. These should be easily accessible, typically at the base of the stack or where lines meet the trap.
Avoid placing the vent pipe too close to any water source or heat sources that could cause condensation or blockages. Make sure the vent is properly sealed to prevent any odor from escaping into the living area.
Step-by-Step Guide to Installing Water Supply Lines for Kitchen Sinks
1. Shut off the water supply. Before starting any installation, locate the main water valve and turn off the supply to prevent leaks and water damage during the process.
2. Measure and plan the pipe layout. Measure the distance from the nearest water source to your installation point. Use these measurements to determine the pipe lengths and placement. Ensure the pipes are long enough to reach the fixture without excess slack.
3. Install the water shutoff valves. Install shutoff valves on both the hot and cold water lines. These valves allow for easy control of water flow to the fixture. Use Teflon tape on the threads to ensure a leak-proof seal.
4. Connect flexible supply tubes. Attach flexible tubing to the shutoff valves. Use a wrench to tighten the connections, but avoid over-tightening as this can damage the threads. Check that the tubing is securely connected to prevent leaks.
5. Position the pipes. Position the water lines so they align with the inlet connections of the fixture. If necessary, use a pipe bender to create gentle curves in the tubing. Ensure the pipes are level to prevent any water flow issues.
6. Test for leaks. Turn on the water supply and check all connections for leaks. If any leaks are found, tighten the connections or reapply Teflon tape to the threads. Perform this step slowly to avoid flooding.
7. Secure the pipes in place. Once the installation is confirmed leak-free, secure the pipes to the wall or floor using brackets or clips. This prevents movement and ensures long-term stability.
8. Final inspection. Double-check all connections, and test the system by running water through the lines to confirm proper function. Inspect all valves and tubes for any signs of wear or leaks after use.
Common Mistakes to Avoid When Installing Water and Drainage Systems for a Work Area
1. Improper Venting: Ensure proper vent placement to avoid pressure build-up in the lines. Without adequate air circulation, water will drain slowly, and siphoning issues may arise, leading to odors and clogging.
2. Incorrect Slope of Drain Lines: The drainage pipe should slope at a 1/4 inch per foot towards the drain. A flat or overly steep slope will hinder proper flow and cause water to back up or drain too quickly, leaving solids behind.
3. Failing to Use the Right Pipe Size: Using pipes that are too small will create blockages and slow drainage. Choose pipes with the appropriate diameter (usually 1 1/2″ for drains) to handle water flow and prevent future issues.
4. Ignoring Clearance Requirements: Ensure there is enough space for the system components, including the trap and the P-trap. Restricted space can cause installation difficulties or prevent future access for repairs.
5. Not Accounting for Future Modifications: Consider possible future upgrades or changes in the layout. Install components with flexibility in mind, leaving room for adjustments or modifications to the water and waste systems.
6. Over-tightening Fittings: Over-tightening the connections between pipes and components can cause cracks and leaks, leading to expensive repairs. Tighten fittings just enough to create a secure seal, without over-torquing.
7. Poor Material Selection: Avoid using low-quality materials that may degrade over time. Invest in durable, corrosion-resistant pipes, fittings, and seals to ensure longevity and minimize maintenance needs.
8. Not Testing Before Sealing: Always run water through the system before sealing everything off. This will help identify leaks or issues with the alignment of the pipes early on, saving time and effort in the long run.
9. Skipping Code Compliance Checks: Always consult local building codes and regulations. Failing to meet requirements can result in costly fines or the need for rework, delaying the project.
10. Inadequate Insulation: For areas exposed to cold temperatures, it is crucial to insulate pipes properly. Lack of insulation can lead to freezing and potential damage to the water lines during winter months.
