Ensure the proper installation of a start-up assist device in the motor circuit by following these crucial steps. This component is essential for boosting the initial torque needed for smooth operation, particularly in systems requiring heavy start-up loads. Without this addition, the motor may struggle or fail to start, especially in high-demand environments.
First, locate the terminals on the motor where the auxiliary device should be connected. Typically, one terminal will be marked for this purpose, often labeled as “C” or “S.” Attach the device to this terminal and make sure the other end connects securely to the control system. Proper insulation and a firm connection are vital to prevent any disruptions during the motor’s start-up phase.
Next, integrate the component into the power supply circuit, ensuring that the polarity is correctly aligned. Many systems require this assist mechanism to be activated only during the initial few moments of operation. To achieve this, a reliable switch must be incorporated to disengage the device once the motor has reached operational speed.
Finally, double-check all connections, tighten all screws, and verify the voltage specifications to ensure the start-up assist is functioning correctly. If any inconsistencies arise during testing, recalibrate the component to guarantee smooth performance. Failure to do so can result in a shortened lifespan of the motor or cause it to malfunction under load.
Boosting Motor Startup Efficiency
To improve the starting torque of an electric motor used in water circulation systems, integrate a high-voltage starting device in the motor’s electrical circuit. This component should be installed in parallel with the main winding, ensuring it disconnects once the motor reaches operational speed.
Ensure the component is rated to match the motor’s power requirements. Select one with sufficient capacitance to deliver the necessary phase shift for smooth and reliable startup. Verify that the component can withstand the motor’s inrush current without damage.
Position the device close to the motor terminal block, making sure connections are secure and insulated to avoid any short circuits. If the motor has a dual winding system, the starting device should only be connected to the start winding to prevent unnecessary power loss during normal operation.
After installation, monitor the system during startup to confirm the motor runs smoothly and without unusual noise or overheating. If the motor struggles to start or runs intermittently, it may indicate an issue with the starting component or an incorrect capacitance rating.
Understanding the Role of a Start Capacitor in Water Circulation Systems

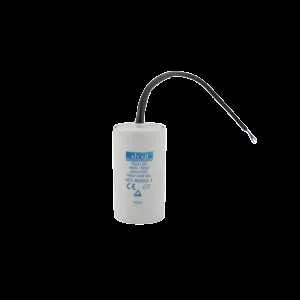

For efficient motor startup, ensure that your system includes a start component, which helps in initiating the motor’s rotation. This device briefly stores electrical energy and releases it when needed, providing a burst of power to get the motor moving. Without it, the motor may struggle to overcome inertia, leading to slow starts or failure to start altogether.
When choosing the correct start component, ensure that it is rated for the voltage and amperage that match your motor specifications. Using a component that is too small may not provide sufficient torque, while an oversized one could cause excessive current flow, damaging both the motor and the electrical components.
The start component must be connected in series with the motor’s windings, and its function is temporary. It only stays in the circuit during the initial phase of motor startup, disconnecting once the motor reaches a certain speed. This helps avoid energy loss and heat buildup, ensuring that the motor runs efficiently after startup.
Make sure to regularly inspect and replace the start component as part of routine maintenance. A faulty start component can result in long-term damage to the motor due to repeated failure to start or excessive strain on other electrical parts.
Step-by-Step Guide to Wiring a Start Device for Pool Motor Systems
Begin by ensuring that the power to the motor is completely disconnected to avoid any electrical hazards. Locate the start component and verify the voltage rating of your motor to match with the new unit you’re installing.

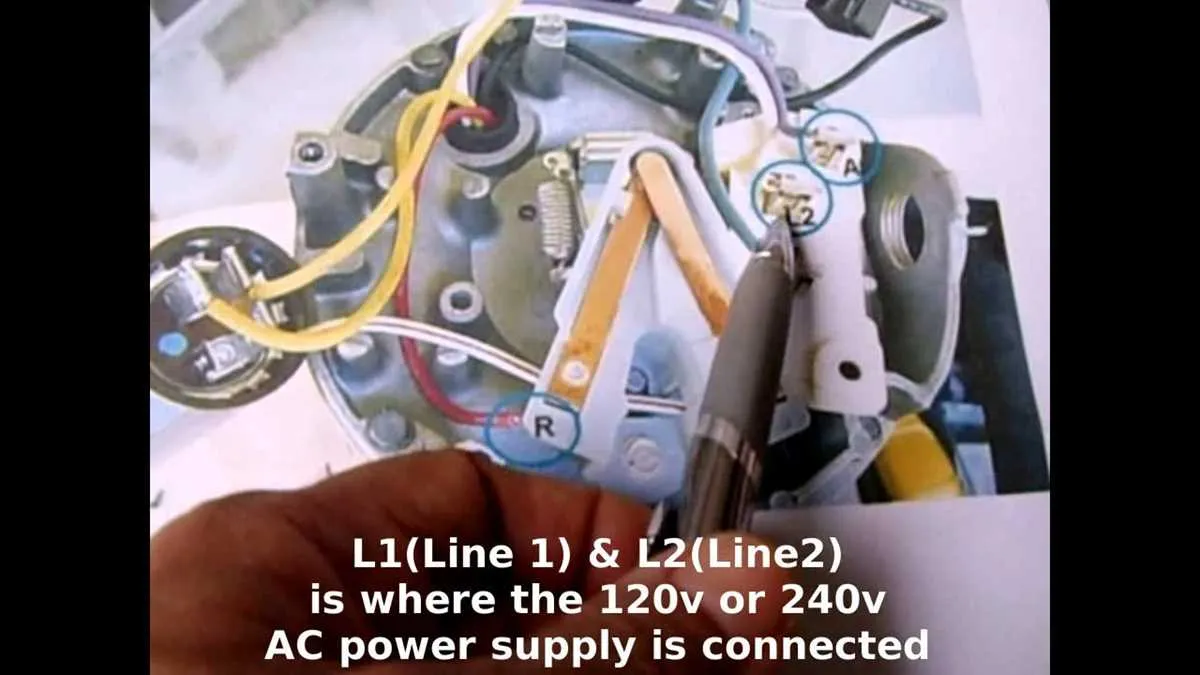

Connect one terminal of the start component to the motor’s positive terminal. Double-check the markings on the motor to ensure you’re making the correct connection. The second terminal should be linked to the line that supplies electricity, which is typically marked as L1 on your control board or terminal block.
Secure all wires tightly using appropriate connectors. Inspect the connections to confirm that no bare wires are exposed, as this can lead to short circuits. Use electrical tape where necessary to shield any vulnerable parts.
After confirming all wiring is complete, reinstall any covers or panels that were removed. Now, restore power and check the motor’s functionality by briefly testing the system, ensuring that it runs smoothly and reaches the correct starting speed.
If the system doesn’t activate as expected, double-check your connections and ensure that the start device is functioning properly. It may help to consult the manufacturer’s instructions to verify correct installation if any issues persist.
Common Electrical Issues and Troubleshooting Tips for Starting Circuit Connections
If you’re experiencing problems with the starting mechanism, the first step is to check the connections for continuity and correct polarity. Faulty or loose terminals are often the root cause of startup failures.
- Loose Connections: Ensure that all terminals are securely connected, especially around the starting assembly. A loose wire can cause the system to fail to initiate.
- Incorrect Polarization: Verify that the wires are connected in the proper orientation. Reversing the wires can prevent the motor from turning on.
- Damaged Components: Inspect each electrical part for visible signs of damage, such as burns or breaks. Even slight damage can disrupt functionality.
- Corroded Contacts: Clean any corrosion around the connections using an appropriate contact cleaner. Corrosion hinders efficient electrical flow, preventing proper startup.
After addressing the above issues, test the system by manually starting it. If the system still fails, consider replacing suspect components and checking for any short circuits in the connections.
To prevent future issues, regularly inspect the connections and ensure all parts are in good condition. Cleaning and tightening the terminals at least once every season will help maintain reliability.
