To connect an aftermarket amplifier to a factory head unit, use a signal adaptation device to convert speaker-level signals into low-level RCA signals. This is essential for ensuring proper audio quality and preventing damage to your equipment. A common practice is to use a device that adjusts the voltage and impedance of the incoming audio signal to make it compatible with the amplifier’s input requirements.
The device typically requires proper wiring to each of the speaker outputs from the head unit. Connect the corresponding positive and negative terminals of the speaker output to the respective input channels on the device. These devices usually have adjustable gain controls, which allow you to fine-tune the output for better sound quality without distortion.
Before making any connections, always check the specifications of both your audio source and amplifier. This ensures that the voltage levels and impedance match, preventing potential damage to the equipment. After completing the connections, adjust the gain to suit your audio preferences, keeping in mind that excessive gain can lead to distortion, while too little may result in weak audio output.
Proper installation and setup of these devices will help achieve the best performance in your audio system, ensuring clear, high-quality sound without the need for significant modification of the factory equipment.

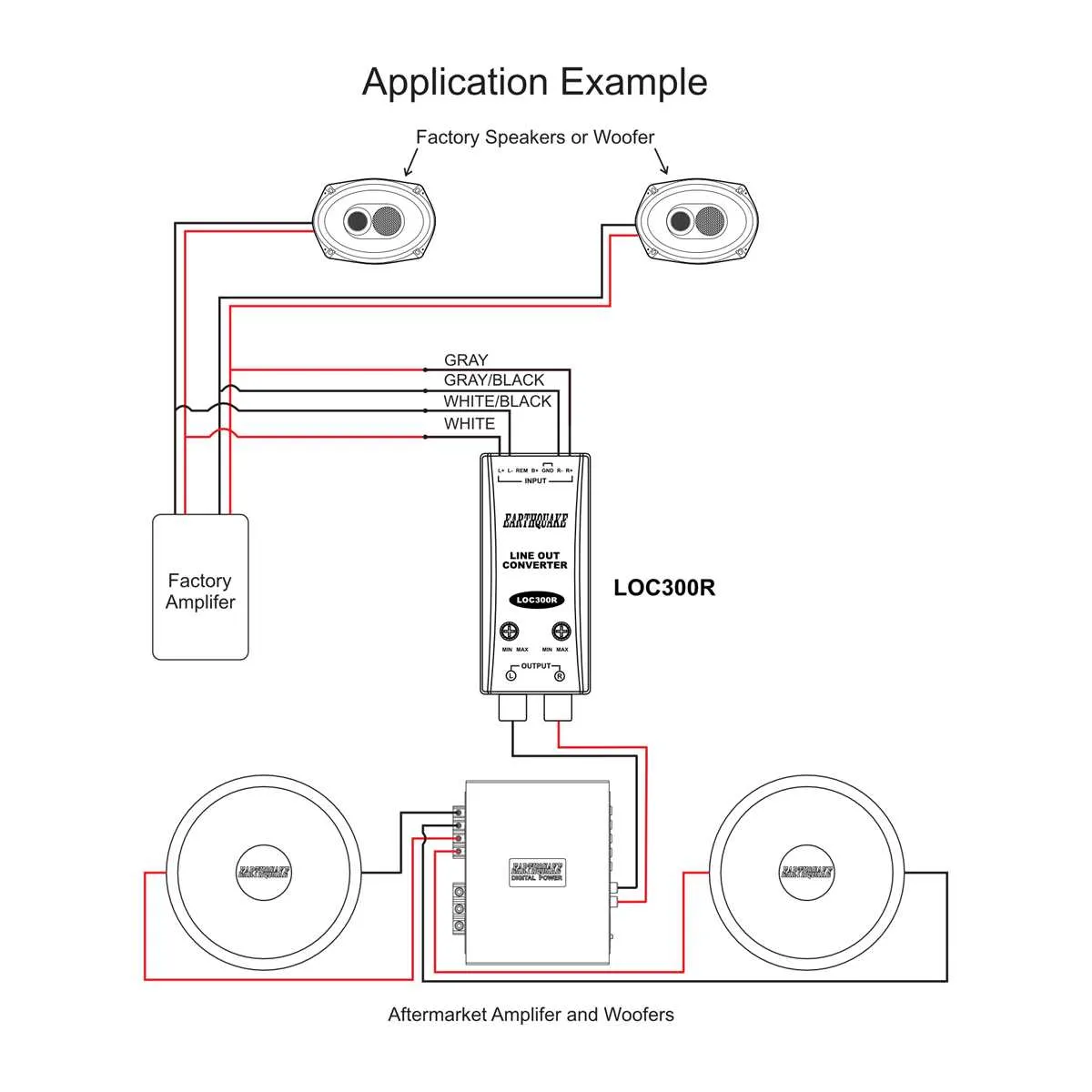

Wiring for Audio Signal Conversion
To successfully convert speaker-level signals to preamp-level inputs, choose a high-quality device designed for the task. It is crucial to match the input impedance of the equipment with the output impedance of the source to maintain optimal sound quality.
Ensure proper connection between the positive and negative terminals of the signal source and the corresponding input terminals on the conversion device. When wiring, follow the instructions provided by the manufacturer for accurate polarity and avoid potential phase issues that may distort sound.
Use RCA connectors for the signal’s transition from the conversion device to the amplifier or preamp. This ensures a clean transfer of audio without significant loss in signal quality. Make sure to ground the system properly to minimize hum or buzz in the audio output.
For optimal performance, select a converter with adjustable gain controls. This allows fine-tuning of the signal level to match the input requirements of your receiving device, preventing distortion or clipping when the audio is amplified.
Lastly, ensure the converter is capable of handling the power requirements of the source. An inadequate unit may lead to signal degradation, loss of sound clarity, or even potential damage to your equipment over time.

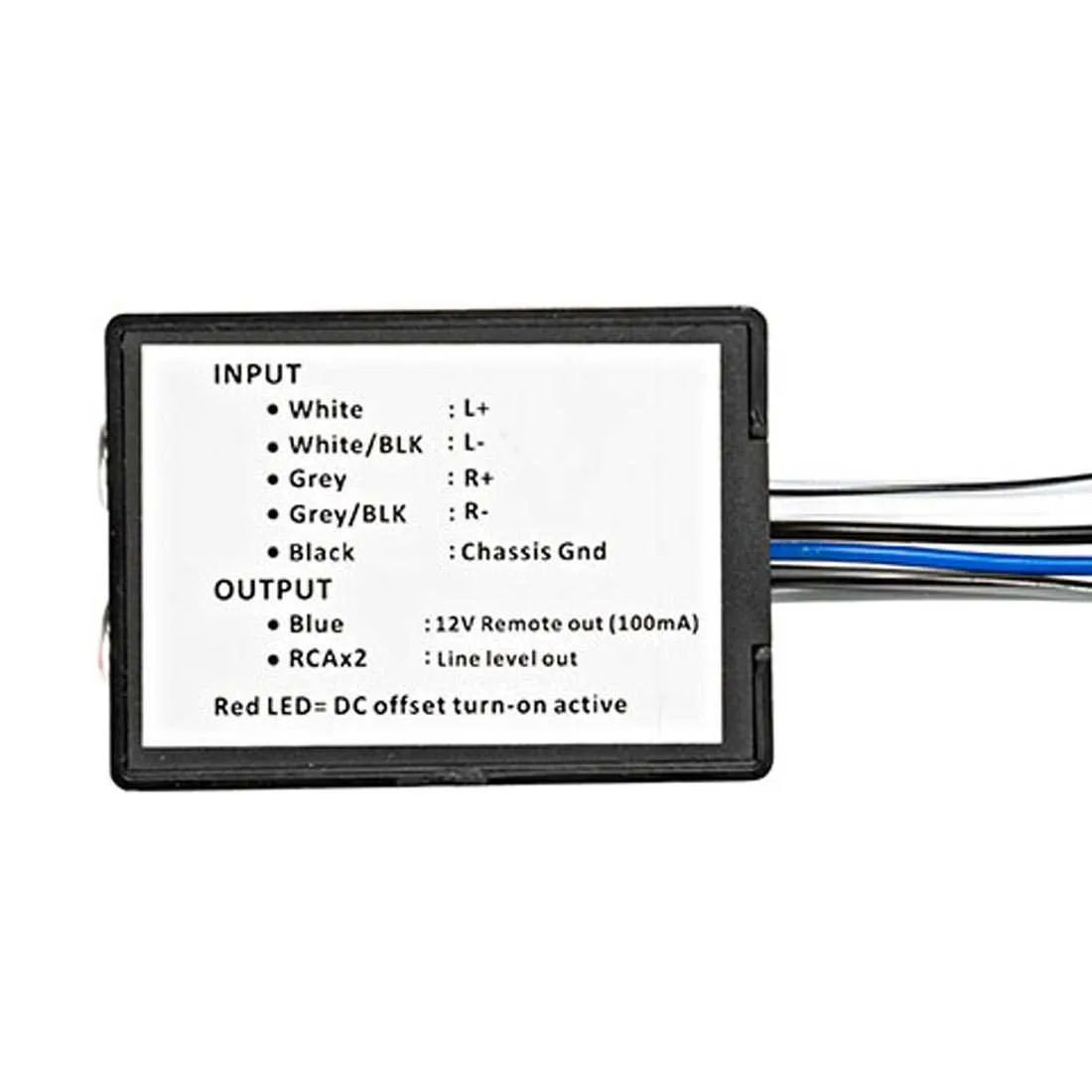

Understanding the Basic Wiring for Audio Signal Transformers
For proper installation of an audio signal transformer, ensure that the device is connected to the correct power source and speaker wiring. Begin by identifying the ground terminal, usually marked as “GND” or “negative.” This is essential for reducing noise and ensuring the system’s stability. Always connect the ground wire to the chassis of the vehicle or an unpainted metal surface for optimal performance.
Next, wire the positive signal input from the head unit to the corresponding terminal of the signal modifier. This input typically comes from the speaker leads of your audio system. Be sure to connect the correct polarity to avoid distortion or phase issues.
Attach the output leads to the amplifier or external sound system following the specifications. Double-check that the wiring corresponds with the system’s voltage and current requirements. Using high-quality cables ensures clearer signal transmission and reduces the risk of interference.
Important: Always secure all wiring connections to prevent accidental disconnections. Insulate any exposed wires to avoid short circuits, and verify that all connections are tightly fastened to maintain signal integrity during high-power usage.
How to Install a Signal Adapter in a Car Audio System
Start by disconnecting the car battery to ensure safety while working with the electrical system. Identify the speaker wires from the car’s factory head unit; these will be connected to the new device that you are installing. Use a wiring harness compatible with your car’s make and model for easier installation and to avoid cutting the vehicle’s original wires.
Connect the adapter to the speaker wires, ensuring a firm and secure connection. The wires typically have color coding, so refer to the user manual for matching. For proper signal transfer, use twist-on connectors or crimp connectors to avoid loose connections, which could lead to sound quality issues.
Next, connect the RCA cables from the adapter to the amplifier or external audio equipment. Be sure to connect the positive and negative terminals correctly to avoid polarity problems. After securing the connections, mount the adapter in a safe location behind the dashboard or near the head unit, using zip ties or adhesive tape to keep it in place.
Finally, test the setup by reconnecting the car battery and turning on the audio system. Check the sound output, and adjust the levels accordingly to ensure clear, distortion-free audio. If any issues arise, verify the wiring connections and ensure the adapter is receiving power from the vehicle’s electrical system.
Common Issues and Troubleshooting Tips for Signal Adapters
If you experience poor audio quality or no sound at all, first ensure the device is correctly powered and connected. A common issue is the loose or incorrectly wired connections, which can result in intermittent or no audio output.
- Distorted Sound: Check the grounding of your device. A ground loop can often cause a buzzing or humming sound. Use an isolator or check for proper grounding of both the source and the receiver.
- Low Volume: If the sound is too quiet, adjust the gain settings on the adapter. Ensure the input level from the source device is sufficient and not set too low.
- No Sound: Ensure all cables are properly connected, with a special focus on the input and output jacks. Replace cables if necessary to rule out faulty connections.
- Unstable Audio: Fluctuating audio can stem from poor quality components or electromagnetic interference. Use shielded cables and place the adapter away from power sources or large electronic devices.
- Compatibility Issues: Verify that the device matches the specifications for your setup. Incompatible impedance levels can result in distorted sound or no signal transfer at all.
For persistent issues, try resetting the adapter and verifying the compatibility with your head unit or receiver. If necessary, consult the manufacturer’s manual for specific troubleshooting steps related to the device in question.
