Razor E300 Wiring Diagram for Scooter Repair and Maintenance

razor e300 wiring diagram

If you’re working on an electric scooter and need to understand its electrical system layout, the following breakdown will help you get things connected correctly. Start by locating the main controller, which acts as the central hub for managing power and signals throughout the scooter.

First, identify the power source leads that connect the battery to the motor. These wires should be securely attached to prevent any disconnections or shorts. Ensure you have the right voltage specifications for the battery and motor to match, as mismatched connections can cause malfunction or damage.

Next, focus on the handlebar throttle and brake connections. These components send signals to the controller to regulate speed and stop functions. Properly soldering the throttle wiring ensures smooth acceleration, while brake sensors must be connected to cut power when the brakes are engaged.

The next step involves checking the connections for the display unit. This small screen often shows speed and battery life, and its wiring should be handled with care. If you have issues with the display not turning on, it could be due to loose or faulty connections, so verify that all wires are tightly secured.

Finally, double-check the grounding points across the system. The negative terminal of the battery should be grounded properly to avoid electrical interference. A weak ground connection can lead to unreliable performance or even complete failure of the scooter’s electrical components.

Always refer to a specific technical manual or consult with an expert if you are unsure about any connections. Using high-quality wires and connectors will ensure long-term reliability and performance of your electric ride.

Electrical Connections and Setup for Scooter Model

Ensure the power controller is correctly wired to the motor and battery. The controller’s main connector should be attached to the motor’s input leads. For proper functionality, the ground wire from the controller needs to connect to the battery’s negative terminal, while the positive terminal should link directly to the controller’s power input. Check for secure connections to prevent any loss of power.

Connect the throttle control to the input terminals of the main controller. The two wires from the throttle should align with the corresponding terminals–typically, one for the signal and the other for the ground. If the throttle does not function properly, verify the wiring for any loose connections or damaged wires.

For additional components like the brake lever switch, ensure it is connected to the brake input terminal of the main power unit. This will cut off power to the motor whenever the brakes are applied. The brake switch should be functional and free of any blockages to ensure a smooth and responsive stop.

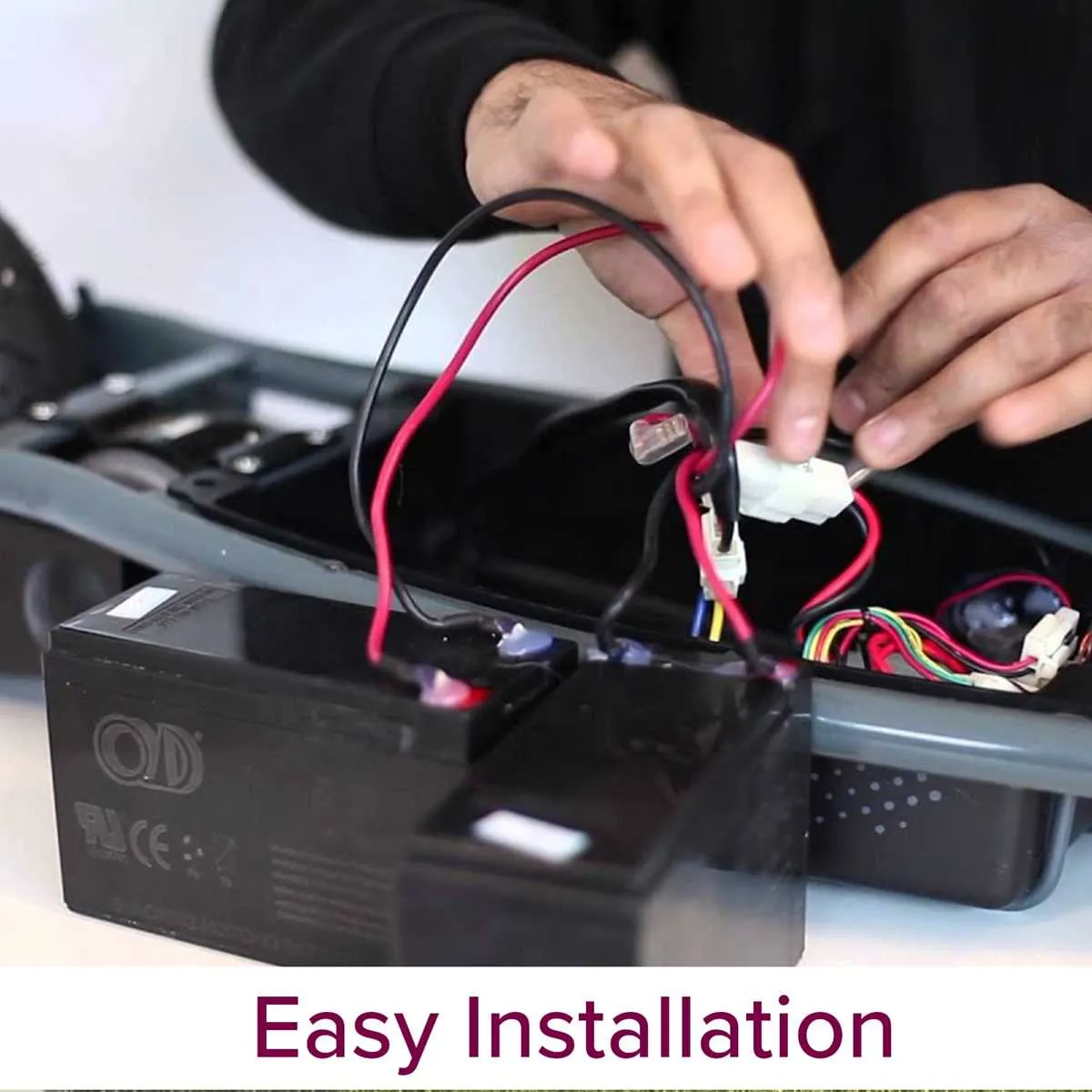

When working with the battery connections, always check for the correct polarity. A reverse connection could cause severe damage to the electrical components. Use insulated connectors to avoid accidental short circuits during installation or troubleshooting.

Test all connections before turning on the scooter. Use a multimeter to check the voltage at key points, especially between the battery terminals and the motor input. If everything is properly wired, you should see the correct voltage readings for both the motor and the throttle inputs.

How to Interpret the Razor e300 Wiring Diagram for Proper Assembly

To assemble the scooter correctly, begin by identifying all key components on the schematic. The motor connections are crucial for ensuring proper functionality. The positive terminal should connect to the motor’s power input, while the negative terminal goes to the ground wire.

Next, pay attention to the throttle wiring. The throttle control needs a consistent link to the controller. The two primary wires – usually red (positive) and black (negative) – must be connected precisely as shown. Ensure no other cables are interfering with these connections.

Controller connections play a vital role in regulating the scooter’s speed. Match the controller’s terminals with the corresponding cables leading from the battery and motor. If a mismatch occurs, the scooter might fail to operate or could be damaged.

Battery polarity must be double-checked to prevent incorrect flow. Connect the positive lead from the battery to the controller’s positive terminal and the negative to the ground. This will ensure the scooter functions smoothly without risk of power failures.

Finally, verify all components are securely mounted, with no loose connections. Tighten screws or connectors that secure cables in place, as any shift can disrupt the power flow or lead to mechanical failures.

Identifying Key Components in the Electrical System

To troubleshoot or modify the electrical components, start by locating the motor controller, the key hub of the system. It regulates the motor’s speed and direction, and can be identified by its connection to the throttle and brake system. Typically, it’s positioned near the deck and is often housed in a protective casing. Make sure the power wires running to the motor are securely attached and check for any signs of wear or corrosion.

Next, examine the battery pack. This component stores and supplies power to the system. Ensure that all connections are tight, and that the battery is free from any leakage or damage. If the battery terminals appear dirty or corroded, cleaning them with a solution of baking soda and water can restore proper conductivity. The battery voltage should also be measured to verify it’s providing sufficient power to the motor.

Pay attention to the throttle, which controls the speed by adjusting the power sent to the motor. Check that the throttle wires are properly connected and that there is no damage to the cable insulation. A malfunctioning throttle can result in inconsistent speed or failure to respond at all.

The brake lever, often equipped with a switch, is another critical part. The brake system should be checked for any loose wires that might prevent proper operation. A malfunction here could cause safety concerns, so ensure the brake’s electrical system is in good working order.

Finally, inspect the connectors and wiring harness. Any loose or frayed wires should be replaced, and connectors must be securely fastened to avoid intermittent electrical issues. Always use appropriate connectors and never cut corners on the quality of replacement parts to maintain system integrity.

Troubleshooting Common Electrical Issues in the Scooter

Ensure the battery terminals are clean and securely connected. Loose or corroded terminals can cause power loss or failure to start.

  • Check for damaged connectors or wires, particularly around the throttle, motor, and battery. Exposed or frayed wires often lead to intermittent power disruptions.
  • If the scooter isn’t turning on, test the power switch for continuity. A faulty switch can prevent the system from receiving power.

If the motor runs but the scooter moves slowly or not at all:

  • Inspect the motor brushes. Worn or clogged brushes can impair performance. Replace them if necessary.
  • Examine the speed controller. A malfunctioning controller can limit speed or cause erratic behavior. Check for overheating or visible damage.

For inconsistent braking or no brake response:

  • Verify that the brake lever wiring is properly connected to the system. Broken or loose wires can lead to a non-functional brake.
  • Ensure the brake module is intact and not obstructed by dirt or debris.

If the scooter runs, but the throttle is unresponsive or erratic:

  • Test the throttle sensor for proper voltage output. If there is no response or fluctuating values, replace the sensor.
  • Check the throttle wiring for continuity and secure connections.

Lastly, for overall power issues:

  • Test the battery voltage with a multimeter. A low or dead battery will prevent the system from powering up, even if all components are functioning correctly.
  • Check the fuse for any breaks or damage. A blown fuse can cause a complete loss of power.
