To correctly install a basic electric drive system, start by ensuring all components are compatible. The main power input should be connected to the line terminals of the device. Pay attention to the voltage ratings of both the supply and the system, ensuring they match to prevent overload or malfunction.
Next, identify the control wiring. Use the appropriate gauge wire for each connection, ensuring that ground terminals are properly connected to avoid any electrical hazards. It is crucial to check the polarity when making the connections to ensure the system runs smoothly and prevents issues such as overheating.
Test the setup by briefly powering the system. This will allow you to detect any faults early, such as incorrect connections or damaged parts, before fully energizing the setup. If everything checks out, proceed with securing all wires, ensuring they are properly insulated and free from any exposure.
Lastly, remember that safety is paramount. Always use a circuit breaker or fuse to protect the system from electrical surges. When in doubt, consult the manufacturer’s specifications to guarantee that each part functions as designed under load conditions.
Wiring a 220V AC Electrical Machine
To connect a 220V AC machine, use a standard two-wire connection system. Ensure that the power input lines are properly insulated and securely connected to the terminal block. The two main lines, one for live (L) and the other for neutral (N), should be attached to the respective terminals in the electrical panel. Use a suitable circuit breaker rated for the equipment to protect against overloads.
For grounding, connect the earth wire to the designated ground terminal. This ensures safe operation by preventing electrical shocks or damage in case of a fault. The correct orientation of the power lines is crucial; the live wire should be connected to the terminal marked “L,” while the neutral wire should be connected to the terminal marked “N.”
When using a capacitor to start the system, connect it between the start terminal and the common terminal. Ensure the capacitor’s rating matches the specifications of the system to avoid potential issues. The capacitor provides the necessary torque to start the device and allows it to operate efficiently.
Double-check all connections before powering on. Improper connections can lead to malfunction or short circuits. Always refer to the specific technical manual of the equipment for precise instructions and ratings.

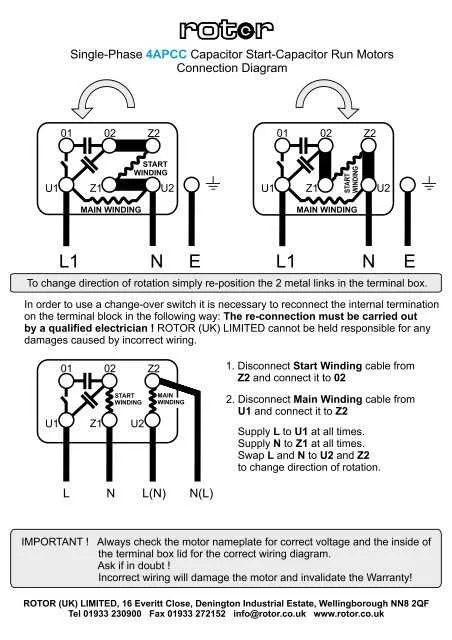

Understanding the Basic Single Phase Motor Wiring
Ensure the proper connection of the two main terminals to the power supply. The first terminal connects to the live wire, while the second terminal is linked to the neutral wire. This setup powers the device for standard operation. For proper function, check that the ground wire is securely connected to the frame of the appliance, ensuring safety from electrical faults.
For starting, integrate a start capacitor between the line and the auxiliary winding. This capacitor boosts the torque to begin operation. Once the device reaches a certain speed, a centrifugal switch disconnects the capacitor to prevent it from interfering with continuous operation. Make sure the capacitor rating matches the specific requirements for optimal performance.
The run winding remains energized for steady performance during operation. It’s crucial to use a motor rated switch to manage power on/off operations efficiently. Faults in these connections can lead to overheating or failure, so periodic inspections are necessary to verify integrity.
To prevent potential damage, ensure all connections are tight and free of corrosion. A solid, clean electrical contact is vital for long-lasting reliability and efficiency. Regular checks of the insulation around wires help maintain safe operation over time.
Step-by-Step Guide to Connecting an Electric Motor
Start by ensuring that the power supply is turned off to avoid any accidents. Safety should always be the top priority before proceeding with any electrical work.
- Prepare the Tools: Gather the necessary tools including screwdrivers, wire strippers, a voltage tester, and a multimeter.
- Understand the Terminals: Identify the terminals of the equipment: two main input terminals for the power supply and two output terminals for the load connection.
- Connect the Power Supply: Begin by connecting the live wire (usually black or red) to the power terminal. The neutral wire (typically white) should be connected to the neutral terminal. Double-check that the connections are firm and secure.
- Grounding: Properly connect the ground wire (usually green or bare) to the designated grounding terminal of the unit. This step is essential for safety.
- Link the Output Terminals: Attach the load side of the equipment to the output terminals. Use insulated wires to prevent any accidental contact with live parts.
- Check for Proper Voltage: Before testing, use a multimeter to ensure that the power supply is providing the correct voltage to the terminals.
- Test the Setup: Power on the system and use the voltage tester to verify that the connections are live and functioning as expected. If any issues arise, disconnect the power and inspect the connections.
Always follow the manufacturer’s instructions for specific details about terminal labeling and wiring configurations. Incorrect connections can lead to equipment damage or malfunction.
Troubleshooting Common Issues in Electrical System Connections
Check for correct voltage levels before proceeding with any repairs. Low or fluctuating voltage is often the cause of malfunctioning equipment. Use a multimeter to verify the input voltage at the terminals. If it deviates from the manufacturer’s specifications, contact the power supply provider.
If the unit doesn’t start, inspect the contactor and capacitor. A faulty capacitor can lead to a lack of start-up torque. Replace the capacitor if necessary, ensuring it’s rated for the specific requirements of the unit.
In cases of overheating, ensure that the system is not operating at too high a load. Overheating can result from overloading or poor ventilation. Reduce the load or improve air circulation around the equipment to prevent damage to the internal components.
For continuous tripping of the thermal overload protector, verify the current draw against the recommended range. Excessive current draw can result from worn-out bearings, blockages, or mechanical stress. Perform a mechanical inspection and lubricate the moving parts as needed.
If there’s no power despite all connections being intact, check for loose terminals or damaged insulation. Over time, vibration or heat can loosen connections, causing intermittent failures. Tighten all terminals securely and replace any damaged cables to restore full functionality.
