For guitarists looking to optimize the electrical system of their Fender-inspired instruments, understanding the internal connections is key. This guide provides a detailed blueprint of the components and their links, essential for achieving both tone clarity and functional reliability.
Start by carefully tracing the connections between the pickups and the selector switch. The positioning and grounding of these elements directly influence the clarity of your sound across different positions. Ensure that the wiring from each pickup is securely attached to the correct terminals to avoid unwanted hums or distortions.
For tone control: The capacitor plays a critical role in filtering out high frequencies. Depending on the value of the capacitor, you can alter the tonal range significantly. Choose a higher-value capacitor for a warmer, rounded sound or a lower-value one for sharper high-end clarity.
Attention to ground connections is crucial. A solid ground path minimizes electrical noise and stabilizes the circuit. Be sure to inspect all solder joints for solid connections, as weak or incomplete soldering can lead to signal loss or interference.
Lastly, always verify the output jack connections. A loose or poorly soldered output can result in signal dropouts or a completely dead output, so test thoroughly after reassembling the wiring components.
Electrical Configuration for a Modern Fender-Style Guitar
If you’re looking to reconfigure the electrical setup of your Fender-style instrument, follow this guide for a seamless transition between different pickup combinations and tone control options. Focus on understanding the position of each component in the circuit to ensure optimal performance.
Start by connecting the three single-coil pickups to a 5-way switch. Each position on the switch should route signal to one of the pickups: the bridge pickup in position 1, the middle pickup in position 3, and the neck pickup in position 5. In positions 2 and 4, the signal will blend both the bridge and middle, or middle and neck pickups respectively, providing a range of tonal possibilities.
Key wiring details: The pickups should have their hot leads connected to the switch, while the ground wires from the pickups should be connected to the back of the volume pot or the ground plane of the circuit. Ensure the switch’s common terminal is linked to the output jack’s tip terminal, which transmits the signal to your amplifier.
The volume control pot should be placed between the output jack and the tone controls. Use a 250k or 500k potentiometer, depending on the tonal characteristics you’re aiming for. For more treble-heavy sounds, a 250k pot works best; for richer, fuller tones, opt for a 500k version.
Incorporate the tone pots by connecting one to the middle pickup and the other to the neck pickup. The tone controls will allow you to adjust the treble response, cutting it when the knob is turned down, shaping your sound according to your preferences.
Important note: The capacitor in the tone control circuit is critical in shaping the high-end frequencies. Choose a capacitor between 0.022 µF to 0.047 µF for typical use. Higher values will result in a smoother, darker tone, while lower values will emphasize brighter frequencies.
Common troubleshooting tip: If you experience unwanted hum or weak output, double-check your grounding points. Ensure that all the metal parts, including the bridge, control plate, and any shielding inside the body cavity, are properly grounded to prevent noise interference.
Understanding the Pickup Configuration and Tone Control Circuit

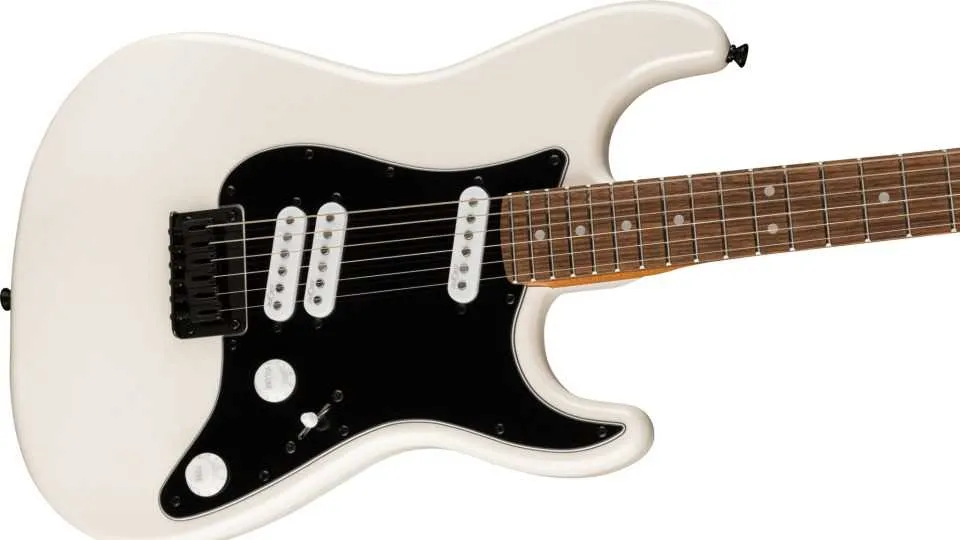

The pickup layout plays a crucial role in shaping the tonal qualities of an electric guitar. The setup in question uses a typical HSS arrangement–one humbucker in the bridge position and two single-coil pickups in the middle and neck. Here’s a breakdown of the system’s components and functionality.
- Humbucker Pickup: Located in the bridge position, this pickup provides a higher output with a fuller, thicker sound. It’s ideal for heavier tones, often used for lead parts or high-gain sounds. The humbucker is wired to push more mids and lows, giving a substantial presence to the signal.
- Single-Coil Pickups: Both the neck and middle positions feature single-coils. These offer a brighter, sharper tone that excels in clean sounds, with a more pronounced treble response. The middle pickup often works well for rhythm sections due to its balanced character.
The tone control circuit adjusts the tonal balance by managing the high frequencies, allowing for greater tonal shaping. In the standard setup, the tone knobs affect only the neck and middle pickups, while the bridge humbucker typically bypasses this control, maintaining a consistent brightness and cutting through the mix when needed.
- Neck Tone Control: This knob alters the tonal response of the neck pickup. Reducing the tone lowers the high end, providing a smoother, warmer sound, perfect for blues or jazz tones.
- Middle Tone Control: Similar to the neck tone, this adjusts the middle pickup’s brightness. Lowering the tone gives a more mellow sound, ideal for softer, more vintage-style tones.
- Bridge Tone Control: This generally remains unaffected in many wiring schemes, ensuring that the humbucker in the bridge position retains its bright and punchy output for rock or lead playing.
Some variations include a “no-load” tone pot, which effectively removes the tone control from the circuit when turned up all the way, offering a more direct and uncolored signal from the pickups. This can be especially useful for players who prefer a pure, unmodified tone from their humbucker pickup.
When considering mods or upgrades, experimenting with different capacitor values on the tone pot can also fine-tune the frequency roll-off. For example, a smaller value (around 0.022uF) will roll off high frequencies more gradually, while a larger value (0.047uF) offers a more pronounced effect on treble frequencies.
How to Modify the Circuit for Custom Sound Options

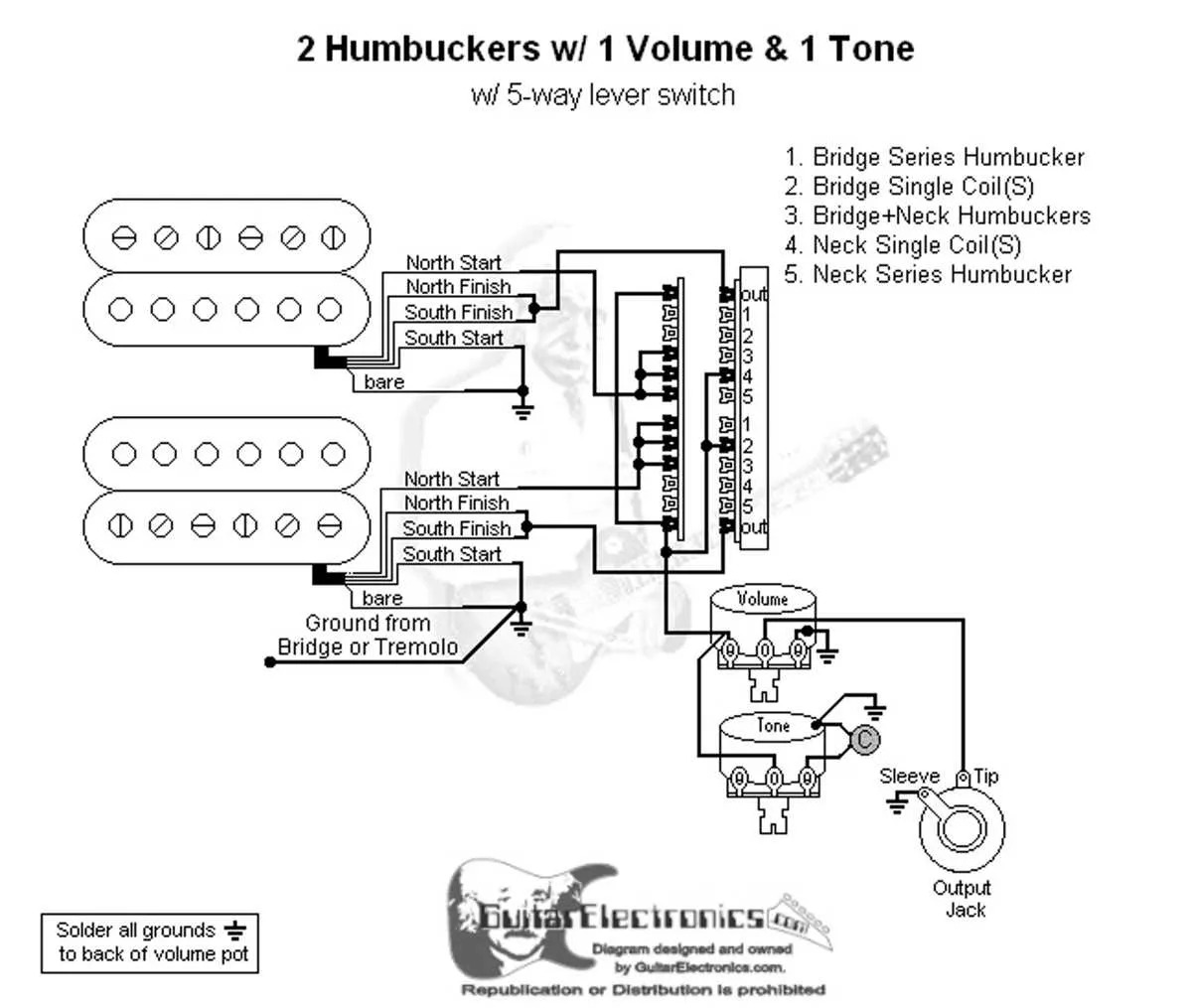

Start by replacing the standard single-coil pickups with humbuckers for a fuller, higher-output sound. To do this, you’ll need to rewire the connections to the pickup selector switch and possibly modify the tone control pots to accommodate the different wiring of humbuckers.
If you’re looking for greater versatility, add a push-pull potentiometer to the tone or volume knob. This will allow you to switch between series and parallel wiring for your humbuckers, giving you a wider range of tonal possibilities.
To achieve more tonal options, you can implement a 5-way switch with additional positions. This setup allows for blending both pickups in various combinations, giving you unique tonal blends, such as both pickups in series for a thicker sound or in parallel for a sharper tone.
Consider installing a tone capacitor with different values to alter the frequency response. A higher-value capacitor will roll off more high-end, resulting in a smoother sound, while a lower-value capacitor keeps the treble frequencies bright and crisp.
For those who want to dial in a more vintage feel, swap the bridge tone control for a capacitor with a higher capacitance value, like .047uF, which provides a more pronounced high-end roll-off when adjusting the tone knob.
Another popular mod is to incorporate a coil-splitting switch, allowing you to turn your humbuckers into single-coils at the flick of a switch. This mod gives you the best of both worlds, from thick, warm humbucker tones to crisp, bright single-coil sounds.
Finally, adding a master volume control, separate from each pickup’s volume knob, can give you better control over your overall output, allowing for more dynamic sound shaping. This configuration is particularly useful in high-gain situations where you need to fine-tune the overall intensity of your signal.
Troubleshooting Common Wiring Issues in Electric Guitars
If you experience buzzing, no sound, or inconsistent volume levels, first inspect the connections from the pickups to the switch. Check for any loose wires, poor solder joints, or signs of wear on the leads. A weak connection here can cause intermittent signal loss or reduced output.
Issue 1: Weak or No Signal
Ensure that the input jack is properly wired and tight. A loose or corroded jack can lead to signal loss. Clean the contacts if necessary and check for continuity with a multimeter. If there’s no continuity, resolder the connections to the jack.
Issue 2: Grounding Problems
A hum or buzz, especially when touching the strings or other metal parts, often indicates a grounding issue. Verify that the ground wire from the bridge or the tremolo system is securely attached to the pot casing. The grounding should also connect to the output jack and control cavity shield.
Issue 3: Volume Potentiometer Malfunctions
If your volume control works inconsistently, it could be due to a faulty potentiometer. Check for loose or broken connections between the pot and the rest of the circuit. If the pot feels “scratchy” when adjusting, try cleaning it with contact cleaner. If the issue persists, consider replacing the potentiometer.
Issue 4: Tone Control Failures
If the tone control doesn’t affect the sound or only works at extreme settings, check the capacitor linked to the pot. A faulty capacitor can prevent the tone control from functioning properly. Ensure that the capacitor is intact and securely connected.
Issue 5: Pickup Selector Switch Issues
If you can’t switch between pickup configurations, inspect the selector switch for damage or dirt. Sometimes, dust and debris can obstruct the switch’s contacts. Cleaning the switch with compressed air or contact cleaner may resolve the problem.
Issue 6: Intermittent Noise
Occasional static or crackling sounds might be caused by a dirty or worn-out input jack, loose solder connections, or a defective switch. Reflow any solder joints that seem cold or cracked, and clean the contacts to ensure reliable performance.
