When dealing with the drive system of your garden tractor, accuracy in routing and installation is essential. Always start by identifying the key components such as pulleys, idlers, and the drive mechanism that connects them. Understanding the correct alignment will prevent premature wear and ensure smooth operation.
Inspect the drive components regularly. Look for any signs of wear, cracking, or misalignment. If the moving parts show excessive wear, it’s crucial to replace them promptly to avoid further damage to the system. Use a maintenance schedule to stay on top of these checks.
For proper adjustment, ensure that all tension springs are correctly positioned and functional. Incorrect spring placement can lead to inefficient power transmission or slippage, reducing the machine’s performance. Always follow the specific model’s routing to guarantee all components are in their designated positions.
When working on the system, consider the layout and how each piece interacts with the others. Taking a systematic approach will help you avoid mistakes and complete repairs more efficiently, keeping your machine running at optimal levels.
Replacement and Maintenance of Drive Components
For proper installation of the drive system on your lawn equipment, ensure each part is correctly routed according to the manual. Start by confirming the correct part numbers for the pulleys, gears, and tensioners used in your specific model. Adjust the tensioners to achieve the proper belt tightness, avoiding excessive slack or tightness that can cause premature wear.
Follow the correct sequence for routing the components to prevent any risk of misalignment. Check the pulley system for smooth rotation; any sign of wear or cracking on pulleys should be addressed immediately. Also, inspect the drive system regularly, especially if you notice unusual noise or slipping, which could indicate issues with alignment or tension.
Ensure that the components are securely fastened before operating the machinery. Regular checks, especially before the start of each season, can prolong the lifespan of these critical parts and prevent costly repairs.
Identifying the Correct Belt for Your Model
To ensure proper functioning, always verify the exact part number for your equipment before purchasing a replacement. Here’s how to find the correct item:
- Check the model number and serial number. These can be found on the chassis plate or on the manufacturer’s label.
- Refer to the maintenance manual specific to your machine. This guide will list the exact dimensions and part numbers for every drive component.
- Measure the current part’s length and width. If it’s worn or damaged, it’s better to replace it with one of the same size to avoid misalignment.
- Ensure the replacement matches the intended use of the machine, whether it’s for a riding mower or garden tractor. Different systems might require different designs.
If you’re unsure about the part number or specific model match, always consult with a certified technician to confirm the compatibility of the replacement piece with your system.
Step-by-Step Guide to Installing Toro Wheel Horse Belts
1. Begin by disengaging the drive system and powering down the machine completely. Ensure all safety mechanisms are in place.
2. Locate the components requiring the replacement of the drive component. Refer to the machine’s manual to identify specific parts and fasteners to remove.
3. Detach any coverings or shields obstructing access to the drive system. Use appropriate tools to remove fasteners without damaging them.

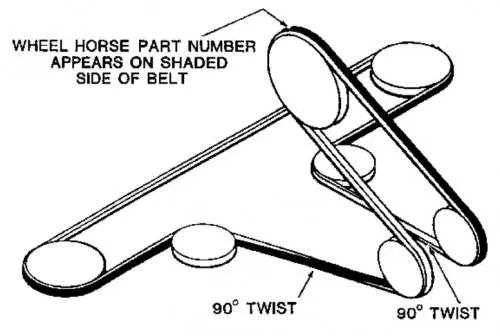

4. Examine the routing path for the component to ensure proper placement during installation. Pay close attention to pulleys and guides that direct the component along its path.
5. Slide the new part into position, ensuring it follows the exact routing of the previous component. Ensure the proper tension by adjusting tensioners or spring-loaded parts accordingly.
6. Secure the new part by tightening the appropriate fasteners to the manufacturer’s recommended torque settings.
7. Reinstall any shields or covers that were removed during disassembly.
8. Check alignment and functionality before powering up. Test the machine at low speed first to ensure proper operation.
Common Drive System Issues and Troubleshooting Tips
If the mower is not moving or making unusual noises, check for misalignment or damage in the drive components. Ensure the tension is adequate by testing the drive’s responsiveness under load. Weak performance could be caused by stretched or improperly tensioned components.
Start by inspecting the pulleys for wear. Worn pulleys can cause slipping, resulting in reduced efficiency and power loss. If the pulleys appear damaged, replace them with parts that match the manufacturer’s specifications. Also, examine the idler and drive pulleys for proper alignment and smooth operation.
Excessive vibration or noise is often linked to loose components. Tighten all mounting bolts and check for any debris or buildup around moving parts. This can help prevent unnecessary strain on the system, which may lead to early failure of parts.
Clogs in the system can restrict movement and create tension issues. Clear any debris, dirt, or grass buildup, especially around the drive components. Cleaning the system regularly can prevent this problem from recurring.
If you notice a burning smell or excessive heat, there may be excessive friction in the drive system. This could be due to improper tension or misalignment of the parts. Adjust the tension and recheck the system after use to ensure it remains cool under normal operation.
In cases of poor traction or sluggish performance, verify that all moving parts are properly lubricated. Lack of lubrication can lead to increased friction, which negatively impacts performance and shortens the lifespan of components. Apply the correct type of lubricant as recommended by the manufacturer.
