When working with small engine fuel systems, understanding the layout and connections of key parts is crucial for proper maintenance. If you’re encountering issues with fuel flow or engine performance, it’s important to examine the intake system thoroughly. A clear representation of the fuel mixture circuit can pinpoint areas that require adjustment or replacement. Pay attention to the choke, throttle valve, float, and needle, as these components directly affect fuel delivery.
Focus on the fuel jet sizes–adjusting them can fine-tune your engine’s fuel-air ratio, ensuring smooth operation across various RPMs. The pilot jet and main jet are essential for controlling idle and full-throttle performance. Verify their condition regularly for any blockages or wear. Be mindful that an incorrect jet can cause starting issues or poor acceleration.
Ensure that all air and fuel passages are clean and unobstructed. Air filters, hoses, and seals must be in top condition to avoid vacuum leaks, which can severely impact performance. Double-check the float height, as it plays a vital role in maintaining the correct fuel level within the chamber. Too high or too low can lead to flooding or starvation, respectively.
Understanding the Fuel Intake System for Small Engine Scooters
Inspect the throttle valve to ensure smooth fuel flow. A stuck or improperly adjusted valve can cause engine hesitation or stalling. Make sure it’s properly aligned with the intake chamber.
Next, check the jets for clogs. Even small debris can severely affect performance. If cleaning doesn’t resolve the issue, consider replacing them with the correct size for your engine’s specifications.
Examine the float mechanism carefully. If the float is damaged or misaligned, it will not regulate the fuel level correctly, leading to either flooding or insufficient fuel supply. Ensure the float is floating freely without obstruction.
Adjust the air/fuel mixture screw if your engine shows signs of running too rich or lean. This screw should be fine-tuned based on your local environment and riding conditions. Always make adjustments in small increments to avoid major issues.
Ensure the main fuel line is properly secured and free of cracks. A leak here can lead to fuel loss, reducing engine efficiency. Regularly inspect for wear and replace as needed.
Lastly, the vacuum diaphragm must maintain its integrity. A leak in this component can lead to erratic idling and poor acceleration. Check for tears or signs of aging, and replace it if necessary to maintain smooth throttle response.

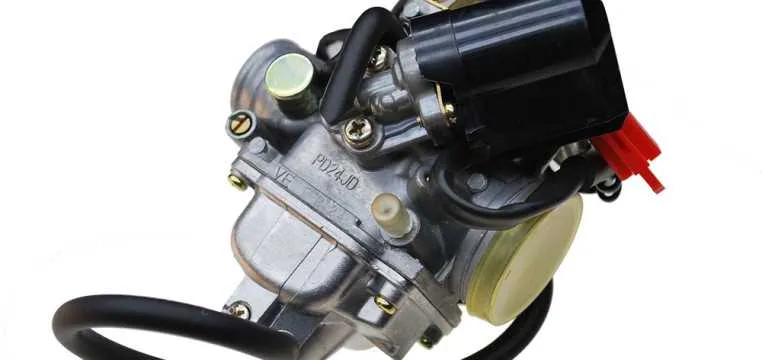

Understanding the Key Components of a 150cc GY6 Carburetor
Focus on the float bowl first. It holds the fuel and controls the fuel level, ensuring it remains consistent for proper engine operation. The float inside rises with the fuel level, closing the inlet valve when the level is sufficient. If the float gets stuck, fuel delivery issues may occur, leading to performance problems.
Next, examine the needle valve. This small component regulates the fuel flow from the bowl to the jets. If the needle valve fails, excess fuel may flood the system, or too little fuel may enter, causing engine misfires or poor acceleration.
The pilot jet is responsible for providing fuel at low RPMs. A clogged or incorrect pilot jet size will cause idle instability, poor starting, and uneven throttle response. Regular cleaning and proper sizing are essential for smooth operation.
The main jet controls fuel flow at higher RPMs. A blocked or improperly sized jet will result in power loss, hesitation, or rough running at full throttle. Ensure the jet size matches your engine’s needs for optimal performance.
The choke assembly is critical for starting the engine in cold weather. It restricts air flow to enrich the fuel mixture. If the choke sticks or fails, starting issues, especially in colder conditions, are likely.
The throttle valve regulates airflow as the throttle is engaged. Any sticking or misalignment of this valve can lead to erratic engine speeds or an inability to control the throttle accurately. Regular inspection and lubrication prevent these issues.
Lastly, the air/fuel mixture screw adjusts the ratio of air to fuel at idle. Turning it too far in or out can cause poor idle performance or stalling. Proper adjustment ensures a smooth idle and responsive throttle. Ensure it is set according to manufacturer specifications.
How to Identify and Fix Common Issues with Your Engine’s Fuel System
Start by checking the fuel system for leaks. A damaged fuel line or loose connection can lead to inconsistent engine performance. If the system seems dry, inspect the fuel filter for clogs and replace it if necessary.
If the engine is stalling or idling roughly, the issue might be with the air-fuel mixture. Perform the following steps:
- Ensure the idle screw is set properly. Too high or low can lead to poor performance.
- Inspect the air intake for obstructions like dirt or debris.
- Check the vacuum lines for cracks, as this can cause irregular idling.
If there’s a noticeable lack of power during acceleration, the issue may be with the jetting. Follow these steps to resolve it:
- Examine the main jet for blockages. Clean or replace it if necessary.
- Verify the size of the main and pilot jets to ensure they match your engine’s requirements.
When the engine doesn’t start or hesitates, verify the choke function. A stuck or malfunctioning choke may prevent the engine from getting the proper air-fuel mix. Inspect and replace the choke if needed.
If the engine sputters or backfires, it might be due to an air-fuel imbalance. To fix this:
- Ensure the float level is set correctly to prevent flooding.
- Check the needle valve for wear and proper sealing.
Regular maintenance of the intake manifold and gasket seals is also essential for optimal performance. If you notice any air leaks around the gasket, replace it to avoid fuel mix issues.
Lastly, ensure that the throttle cable is properly adjusted and not sticking. A tight or frayed cable can cause throttle response issues.
Step-by-Step Guide to Adjusting the 150cc GY6 Carburetor for Optimal Performance
Start by ensuring the engine is off and cool. Disconnect the air intake and remove the air filter to access the mixture screw.
Locate the mixture screw, which controls the air-fuel ratio at idle. Turning it clockwise will lean the mixture, while turning it counterclockwise will richen the mixture. Adjust it until the engine idles smoothly without stalling.
Next, check the idle speed screw. This screw controls the engine’s idle RPM. Turn it clockwise to increase idle speed or counterclockwise to decrease it. Aim for 1500-2000 RPM at idle for optimal performance.
After adjusting the mixture and idle speed, check the spark plug for color. A tan or light brown color indicates the correct air-fuel mixture. If the plug is black or sooty, the mixture is too rich; if it’s white, it’s too lean.
If necessary, adjust the needle position. The needle controls mid-range fuel delivery. Raising the needle will allow more fuel, while lowering it will reduce fuel flow. Experiment with different positions for smoother throttle response.
Finally, test ride the vehicle to ensure throttle response is smooth and consistent. If the engine hesitates or bogs down, further adjustments to the mixture or needle may be needed.
