Start by ensuring the battery is properly charged. A weak or dead battery is often the main reason a lawn tractor won’t start. If the battery shows signs of wear or corrosion on the terminals, replace it or clean the connections thoroughly. A fully charged and clean battery is crucial for the system to operate correctly.
Next, inspect the ignition switch and fuse. If the engine doesn’t turn over, it may be due to a faulty ignition switch. Check the switch for any signs of damage, and ensure the fuse is intact. If the fuse is blown, replace it with one of the same amperage to avoid damaging any components.
If your tractor starts but doesn’t respond to throttle adjustments, the issue could be with the wiring between the throttle and engine control system. Carefully examine the wires for any loose connections or visible wear. Repair or replace damaged wires as needed to restore proper function.
For models with electric start, examine the starter solenoid and associated wiring. A malfunctioning solenoid can prevent the engine from cranking. Testing the solenoid with a multimeter is a quick way to determine if it’s working correctly. If it fails to respond, replacing the solenoid will likely resolve the issue.
Finally, make sure all ground connections are secure. An unreliable ground connection can cause intermittent issues and affect performance. Tighten any loose ground wires and clean off any corrosion to ensure a solid electrical connection. A proper ground is essential for the system’s reliability.
Electrical Layout for Lawn Tractor
For troubleshooting or replacing components in your lawn tractor, follow the specific connections between the engine, ignition, and control units. Ensure the battery is correctly connected to the starter and alternator, with a solid ground connection to the chassis. Check the wiring between the ignition switch and solenoid, making sure no shorts or loose connections are present.
Inspect the wiring between the fuse box and the motor for any signs of wear or fraying. It’s crucial to maintain a clean and tight connection to avoid electrical failures. Pay attention to the relay terminals; they should be firmly attached to avoid starting issues.
If you need to replace a switch or solenoid, make sure the new components match the original specifications to ensure proper operation. For added safety, disconnect the battery before making any adjustments or repairs.

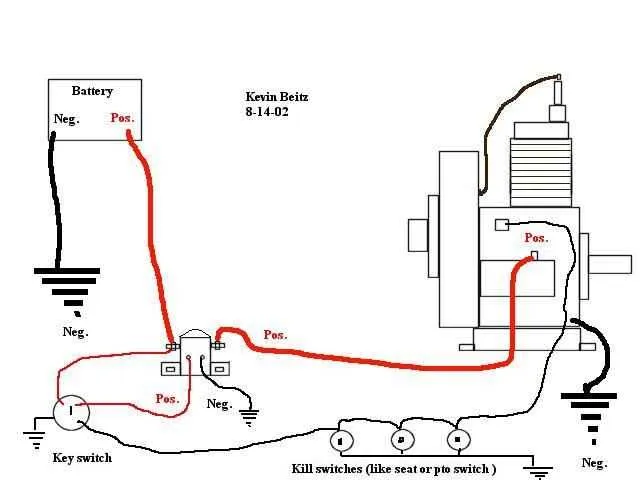

Understanding the Connections for the Starter Motor
Ensure correct wiring when connecting the starter motor to the battery and ignition switch to prevent issues with the engine start-up. Follow these steps to avoid common errors:
- Check battery polarity: Connect the positive terminal of the battery to the motor’s input terminal using a heavy-duty cable. Double-check the negative terminal’s connection to the frame or ground.
- Ignition switch link: Ensure the ignition switch’s wire is properly attached to the starter motor solenoid. This wire is activated when you turn the key to start the engine.
- Starter solenoid contacts: Confirm the solenoid terminals are clean and tightly connected to prevent voltage drops. The solenoid activates when the ignition is on, directing current to the starter motor.
- Starter motor grounding: The starter motor must be securely grounded to the frame. A loose or broken ground wire can cause a failure to start.
- Inspect for corrosion: Regularly clean the terminals and connectors to avoid corrosion, which can impede electrical flow.
Improper connections can lead to weak cranking or no start at all. Always use proper gauge wiring to handle the current required by the motor.
How to Troubleshoot and Repair the Electrical System in a Lawn Tractor
Start by checking the battery voltage. If it’s below 12.6 volts, charge or replace the battery. Weak batteries can cause the engine not to start or malfunction intermittently.
Inspect the connections to the battery and starter motor. Loose or corroded terminals can prevent proper power flow. Clean the terminals with a wire brush and re-tighten the connections.
Test the fuse and relay for continuity. A blown fuse or a malfunctioning relay can cut power to critical components. Replace any faulty parts with exact replacements to ensure proper operation.
Examine the ignition switch. If the engine doesn’t turn over when the key is turned, the ignition switch might be defective. Use a multimeter to test the switch’s functionality, and replace it if necessary.
Check the wiring for visible damage or wear. Frayed wires can cause shorts or open circuits, leading to electrical failure. Inspect the entire system for signs of wear and repair any damaged wiring using appropriate connectors.
Verify the operation of the solenoid. If the engine turns over but doesn’t start, the solenoid could be faulty. Use a multimeter to test the solenoid’s input and output voltage.
If the charging system isn’t working, check the alternator or voltage regulator. A malfunctioning alternator won’t charge the battery, causing the tractor to run off of battery power until it drains. Test with a multimeter and replace as needed.
Finally, if the tractor still doesn’t start, the issue may be with the safety switches. These prevent the tractor from starting in unsafe conditions. Test all safety switches and bypass each one to isolate the fault.
Common Electrical Issues in Lawn Tractors and How to Fix Them
If the engine won’t start or the electrical components are malfunctioning, the first step is to check the battery connections. Loose or corroded terminals can prevent proper power flow. Clean the battery posts with a wire brush and ensure the connections are tight. If the battery is weak, consider replacing it with a new one, ensuring the correct voltage for your model.
A malfunctioning starter solenoid is another frequent cause of electrical problems. When turning the key doesn’t activate the engine, but the battery seems fine, the solenoid could be faulty. To test, use a multimeter to check for voltage across the solenoid terminals. If there’s no continuity when the key is turned, replacing the solenoid will restore function.
Check the fuse box for any blown fuses if the lights or accessories aren’t working. Replacing a blown fuse is straightforward, but make sure to replace it with a fuse of the same rating to avoid further issues.
Faulty ground connections can also cause erratic behavior in electrical systems. Inspect the grounding wire that runs from the battery to the chassis. If it’s loose or corroded, clean the contact points or replace the wire as necessary to ensure a solid connection.
Loose or damaged wiring can cause intermittent electrical failures, especially under load. Inspect the wires for any visible damage, fraying, or wear. Tighten any loose connections and replace damaged wires to prevent shorts or loss of power.
