Start by checking the primary control hub beneath the hood on the driver’s side, near the battery. Lift the cover to access labeled components responsible for headlights, horn, and ignition. For troubleshooting power-related issues, identify relays and mini-cartridges grouped by function. The cover’s reverse side includes a schematic with corresponding amperage values.
Inside the cabin, locate the secondary unit below the steering column, slightly to the left. This internal board manages accessories such as power windows, audio system, and interior lighting. To replace a blown element, use needle-nose pliers and refer to the serial number embossed next to each slot. Never exceed the specified current rating to avoid circuit damage.
Pro tip: Keep spare low-profile spares in the glove compartment. Use a multimeter to test continuity before replacing any item. Refer to the user manual for identification codes like F42 or R07, indicating exact placement and function.
Note: Some variants include an additional panel behind the passenger kick panel. Access requires removing the trim piece with a plastic pry tool.
2022 Ford F-150 Fuse Box Diagram
Locate the primary power distribution panel under the hood on the passenger side near the firewall. To access the internal circuit layout, release the latch and remove the plastic cover. Each slot is numbered; check the inside of the lid for the factory legend or refer to the owner’s manual, page 388 for detailed assignments.

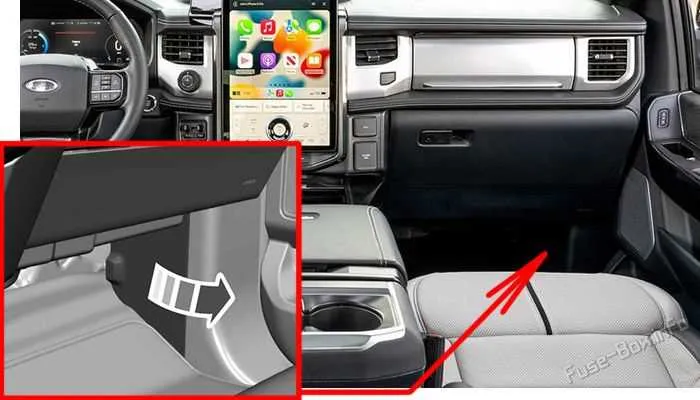

For interior electronics, the secondary relay center is positioned behind the kick panel on the passenger side. Remove the trim carefully using a trim tool to avoid breaking clips. The label is affixed to the rear of the cover and lists functions such as trailer tow module, heated seats, and power mirrors.
Use a 10A mini blade connector for components like the SYNC module or power point, while systems like the electronic brake controller or blower motor rely on 30A or higher. Never exceed the specified amperage–doing so can compromise the harness and lead to system failure.
When troubleshooting non-functioning features such as rear defrost, adaptive cruise control, or power windows, prioritize checking the relevant slot using a test light or multimeter before replacing components. A blown element will show continuity loss between the terminals.
Always disconnect the battery before pulling any connectors to prevent shorts. When replacing, match the amp rating precisely and push the replacement fully into place to ensure solid contact. Keep spares of 5A, 10A, 15A, and 20A in the glovebox for emergencies.
How to Locate the Interior and Engine Compartment Fuse Boxes in the 2022 Ford F-150
Start by opening the driver’s door and looking just below the steering column. The cabin-mounted power distribution center is behind a rectangular access panel near the brake pedal. Pull the cover outward from the top to release the latches and gain entry.
For the under-hood relay housing, lift the hood and focus on the right-hand side of the engine bay, close to the battery. The protective casing is mounted above the wheel well, secured by plastic tabs. Press the locking mechanisms on both sides simultaneously, then lift the lid to inspect or replace any components inside.
Tip: Always disconnect the negative battery terminal before working under the hood to avoid accidental shorts.
Identifying Fuse Functions and Amperage Ratings in the 2022 Ford F-150
Check the power distribution center behind the passenger-side kick panel for circuits related to cabin electronics. Locate position 23 for the front wiper motor relay (30A) and slot 33 for the audio unit (15A). Confirm amperage by matching the color-coded blade type: blue (15A), yellow (20A), green (30A).
Under the hood, examine the central module near the battery. For the trailer tow battery charge, look at cavity 35 (30A), while the electric fan control typically draws from slot 42 (50A, maxi). Lighting functions use lower ratings–headlamp left is usually in location 61 (15A), while the right side occupies 62 (15A).
Refer to the cover label for the exact layout. If a replacement is needed, match both the amperage and the shape–micro2, mini, or J-case depending on the circuit type. Avoid inserting higher-rated options to prevent harness damage.
Steps to Safely Replace a Blown Electrical Link in the Latest F-Series Truck
- Turn off the ignition and remove the key to cut all power to the vehicle’s circuits.
- Locate the main protective panel under the hood or inside the cabin, usually near the driver’s side.
- Use the cover’s underside or the owner’s manual to identify the exact slot corresponding to the malfunctioning circuit.
- Employ a fuse puller or needle-nose pliers to gently extract the damaged element, avoiding contact with metal parts.
- Inspect the removed link for a broken filament or discoloration, confirming it’s faulty.
- Select a replacement with the same amperage rating to prevent electrical hazards or damage.
- Insert the new component firmly into the designated slot until it seats completely.
- Replace the panel cover securely to protect the circuitry from dust and moisture.
- Start the engine and test the affected system to ensure proper operation.
- If the new element blows immediately, consult a professional to diagnose potential underlying wiring issues.
