If you’re seeking a detailed layout for the mower’s chassis, it’s essential to focus on the correct placement of key components. Start by verifying the positioning of the cutting blade system, ensuring it is aligned with the powertrain. Incorrect placement can result in uneven cuts and unnecessary strain on the engine.
To ensure smooth operation, pay close attention to the structural support beneath the mower. The reinforced framework should be secure and free of cracks or deformities that could affect the machine’s balance. Regular checks can help avoid costly repairs.
For optimal maneuverability, inspect the steering linkage and the brake assembly, both of which are crucial for safe handling. Make sure the controls are responsive and the brake pads are in good condition, providing maximum stopping power when needed.
Lastly, review the power transmission system, which connects the engine to the cutting blades. Any signs of wear or misalignment should be addressed promptly to prevent further damage or inefficiency during operation.
Understanding the Lawn Tractor Chassis Layout
To effectively service and maintain the cutting mechanism of your lawn tractor, it’s essential to know the exact positioning of components such as pulleys, blades, and the overall structure. Here’s a step-by-step guide on how to navigate the system layout:
- Examine the frame for mounting points: These are crucial for securing the cutting unit and drive belts.
- Inspect the blade spindle alignment: Ensure the spindles are properly positioned to guarantee optimal blade rotation.
- Check the pulleys and belt routing: The belt must be tensioned correctly to prevent slippage and uneven cutting.
- Locate the anti-scalp rollers: These prevent the blades from touching the ground when lifting the deck.
It’s also recommended to use a schematic for reference when performing maintenance tasks like belt replacement or adjusting the cutting height. Understanding the mechanical link between the drive system and the cutting blades helps in diagnosing operational issues.
- Start by lifting the chassis slightly to expose the cutting system.
- Loosen the fasteners securing the cutting assembly.
- Remove and inspect each pulley for wear.
- Reinstall after ensuring all components are aligned correctly.
Regular inspection of these elements will extend the lifespan of your mower and improve its performance, ensuring a clean and efficient cut every time.
Understanding the Key Components of the Craftsman T140 46 Deck
The mower’s cutting platform consists of several essential parts that work together to ensure smooth operation. First, the spindle assembly plays a critical role in powering the blades, ensuring they spin efficiently. Regular inspection of the bearings and the spindle housing will help prevent unwanted wear and tear.
Blade spindles are mounted on these assemblies, directly affecting the quality of the cut. Check for any signs of rust or excessive wear on the spindles, as this can lead to uneven cutting performance. Ensure the blades are securely attached, as loose fasteners may cause damage during operation.
The idler pulley system controls the tension of the drive belt. If the belt becomes slack or worn out, it may slip and reduce power transfer to the blades. Regularly check for signs of wear and replace the idler pulley if needed to maintain consistent blade performance.
The mower deck housing serves as the protective casing for the cutting system. It must remain free of debris and grass clippings to avoid restricted airflow. Clean the housing regularly, paying close attention to the underside, as buildup can affect cutting efficiency and cause the blades to dull faster.

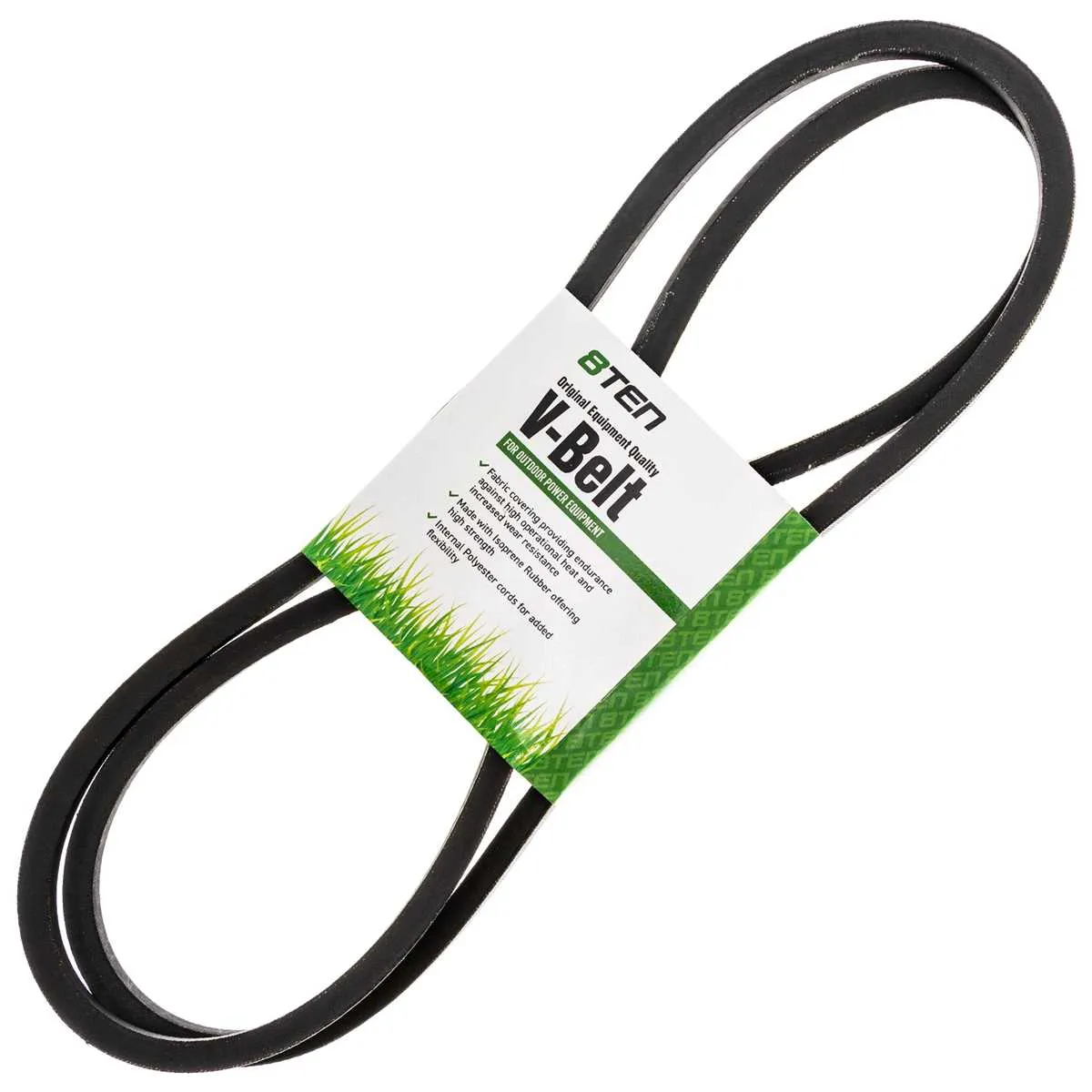

Drive belt tension is vital for the proper functioning of the blades. Over time, the belt may stretch, reducing its effectiveness. Ensure it is taut enough to prevent slippage but not so tight as to cause excessive strain on the pulleys.
Each of these components plays a key role in maintaining the overall performance of your mower. Regular inspection and maintenance are essential for avoiding costly repairs and ensuring optimal cutting performance.
How to Identify and Troubleshoot Common Mower Platform Issues
Start by checking for uneven cuts: measure blade height on both sides using a ruler; adjust the lift linkage if there’s a difference greater than 1/8 inch. Ensure tires are inflated evenly, as pressure imbalance directly affects platform alignment.
Inspect for vibration: examine pulleys and spindle housings for wear or cracks. Replace bent blades immediately; use a torque wrench to secure blade bolts to manufacturer specifications, typically 45–55 ft-lbs.
Look for belt slippage: check belt tension by pressing midway between pulleys – proper deflection should be around 1/2 inch. Replace frayed or glazed belts; verify idler spring tension and pulley alignment to prevent future slippage.
Address noise or grinding sounds: rotate spindles by hand to feel for roughness, indicating worn bearings. Replace bearing assemblies if any resistance or noise is detected. Confirm pulley fasteners are tight and free of debris.
Examine cutting surface buildup: clean underside thoroughly using a scraper; excessive debris affects airflow and cutting performance. Consider applying a non-stick coating to minimize future buildup.
Check for uneven discharge: ensure the chute is clear and not bent. Verify blade sharpness by running a fingertip gently along the edge – a dull edge requires sharpening or replacement.
Assess rust or corrosion on the metal frame: sand affected areas, apply rust-inhibiting primer, and repaint to prevent structural weakening. Regularly store the machine in a dry location to reduce moisture exposure.
Test height adjustment mechanisms: move the lever through all settings while observing linkage movement. Lubricate pivot points with lithium grease if movement feels stiff or uneven.
Step-by-Step Guide to Maintenance and Replacement Parts
Begin by disconnecting the spark plug to prevent accidental starts. Use a sturdy jack or lift to raise the mower frame and secure it with jack stands before any work under the machine.
Inspect the 46-inch cutting platform for signs of wear: check the spindles for wobbling, confirm the pulleys spin freely without grinding, and ensure the belts have no cracks or frays. Replace any component showing damage.
To remove the cutting assembly, first take off the belt from the engine pulley, then release the mounting brackets holding the platform to the frame. Lower it carefully to avoid bending support arms.
Check the blades for dull edges or nicks. Sharpen with a file or replace entirely if bent or heavily worn. Always use factory-specified blades for proper cutting performance.
Examine the mandrel housings; if there’s play or noise when rotating by hand, replace the bearings or the entire spindle assembly. Use a torque wrench to secure all bolts to the manufacturer’s specified tightness.
Inspect tension springs and idler pulleys for correct function; weak springs or seized pulleys must be replaced to maintain even belt tension. Clean all moving parts and apply lubricant to pivot points.
Reinstall the cutting assembly by reversing the removal process. Ensure the drive belt is correctly routed following the routing diagram printed on the machine or in the manual.
Test the reassembled system by manually rotating the pulleys before reconnecting the spark plug. Once confirmed, start the engine and engage the cutter to check smooth operation without vibration or noise.
