Ensure that your vehicle’s heat regulation components are functioning properly to avoid engine overheating and potential damage. The radiator plays a critical role in dissipating heat from the engine block, with coolant circulating through it to absorb excessive heat. Regularly inspect the radiator for leaks or corrosion, as these issues compromise heat dissipation.
Pump performance is crucial for consistent coolant flow throughout the engine. A malfunctioning pump leads to poor circulation, resulting in uneven temperature distribution and possible engine failure. Replace any faulty pumps immediately to prevent overheating.
The thermostat controls the flow of coolant based on temperature, maintaining an optimal engine operating range. An improperly functioning thermostat may either prevent coolant flow or allow excessive flow, both of which can severely affect engine performance. Ensure regular checks and replacements as needed.
Keep an eye on the hoses and clamps that connect the various cooling components. Cracks, leaks, or loose connections can lead to coolant loss and engine overheating. Replace worn hoses and tighten clamps to maintain a sealed, efficient system.
Lastly, monitor the coolant level and condition regularly. Dirty or low coolant affects the heat transfer process, decreasing overall engine performance. Make sure to top up or flush the coolant at recommended intervals to maintain proper engine temperature management.
Understanding the Cooling Mechanism

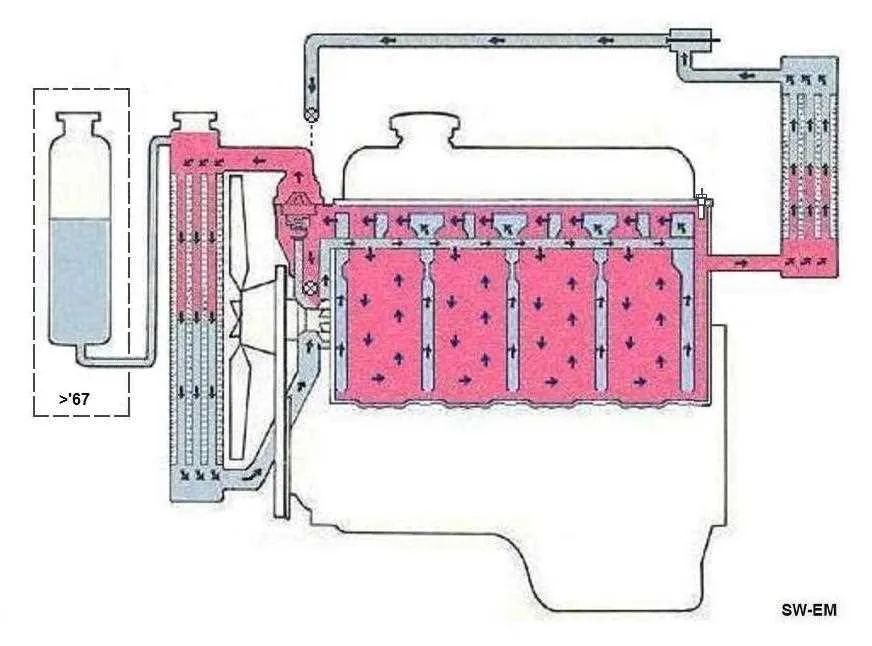

To ensure effective thermal regulation in automotive or industrial machinery, it is essential to comprehend the layout and flow of fluids used for heat dissipation. The key components of this process include the radiator, pump, hoses, and thermostat, each performing a specific function in maintaining optimal temperatures.

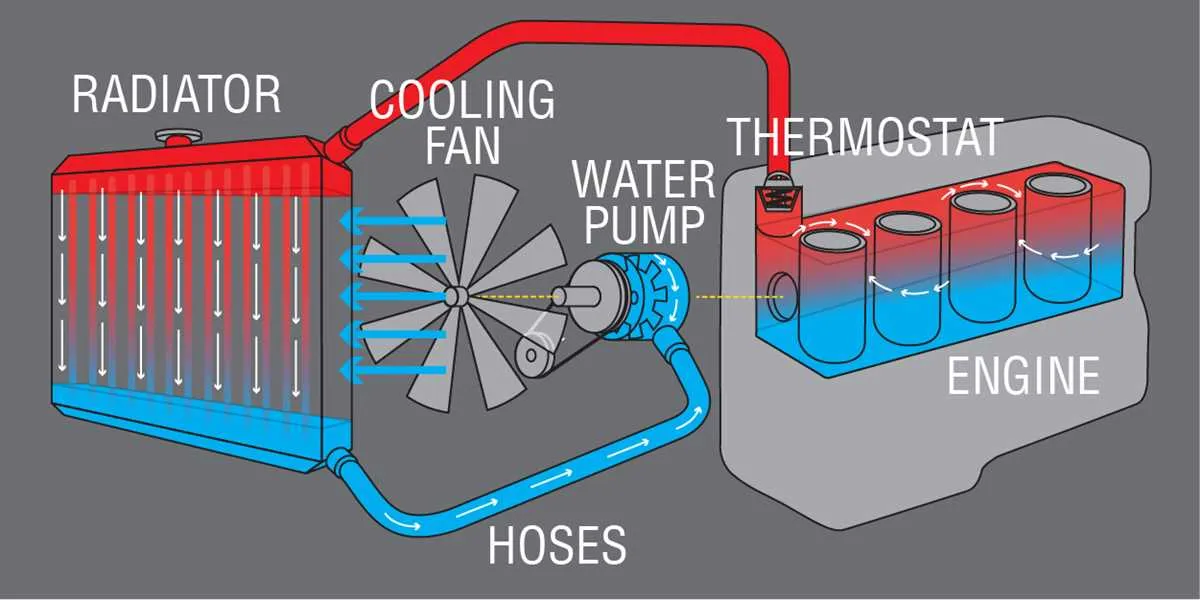

- Radiator: Positioned to facilitate the exchange of heat from the fluid to the surrounding air. It is crucial for heat dissipation, especially at high engine temperatures.
- Pump: Moves the fluid through the entire network. It is vital for maintaining consistent fluid circulation, ensuring that the engine or machine components are not overheated.
- Hoses: These channels carry the heated fluid to the radiator for cooling and return it back to the engine or machine parts for reheating.
- Thermostat: Regulates the flow of fluid based on temperature. If the fluid becomes too hot, it opens to allow a larger volume to circulate, helping to cool down the system.
Proper maintenance of these parts is critical. Leaks, blockages, or malfunctions in any of these components can lead to inefficient temperature control, potentially causing overheating. Always check for fluid levels and inspect hoses for cracks to prevent system failure.
- Regularly replace the fluid to avoid build-up of debris or corrosion that can clog the components.
- Ensure the radiator fins are clean to allow optimal airflow for heat exchange.
- Monitor the pump’s performance, as irregular flow can cause uneven temperature regulation.
For maximum efficiency, a balanced mix of fluid is essential–typically, a 50/50 ratio of water and antifreeze. This ratio prevents freezing in low temperatures and boiling over in high temperatures, ensuring smooth operation under various conditions.
Understanding the Components of a Cooling Mechanism Blueprint
Start by identifying the core parts of the setup, such as the radiator, pump, and fan. Each plays a vital role in maintaining thermal balance. The radiator disperses excess heat, the pump circulates the fluid, and the fan aids in airflow to enhance heat dissipation. It’s crucial to recognize their placement and interaction within the overall layout for efficiency.
The expansion tank serves as a reservoir, ensuring the liquid has room to expand and contract without causing pressure issues. Pay attention to the hoses, which connect all components and carry the liquid. Their size, material, and routing are essential for preventing leaks and ensuring proper fluid flow. Check for potential blockages or wear in these paths regularly.
The thermostat regulates the temperature, opening or closing to maintain an optimal range. Understanding its location and the threshold at which it activates is key for diagnosing overheating issues. Another component, the pressure cap, prevents excessive pressure build-up, which could damage the entire arrangement.
Each element works together to achieve a balance, and improper installation or failure of even one part can lead to system inefficiency. Regular inspections are necessary to avoid performance degradation or damage. Proper maintenance involves checking fluid levels, inspecting the integrity of hoses, and ensuring that all components function as intended without obstruction or leakage.
How to Read and Interpret a Cooling Circuit Layout
Start by identifying the key components such as pumps, radiators, and valves. Each element will typically have a label or symbol, which you should familiarize yourself with. Review the flow paths indicated by arrows to understand the route of fluid through the entire setup. Pay attention to the direction and connections between parts.
Look for any color codes or numbers that might correspond to specific pressures or temperatures, and match them with a reference chart if available. Examine the routing of the coolant to identify any potential points of failure, such as areas with frequent bends or close proximity to high-temperature zones.
Check the balance between components: pumps should have corresponding output and return lines. The arrangement of the heat exchangers is crucial–ensure there is an efficient path for heat dissipation. Verify whether any bypasses or secondary circuits are included for optimal heat transfer control during various operational phases.
Understand the relationship between sensors and their triggering mechanisms. These sensors are key to regulating flow and preventing overheating. Ensure you are familiar with their locations and how they interact with valves and pumps.
Common Issues Identified in Heat Exchange Schematics
1. Incorrect flow direction: Ensure the fluid’s path is correctly marked. Reversed flow can cause operational issues and affect the efficiency of temperature regulation.
2. Inconsistent connections: Verify that all components, such as pumps, valves, and pipes, are properly linked. Missing or misconnected elements can lead to blockages and leaks.
3. Inaccurate temperature indicators: Check the placement and accuracy of sensors. Mispositioned temperature gauges can result in false readings and improper adjustments.
4. Faulty valve representations: Double-check valve types and functions. Mislabeling valves can cause operational failures and disrupt fluid flow.
5. Overcomplicated layout: Keep the schematic as simple as possible. A convoluted design with too many components can increase the chance of error during installation or maintenance.
6. Missing components: Ensure all essential parts, such as heat exchangers and pressure regulators, are included. Omitted components can result in a failure to achieve desired thermal performance.
7. Incorrect scale: Double-check the scale of pipes, pumps, and other components. Using inconsistent scales can lead to misinterpretation and incorrect installation.
8. Poorly defined operational parameters: Ensure the operational limits of each component, like pressure and temperature ranges, are clearly marked. Undefined parameters can lead to performance degradation or even failure.
