Start with feedstock selection: plant oils, animal fats, and agricultural waste offer varied yields and energy densities. Optimal raw materials enhance overall fuel quality and lower emissions during combustion.
Fermentation transforms sugars and starches into alcohol-based fuels, while transesterification converts oils and fats into methyl esters suitable for diesel engines. Both steps require precise temperature and catalyst control to maximize output.
Refining involves separation and purification techniques such as distillation and filtration to remove impurities and improve combustion efficiency. Maintaining strict process parameters reduces the formation of unwanted byproducts and increases stability during storage.

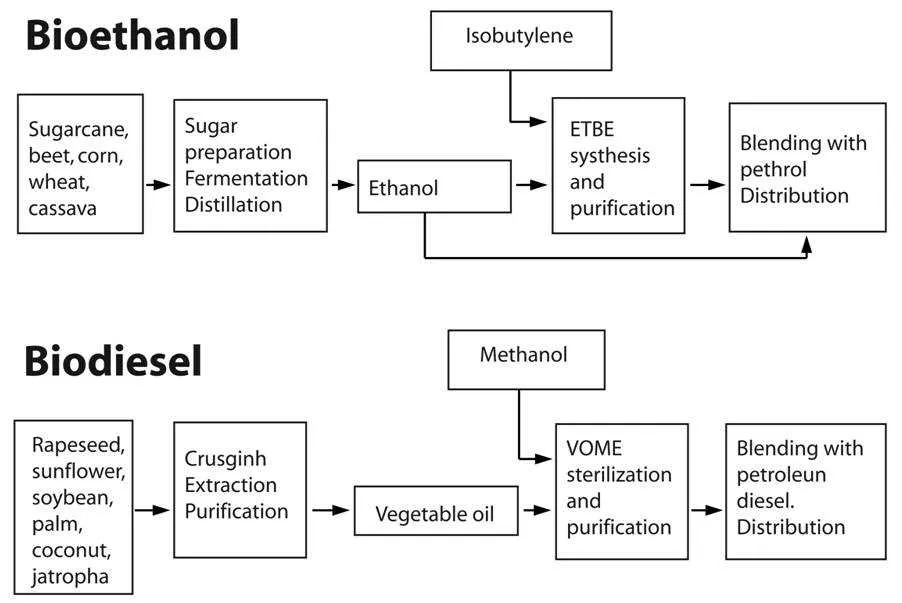

Flowchart of Renewable Energy Conversion
Start with biomass feedstock such as agricultural residues, algae, or waste oils. These raw materials undergo pretreatment to remove impurities and enhance conversion efficiency. Next, the material is subjected to thermochemical or biochemical methods.
Thermochemical routes include pyrolysis and gasification, where high temperatures break down organic matter into syngas or liquid intermediates. Follow this with catalytic upgrading to refine fuels suitable for transportation or power generation.
Biochemical pathways rely on microbial fermentation or enzymatic hydrolysis to convert sugars into ethanol or other alcohol-based fuels. Separation and purification stages ensure fuel-grade quality, removing water and contaminants.
Final output involves blending renewable liquid fuels with conventional hydrocarbons or direct use in compatible engines. Monitoring each phase with process controls maximizes yield and minimizes emissions.
Steps to Convert Biomass into Biofuel
Prioritize feedstock selection: Use lignocellulosic materials such as corn stover, switchgrass, or forestry residues with low moisture content and high cellulose concentration to maximize yield.
Pre-treat with precision: Apply steam explosion or dilute acid hydrolysis to break down complex plant structures and increase enzymatic accessibility. Maintain temperatures around 180–200°C and reaction times under 10 minutes for optimal efficiency.
Enzymatic hydrolysis: Introduce cellulases and hemicellulases to convert polysaccharides into fermentable sugars. Keep pH between 4.8–5.2 and temperature at 45–50°C to support enzyme activity.
Fermentation: Use engineered yeast strains or Zymomonas mobilis to ferment C5 and C6 sugars simultaneously. Ensure anaerobic conditions and monitor ethanol concentration to prevent inhibition above 10% v/v.
Distillation and purification: Separate alcohol from the broth using fractional distillation. Condense vapors at 78.37°C for ethanol recovery, followed by molecular sieves to achieve over 99% purity.
Residue utilization: Convert lignin-rich byproducts into syngas or electricity via gasification at temperatures above 800°C with controlled oxygen input.
Types of Equipment Used in Biofuel Production
Prioritize installing screw presses for efficient oil extraction from seeds such as soybean, rapeseed, or jatropha. These machines apply mechanical pressure to separate lipids from solid biomass with minimal solvent use.
Implement decanter centrifuges to separate solid residues from liquids in slurry phases. This is crucial during algae cultivation or fermentation residue removal to improve downstream clarity and reduce contamination.
For thermochemical conversion, use fluidized bed reactors. These allow precise temperature control and uniform heat distribution, which is key for gasification or pyrolysis of lignocellulosic feedstock.
Utilize transesterification reactors equipped with continuous mixing systems when producing biodiesel from vegetable oils or animal fats. Maintain temperature near 60°C and monitor methanol-to-oil ratio to ensure high conversion efficiency.
Install distillation columns for alcohol purification in ethanol production lines. Fractional distillation at reduced pressure enhances separation of ethanol from water and minimizes energy loss.
Choose anaerobic digesters with automatic feedstock agitation to stabilize biogas output from manure or organic waste. Ensure retention time is adjusted based on substrate composition to maximize methane yield.
Adopt high-shear mixers for emulsification steps, especially when combining alcohols with fatty acids. This improves reaction speed and minimizes phase separation during ester synthesis.
Common Challenges in Biofuel Processing Flow
Prioritize feedstock uniformity to prevent unpredictable conversion yields and equipment fouling.
- Feedstock Variability: Inconsistent moisture levels, lignin content, and particle size disrupt thermal decomposition and enzymatic breakdown. Use pre-treatment steps such as size reduction and moisture control to stabilize input quality.
- Catalyst Deactivation: Accumulation of sulfur, nitrogen compounds, or metals from agricultural residues shortens catalyst life. Implement filtration and guard beds to extend operational cycles.
- Thermal Integration Issues: Heat recovery from gasification or pyrolysis is often under-optimized. Use pinch analysis to enhance energy efficiency across stages.
- Phase Separation Failures: Glycerol separation in transesterification can be incomplete due to improper agitation or temperature control. Apply centrifugal separation or membrane technology for higher purity.
- Scaling and Fouling: Mineral salts, char, or unreacted organics deposit on reactor walls, reducing throughput. Schedule regular maintenance and use anti-fouling coatings where feasible.
Standardize control parameters using real-time monitoring (e.g., NIR spectroscopy or inline chromatography) to detect process drifts early.
