To ensure smooth operation of older water control units, focus first on identifying the cartridge type and corresponding washers. Most units from past decades rely on ceramic discs or rubber seals that degrade over time, causing leaks or inconsistent flow.
Handle mechanisms often require replacement due to worn splines or stripped threads. Pay close attention to the screw types securing these controls, as incorrect hardware can lead to improper fit and damage.
When sourcing replacements, prioritize authentic manufacturer-compatible inserts and gaskets. Generic substitutes might fit initially but tend to fail prematurely under repeated use and water pressure variations.
Valve seats inside the assembly frequently suffer from corrosion or mineral buildup. Using a specialized grinding tool or seat wrench can restore a tight seal without the need for full unit replacement.
Exploded View of Vintage Valve Components
Start by identifying the main cartridge, which controls water flow and temperature. It is typically secured by a retaining clip and a bonnet nut. Remove the handle to access this element.
O-rings and washers are essential for preventing leaks; check these seals for wear or mineral buildup and replace them if hardened or cracked.
The valve body contains separate hot and cold inlets that connect to supply lines–ensure these connections are tight and free from corrosion.
For maintenance, disassemble the assembly in the order of the handle, escutcheon plate, retaining clip, cartridge, and finally the valve housing. Lubricate moving components with plumber’s grease to enhance durability.
Replacement kits usually include all necessary gaskets, springs, and seats to restore full functionality. Matching the model number stamped on the valve body ensures compatibility with original components.
Identifying Key Components in Vintage Valve Assemblies
Start by locating the cartridge, the central element controlling water flow and temperature. Its wear often causes leaks or inconsistent pressure.
- Cartridge: Usually cylindrical, made of plastic or brass, removable by unscrewing the handle assembly.
- Handle Assembly: Includes the external grip and internal mounting hardware; often secured with a set screw.
- Diverter: A mechanism that redirects water from the tub spout to the overhead sprayer; found behind the main valve body.
- Valve Body: The main housing connecting to plumbing lines, typically brass, with threaded ports for inlet and outlet pipes.
- Escutcheon Plate: Decorative cover that mounts flush against the wall, concealing the internal components.
- Retaining Clip or Nut: Holds the cartridge securely in place; its removal is necessary for replacement or inspection.
Inspect each component for corrosion, mineral buildup, or damage to ensure proper operation and avoid water wastage.
Step-by-Step Guide to Disassembling a Vintage Faucet Assembly
1. Begin by turning off the water supply to prevent any accidents. Locate the shutoff valves and ensure both hot and cold lines are closed.
2. Use a screwdriver to remove the handle. Look for screws located on the underside or side, depending on the model. If the screws are hidden, check under decorative covers or caps, which can be pried off carefully with a flathead tool.

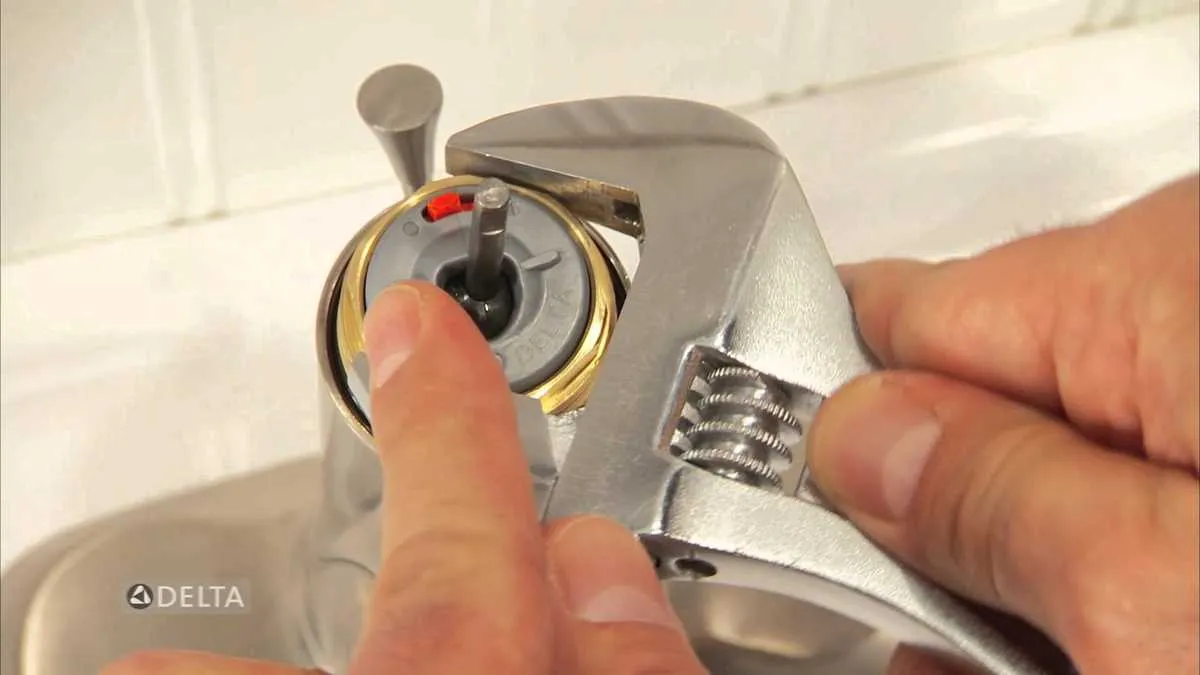

3. Once the handle is removed, use an adjustable wrench to unscrew the nut securing the valve stem. Rotate counterclockwise to loosen it. If the nut is stuck, use a penetrating oil to help loosen any corrosion or debris.
4. Pull the valve stem out of its housing. Examine the stem for any signs of damage or wear that might require replacement. Inspect the rubber washers and seals for leaks or deterioration, as these are common sources of issues.
5. Remove the trim plate or escutcheon. These are typically secured by a couple of screws. Once removed, you’ll gain access to the valve assembly beneath the plate.
6. Disconnect any remaining parts attached to the main assembly, such as the diverter lever or the spout. These may have their own fasteners that need to be removed in sequence.
7. If the valve cartridge needs to be replaced, carefully remove it by twisting or pulling it out, depending on the specific design of the mechanism.
8. After all components are disassembled, inspect each piece for damage. Replace any worn-out elements before reassembling the fixture to ensure optimal performance.
Common Replacement Components and How to Source Them
For worn-out fixtures, focusing on specific components like cartridges, handles, and valve seats can restore functionality. Ensure compatibility by referencing the model number found on the fixture itself. This makes it easier to locate exact matches in hardware stores or online marketplaces.
Cartridges are among the most common issues. If water flow is inconsistent, replacing the cartridge can resolve it. These are widely available from manufacturers or third-party suppliers who specialize in plumbing systems.
Handles often deteriorate over time due to constant use. If your handle is cracked or loose, it’s best to replace it with a matching one. Check the handle style to ensure a seamless fit with your setup, as some models have unique attachment mechanisms.
For leaks, the valve seat and seals are often the culprits. These components should be replaced periodically to maintain a watertight system. Search for the correct seat or seal according to the fixture’s specifications, which you can find on product labels or manuals.
Visit reputable retailers like Home Depot, Lowe’s, or specialized plumbing suppliers for high-quality replacements. Online platforms like Amazon or manufacturer websites also offer a wide range of components with detailed descriptions and customer reviews.
In case you have trouble identifying the exact component, customer support from the manufacturer can provide detailed guidance. Having the model number on hand can expedite this process.
