Ensure reliable power distribution by correctly connecting multiple power sources. This setup allows for efficient management of electrical load, ensuring uninterrupted operation of onboard electronics. Proper installation of power management systems significantly reduces the risk of overloading and increases the longevity of all components.
Use a smart isolation switch to prevent simultaneous discharge of multiple energy units, which could lead to failure. The switch ensures that only one power source is active at a time, maximizing energy efficiency and preventing cross-draw between units. This isolation is essential when dealing with critical equipment that demands a constant power supply.
Connect the energy units in parallel to ensure that each unit maintains an equal charge state, preventing one from depleting faster than the other. This configuration balances the load, offering a stable and dependable electrical setup, especially when navigating through extended trips away from charging stations.
Install an automatic charging relay to keep both power units topped up without manual intervention. This relay directs the charging process, switching between power sources as needed. Ensure that the relay is rated for the specific needs of your system, capable of handling the current demands without overheating.
Regularly inspect connections to ensure secure and corrosion-free terminals. Clean and maintain each connection, as any oxidation or loose wiring can result in power failure or inefficient operation. Use marine-grade connectors to prevent rust and ensure long-term durability in a salty environment.
Optimized Power Setup with Two Power Sources

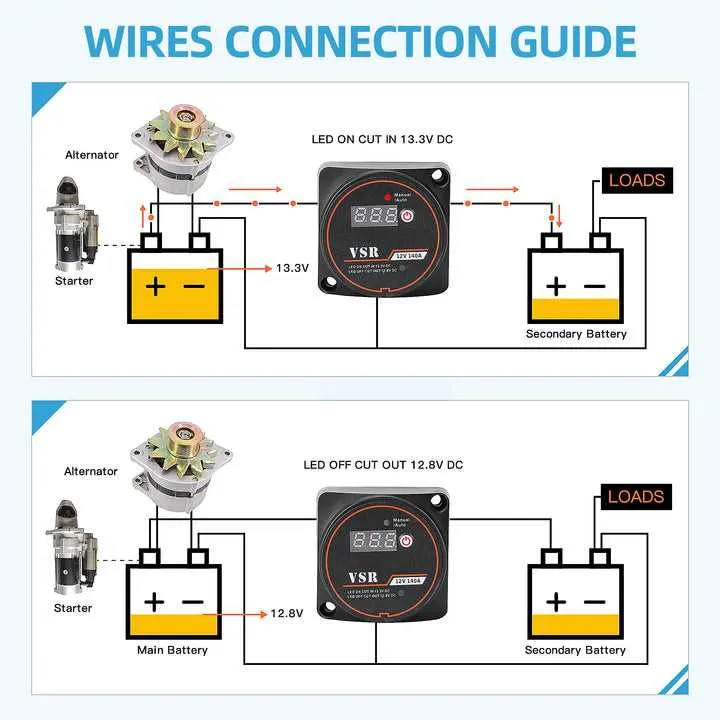

Ensure you use an automatic switch to connect both power units, allowing seamless transition between them without manual intervention. Place the isolator in the line between the two sources to prevent overcharging and ensure independent charging cycles.
Install a common ground connection for both power sources to avoid electrical imbalance. Make sure each power unit is connected to a separate fuse, rated appropriately to protect from overcurrent. For a secure connection, use marine-grade wiring with adequate insulation to withstand corrosion from saltwater.
The primary power unit should be designated as the start power, while the secondary should be reserved for auxiliary systems. This configuration will protect the start unit from being drained and maintain operational efficiency of the auxiliary systems. Regularly check voltage levels to ensure both units remain at optimal charge levels without overloading the system.
How to Connect Two Power Sources for Safe Parallel Operation
To connect two power sources in parallel, start by ensuring both are of the same voltage and capacity. Use cables of adequate thickness to handle the combined load without risk of overheating or excessive voltage drop. The positive terminals of each source should be linked together, as well as the negative terminals, using securely tightened connections. It’s crucial to use fuses or circuit breakers on both positive leads for protection against overloads.
Ensure the power sources are placed at an equal distance from the electrical load to avoid imbalance. Install a proper isolator switch to allow disconnection of one source for maintenance without affecting the entire system. Regularly check connections for corrosion or wear, which could disrupt the flow of current. Use high-quality connectors and maintain consistent terminal cleanliness to avoid resistance buildup.
Consider adding a voltage monitor to ensure both sources are providing consistent output. This can help prevent one source from being overburdened and failing prematurely. Test the setup regularly under load to confirm stable and reliable operation.
Step-by-Step Guide to Installing a Power Isolator in Marine Systems
Begin by selecting an isolator suitable for the electrical load and system requirements. Choose a model with the correct amperage and voltage ratings for your setup. Ensure that the isolator is rated for marine use, as it must withstand harsh environments.

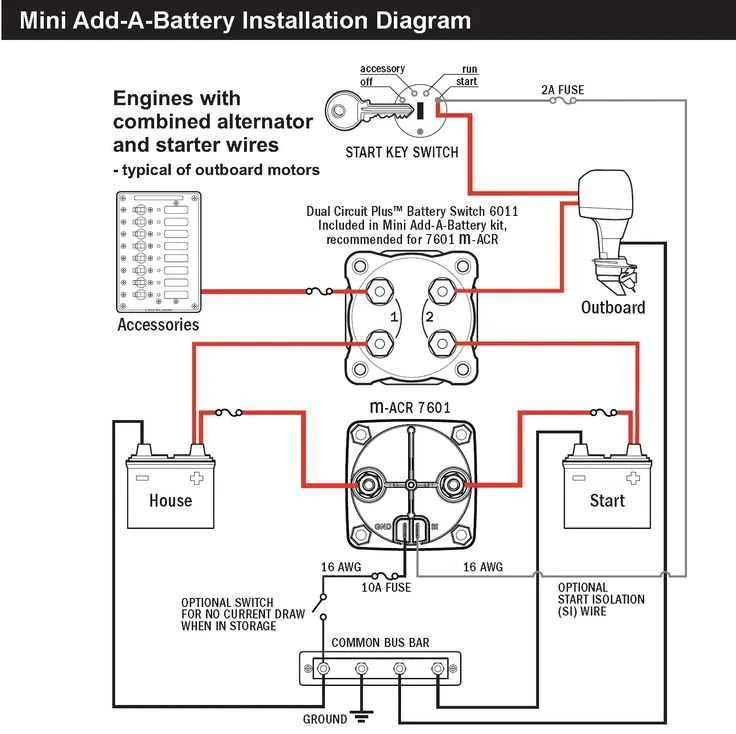

Start installation by disconnecting the power source to avoid any risk of electrical shock. Install the isolator near the main power source and the secondary energy source, ensuring easy access for future maintenance.
Connect the input terminals of the isolator to the main power system and the secondary power unit. Use marine-grade cables that are rated for the intended current, and be sure to secure the connections with appropriate fasteners to prevent loosening over time.
Next, wire the output terminals of the isolator to the main power distribution panel. The isolator’s role is to control the flow between both power sources, so proper connection to the panel is crucial to maintaining system balance and ensuring efficient power management.
Ensure that all connections are properly insulated to prevent short circuits. Apply marine-grade electrical tape and use heat shrink tubing for extra protection against moisture and corrosion.
After wiring, double-check all connections and verify that they are tight and secure. Test the isolator by engaging the system and observing its response. The isolator should prevent cross-charging between the power sources when the main unit is in use and allow charging of the secondary unit when the main source is off.
Finally, secure the isolator in place, ensuring it is fastened to avoid movement due to vibration during operation. Perform a final test to confirm the setup is operating as expected before using the system for extended periods.
Common Mistakes to Avoid When Connecting Two Power Sources on a Vessel
Ensure correct polarity when linking power cells. Reversing the positive and negative connections can lead to severe equipment damage.
- Incorrectly matching the voltage of the units can cause imbalances, reducing overall performance.
- Failing to use appropriately sized cables increases resistance, leading to energy loss and potential overheating.
- Not securing terminals properly may result in loose connections, which could cause sparking or even fires.
- Relying on undersized fuses puts the entire electrical system at risk of damage or failure during a short circuit.
- Ignoring the need for isolators or switches to separate cells can cause overcharging or discharge issues.
- Skipping proper grounding increases the likelihood of electrical faults and reduces safety.
Regular inspection of connections and equipment is crucial to avoid deterioration due to corrosion or wear. Additionally, ensure that each power unit is monitored independently to prevent overloading one system while the other remains underutilized.
