When maintaining or repairing your tackle system, it’s crucial to know the internal structure and how each element functions together. Focus on the primary sections, like the spool assembly, drag system, and the gear train, which directly influence the efficiency and durability of your setup. Each of these parts plays a critical role in how well the unit performs under stress.
Spool and Shaft: The spool holds the line and is connected to the main shaft. Its rotation is pivotal for casting distance and smooth retrieval. A damaged or worn spool can lead to poor performance and frequent line tangling. Pay attention to the integrity of the shaft as well, as misalignment or corrosion will cause friction, slowing down the movement.
Drag Mechanism: This system allows controlled resistance, crucial for managing tension on the line during a catch. A well-maintained drag ensures that the force is applied evenly, preventing unnecessary wear on both the line and the gear mechanism. Inspect the washers and spring components for wear regularly.
Gear Assembly: Gears transfer energy from the handle to the spool. The precision of the gear assembly impacts the smoothness and responsiveness of the operation. Regular cleaning and lubrication are necessary to prevent rust or dirt buildup, which can impair the efficiency of the drive system.
Knowing how these components work together and keeping them in good condition will extend the lifespan of your equipment and improve your overall experience. Keep your gear clean, lubricated, and inspected regularly to ensure peak performance every time you use it.

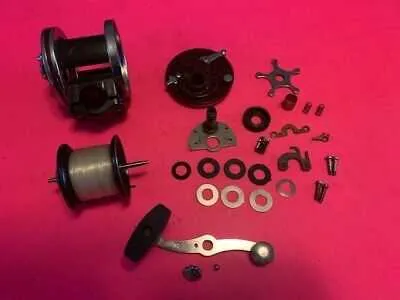

Essential Components Breakdown
For proper maintenance and smooth operation, it is crucial to understand the key components involved in casting and retrieving lines. These elements work together to ensure efficiency and durability. Here are the most important parts to focus on:
- Spool – The primary element where the line is wound, allowing it to be dispensed during use.
- Drag System – Controls the tension when a fish pulls the line, preventing breakage.
- Handle – The part used to manually crank the spool and control the retrieve.
- Gear Mechanism – Drives the movement of the spool during retrieval, typically involving a set of interlocking gears.
- Ball Bearings – Facilitate smooth rotation of the spool and handle, reducing friction for better performance.
- Frame – Provides the structural support that holds all components in place, ensuring stability and alignment.
- Foot – Connects the entire assembly to the rod, usually via a fixed attachment point.
- Anti-Reverse Switch – Prevents backward motion of the spool during a retrieve, helping avoid tangles and unnecessary stress on the line.
- Line Guide – A small mechanism that helps control the path of the line as it’s dispensed or retrieved, ensuring it flows smoothly.
Each of these components must be regularly checked and maintained. Regular cleaning, lubrication, and replacing worn-out parts can significantly extend the lifespan of your device. Pay special attention to the drag system and bearings, as they undergo the most stress during use.
For a seamless experience, choose components made from high-quality materials like stainless steel or aluminum, as these offer superior corrosion resistance, especially in saltwater conditions.
Understanding the Main Components of a Fishing Reel
To achieve optimal performance, it’s crucial to understand the core elements that make up the mechanism. Key elements include the spool, drag system, handle, and gear assembly, each playing a significant role in ensuring smooth operation and durability.
Spool: The spool holds the line and provides tension control. The material and size directly influence casting distance and line management. A larger spool typically allows for longer casts, while a smaller spool can offer more control over finer lines.
Drag System: This system controls the tension applied to the line during a fish’s run. A well-adjusted drag prevents line breakage and ensures a smooth fight. Look for a drag that is both smooth and easily adjustable to prevent sudden jerks that could damage your setup.
Handle: The handle is the primary point of contact for anglers, used to retrieve the line. Ergonomics are key–ensure that the handle fits comfortably in your hand and allows for easy, consistent retrieval without fatigue. Adjustable or interchangeable handles offer customization for comfort.
Gear Assembly: The gear mechanism determines the retrieve rate and smoothness of the action. Higher gear ratios provide faster retrieval, while lower ratios allow for more power. The quality of the gears, typically made of brass or stainless steel, directly impacts longevity and performance.
Regular maintenance of these components ensures longevity and helps maintain peak performance during every outing.
How to Identify and Replace Damaged Fishing Gear Components
Start by closely inspecting the main mechanism for any visible wear, cracks, or breaks. Common issues are worn-out gears, faulty drag systems, or damaged spools. For optimal performance, regularly clean all internal parts to avoid debris buildup, which can cause friction and premature damage.
Step 1: Check for Wear
Examine the gear teeth for signs of missing teeth or uneven wear. This often leads to slipping or jerky movement. The drag knob should be tested for smooth adjustments; if it feels stuck or inconsistent, it may be faulty. Inspect the spool for any dents or cracks, which can cause line tangling or uneven reeling.
Step 2: Test the Mechanisms
Rotate the handle and test the smoothness of the movement. A jerky or stiff handle can indicate issues with the internal bearing or the handle itself. If the drag system is not engaging properly, this suggests that the washers or springs inside the assembly need replacement.
Step 3: Remove and Replace Faulty Parts
Once you’ve identified the damaged components, carefully remove the screws or clips that hold the parts together. Keep track of the order of disassembly, as this will help in reassembling later. Replacing gears or spools often requires precision, so ensure you purchase exact replacements for your model.
Step 4: Reassemble and Test
After replacing the damaged component, reassemble the mechanism by reversing the disassembly process. Ensure all screws and clips are tightened properly. Test the functionality by manually rotating the handle, adjusting the drag, and checking the spool. If everything operates smoothly, you’ve successfully restored your equipment.
Regular maintenance and prompt replacement of faulty components will ensure your gear lasts longer and performs at its best during use.
Step-by-Step Guide to Assembling a Spinning Gear Mechanism
1. Start with the main body – Place the central housing onto a flat surface. Ensure it’s clean and free of any debris to avoid potential damage when assembling. Check for any wear and tear around the edges that might affect the mechanism’s function.
2. Insert the rotor shaft – Position the rotor shaft into the housing and secure it with the corresponding screw. Tighten it gently to avoid over-tightening, which could cause misalignment of the rotating components.
3. Attach the spool and drag system – The spool should sit snugly on the rotor shaft. Ensure the drag washers are placed correctly in the drag system. Tighten the drag knob to set the tension according to your preference.
4. Secure the handle – Position the handle onto the axle, aligning the pin and groove. Tighten the handle screw to a firm yet not overly tight setting, ensuring smooth rotation without too much resistance.
5. Install the bail arm – Insert the bail arm into its designated position, then use the securing bolts to fasten it into place. Ensure the bail moves freely and clicks in place when turned.
6. Attach the anti-reverse switch – Place the anti-reverse switch into the mechanism, ensuring it’s properly aligned with the internal gears. Test the function of the switch by manually rotating the rotor to verify it engages correctly.
7. Final check – Before completing the assembly, manually rotate the handle and spool to ensure smooth operation. Check all screws and fastenings one more time to avoid any loose components that may affect performance.
