Properly positioning the main water evacuation point below ground level is essential for preventing moisture accumulation and structural damage. Ensure the installation includes a grate with a trap to capture debris and maintain clear pathways for runoff. Incorporating a sump pit directly beneath the collection inlet improves water flow management and reduces clogging risks.
Use rigid piping materials resistant to corrosion and pressure fluctuations to guarantee long-term reliability. The system should connect seamlessly to the main sewage or drainage line, with adequate slope–ideally between 1% and 2% gradient–to promote efficient liquid discharge.
Periodic inspection and cleaning of the water outlet assembly help avoid blockages caused by sediment buildup or root intrusion. Employing a backflow prevention valve within the pipeline further protects against reverse water infiltration during heavy rainfall or sewer surges.
Subterranean Level Water Removal System Layout
For effective water evacuation in vintage residences, ensure the piping network includes a sump pit connected to a grid of perforated tubes embedded beneath the concrete slab. The conduit should slope gently toward the collection basin to facilitate gravity flow, minimizing clog risks.
Install a trap beneath the opening to prevent sewer gases from entering the living area. The outlet pipe must be sealed with a watertight cap and connected to the main sewer or an external discharge point, positioned away from the foundation to avoid moisture accumulation.
Use corrosion-resistant materials such as cast iron or PVC, sized between 3 to 4 inches in diameter, to handle expected water volumes without overflow. Periodic inspection ports along the line help monitor blockages and simplify maintenance.

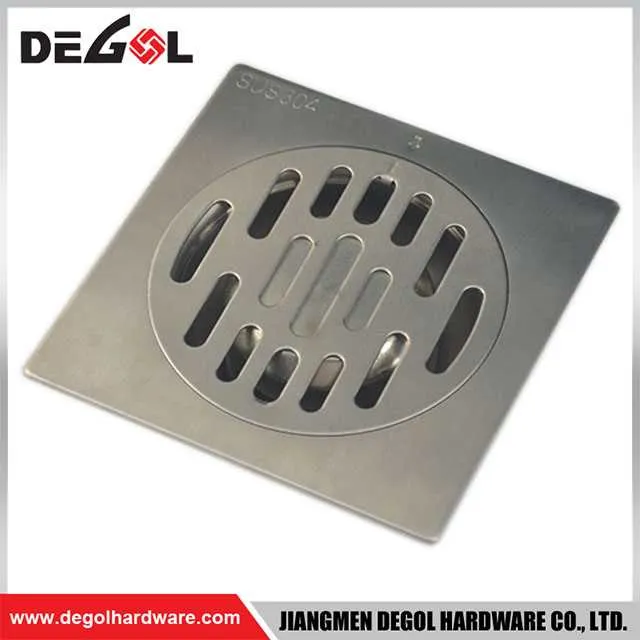

Incorporate a backflow prevention valve to protect against sewer backups during heavy rain. The grate covering the inlet should be flush with the surface to avoid tripping hazards and constructed from durable metal to withstand weight and corrosion.
Locating and Identifying Existing Subterranean Water Outlets
Begin by inspecting the lowest level’s concrete surface for any metal or plastic covers embedded flush with the slab. These access points often indicate water evacuation fixtures.
Follow these steps for accurate detection:
- Trace visible plumbing lines along walls or ceilings to locate potential drainage connections.
- Use a flashlight to reveal subtle depressions, grates, or stains that may mark the outlet’s position.
- Listen for hollow sounds when tapping areas on the floor, which can suggest the presence of a cavity beneath.
- Consult original blueprints or renovation documents to cross-reference expected outlet placements.
- Utilize moisture meters near suspicious spots to identify damp zones that correlate with discharge points.
When the access cover is located, remove it carefully to inspect the interior pipe diameter and condition, noting any blockages or corrosion that could affect drainage efficiency.

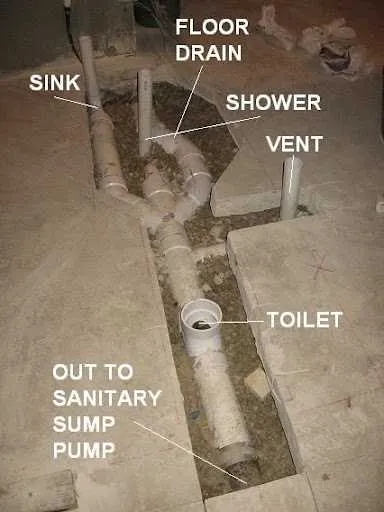

Understanding the Drainage Pipe Layout and Connections

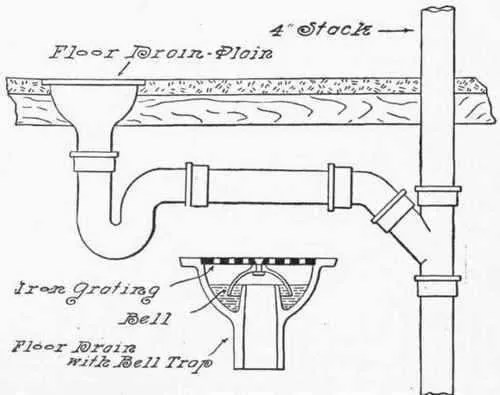

Ensure the primary collection channel is sloped consistently at a minimum of 1/4 inch per foot to guarantee efficient water flow toward the main exit pipe. The piping network should connect directly to a vertical stack or main sewer line without sharp bends, utilizing smooth 45-degree elbows instead of 90-degree angles to reduce clogging risks.
All junctions must be sealed with solvent-welded or rubber gasket fittings to prevent leaks and infiltration of debris. Incorporate cleanout access points at strategic intervals, especially near corners and pipe transitions, to facilitate maintenance and inspection without dismantling the system.
Use corrosion-resistant materials such as PVC or ABS for horizontal runs, ensuring compatibility with existing plumbing. Avoid using metal pipes in damp, enclosed spaces to prevent rust and deterioration over time. Vent pipes should be integrated to equalize pressure and prevent siphoning of traps, maintaining a water seal that blocks sewer gases.
Confirm that trap assemblies are correctly positioned directly beneath collection grates to capture solids and prevent blockages downstream. The connection between the grate and piping should include a removable strainer or basket for routine debris removal. Ensure that the entire network discharges into an approved disposal or drainage field, complying with local building codes for wastewater handling.
Common Issues with Subterranean Waste Outlets and Visual Signs
Inspect for slow water evacuation, often caused by sediment buildup or partial pipe blockage. Accumulated debris such as dirt, rust flakes, and mineral deposits reduce flow capacity, leading to pooling or stagnant water.
Look for persistent dampness or mold growth near the drainage point, which indicates leaks or compromised seals allowing groundwater infiltration. Cracked or corroded cast iron piping frequently manifests through rusty discoloration and moisture stains on surrounding surfaces.
Check for unpleasant odors emitting from the outlet, signaling dried-out traps or venting problems that disrupt proper air circulation, causing sewer gases to escape indoors.
Visible cracks or shifting of the concrete slab around the drain often correlate with settling or structural movement beneath, increasing vulnerability to pipe misalignment and leaks.
Signs of insect infestation such as flies or larvae near the exit point may reveal organic matter trapped inside the system, necessitating thorough cleaning and possible pipe replacement.
