To achieve optimal power generation, begin by selecting high-performance panels that are suited to your local climate conditions. Choose components with efficiency ratings above 18%, as these will ensure that your installation operates at its full potential. Consider placing the panels at a tilt angle between 20 and 40 degrees, based on your geographical location, to maximize exposure to sunlight throughout the year.
Inverter selection is crucial for converting direct current (DC) to alternating current (AC). Invest in a model with a high conversion rate and sufficient capacity to handle the peak output of your panels. A string inverter is ideal for smaller installations, while microinverters are more suitable for larger setups or areas with shading issues.
Next, ensure proper wiring and connection between all components. Use cables with appropriate voltage ratings to prevent power loss and overheating. Make sure that all connections are securely fastened to avoid any interruptions in performance. Additionally, integrating a storage unit will help smooth out fluctuations in power demand and provide backup during cloudy days or nighttime.
Lastly, install a monitoring system to track performance and diagnose issues in real-time. This will help identify inefficiencies or equipment malfunctions, allowing you to make quick adjustments and maintain peak output.
Optimal Configuration for Photovoltaic Installations
To ensure efficient power conversion and distribution, prioritize the proper arrangement of components. Begin with positioning the panels to maximize sunlight exposure throughout the day. Tilt and orient them according to your geographical location to capture the most direct sunlight.
- Panels: Install them at a tilt angle based on latitude, ensuring minimal shading during peak sunlight hours.
- Inverter: Choose an inverter with appropriate capacity, taking into account the peak load demand of your appliances and peak power generation from the panels.
- Battery Storage: Select high-quality storage units that can handle the load, with sufficient reserve to cover periods of low sunlight or high demand.
When wiring, use cables rated for high voltage and current to avoid overheating and power loss. Ensure that all connections are secure and weatherproof, especially in outdoor installations. Grounding is essential to prevent damage due to electrical surges or faults.
- Panels should be wired in series or parallel, depending on voltage and current requirements.
- Use fuses or circuit breakers to safeguard against overcurrent situations.
Regular maintenance involves checking for dust accumulation on panels, ensuring that inverters and batteries remain in good condition, and performing inspections for any potential wear or damage in wiring.

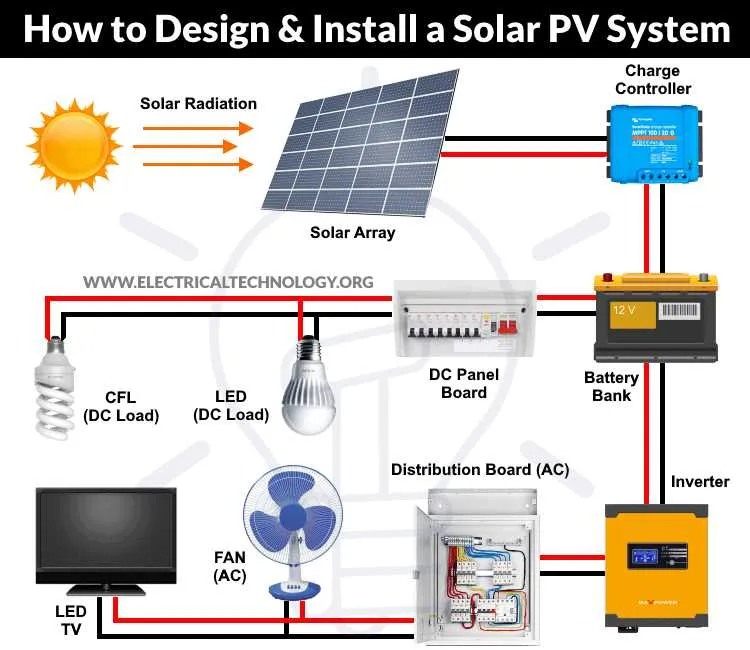

Understanding Key Components of a Solar Setup
Start with high-quality photovoltaic panels. Choose models with an efficiency rating above 18% for optimal performance. These units convert sunlight into electrical power and are the most important part of the entire installation. Look for panels with robust warranties, ideally over 25 years, to ensure long-term reliability.
Invest in an efficient charge controller. This component regulates the voltage and current coming from the panels to avoid overcharging the battery. MPPT (Maximum Power Point Tracking) controllers are more efficient than PWM (Pulse Width Modulation) types, providing up to 30% more power output in certain conditions.
Select the right battery storage. Lithium-ion batteries are recommended for their higher energy density and longer lifespan compared to traditional lead-acid options. Choose a capacity that supports your power consumption during periods of low sunlight, typically sized at 1.5 to 2 times your daily usage.
Opt for a reliable inverter. This device converts the DC electricity generated by the panels into AC electricity suitable for household use. Choose an inverter with a surge rating that exceeds your peak power demand to ensure it can handle short bursts of high power usage.
Ensure proper wiring and protection. Use appropriately rated cables to handle the electrical load, and include fuses and breakers for safety. Proper grounding of all components is crucial to prevent electrical shocks and damage from surges or faults.

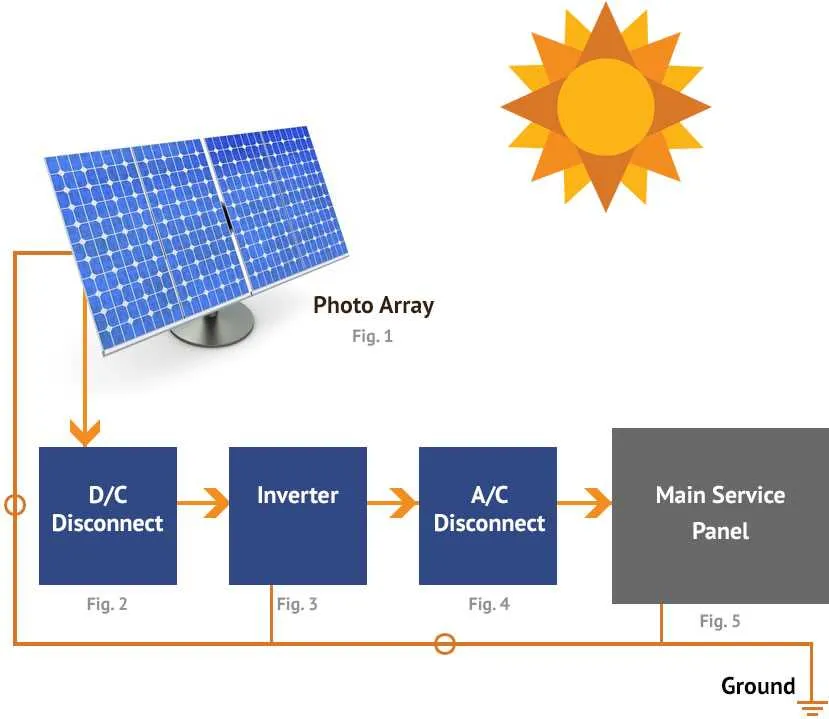

How to Connect Panels to an Inverter
Begin by identifying the total voltage and current output of your modules. Match these parameters with the input range of your converter unit. For example, if using a 48V inverter, configure your array to deliver a combined voltage close to but not exceeding 48V DC.
Wire the modules in series to increase voltage or in parallel to boost current, depending on the converter’s requirements. Use MC4 connectors for series wiring and a combiner box with fuses or breakers for parallel configurations.
Install a DC disconnect switch between the output of the panel array and the converter input. This enables safe maintenance and emergency shutdown. Always connect the negative terminal first to prevent arcing.
Use stranded copper wires with appropriate gauge–typically 10 AWG for shorter runs under 30 feet. Route all cabling through UV-resistant conduit to prevent degradation. Secure all connections with torque-rated terminals to avoid overheating.
Double-check polarity before final connection. A reverse-polarity link can damage internal electronics. Once confirmed, attach the positive lead to the inverter’s positive DC input and the negative lead accordingly.
Complete the installation by grounding the array frame and the converter chassis according to local code. Test output using a multimeter to confirm voltage matches expectations before activating the system.

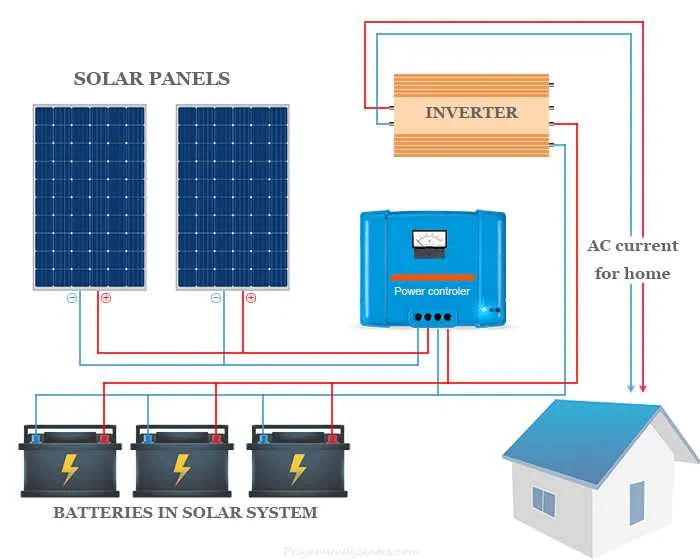

Integrating Energy Storage with Solar Systems
Prioritize lithium iron phosphate (LiFePO₄) batteries for their longer lifecycle (up to 6000 cycles at 80% depth of discharge), enhanced thermal stability, and consistent performance in high-load applications.
Install a hybrid inverter that supports bidirectional flow and real-time communication with both photovoltaic panels and battery packs. Choose models with MPPT efficiency above 98% and seamless transition capability (less than 10 milliseconds) to prevent downtime during grid outages.
Configure battery banks to match the daily consumption profile. For example, a household averaging 10 kWh daily should use a minimum of 13 kWh usable capacity with 20% reserve. Scale appropriately for commercial setups using interval load monitoring data.
Implement a battery management system (BMS) that supports active cell balancing and remote diagnostics. Ensure compatibility with communication protocols like CAN bus or Modbus for smooth integration with smart controllers.
Set charging thresholds to avoid degradation: maintain charge between 20–90% for daily cycles. Activate temperature compensation to adjust voltage setpoints based on ambient conditions.
Use a programmable controller to prioritize storage during off-peak generation and discharge during peak demand or outages. Incorporate weather forecasting APIs to optimize charge-discharge scheduling dynamically.
