For a seamless setup of LED strips, ensure proper connection by following the electrical schematic closely. Begin by verifying the voltage and amperage of the strips to match the power source. This will prevent overloading and ensure longevity. Use connectors that are compatible with the strip’s layout for secure and reliable connections.
Next, ensure that you follow the polarity markings on the strip. Incorrect polarity can damage the LEDs or prevent them from functioning. The positive and negative terminals should be connected properly to the power supply, as specified in the instruction manual. It’s also crucial to use the correct wire gauge to handle the current load and prevent overheating.
When connecting multiple units, consider the total power consumption to avoid exceeding the power supply’s limit. In such cases, use connectors designed for parallel connections to maintain even distribution of current. Additionally, add a fuse or circuit breaker in the setup to safeguard against power surges or short circuits, enhancing both safety and reliability.
Installation Instructions for LED Tape Fixture
For optimal connection of a flexible illumination unit, follow these steps to ensure safe and reliable performance:
1. Power Source Selection: Ensure the power supply matches the unit’s voltage and current requirements. Typically, a 12V DC transformer is used for smaller setups, while 24V DC may be needed for longer segments or higher power needs. Always verify the specifications of the unit before proceeding.
2. Preparing the Unit: Before making any connections, measure and cut the flexible strip to the desired length, ensuring you cut along the designated lines to avoid damaging the circuit.
3. Connecting Wires: Use appropriate connectors or solder the wires to the terminals on the ends of the unit. Be sure to match positive (+) and negative (-) wires correctly to avoid reverse polarity.
4. Mounting the Fixture: Clean the surface where you will attach the strip to ensure a secure bond. Use adhesive backing on the unit or mount using brackets depending on the surface material.
5. Testing: After the installation, check the power supply connection before turning on the system. Confirm that each section of the unit illuminates correctly without flickering or dimming.
6. Troubleshooting: If the setup doesn’t work, check for loose connections or incorrect voltage settings. Ensure that all parts are securely fastened and that there is no visible damage to the unit or wires.
| Component | Specification |
|---|---|
| Power Supply | 12V or 24V DC |
| Wire Gauge | 22 AWG to 18 AWG (depending on distance) |
| Connector Type | DC Barrel Jack or Screw Terminal |
| Maximum Length | 5 meters (for 12V) or 10 meters (for 24V) |
Understanding the Basic Wiring Components of LED Strips
Power Supply is essential for operating the units. The voltage rating must match the requirements of the unit being used. Commonly, 12V or 24V DC power supplies are used, depending on the configuration of the setup.
Connector types such as 2-pin or 4-pin are used to link the individual segments of the unit to the power source. Ensure that the connector is properly sized for the specific model, as improper fitment can lead to failure.

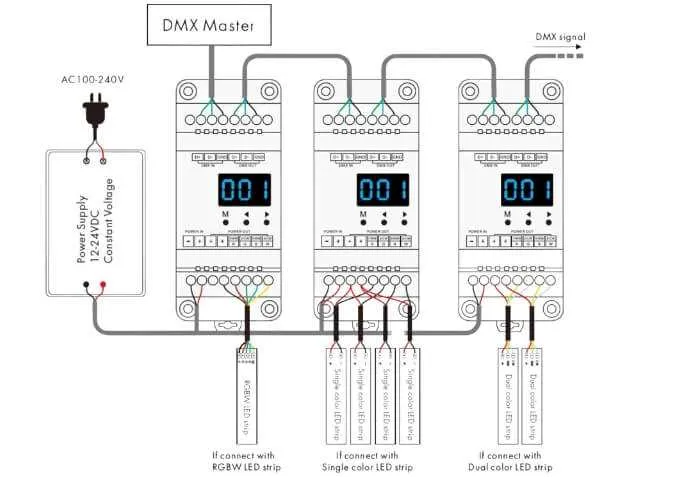

Controller regulates the intensity and color changes in multi-color units. It requires specific input from the power source and connects directly to the strips, allowing for manual or remote control adjustments.
Resistor is often included in the circuit to limit the amount of current reaching the LEDs, preventing damage. The resistor value should be chosen according to the current and voltage specifications of the units.
Extension Cables are useful for increasing the length between sections when the layout requires more space. These should be selected to match the power capacity and wire gauge.
Capacitor helps smooth out fluctuations in voltage, ensuring a steady flow of power to the units. It is particularly important for installations that involve long distances between the power source and the LED segments.
Fuse provides protection by interrupting the circuit in case of excess current. Choose a fuse with the correct amperage rating to ensure that it functions properly without causing unnecessary interruptions.
Pay attention to the polarity of connections, as reversing the connections can cause malfunctions. Positive and negative terminals should always match the respective input and output configurations to avoid electrical issues.
Step-by-Step Guide to Connecting LED Strips to Power Sources
Start by identifying the voltage requirements of your flexible tape. Most commonly, it will be either 12V or 24V. Check the packaging or datasheet for this detail.
Use a compatible power adapter that matches the voltage and current rating. Ensure the adapter’s output wattage can handle the total wattage of your LEDs. For example, if your LED strips consume 72W and your power supply is rated for 100W, this ensures proper functionality and longevity.
Cut the strip to the desired length if necessary. Make sure to cut along the marked lines to avoid damaging the internal components.
For connections, ensure the positive and negative terminals of the LED and power supply align correctly. The positive terminal on the LED should connect to the positive output on the adapter, and the same for the negative terminals.
Use connector clips or soldering for a secure and reliable connection. If using connectors, make sure they are rated for the current your LEDs require. If soldering, carefully attach the wires to the copper pads, ensuring a solid joint with no excess solder.
For additional safety, consider adding an inline fuse or switch for controlling the power and protecting the circuit from overcurrent situations.
Test the setup before final installation. Once verified, place the tape in the desired position and connect to the power source. Avoid over-tightening or bending the tape to prevent damage to the circuitry.
Ensure the power supply is placed in a well-ventilated area to avoid overheating, and verify that all connections are secure before using the system continuously.
Troubleshooting Common Issues with LED Tape Connections
If your LED setup is malfunctioning, follow these steps to identify and fix the most common issues:
- No Power:
- Check the power source. Ensure the adapter is plugged in properly and providing the correct voltage.
- Verify the fuse or circuit breaker connected to the system is not tripped.
- Ensure the connection to the adapter is secure, especially at the terminals.
- Dim or Flickering Performance:
- Inspect the connections between segments. Loose or corroded terminals can cause inconsistent brightness.
- Replace any faulty sections or connectors that may have degraded over time.
- Ensure you are using the correct voltage and power supply for the specific LED configuration.
- Partial Sections Not Working:
- Test individual segments by disconnecting them from the rest of the circuit. This helps isolate malfunctioning parts.
- If only part of the tape is malfunctioning, it could be a damaged segment or poor soldering. Replace or resolder the faulty segment.
- Check for proper continuity through all connections. If there’s a break in the pathway, reconnect or repair it.
- Overheating:
- Ensure your system is not overloaded. Too many units on the same power supply can cause excess heat.
- Install proper ventilation to allow heat dissipation, especially in compact or enclosed spaces.
- Use an appropriate heat sink or cooling solution if required by the design.
- Wrong Color or Blinking:
- If using RGB setups, check that the control system and connectors are properly aligned for color selection.
- Re-check the controller’s settings and reset it to factory defaults if the colors are not displaying correctly.
- Inspect the connections between the RGB controller and segments for any loose or misaligned wires.
By following these steps, most common issues can be resolved. Always double-check the manufacturer’s specifications for voltage, current, and installation guidelines to prevent further complications.
