When repairing or maintaining your mower, it’s crucial to understand how each component fits together. This knowledge ensures more efficient fixes and prevents unnecessary replacements. Focus on the engine system, transmission, and wheel assembly for a smoother experience while performing routine checks.
Engine system: Pay special attention to the spark plug, carburetor, and air filter. These parts are essential for smooth operation. Cleaning or replacing these components can significantly improve the machine’s efficiency and prevent stalling issues.
Transmission: The drive mechanism plays a vital role in ensuring proper speed control. Inspect the belts and pulleys regularly, as wear and tear on these parts can result in reduced performance. Replacing worn-out belts can restore your mower’s original power.
Wheel assembly: Check the wheel bearings and axles. Over time, dirt and debris can accumulate, causing friction and unnecessary wear. Cleaning and greasing the bearings regularly will help extend the lifespan of the wheels and provide better maneuverability.
With a clear understanding of these essential parts, you’ll be able to troubleshoot problems faster and keep your machine running smoothly for years to come.
Detailed Overview of Key Components
For efficient maintenance and quick repairs, ensure you have a clear reference of the essential components of the mower’s mechanical system. Start by identifying the drive assembly, including belts and pulleys, as they are critical for motion and steering. The engine’s cooling system, such as the fan and shroud, should also be checked regularly to prevent overheating during prolonged use.
Pay attention to the hydraulic system, including the pumps, motors, and hoses. These elements control the movement of the machine, and any wear can lead to performance issues. Regular inspection of the steering control levers and their associated linkages ensures smooth handling and responsiveness.
The cutting deck’s height adjustment mechanism, blades, and spindles require frequent checks for damage and wear, as these parts come into direct contact with ground elements. Proper lubrication of these components ensures optimal performance and prevents unnecessary friction.
Check the tire pressure regularly and ensure that all wheel assemblies are in good condition to support the vehicle’s weight evenly. Also, inspect the seat and suspension system for comfort and safety, ensuring a stable ride even on uneven terrain.
Lastly, make sure to maintain the electrical system, particularly the battery and charging circuit, to prevent starting issues and ensure consistent operation. A comprehensive check-up of these components will prolong the lifespan of your equipment and improve its reliability.
Identifying Key Components in Commercial Riding Mowers
To effectively troubleshoot or maintain your mower, it’s essential to understand the main components and their functions. Below are the key elements you need to recognize:
- Deck Assembly: This is the mowing platform that houses the blades. It’s important to check for wear and tear, as damaged blades or uneven cutting decks can affect the quality of the cut.
- Hydraulic System: Responsible for driving the wheels and controlling steering, this system involves pumps, hoses, and motors. Regularly inspect hydraulic fluid levels and for any leaks to avoid system failures.
- Engine: The heart of the machine. Always ensure the engine is properly maintained by changing the oil regularly, checking the spark plugs, and cleaning the air filter to avoid performance issues.
- Drive Belt: This component transmits power from the engine to the wheels and other parts. Inspect belts for any signs of fraying or wear, and replace them promptly if damaged to maintain optimal operation.
- Fuel System: Includes the fuel tank, lines, and filters. Clogged fuel filters or old fuel can lead to poor engine performance. Replace the fuel filter annually and always use fresh fuel to avoid clogging.
- Front Casters: These small wheels control the direction of movement. They should rotate freely without obstruction or excessive wear, ensuring smooth maneuverability.
- Electrical Components: Batteries, wiring, and fuses all play a critical role in powering the mower’s systems. Inspect for corrosion, loose connections, and ensure the battery is charged to avoid electrical failures.
Familiarizing yourself with these components will make it easier to maintain and troubleshoot any issues you encounter with your mower.
Common Troubleshooting Tips for Mower Components
Check the fuel filter regularly. If it’s clogged, replace it to ensure proper fuel flow. A dirty filter can restrict the engine’s power and cause stalling.
If the mower engine fails to start, inspect the spark plugs. Worn or dirty plugs can prevent ignition, so clean or replace them if necessary. Also, ensure the spark plug wires are properly connected.
For steering issues, examine the drive belts. A worn or misaligned belt can cause difficulty in maneuvering. Adjust or replace the belt if it shows signs of wear or damage.
If the blades are not spinning efficiently, inspect the blade spindles. Loose or damaged spindles can lead to poor cutting performance. Tighten or replace the spindles to restore smooth operation.
Inspect the hydraulic system if you experience slow or jerky movement. Low fluid levels or air in the system can cause issues. Top up the fluid and bleed the lines to remove any air pockets.
For battery problems, check the connections for corrosion. Clean the terminals with a wire brush and ensure the battery is securely mounted. If the battery is not holding a charge, consider replacing it.
How to Read and Use Parts Schematics for Lawn Equipment
Start by locating the correct schematic for your model. Identify the part numbers and compare them with the list of components in the user manual to ensure compatibility. Each section of the diagram represents a different area of the machine, often broken down by function or location, such as the engine or the drive system.
Step 1: Focus on understanding the main groups, such as the drivetrain, engine assembly, or control systems. These are typically highlighted and color-coded, making it easier to navigate. Be aware of the reference keys that indicate the different assembly stages or component types.
Step 2: Use the numbering system to trace each part. Often, the components will be listed in a catalog alongside the schematic, and each item will have a corresponding number or letter that links it to the visual representation. This will help you pinpoint the exact piece you’re looking for.
Step 3: Pay attention to the orientation of components. The schematic often shows how parts fit together, which is vital when replacing or reassembling. For instance, some components may need to be installed in a specific direction, or certain fasteners might require particular torque values.
Step 4: When selecting replacement components, cross-reference the model and serial numbers with the part list to verify the correct item. A small mistake in part selection can lead to assembly issues or improper function.

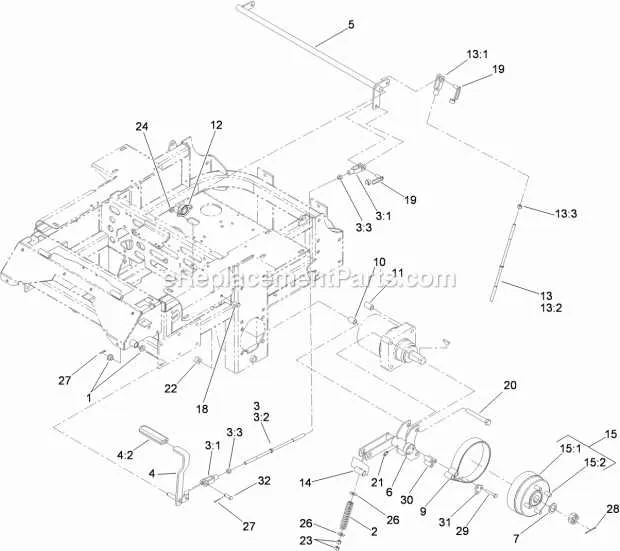

Step 5: Refer to the exploded view, where parts are shown in their disassembled state. This can be helpful for complex repairs, as it gives you a clear understanding of how each piece interrelates and the order in which parts should be assembled or disassembled.
Tip: Keep the schematic on hand while performing repairs. You may want to highlight or mark specific parts for reference during the disassembly or reassembly process, which helps in staying organized and avoiding confusion.
