For a seamless installation of the in-cabin sound setup, focus on identifying the color codes and pin assignments precisely. Factory harnesses usually follow a standardized scheme: red for ignition power, yellow for constant 12V, black for ground, and blue for antenna or amplifier turn-on signals. Misinterpreting these can cause malfunctions or no sound output.
Always verify the location of each wire by consulting specific connector layouts that correspond to the year and model of your pickup. Use a multimeter to check for live circuits before splicing or connecting aftermarket components. Reliable connections often require soldering or quality crimp connectors to avoid intermittent audio issues.
Understanding the interface between the vehicle’s main electrical harness and the replacement audio unit ensures compatibility and prevents damage. Many models integrate steering wheel controls and Bluetooth modules through dedicated pins–proper mapping of these leads is essential for retaining factory functionality.
Wiring Guide for Tacoma Audio System
For proper connection of the factory radio in the pickup truck model, follow the pinout and color codes below. Accurate matching ensures full functionality and prevents damage.
- Red: Accessory 12V (ignition-switched power)
- Yellow: Constant 12V (battery power)
- Black: Ground
- Blue: Power antenna or amplifier remote turn-on
- White/White with black stripe: Front left speaker (+/-)
- Gray/Gray with black stripe: Front right speaker (+/-)
- Green/Green with black stripe: Rear left speaker (+/-)
- Purple/Purple with black stripe: Rear right speaker (+/-)
Use a multimeter to verify voltage and continuity before final installation. Employ proper connectors, preferably crimp terminals or solder joints insulated with heat shrink tubing.
- Disconnect the battery negative terminal to avoid short circuits.
- Match each wire from the aftermarket unit harness to the vehicle harness by color and function.
- Secure all connections tightly and double-check polarity on speaker leads to maintain phase integrity.
- Test the audio and all functions before reassembling the dash components.
For integration with steering wheel controls or factory amplifiers, additional adapters or modules may be necessary. Consult compatible accessory manuals for interface wiring specifics.
Identifying Factory Wiring Colors and Connectors
Match each wire by its color code to ensure accurate connections. Common factory colors include:
- Yellow: Constant 12V power (battery)
- Red: Switched 12V power (ignition)
- Black: Ground
- Blue: Power antenna or amplifier turn-on
- White/White with black stripe: Front left speaker positive/negative
- Gray/Gray with black stripe: Front right speaker positive/negative
- Green/Green with black stripe: Rear left speaker positive/negative
- Purple/Purple with black stripe: Rear right speaker positive/negative

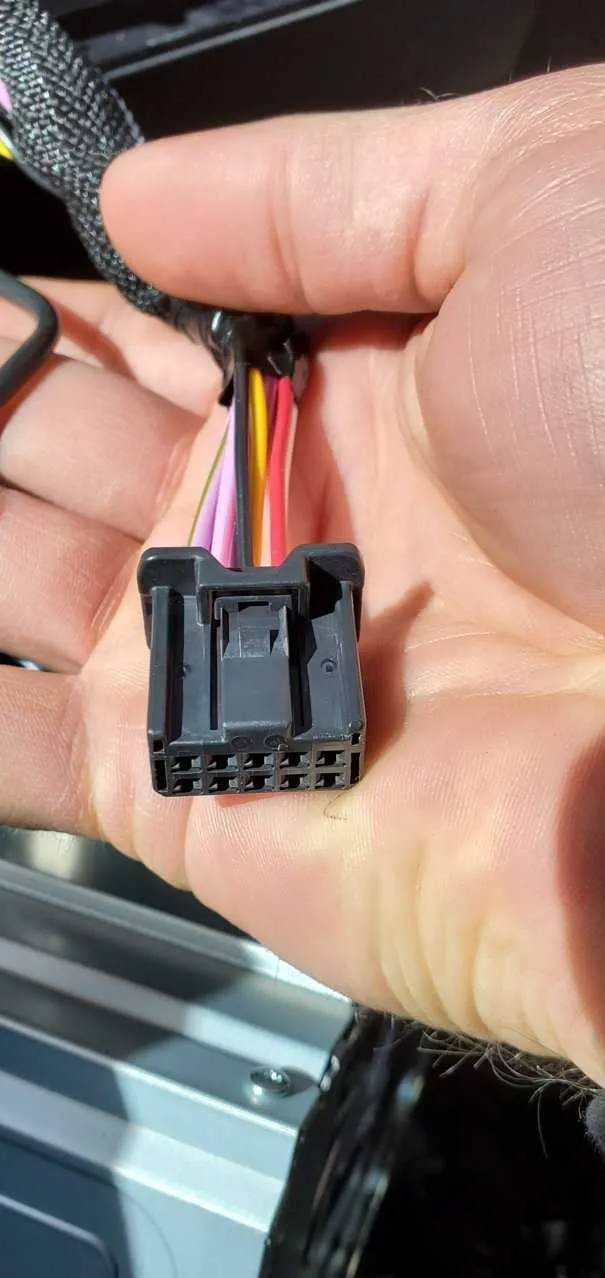

Use a multimeter to verify voltage presence on power lines before splicing. Factory connectors typically have keyed plugs to prevent incorrect insertion–examine shapes and pin counts carefully. For signal clarity, avoid cutting wires near connectors; instead, tap wires downstream.
Retain original clips and harnesses for secure mounting and to maintain integrity of the vehicle’s electrical system. When possible, consult the vehicle’s service manual for connector pin assignments to avoid damage.
Integrating Aftermarket Audio System with Vehicle Electrical Connections

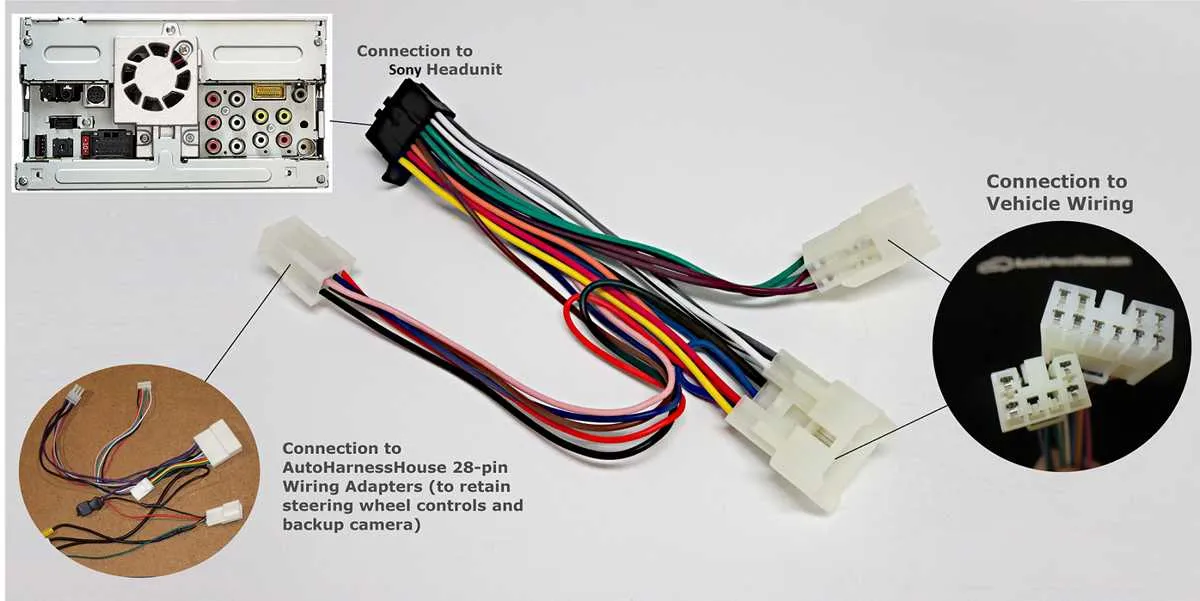

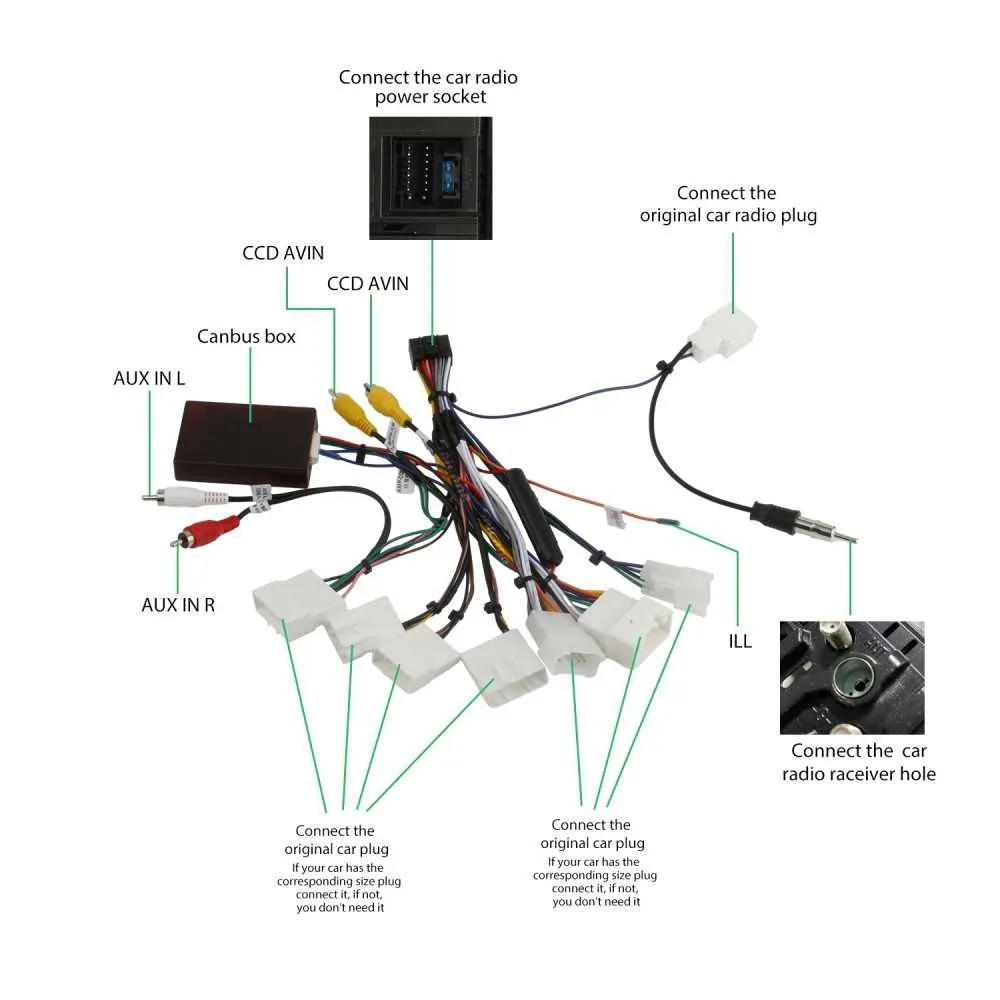

To successfully install an aftermarket sound system, ensure you have the correct harness adapter for your vehicle’s factory connections. The adapter simplifies the process by allowing you to plug in the new audio equipment without cutting or modifying the vehicle’s original cables. It’s crucial to match the wire colors from the vehicle’s harness to the corresponding connectors of the new audio unit, ensuring each function is mapped correctly.
Before connecting, disconnect the vehicle’s battery to avoid any short circuits or electrical damage. Start by attaching the power, ground, and ignition wires to their designated terminals. Power wires typically connect to a constant 12V source, while the ignition wire should be routed to the accessory position for proper operation of the system when the vehicle is on.
For sound output, connect the speaker wires from the factory harness to the aftermarket unit’s speaker output terminals. Be cautious of speaker impedance to prevent damage to both the speakers and the amplifier. If the new system requires a separate amplifier, ensure the amplifier’s power and ground connections are robust enough to handle the added load.
Finally, verify the connection of any additional components such as an antenna or auxiliary input cables. After all wires are securely attached, double-check all connections and test the system before fully assembling the dashboard components.
Troubleshooting Common Audio System Issues
If your vehicle’s sound system isn’t functioning properly, first inspect the connections to ensure all cables are securely fastened. Loose or disconnected wires can lead to complete or partial loss of audio output. If you suspect an issue with the power source, check the fuse box for any blown fuses that may have cut off power to the amplifier or head unit.
Another common problem arises from speaker distortion, which often results from poor grounding. Make sure that the ground connection is made to a clean, bare metal surface, and ensure it is tightly fastened to avoid hum or static in the sound output.
For sound systems with additional amplifiers, verify the remote turn-on wire for the amplifier is correctly connected to the head unit’s remote output. A faulty or disconnected wire here can prevent the amplifier from powering on, leaving speakers silent even though the rest of the system seems operational.
If the system still exhibits issues, refer to the table below to identify and fix common problems:
| Issue | Possible Cause | Solution |
|---|---|---|
| No sound | Loose or disconnected wires | Check all cable connections, especially at the head unit and speakers |
| Distorted sound | Poor ground connection | Reattach the ground wire to a clean, metal surface |
| No power to amplifier | Remote turn-on wire disconnected | Reconnect the remote turn-on wire to the head unit |
| Fuzzy or intermittent sound | Faulty or corroded connectors | Clean and reattach connectors to ensure a solid connection |
