To efficiently retrieve and manipulate related data from multiple tables, it’s crucial to grasp the different methods of combining information based on shared values. The most common approach involves using techniques that allow you to connect rows across tables in meaningful ways, ensuring that your queries return only relevant results. Mastering these methods will significantly improve both the speed and accuracy of your data retrieval process.
Start by focusing on the inner connection technique, where only rows with matching values in both sets are included in the result. This is the default choice when you want to limit your output strictly to records that exist in both datasets. Avoid unnecessary complexity by choosing this method when you know the data must be present in both sources to form a complete dataset.
In contrast, for situations where you need to retain all records from one set, even when there is no match in the other, utilize the outer connection. This method ensures that no data is excluded, filling in the gaps with null values where necessary. It’s especially helpful when working with incomplete datasets or when you need a broader view of the information without losing any context.
Consider also the right and left methods when one dataset is of primary interest and should remain intact regardless of whether the other set provides matching rows. These techniques allow for focused results, preserving the integrity of your preferred dataset while still including related data from the other source.
Finally, combining these strategies with filtering and grouping techniques will help you tailor your queries to meet specific business requirements. Fine-tuning your approach based on the exact relationships between your data sets will lead to more efficient querying and better decision-making.

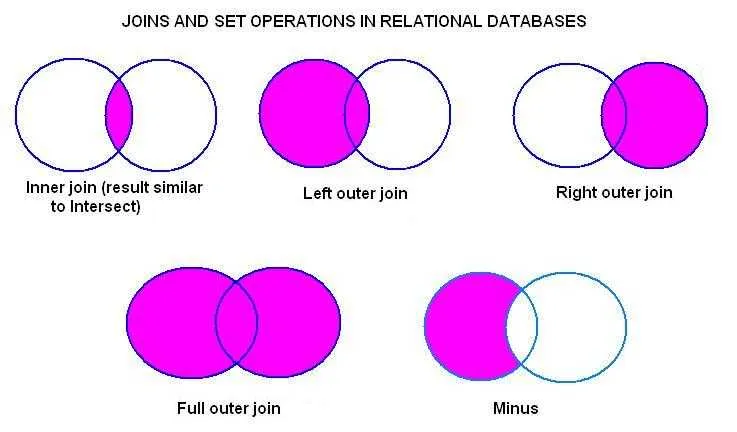

Understanding Set Operations in Relational Databases
To combine tables and retrieve related data, it’s crucial to understand how sets overlap and differ when using relational queries. Below are the types of operations that allow data to be merged or filtered based on specific criteria:
- Inner Merge: Returns only matching records from both data sets. The result contains elements that exist in both collections.
- Left Merge: Includes all records from the first table, and only matching records from the second table. If no match is found, null values are used for the second table’s columns.
- Right Merge: Similar to the left merge but includes all records from the second table, with nulls for unmatched records from the first table.
- Full Merge: Combines all records from both tables. Unmatched rows will have null values in columns from the opposite table.
- Anti Merge: Retrieves records that exist in the first table but have no corresponding matches in the second table.
When choosing the right method for combining data, consider the following:
- If you need only the common elements between two sets, use an inner merge.
- For including all data from the first set, regardless of matching records in the second, opt for a left merge.
- If the focus is on retrieving all data from the second set, then a right merge is ideal.
- For capturing every record from both sets, whether or not a match is found, a full merge is recommended.
- For filtering out matching records and keeping only those unique to the first set, an anti merge is appropriate.
Understanding Inner Joins Using Visual Representation
When performing a query that combines data from two tables, an inner connection ensures that only the records with matching values in both sets are included in the result. The core principle of this operation is to filter out any rows that do not have corresponding data in the other table. In practice, this means that both data sets must share a common key or column value for inclusion.
Key insight: Only the overlapping portion of the two datasets is returned. This excludes any entries from either table that lack a match in the other. For example, if one table holds customer details and another holds order data, an inner connection between these two would return only customers who have placed orders, leaving out any customers who haven’t ordered anything.
Example query:
SELECT customers.name, orders.order_id FROM customers INNER JOIN orders ON customers.id = orders.customer_id;
In this case, the result will only contain customers who have a matching entry in the “orders” table. Non-matching records from either table are excluded. This operation is particularly efficient when filtering out irrelevant data and narrowing results based on specific relationships between the datasets.
The intersection of two sets allows us to focus on meaningful, related data, which can help avoid cluttered results and improve query performance. Understanding this concept visually enhances the clarity of the operation, ensuring an effective and intuitive approach to combining data.

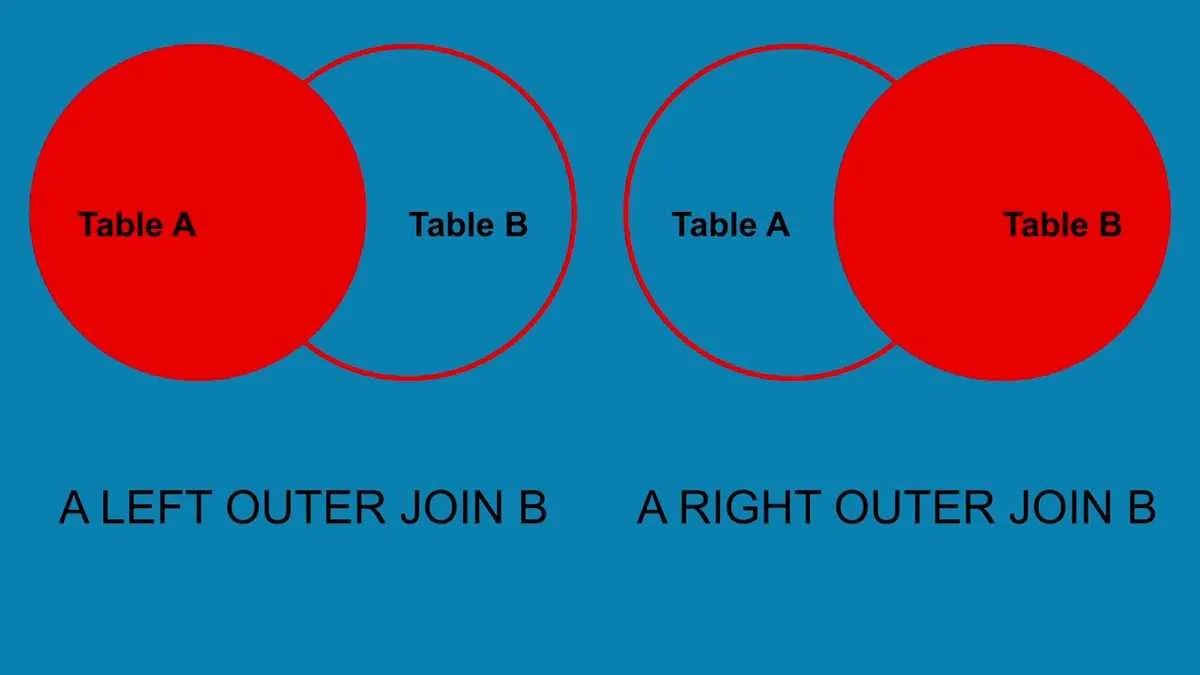

Visualizing Left and Right Joins with Venn Diagrams
To grasp the difference between left and right set unions, imagine the following scenario: You have two sets of data, A and B. For a left set union, every element from A will appear in the result, even if there is no corresponding element in B. Conversely, for a right set union, every element from B will be included, even if there is no corresponding element in A.
Left Join: This operation includes all elements from the left set (A) and only the matching ones from the right set (B). If there is no match, null values are returned for columns from B. Visually, this means that the left circle will represent all elements of set A, while the overlapping area will show the matches from B.
Right Join: This operation ensures that all elements from the right set (B) appear, with matching elements from A. If there’s no match in A, null values are returned for the corresponding columns. Here, the right circle will encompass all elements of B, with the intersection showing matches from A.
When comparing the two, the key distinction lies in which set’s elements are guaranteed to appear. For a left set union, the left circle’s entirety will be present, while the right circle’s presence will depend on matches. The opposite is true for a right set union, where the right circle will be fully represented.
Handling Outer Joins in SQL: Venn Diagrams for Complex Queries
When dealing with queries that require matching data from two or more tables, understanding how to manage mismatches in records is crucial. For more comprehensive results, incorporating left and right connections is key. These techniques allow you to pull all data from one table and fill in missing values from the other table wherever possible.
Left Outer Join ensures that every row from the left table is included in the result. If there is no corresponding match in the right table, NULL values are returned for columns from the right table. This can be useful when you need a complete list of records from the left table, regardless of whether there’s a match in the right table.
Right Outer Join works similarly, but with a focus on retaining all rows from the right table. If a row in the right table doesn’t have a corresponding record in the left table, NULL values will appear in the left table’s columns. This approach is beneficial when you need every row from the right table but don’t necessarily need a match on the left.
In scenarios where you need all records from both tables, use a Full Outer Join. This method ensures that every record from both tables is included, filling in NULL values for unmatched rows. This is particularly useful when you need a complete picture of data across multiple tables with no exclusions.
Pay close attention to how mismatched records are treated, especially when your query involves aggregation or complex filtering. Missing data in one table can skew results, making it important to handle NULL values appropriately–either through COALESCE() or ISNULL() functions to substitute NULL values with a default value.
Finally, always consider the performance impact. Using outer connections can be costly in terms of processing time, particularly with large datasets. Proper indexing and limiting the data with WHERE clauses or LIMIT can help optimize query performance.
