When connecting a 24-volt propulsion system to your vessel, it’s crucial to ensure all components are installed correctly to prevent power loss and ensure optimal performance. The key step is understanding how to wire two 12V batteries in series to achieve the necessary power output. This setup increases the overall potential while maintaining the safety and efficiency of the system.
Start by carefully choosing the appropriate gauge wire to minimize voltage drop, especially for longer connections. 10-gauge or thicker wire is typically recommended for most setups to handle the current without excessive heat buildup. Proper insulation is equally important to prevent shorts, particularly in environments with high moisture exposure.
To connect the two batteries, link the positive terminal of one battery to the negative terminal of the second. Then, the remaining negative and positive terminals will connect to your vessel’s electrical system, ensuring proper polarity. This arrangement will provide you with the necessary output for the vessel’s propulsion system, while also allowing for efficient power management between the two batteries.
Always install a fuse or circuit breaker between the power source and the load to protect the system from potential overloads. This extra step will help safeguard both the batteries and connected electronics from damage in case of sudden power surges.
Ensure to regularly check the voltage levels to verify that the configuration is performing as expected. Keeping an eye on both battery charge and connection integrity will prevent costly damage and extend the life of your equipment.
How to Set Up a 24-Volt System for Your Boat’s Electric Propulsion
To ensure optimal performance, connect two 12V batteries in series, giving you a total of 24V. Begin by linking the positive terminal of one battery to the negative terminal of the second. The remaining free positive terminal of the first battery will be used to connect to the positive lead of the electric drive, while the free negative terminal of the second battery will connect to the negative side.
Use wire gauges capable of handling the increased load, typically 8 or 10 AWG, to avoid voltage drop and power loss. Be sure to install a fuse or circuit breaker on the positive side, ideally within 18 inches of the battery. This will protect the entire setup from potential short circuits or overloads.
Ensure all connections are clean, tight, and corrosion-free by using anti-corrosion washers or marine-grade terminals. Consider using a battery management system to monitor the charge and avoid over-discharge. Regular maintenance, such as checking for corrosion and ensuring proper voltage across the system, will extend the longevity of your components.
Choosing the Right Gauge for Your Boat’s Electrical System
For optimal performance, use 10 AWG copper wire for current draws up to 40 amps, and 8 AWG for higher loads. This ensures minimal voltage drop, preventing overheating and improving overall efficiency.
If your setup involves longer cable runs, always step up to a thicker wire. For distances above 10 feet, switch to 8 AWG to maintain power integrity. For runs exceeding 20 feet, consider 6 AWG to avoid significant losses.
Ensure that all components, including connectors and fuses, are rated for the same current as the wire. This will prevent potential failures and allow for proper protection throughout the circuit.
Avoid using wire that is too thin for the application, as it leads to higher resistance, heat buildup, and potential damage to your equipment. Always match your wire gauge to the current requirements of your system.

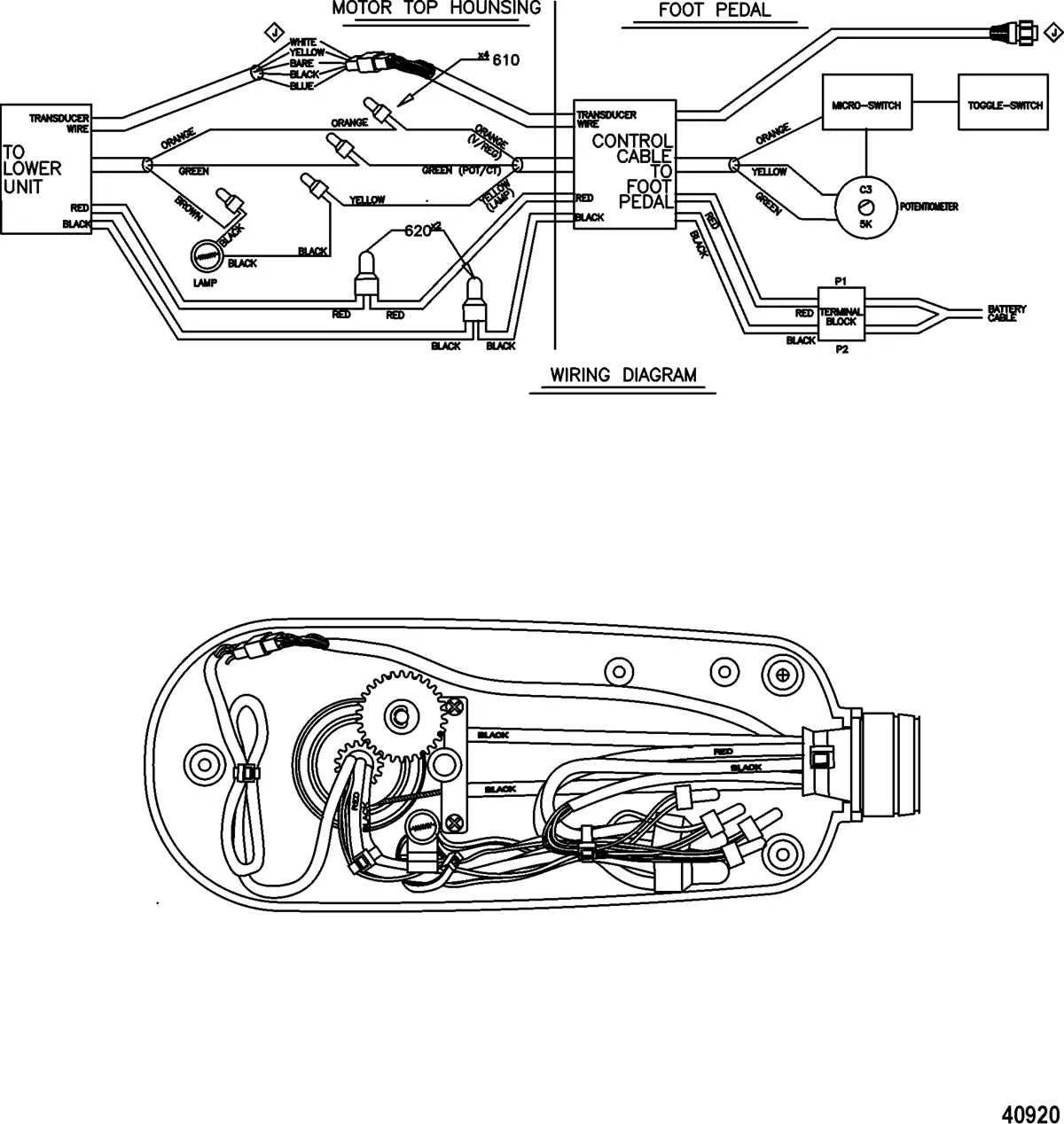

How to Connect the Battery and Electric Propulsion Unit Properly
Start by ensuring that the power source is suitable for the device’s requirements. Use cables with the correct gauge for the expected current load. For a secure connection, tighten all terminal screws with the appropriate tool, ensuring a solid contact without over-tightening.
Connect the positive terminal of the power source to the positive terminal of the propulsion unit. Similarly, connect the negative terminal of the power source to the negative terminal of the unit. Use corrosion-resistant connectors to prevent degradation from exposure to moisture and salt.
Check the polarity to avoid reversing the connections, which can cause damage to both the battery and the propulsion unit. Double-check all terminals and wiring paths for secure connections before testing.
If the unit requires multiple batteries, ensure they are connected in the correct configuration, either in series or parallel, based on the manufacturer’s specifications. Always follow the instructions on the battery’s labeling for proper installation and maintenance.
Lastly, before powering on, inspect the entire setup for any loose wires, fraying, or other potential issues that could compromise the system’s performance or safety. Always use protective fuses as recommended in the user’s manual to prevent overloading or short circuits.
Understanding Circuit Protection for Safe Electric Propulsion Unit Operation
To ensure the safe operation of your electric propulsion unit, proper circuit protection is crucial. Here’s how to safeguard your system from damage caused by overloads or short circuits:
- Fuses and Circuit Breakers: Always install fuses or circuit breakers rated slightly higher than the maximum operating current. This prevents excessive current from reaching critical components. Select a fuse rated for continuous operation and ensure it matches the expected amperage of the entire setup.
- Inline Fuse Placement: Position the fuse as close to the power source as possible. This minimizes the risk of damage to wiring and components between the fuse and the power source.
- Current Protection Device Ratings: Choose protection devices based on your system’s current draw. For example, if your setup pulls a continuous 20 amps, a 25-30 amp fuse would be ideal. The fuse should blow or trip when the current exceeds a safe threshold.
- Overcurrent Prevention: For longer lifespan, integrate an overcurrent protection system that cuts off power if excessive current is detected. Consider thermal protection features for additional safety against heat buildup.
- Wire Sizing: Ensure that the wire gauge is suitable for the current being drawn. Undersized wires can overheat, triggering potential fire hazards. Use a thicker gauge for higher current demands to prevent excessive resistance.
- Proper Grounding: Ground your system properly to reduce the risk of electrical faults. An effective grounding system redirects unwanted energy safely into the earth, preventing component damage or shock hazards.
- Regular Inspection: Check your protection devices regularly for signs of wear or degradation. A damaged fuse or breaker can leave your system vulnerable to unexpected failures.
By integrating these protective elements, you ensure a reliable and safe performance, avoiding damage to the unit and electrical components during operation.
