If you’re planning to replace or upgrade your vehicle’s audio unit, knowing the proper connection points is essential for a smooth installation. Understanding how to link the power, speakers, and control wires will ensure that the system functions as intended. This includes understanding the specific color codes and pin configurations for each connector.
Ensure proper grounding when setting up the power connection. Failing to secure a solid ground can result in poor performance or potential damage to the new equipment. The ground wire should be connected to the chassis of the car for an effective electrical return.
Speaker connections are next in line. Each speaker has a designated pair of wires–one for positive, the other for negative–often color-coded. Make sure to connect them in the correct orientation to avoid phase issues, which can lead to poor sound quality.
For the control and accessory wiring, it’s crucial to match the ignition wire and memory wire correctly. The ignition wire powers the system when the vehicle is on, while the memory wire preserves settings like radio presets when the engine is off.
Electrical Connections for Car Audio System
Ensure a secure installation by following these color-coded wire connections:
- Red: 12V constant power supply for the unit.
- Yellow: Battery voltage input for memory and settings retention.
- Black: Ground wire that connects the system to the vehicle’s chassis for electrical return.
- Blue: Remote turn-on wire that signals the amplifier or other connected components to activate when the head unit powers on.
- White & White/Black: Left front speaker connection. Use the white wire for positive, the black wire for negative.
- Gray & Gray/Black: Right front speaker connection. The same convention applies–gray for positive, gray/black for negative.
- Green & Green/Black: Left rear speaker wiring.
- Purple & Purple/Black: Right rear speaker connection.
For a proper installation, it’s crucial to ensure each wire is connected to the correct terminal. Use a multimeter to verify power and ground connections, ensuring they meet the vehicle’s voltage specifications.
When working with vehicle electronics, it’s highly recommended to use a wiring harness adapter, which prevents the need to cut the vehicle’s original wiring, ensuring a clean and safe installation. Always double-check the color coding as they might slightly vary depending on the manufacturer of the car’s head unit or aftermarket system.

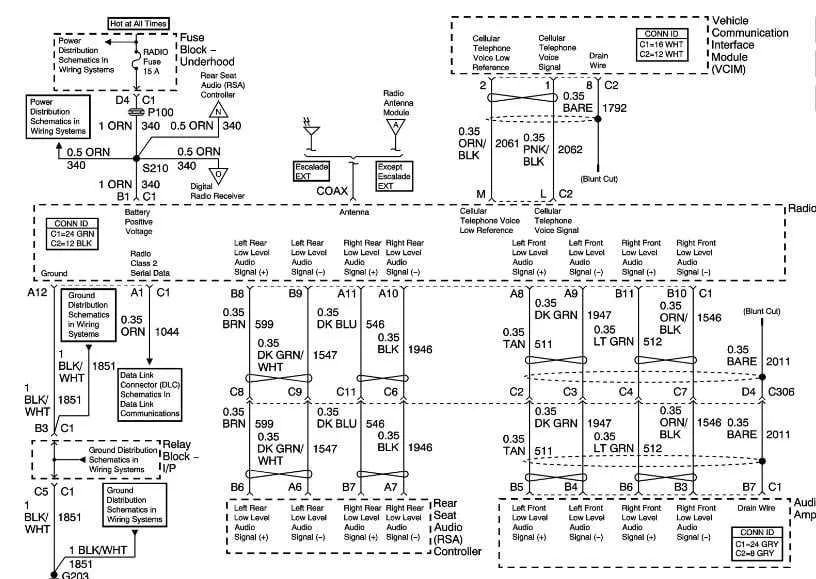

Understanding the Pinout for the 2004 Silverado Stereo Connector
To properly connect the audio system, ensure you identify the pinout on the factory connector. The correct mapping is essential for proper functionality. Below is a breakdown of the pin configuration.
Pin 1: This pin supplies a 12V constant power to the system, ensuring it maintains memory even when the ignition is off. It is crucial to connect this to a constant power source for proper operation.
Pin 2: Provides an ignition or accessory power that activates the system when the vehicle is started. Connect it to a switched power source.
Pin 3: Ground pin, important for completing the circuit. Always ensure it’s connected to a reliable ground point.
Pin 4: Front left speaker positive terminal. It sends audio signals to the left front speaker. Proper connection here is vital for clear sound output.
Pin 5: Front right speaker positive terminal. Connect to the right front speaker’s positive lead for stereo audio playback.
Pin 6: Rear left speaker positive terminal. Ensures audio reaches the rear left speaker. This pin is also responsible for handling bass output.
Pin 7: Rear right speaker positive terminal. Connect to the rear right speaker’s positive input for full audio coverage across all channels.
Pin 8: Typically used for the amplifier remote turn-on signal. If your system uses an external amplifier, this pin is necessary to trigger it when the system powers up.
Pin 9: Used for the antenna power, which allows the antenna to extend when the system is powered on. It is not needed for all setups but is required if the vehicle uses a powered antenna.
Pin 10: Audio output for subwoofers or additional speakers if your setup requires extra outputs. Proper connection guarantees full-range sound reproduction.
Pin 11: This pin handles the left rear speaker negative terminal, ensuring that audio signals are correctly routed for rear-channel sound.
Pin 12: The right rear speaker negative terminal. Ensures clear and accurate audio delivery to the right rear speaker.
Pin 13: This pin provides signal for the factory amplifier, if applicable. It ensures seamless communication between the head unit and the amplification system.
Pin 14: If equipped with a factory-installed navigation or display unit, this pin handles the video signal output. Ensures that visual content is transmitted accurately.
Pin 15: Optional connection for auxiliary devices like satellite radio, CD changers, or other media inputs.
Before making any connections, verify the specific setup of your vehicle and the equipment you’re installing to avoid mismatches that could damage the system or prevent it from functioning properly. Using a multimeter to test voltages and continuity can also help ensure accuracy during the installation process.
How to Identify the Speaker Wires in the 2004 Silverado Audio System
To locate the speaker connections in the vehicle, start by removing the head unit or the panel that houses the audio controls. Once the panel is removed, you will see the wiring harness connected to the unit. Speaker wires are typically color-coded, but they may differ based on the system configuration.
The most common color coding for the wires is as follows:
– Front left: Light blue or green
– Front right: Dark blue or gray
– Rear left: Purple or green
– Rear right: Purple or gray
For vehicles with amplified sound systems, there will be additional connections for the power and signal inputs. In this case, use a multimeter to verify continuity or voltage to ensure proper identification.
To further confirm wire identification, you can gently tap the speaker cones while testing the continuity of each wire. The active speaker will produce a faint sound or vibration, confirming the correct wire.
When reconnecting, always ensure that the positive and negative connections match the polarity of the speakers to avoid audio distortion.
Step-by-Step Guide to Installing an Aftermarket Audio System in Your Truck
Start by disconnecting the truck’s negative battery terminal to prevent electrical shorts during installation. Use a trim removal tool to gently pry the dashboard panels surrounding the factory unit. This avoids damage to your truck’s interior.
Once the panels are removed, unscrew the mounting bolts holding the original head unit in place. Carefully slide the factory radio out, making sure not to damage the connectors behind it. Detach all the wiring harnesses and antenna connections that are attached to the back of the unit.
Next, connect the wiring adapter to the new head unit. The adapter should match the color-coded wires, ensuring that each wire connects to the correct terminal on the new unit. If needed, use wire strippers to remove a small section of insulation before making the connection. Some units may also require a separate harness for the antenna and other accessories.
Before securing the new unit in place, test the connections. Reconnect the battery and power on the new system to check if the display and sound function correctly. Adjust any settings like volume, balance, and tone to your liking.
Once you confirm the unit works, slide it into the mounting slot. Reattach the screws to secure it in place. Carefully replace the dashboard panels, ensuring they snap back into place without forcing them.
Finally, test the system again to ensure everything is functioning properly. Check the audio clarity, response from buttons, and compatibility with any other features, like Bluetooth or backup cameras, that your new system may support.
