When setting up a recreational water structure, ensuring the proper electrical connections is crucial for safety. Proper grounding helps to prevent dangerous electrical shock hazards by redirecting stray electrical currents away from swimmers and equipment. It’s essential to understand the correct positioning and connection of the conductive components to ensure an effective grounding system.
Begin by identifying all metallic parts of the installation, including ladders, handrails, and pipes, which must be properly interconnected. These components should be linked to a reliable grounding system that connects to the main electrical grounding network of the property. The grounding conductors need to be of the appropriate gauge, typically copper or copper-clad aluminum, and should comply with local electrical code requirements to avoid malfunctions.
The connection between these parts and the grounding electrode system should be as short and direct as possible. Any splices or connections should be made with corrosion-resistant connectors to ensure long-term stability and conductivity. It’s also recommended to use bonding jumpers to link all conductive materials and ensure uniformity across the installation. This reduces the risk of electrical shock by equalizing the potential of all metallic elements.
Always verify the installation with a qualified electrician to confirm that the grounding system complies with national safety standards, like the National Electrical Code (NEC). Proper checks and regular maintenance of the electrical components can save lives and extend the lifespan of the entire installation.
Electrical Safety Connections for Outdoor Swimming Setup
Ensure proper grounding by linking all metal components to the main electrical system using copper conductors. This is crucial for reducing risk of electric shock and improving the overall safety of the installation. All metal framing, ladders, pumps, and heaters should be interconnected with the grounding system, forming a continuous path for potential electrical faults.
Start by installing a dedicated grounding rod near the swimming area. This rod must be at least 8 feet long and made from copper or other highly conductive materials. Connect the rod to the nearest electrical panel using a grounding conductor. The connection should be tight and corrosion-resistant, using appropriate clamps to secure the wire.
Next, every metallic part in the setup should be connected to the grounding system. This includes pump motors, filtration units, and any structural metal elements. A loop of wire should be run to link these components, ensuring they form a single, continuous loop to prevent localized voltage buildup.
When connecting electrical equipment, ensure all connections are compliant with the National Electrical Code (NEC) or local regulations. Use outdoor-rated materials for all wiring and connectors, as moisture and weather can cause corrosion. Ensure that all grounding connections are checked regularly to maintain integrity over time.
Finally, test the entire electrical system with a multimeter or ground resistance tester to verify that the grounding system is functional. A low-resistance path between all metal components and the grounding system is necessary for safety in the event of an electrical fault.
Understanding Pool Bonding Requirements for Safety
To ensure electrical safety around a recreational water installation, it’s essential to adhere to specific grounding and conductive safety protocols. These measures minimize the risk of electric shock by ensuring that all metallic components are properly interconnected and grounded.
- Use of a conductive grounding system: All metal parts, such as ladders, railings, frames, and water filtration systems, must be connected to a unified conductive system. This ensures that in case of electrical malfunction, the current is directed safely to the earth.
- Minimize risk of shock hazards: Electrical systems should not have any direct contact with the water or metallic structures. Implement a secure separation using appropriate insulation or protective barriers.
- Electrical code compliance: Adherence to national and local electrical codes is mandatory. For instance, in the U.S., the National Electrical Code (NEC) Section 680 outlines specific requirements for safety when working with electrically conductive water structures.
- Properly grounding electrical equipment: Ensure that all electrical installations, such as pumps, lighting, and heaters, are grounded according to code specifications. This prevents dangerous voltage from building up on non-grounded metallic parts.
- Verification of ground connection: Regular inspections should be conducted to verify that all conductive connections remain intact, especially after repairs or modifications to the structure. Use a grounding tester to confirm the resistance is within the acceptable range.
Ensuring compliance with these guidelines is crucial for preventing electrical hazards. Any gaps in the grounding or incorrect installations can lead to catastrophic outcomes, including electrocution or fire.
Steps for Properly Connecting Pool Bonding to Electrical System
Ensure that all metallic components, including the filtration system, ladders, and handrails, are properly linked to the electrical grid’s grounding system. This step is critical for avoiding potential electrical hazards.
Start by selecting an appropriate conductor gauge based on the size and layout of the setup. Typically, copper wire of at least 8 AWG is used to ensure adequate current-carrying capacity.
All metal parts within the enclosure should be interconnected using a continuous, solid copper conductor. It is essential to eliminate any breaks or faulty connections that could disrupt the grounding system.
Next, connect the conductor to the grounding bus bar located in the main electrical panel of the structure. This ensures that any stray electrical charges are directed safely to the earth. The connection must be secure and comply with local code requirements.
Ensure that each metallic object within the vicinity of the structure, such as reinforcing rods or metallic plumbing, is linked to the same system to avoid differences in potential that could lead to a shock hazard.
Verify all connections using a continuity tester or multimeter to check for proper conductivity across all linked components. There should be no resistance or weak connections.
Finally, after completing the wiring, inspect the setup to confirm compliance with national and local codes. Regular maintenance and testing are advised to maintain the integrity of the system over time.
Common Mistakes to Avoid in Electrical Connections for Outdoor Water Installations
Improper grounding of metal components is one of the most frequent errors. Ensure that all metallic structures are properly linked to the electrical system, using appropriate grounding rods and connectors. Neglecting this can lead to hazardous situations and system failure.
Failing to use corrosion-resistant materials for connections can result in weakened links and eventual failure. Always choose fittings and wires that can withstand outdoor conditions, particularly those exposed to moisture and salt.
Another issue is incorrect wire gauge selection. Using too thin a wire can cause overheating and voltage drop, jeopardizing safety. Verify that the wire gauge matches the load requirements, following local electrical codes.
Not testing the connections after installation is a critical mistake. Using a multimeter to check for continuity and grounding effectiveness helps identify potential issues before they become dangerous.

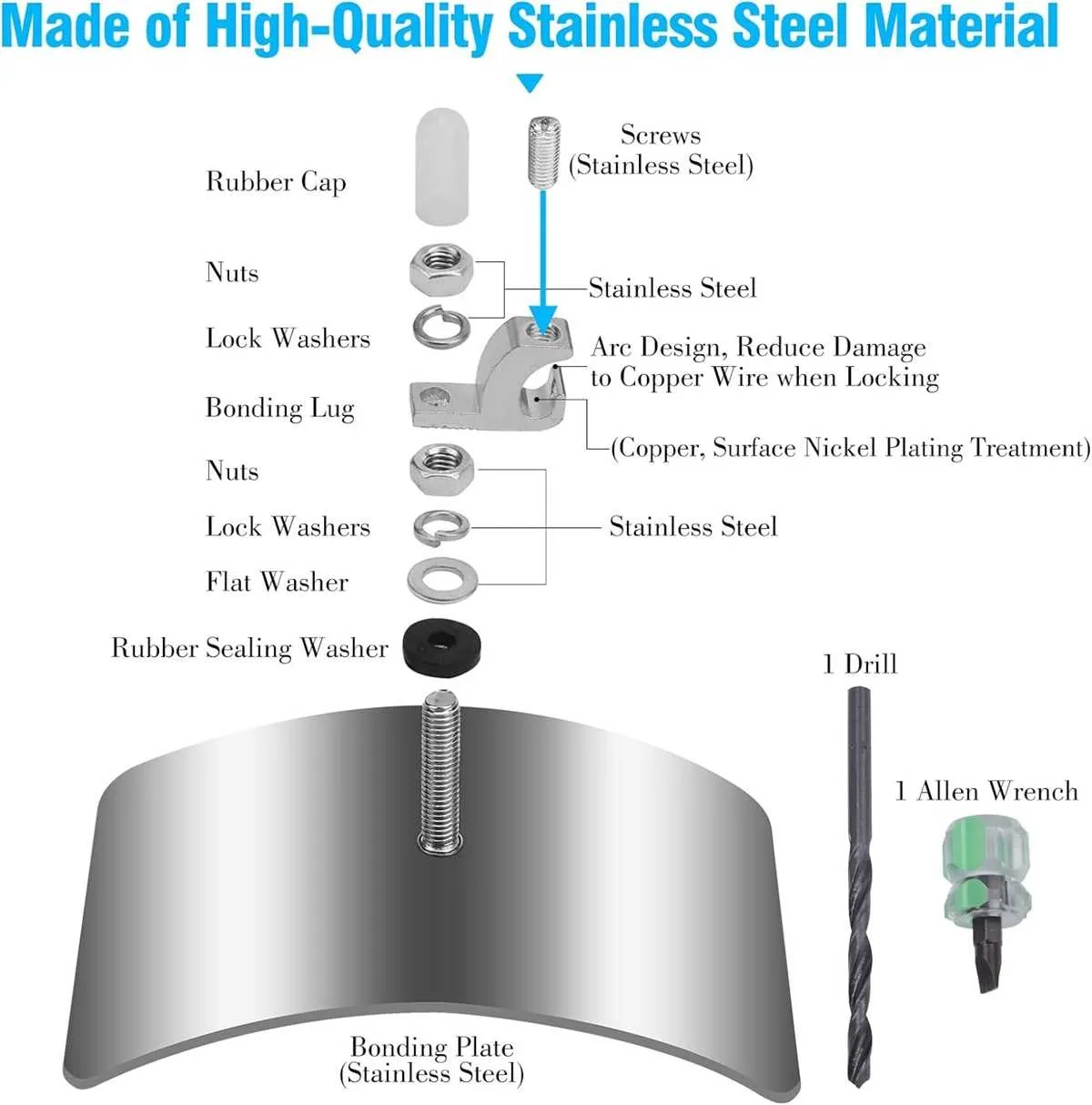

Skipping the use of bonding clamps or using substandard ones leads to unreliable connections. Always opt for high-quality, properly sized clamps to maintain a secure electrical pathway.
Incorrectly connecting to the main service panel can introduce severe risks. Always ensure that connections to the electrical grid follow the manufacturer’s instructions and meet regulatory standards.
