If you’re looking to troubleshoot or replace the drive components of your compact sedan, understanding the routing of key engine pulleys and belts is crucial. For optimal performance, refer to the precise configuration of the serpentine and timing systems. Each component in the mechanism, from the alternator to the water pump, must be aligned accurately to avoid overstrain and ensure longevity.
Proper Installation of the drive system is essential for smooth operation. If components are misaligned, it can lead to premature wear or failure. Pay special attention to the routing of each component, especially around the tensioners and idlers, to avoid complications with engine cooling or electrical charging.
Replacement intervals for these parts can vary depending on the usage and conditions, but typically, belts should be inspected every 30,000 to 60,000 miles. In some cases, the timing mechanism may require attention much earlier, especially if you notice symptoms such as squealing noises or engine misfires.
Ensure you follow manufacturer-specific guidelines for replacement procedures, particularly with complex systems. In some instances, belt replacement may require you to remove other components like the fan or radiator, so be prepared for additional steps in the process.

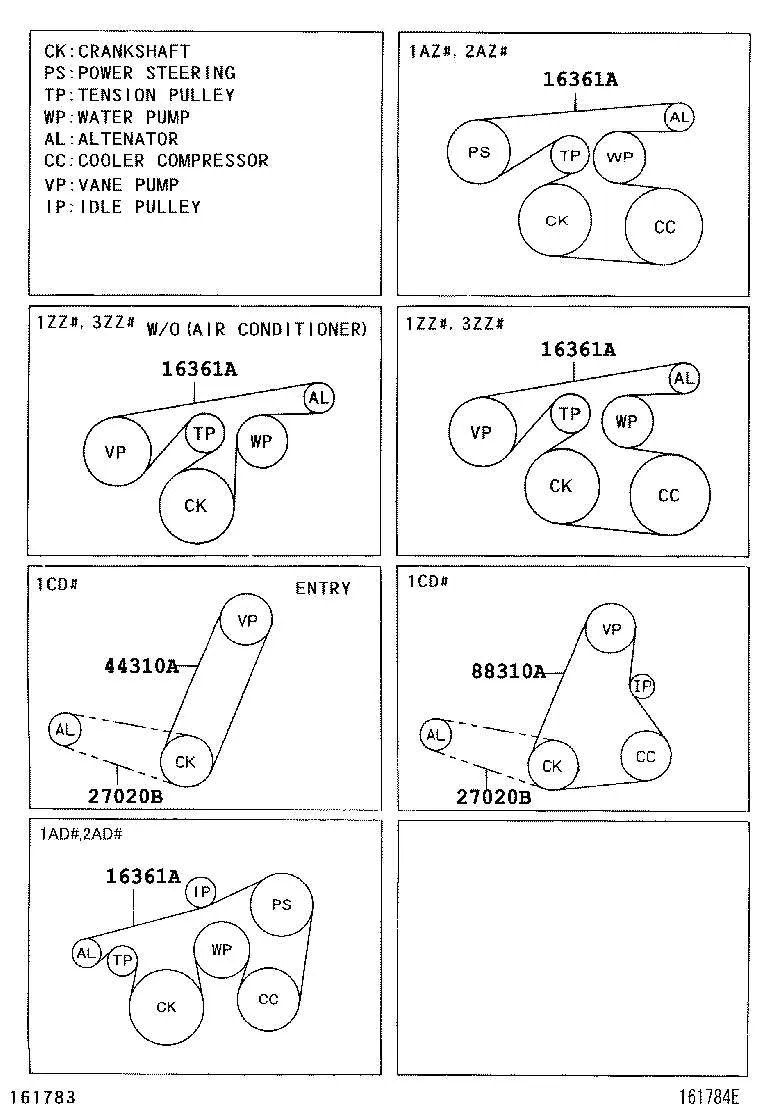

Accessory Drive System Layout
The routing for the engine’s accessory drive system is crucial for proper operation. The serpentine or auxiliary drive operates components like the alternator, power steering, and air conditioning compressor. Ensure the alignment of all pulleys and tensioners for effective function. The primary drive belt should run in the exact path, starting from the crankshaft pulley, through various tensioners and pulleys, and back to the alternator.
The crankshaft pulley typically sits at the bottom, followed by an idler pulley, and then the power steering pump. From there, the system loops to the air conditioning compressor. An automatic tensioner ensures correct tension on the belt to avoid slipping or excessive wear. Always verify that each pulley is in proper alignment before replacing the belt to prevent premature failure.
For replacement, it’s essential to first inspect the condition of the tensioner and idler pulleys. If worn or misaligned, replace them before fitting a new belt. Proper installation requires a tool to relieve tension from the automatic tensioner for safe removal and installation.
How to Identify the Main Belts in a 2005 Toyota Corolla
To locate the primary drive components in your vehicle’s engine, focus on identifying the serpentine and timing components. These are essential for power transmission between various engine accessories like the alternator, power steering, and air conditioning compressor.

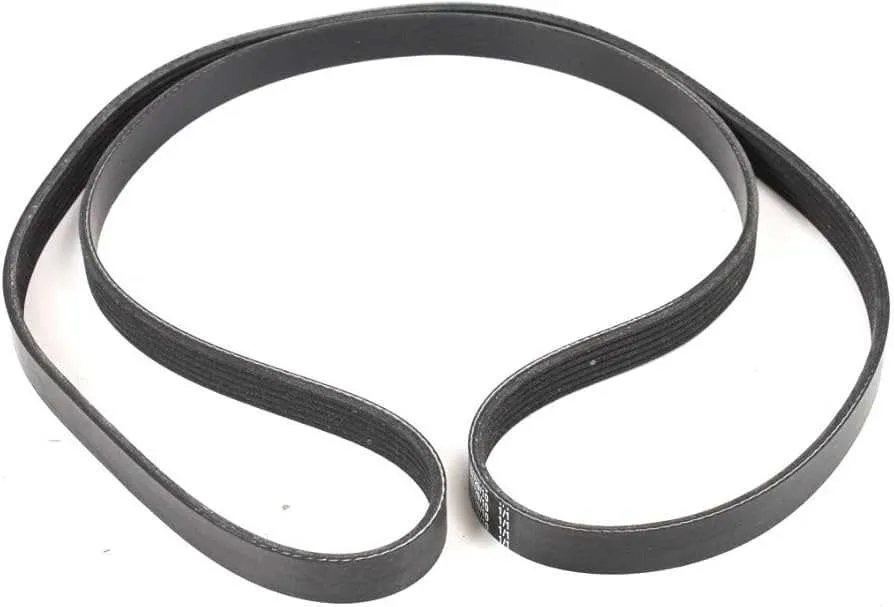

The serpentine loop, often the most visible, runs around multiple pulleys and is typically located at the front of the engine. The timing mechanism, however, is crucial for controlling engine timing and is usually housed under a protective cover.
| Component | Location | Function |
|---|---|---|
| Serpentine | Front of engine, near pulleys | Drives alternator, AC compressor, power steering pump |
| Timing | Under engine cover | Controls engine timing for combustion |
Inspecting these elements regularly ensures optimal performance and helps in preventing premature wear or failure. Check the tension and condition of the loop, and if there is any visible damage, replacement should be done promptly.
Steps for Properly Replacing the Serpentine Belt in a 2005 Toyota Corolla
Start by ensuring the engine is cool and disconnect the negative terminal from the battery to avoid any accidental shorts or electrical issues.

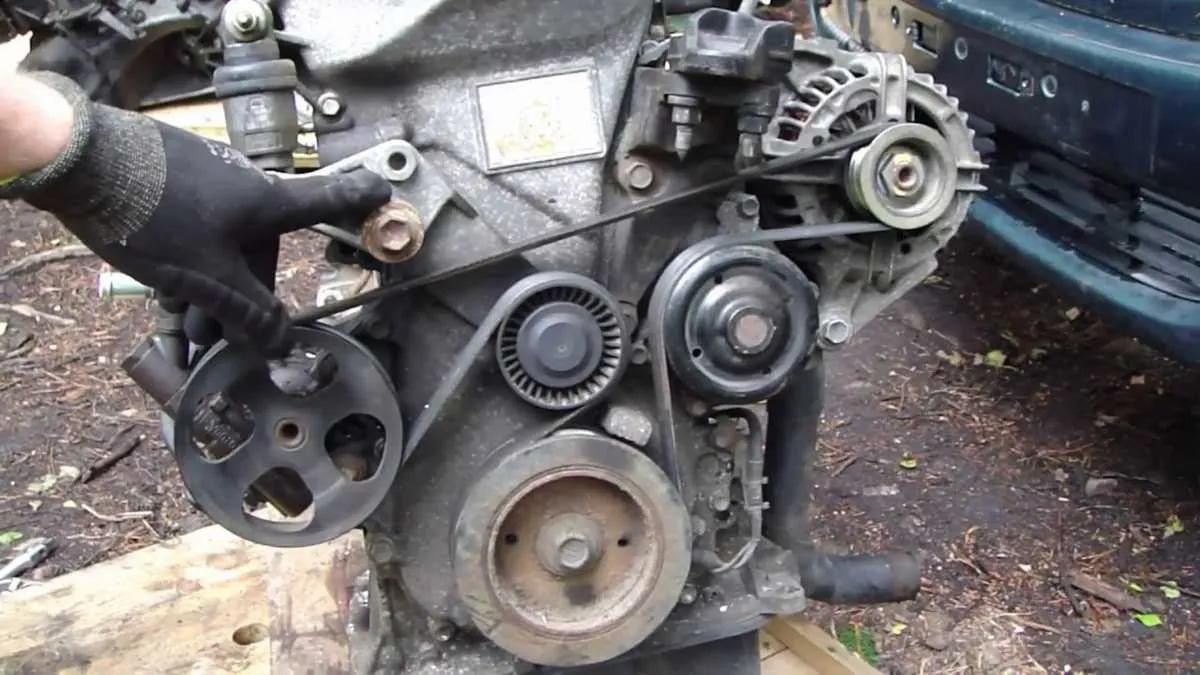

Locate the tensioner pulley, which maintains the correct tightness of the drive loop. Use a ratchet wrench with the appropriate socket to rotate the pulley counterclockwise, releasing tension. This will allow you to remove the old component smoothly.
Once tension is released, carefully slide the old part off the pulleys, making note of the routing path to install the new one correctly. Pay attention to the orientation and positions of all pulleys to ensure everything is aligned during reinstallation.
Install the new part by following the reverse process. Begin at the top and work your way down, ensuring the new component is seated properly in each pulley groove. Once in place, use the ratchet wrench again to rotate the tensioner and apply proper tension.
After installation, double-check the tensioner to confirm that it is adequately tight. Start the engine and observe the operation of the new part to ensure it is running smoothly without any abnormal noises.
Finally, reconnect the battery and verify that all components are functioning as expected. If there is any noticeable slack or misalignment, repeat the tensioning process or inspect the part for possible issues.
Troubleshooting Common Belt Issues in a 2005 Toyota Corolla
Start by checking the condition of the accessory drive system components. If you hear squealing noises, it’s likely that the serpentine loop is slipping or damaged. Examine the tensioner pulley and idler pulleys for wear. If they are faulty, replace them immediately to avoid additional damage to the system.
Here are some steps to follow when addressing typical issues:
- Uneven wear: Inspect the serpentine strip for uneven wear or cracks. If the surface is damaged, replace the strip. Uneven wear can indicate misalignment or a problem with the tensioner.
- Squealing sounds: Often caused by a loose loop or a worn tensioner. Check for proper tension and replace the tensioner if it’s not maintaining the right pressure.
- Breakage: If the loop breaks, inspect all related components for sharp edges or misalignment. Ensure the pulleys are correctly aligned to avoid future failures.
- Slipping: This may happen if the system isn’t properly adjusted. Tighten the tensioner, and ensure no debris or oil is contaminating the loop.
If you notice any unusual noises or performance issues, don’t hesitate to inspect the components early to avoid more costly repairs. Timely replacement of worn-out parts can prevent further engine damage.
