To ensure proper engine performance and avoid misfires, it’s crucial to understand the correct firing sequence of the cylinders. A mismatch can lead to inefficient combustion, engine damage, or poor fuel economy. The ignition sequence for your engine must follow a specific pattern, which is essential for smooth operation.
For an 8-cylinder engine with a standard configuration, the pattern starts with the first cylinder at the front of the engine and progresses in a set sequence. The cylinders are numbered, and the firing positions must be followed precisely. A common setup for many V8 engines places the ignition on the 1st, 8th, 4th, 3rd, 6th, 5th, 7th, and 2nd cylinders in a specific rotational order.
Be sure to consult your vehicle’s manual or reliable repair sources for any variations to this pattern depending on specific modifications or design.

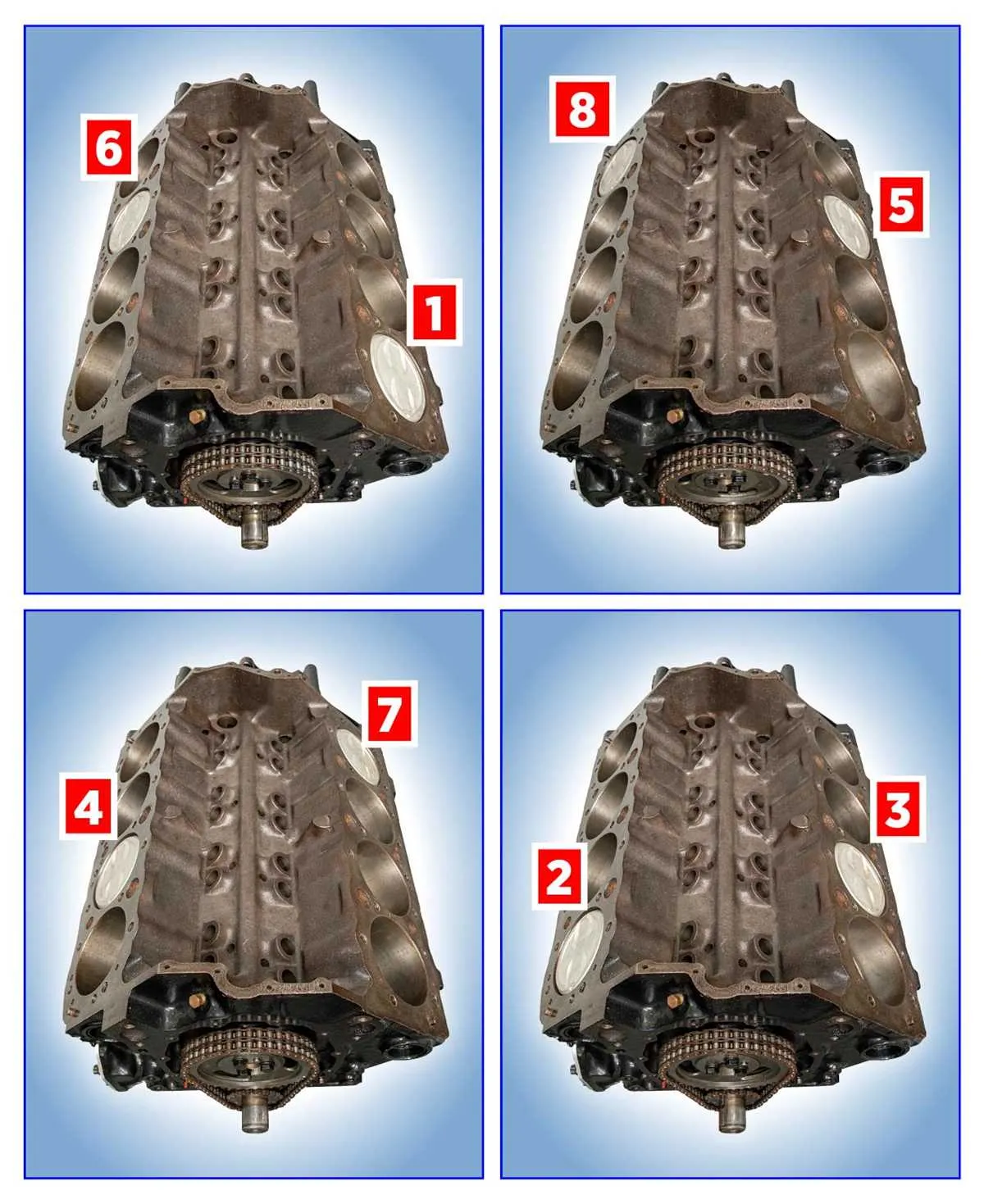

Ignition Sequence for 5.7L V8 Engine
For optimal engine performance, it is crucial to maintain the correct ignition sequence. This ensures that the spark plugs fire in the proper order to maintain smooth operation and avoid engine misfires.
- Cylinder 1: Front-left position
- Cylinder 8: Front-right position
- Cylinder 4: Rear-left position
- Cylinder 3: Rear-right position
- Cylinder 6: Front-left, lower side
- Cylinder 5: Front-right, lower side
- Cylinder 7: Rear-left, upper side
- Cylinder 2: Rear-right, upper side
Following this ignition pattern prevents engine backfiring, improves fuel efficiency, and ensures the longevity of engine components. Double-check the distributor cap placement and ignition system to ensure accuracy.
Understanding the Engine Timing for Proper Cylinder Activation
Ensure correct ignition sequence by following the recommended cylinder firing pattern. This pattern is crucial for synchronizing the engine’s combustion process, preventing misfires, and maximizing power output. Start by identifying the correct position of each spark plug in relation to the crankshaft and camshaft. Accurate timing avoids engine knocking and reduces excessive wear on components.
Always align the rotor position with the number one cylinder when setting the ignition timing. A misaligned rotor or incorrect spark plug order can result in uneven engine performance, causing backfires or poor acceleration. Verify that the distributor is mounted correctly, and check each spark plug’s wire placement to match the specified engine configuration.
For optimal engine performance, regularly inspect the timing system. Check the timing marks on the harmonic balancer and the timing cover, ensuring the pointer aligns with the correct reference number. Make adjustments using a timing light if necessary, based on the manufacturer’s specifications.
Step-by-Step Guide to Identifying Spark Plug Positions
1. Begin by identifying the engine’s cylinder numbering. On most V8 engines, the left bank (driver’s side) starts with cylinder 1 at the front, and the right bank (passenger side) starts with cylinder 2. The cylinder numbering should be confirmed by referencing the engine manual or a manufacturer’s diagram.
2. Next, determine the firing sequence for the engine. This order tells you the precise pattern in which each cylinder ignites, and it can vary between engine designs. Check the engine’s specifications or consult a repair manual for accurate details.
3. Once you know the cylinder numbers and ignition sequence, align the distributor cap with the engine’s specifications. The rotor inside the cap will point toward the first spark plug wire in the sequence when it reaches the proper position.
4. Carefully trace the spark plug wires from the distributor cap to the spark plugs. Ensure the wires are securely attached and routed correctly to avoid any misfires or interference.
5. To verify correct installation, rotate the engine manually and observe the spark plug positions in relation to the rotor. Each cylinder should fire in the correct order as indicated in the specifications.
Important Tip: Double-check the ignition sequence when replacing spark plugs or wires to ensure the engine runs efficiently and avoids any misfires or power loss.
Troubleshooting Common Issues with Ignition Sequence Misalignment
Ensure correct cylinder numbering and distributor placement. Misalignment can occur if the spark plugs are fired out of sequence, causing engine misfires, poor acceleration, or even stalling. Verify that the distributor cap is properly positioned according to the engine’s rotation and that the wires are connected to the correct terminals.
Inspect the ignition system components. Worn or faulty components such as the rotor, ignition coil, or spark plugs can contribute to misfiring. If the components are old or damaged, replace them to restore proper firing timing.
Verify timing settings. Incorrect timing can result in engine backfire or difficulty starting. Use a timing light to ensure that the spark occurs at the proper moment within the engine cycle. Adjust the timing if necessary to synchronize the ignition process.
Check for electrical interference or poor connections. Corroded or loose connections in the ignition system can prevent proper current flow, leading to misfires or erratic engine behavior. Clean the connections, and replace any damaged wires or components that show signs of wear.
Perform a compression test. Low compression in one or more cylinders can lead to inconsistent ignition, further exacerbating misfiring issues. If compression is insufficient, check for leaking valves or piston rings and address accordingly.
