For an efficient and reliable water circulation system, ensure proper installation of key elements. Begin by placing a high-quality filtration unit close to the water intake. This will help remove debris and keep the water clean. Use heavy-duty hoses that can withstand pressure and wear. Make sure that the connections are tight and leak-proof to prevent water loss.
Valves are critical for controlling water flow. Install multi-way valves for easy adjustments of the system’s functionality. A good practice is to place them near the pump and filter for convenient access. These allow you to direct the water to various locations depending on the need, whether it’s for cleaning or water treatment.
Position the return line in a way that water circulates evenly. Proper return placement promotes a balanced flow, which is essential for maintaining optimal water quality. Ensure that the outlets are situated in spots that avoid dead zones, where water might stagnate.
Regular maintenance of the system components is a must. Check all seals, gaskets, and connections regularly to prevent leaks and ensure smooth water circulation. Clean filters at least once a month to maintain maximum efficiency and longevity of your setup.
System Layout for Pool Water Circulation
Ensure the filtration unit is connected to the intake and return lines with a well-defined setup for optimal water flow. The skimmer should link directly to the filtration system, removing debris and ensuring clean circulation. The return jets must be strategically positioned to evenly distribute filtered water back into the area.
Install the pump near the filtration system for efficient operation, with adequate piping to minimize resistance. Use flexible hoses or rigid PVC tubing, depending on your setup’s requirements. Keep all connections secure to prevent leaks.
Install a drain valve at the lowest point of the water circulation system to facilitate proper water removal during maintenance. The valve should be easily accessible for regular cleaning and winterizing tasks.
Filter capacity is crucial–select one that can handle the volume of water efficiently, considering the flow rate in gallons per minute (GPM). Too small a filter can cause poor water quality, while too large can be inefficient.
Regular inspection of all seals and hoses will prevent unexpected failures. Replace worn or damaged components promptly to maintain system reliability.

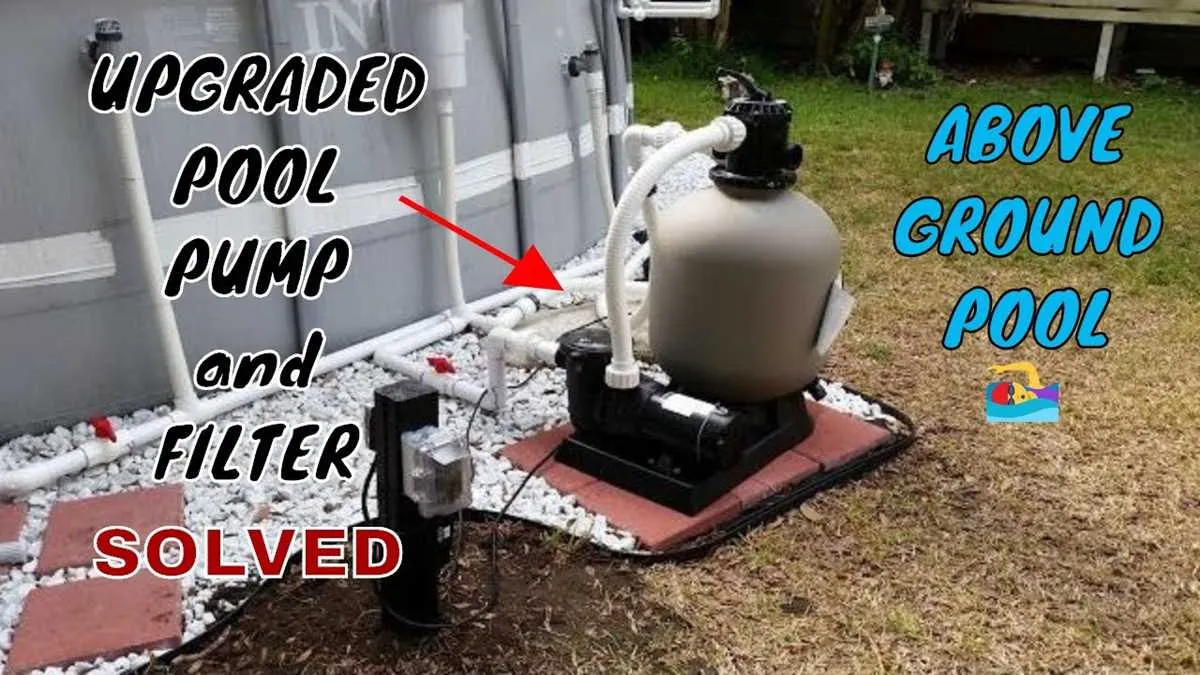

How to Connect the Pump and Filter in an Outdoor Water System
To ensure optimal filtration and water circulation, connect the pump and filter following these steps:
- Start by placing the pump near the skimmer or intake valve. Position it at the lowest point possible to maintain efficient water flow.
- Attach the intake hose from the skimmer or inlet to the pump’s intake port using a strong, secure connection. Use hose clamps to prevent leaks.
- From the pump’s outlet, connect the discharge hose to the filter’s intake port. Ensure the hose is fitted tightly to avoid any air pockets or loss of suction.
- Position the filter in a stable location, ideally at or above the level of the pump, to facilitate gravity-assisted flow. Ensure all connections are tightly secured with clamps or connectors.
- Install a check valve between the pump and filter to prevent backflow and ensure water moves in one direction.
- If using a multi-port valve, connect the output to the return jets. The valve settings should match the desired filtration mode, such as filtration or backwash.
- Check all connections for leaks before starting the system. Tighten any loose fittings or hoses to prevent any water loss or damage to components.
- Once everything is connected and secure, prime the pump by filling it with water. Turn it on and monitor the flow, adjusting any settings as needed.
By following these steps, you’ll establish a reliable flow system that effectively filters and circulates water, keeping your setup running smoothly.
Understanding the Flow of Water Through Skimmer, Return Jets, and Drains

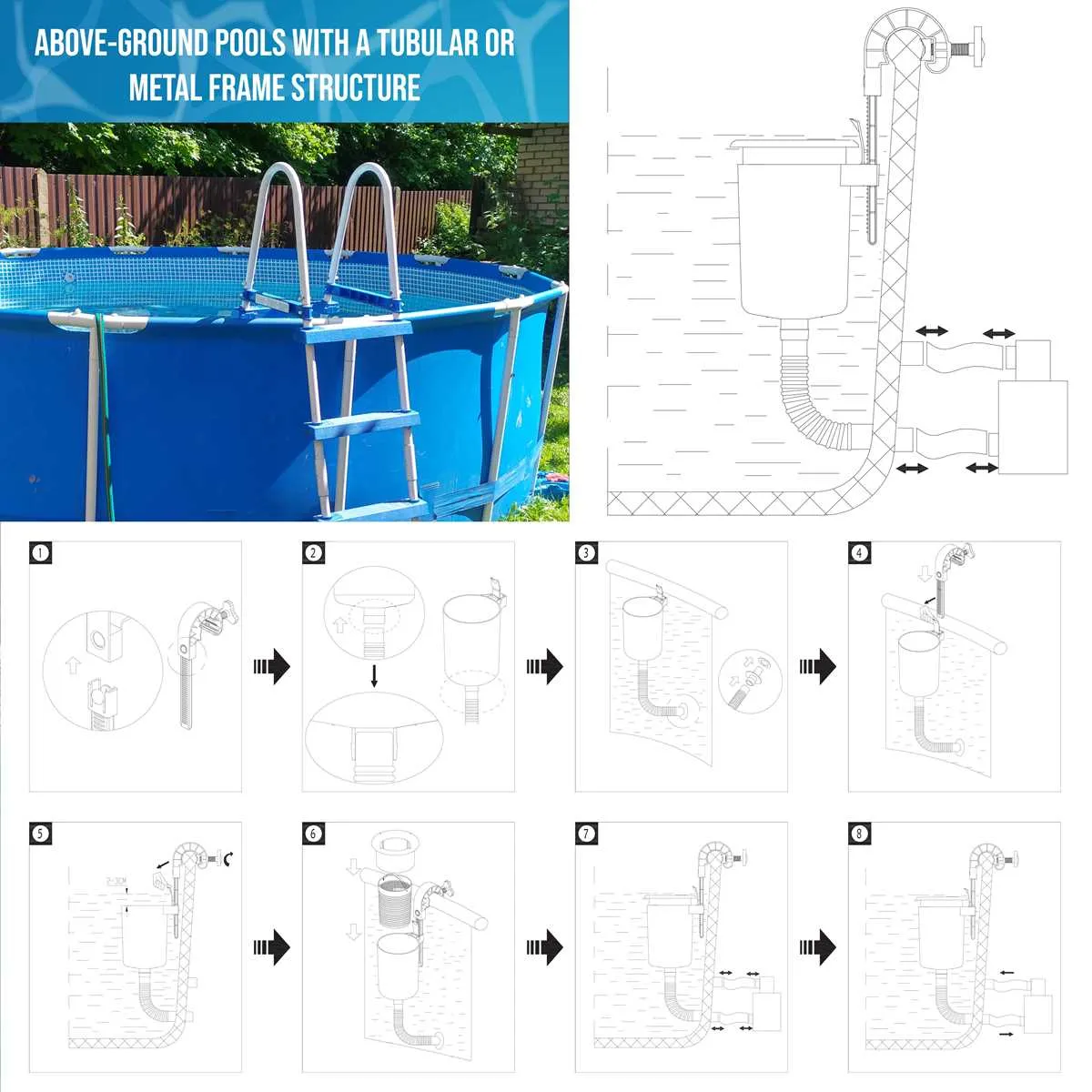

Skimmers are critical for maintaining water clarity. They remove debris from the surface by drawing water through a basket that captures leaves, bugs, and other floating particles. The skimmer is connected to the main circulation system and uses a pump to move water into the filtration system for cleaning. Ensure the skimmer basket is cleaned regularly to prevent blockages, which could hinder the flow of water.
Return Jets push cleaned water back into the structure. These jets are positioned to circulate water evenly across the entire area, ensuring proper flow patterns. The return jets should be positioned to create a gentle current that directs water toward the skimmers, enhancing circulation and reducing dead spots where debris can accumulate.
Drains at the bottom help remove water and debris that have sunk. These drains prevent stagnation by pulling water from the lowest areas of the space. They work in tandem with skimmers to maintain even water movement and prevent debris buildup on the surface or bottom. Regular inspection and cleaning of drains are crucial to ensure effective suction and optimal water circulation.
The correct positioning and maintenance of these components are vital for efficient water movement and filtration. Ensure the skimmer, jets, and drains are aligned to facilitate proper flow, reduce energy consumption, and maintain water quality.
Common Issues with Pool Water Circulation and How to Fix Them
If the water flow slows down or becomes inconsistent, inspect the skimmer basket for debris. A clogged skimmer basket can restrict water intake, causing pump issues. Clean it regularly to maintain proper suction.
If the pump is running but water isn’t circulating properly, check for air leaks in the suction line. This can cause loss of prime. Tighten connections and ensure the pump lid is sealed tightly to prevent air from entering the system.
When the filter pressure rises significantly above normal levels, it indicates a blockage or dirty filter. Backwash or clean the filter to restore optimal flow. If the pressure remains high after cleaning, the filter may need replacement.
Low flow can also result from a dirty or obstructed return jet. Clear the return lines and ensure the jets are not blocked by debris or calcium build-up, which can reduce circulation and efficiency.
Leaking connections at the hose or filter can cause water loss and decreased pressure. Check all fittings and gaskets for wear, and replace any damaged seals or cracked hoses to restore the system’s integrity.
If you notice murky water despite the pump running correctly, check the chemical balance. Low chlorine or improper pH levels can affect filtration efficiency. Adjust the chemical levels accordingly to keep the system functioning smoothly.
In extreme cases, pump or motor failure may occur due to electrical issues or wear. In this situation, inspect the power supply, wiring, and motor for faults, and replace any damaged components to restore proper function.
