Exploded Diagram of Mikuni VS 36 Carburetor Components and Assembly

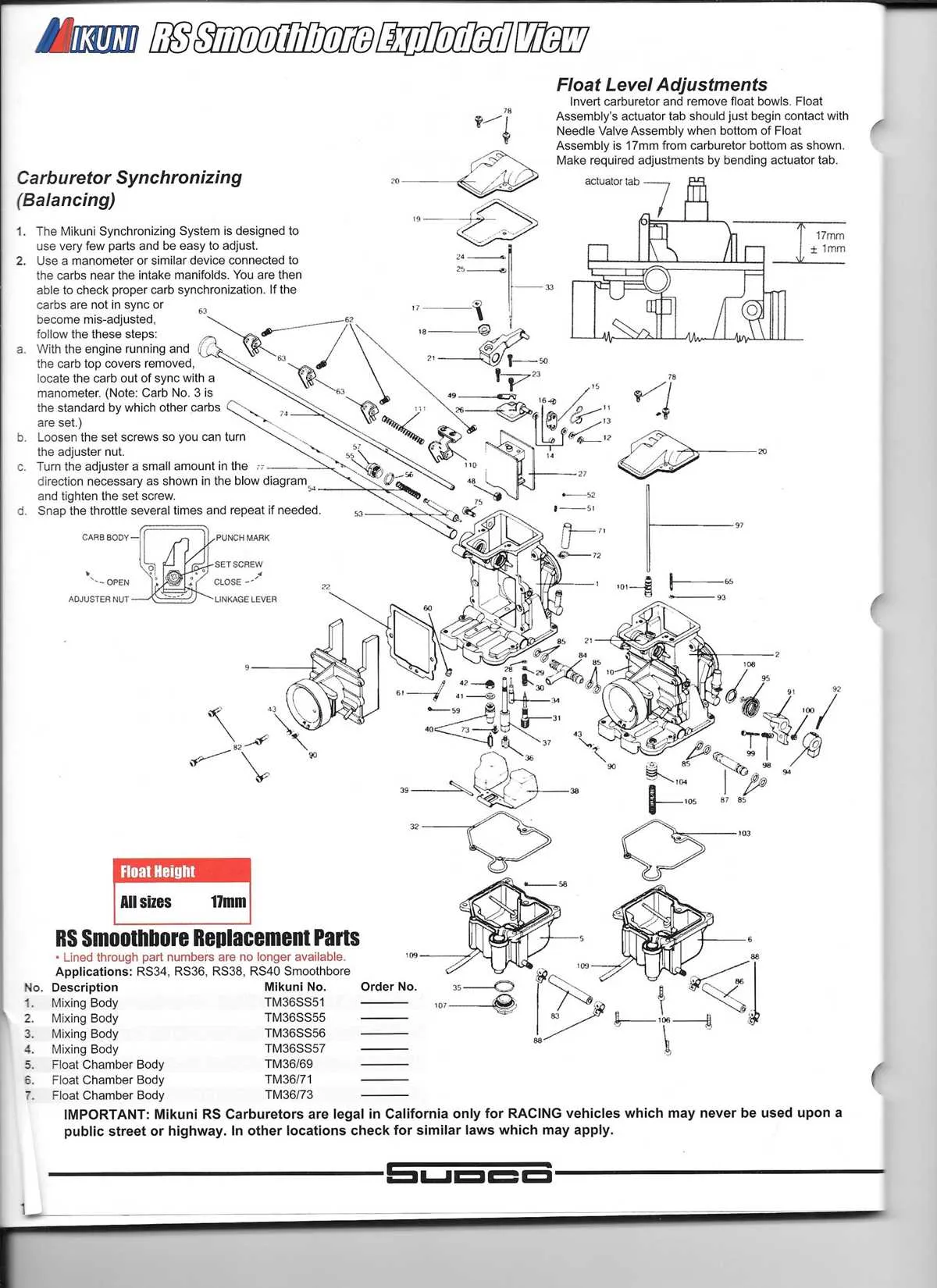

exploded diagram of vs 36 mikuni

If you’re working on maintaining or repairing a VS 36 carburetor, understanding the arrangement and functionality of each part is crucial. Start by reviewing the individual elements that make up the system, as knowing how they interact will streamline your restoration process.

The throttle valve plays a pivotal role in regulating airflow and fuel delivery. Pay close attention to its condition and alignment. If it’s worn or misaligned, fuel delivery could be inconsistent, leading to poor engine performance.

Next, inspect the needle jet and main jet. These components are essential for controlling the fuel-air mixture under varying load conditions. Ensure there is no clogging or wear, as even small defects can significantly impact the carburetor’s efficiency.

Don’t overlook the float chamber. Any debris or irregularities here can result in incorrect fuel levels, leading to fuel starvation or flooding. It’s advisable to check the float for any signs of damage or wear.

Finally, thoroughly clean all the gaskets and seals to ensure a proper fit. Even small leaks can compromise the carburetor’s performance, making routine checks and replacements of these parts an essential part of maintenance.

VS 36 Carburetor Breakdown

exploded diagram of vs 36 mikuni

The VS 36 carburetor is composed of several key components that must be carefully understood and assembled for optimal performance. The first step is identifying the throttle valve, which regulates the air-fuel mixture entering the engine. Pay close attention to its positioning and ensure it moves freely within the housing to avoid obstruction.

Next, examine the needle jet and main jet. Both parts control fuel delivery; the needle jet adjusts fuel flow based on throttle position, while the main jet handles the majority of fuel supply during high-speed operation. Be sure to match their sizes with the engine specifications, as improper sizes can lead to inefficient fuel usage or engine misfires.

Inspect the fuel inlet valve and the float system. The float controls the fuel level in the carburetor bowl, preventing overfilling. An improperly set float can cause flooding or insufficient fuel supply. Also, check for wear or debris in the fuel filter, as blockages can disrupt fuel flow, leading to inconsistent engine performance.

The air screw and idle speed screw are crucial for tuning the engine at low speeds. The air screw adjusts the air-to-fuel ratio at idle, while the idle screw determines the engine’s RPM when idling. Correct adjustment of both is vital for stable idle performance. Start by adjusting the air screw to its factory setting, then fine-tune the idle screw.

Finally, review the gaskets and O-rings to ensure no leaks exist. A leak can result in an inconsistent air-fuel mixture, causing performance issues such as surging or erratic idling. Replace any damaged seals to maintain airtight connections.

Detailed Breakdown of VS 36 Carburetor Components

The VS 36 carburetor is composed of several key elements that each play a crucial role in fuel delivery and engine performance. Understanding these components will allow for more effective tuning and maintenance.

Throttle Valve: Controls the amount of air entering the engine by adjusting the airflow based on throttle position. Ensuring smooth operation is critical to maintaining consistent engine response.

Needle and Seat: Regulate the flow of fuel from the float bowl to the jet. Proper calibration ensures an optimal fuel mixture at various throttle settings, directly affecting engine efficiency.

Jetting: Includes the main jet, pilot jet, and needle jet. The main jet is responsible for fuel flow at high speeds, the pilot jet at idle and low speeds, and the needle jet helps with mid-range tuning. Correct jetting is essential for achieving the right air-fuel ratio.

Float Bowl: Holds a constant level of fuel that is drawn into the carburetor. The float system prevents overfilling and starvation by adjusting the fuel level in response to engine demands.

Choke: Used to enrich the air-fuel mixture during cold starts. Adjusting the choke appropriately ensures the engine runs smoothly in various weather conditions.

Venturi: The narrowed section of the carburetor that accelerates airflow, which reduces air pressure and draws fuel into the intake manifold. Ensuring proper venturi design and cleanliness is crucial for maximum performance.

Idle Air Screw: Controls the air-to-fuel ratio at idle speeds. Fine-tuning this screw is essential for achieving stable idle performance and preventing stalling.

Float: Works in conjunction with the float valve to maintain a consistent fuel level in the float bowl. An improper float height can lead to either flooding or fuel starvation.

Accelerator Pump: Delivers an additional burst of fuel during rapid throttle opening, compensating for the lean mixture that could otherwise occur. Adjusting the pump’s stroke and timing can improve throttle response.

For proper tuning and performance, each component must be clean and calibrated to its specifications. Regular inspection and maintenance will prevent common issues like poor acceleration, stalling, or inefficient fuel usage.

How to Read and Interpret the Disassembled Parts View

Start by identifying the main components and their numbers. Each part is typically marked with a unique identifier that corresponds to a reference in the parts list. This allows you to easily locate the exact piece in the inventory or order system.

Examine the positioning of parts relative to one another. This view shows how elements interact, assemble, and fit together within the whole structure. Pay attention to the orientation of components–some may have specific alignments required for correct installation.

Focus on the connections. Look for lines, arrows, or other indicators showing how parts are joined. These symbols clarify whether pieces are screwed in, bolted, or connected in another way. It is essential to understand the assembly process before disassembling any unit.

Not all parts in this representation are always needed in every scenario. Some may be optional or only relevant under specific conditions. Verify whether each piece is necessary based on your task by consulting the related documentation or user manual.

Check the scale of the parts. While some details may appear enlarged or zoomed in, make sure to understand the relative size of parts. This can affect your approach to handling, installation, or maintenance.

Review any additional notes, warnings, or tips. Manufacturers often provide extra guidance for specific parts, like torque specifications for screws or recommended lubricants for moving components. These details are crucial for proper performance and longevity.

Finally, cross-reference with the assembly or maintenance instructions. The view serves as a visual supplement, but it’s most effective when combined with the written directions for accurate and efficient reassembly or maintenance.

Common Repair and Maintenance Steps for VS 36 Carburetor Using the Diagram

Follow these steps for effective maintenance and repair of the VS 36 carburetor:

  • Disassembly: Start by removing the carburetor from the engine, ensuring the fuel supply is disconnected. Use a clean workspace to prevent contamination.
  • Inspect for Wear: Check all seals, gaskets, and O-rings for cracks or signs of wear. Replace any damaged components to avoid air or fuel leaks.
  • Cleaning: Carefully clean the fuel passages, jets, and needle valves using a carburetor cleaner. Pay special attention to the pilot and main jets to ensure they are not clogged.
  • Check the Float: Verify that the float moves freely and is not stuck. Ensure that the float height is within manufacturer specifications.
  • Examine the Needle Valve: Check the condition of the needle valve and seat. If there is any wear or corrosion, replace the needle valve assembly.
  • Reassemble: Once all parts are inspected and cleaned, reassemble the carburetor in reverse order, ensuring all components are seated properly.
  • Adjustment: Adjust the idle mixture screw and throttle linkage as per the specifications. Fine-tune the carburetor using the service manual for optimal performance.
  • Test for Leaks: Reinstall the carburetor and start the engine. Check for any fuel leaks around the gasket and seals, making sure everything is sealed tight.

Routine maintenance should be carried out every 50-100 hours of operation or as specified by the manufacturer to ensure long-term reliability.
