To achieve optimal sound quality and performance from your SG-style electric guitar, understanding its internal circuitry is crucial. Begin by identifying the key components that make up the signal path. These include the pickups, the tone and volume pots, and the switch that controls which pickup is active. Properly connecting these parts ensures clarity and reduces unwanted noise.
When it comes to setup, consider the tone pot placement and its impact on tonal control. The position of the capacitor on the pot will determine the frequency response, influencing how smoothly you can shape the treble and bass levels. For a more responsive midrange, try experimenting with different capacitor values to find what best complements your playing style.
For those aiming for a cleaner signal flow, make sure the ground connections are securely established. A solid grounding system helps minimize hum and interference, ensuring a more consistent and professional sound output. Also, pay attention to the switch’s wiring to avoid accidental shorts, which can lead to issues during performance.
Optimizing Your SG Guitar’s Electrical Layout

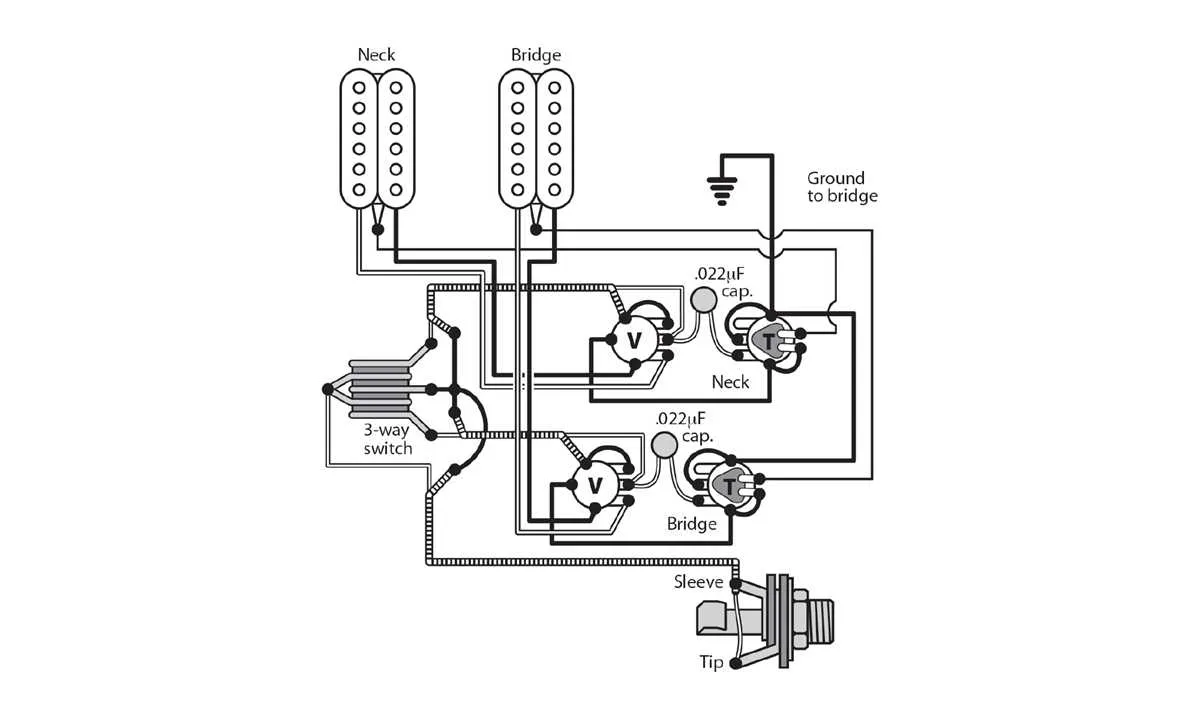

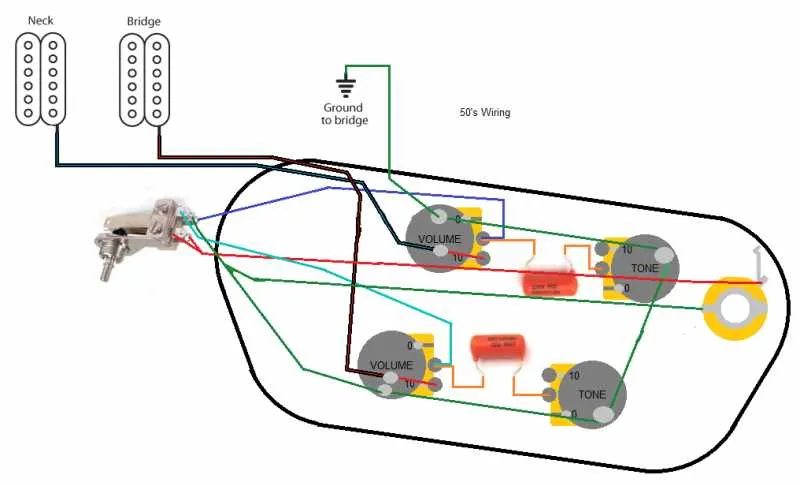

To enhance your SG’s performance, start by ensuring the correct pickup selector switch configuration. The traditional dual-humbucker setup requires each pickup to be connected to its own potentiometer for volume and tone adjustments. The key is achieving a balanced signal that preserves clarity across both pickups, without any unwanted interference.
For the neck and bridge pickups, use 500k potentiometers to maintain a clear, full-range tone. When connecting these pots to the circuit, the volume pot should be wired to the switch’s common terminal, while the tone control goes to the pickup selector. The ground connections must be secure, ideally linking to the guitar’s body to prevent hum.
Capacitor choice is also crucial. A .022 µF capacitor will ensure that the tone control remains responsive, providing a range of tonal shifts from warm, mellow sounds to brighter, sharper tones. For a smoother transition between settings, use high-quality capacitors with a stable performance at varying temperatures and humidity levels.
Tip: Consider experimenting with a treble bleed mod. This addition prevents high-frequency loss when reducing the volume, helping to preserve clarity at lower levels without compromising overall tone richness.
Understanding the Pickup Selector Connection
The pickup selector is crucial for routing the signal from each pickup to the output jack. Understanding how this selector interacts with your guitar’s electronics can enhance both tone control and signal routing efficiency. Here are key aspects to focus on:
- Contact Points: The selector switch typically has multiple contact points that correspond to each pickup position. These contacts determine which pickup is active and how the signal is routed.
- Switch Types: There are mainly two types of switches used in electric guitars: 3-way and 5-way. A 3-way switch generally handles a simple configuration (neck, bridge, both), while a 5-way switch provides additional options for more nuanced blending of pickups.
- Signal Flow: The path the signal takes depends on the position of the selector. When you select the neck pickup, for instance, the signal is routed exclusively through that coil, without interference from the bridge pickup.
- Contact Debris: Over time, dust and dirt can accumulate on the contact points, leading to poor connections and a muffled or inconsistent sound. Regular cleaning ensures optimal performance.
- Wiring Variations: In some configurations, you can wire the selector switch to allow custom combinations, such as having both pickups engaged simultaneously, or wiring it to achieve a “out-of-phase” effect for a thinner, sharper tone.
Maintaining a clean and properly functioning selector switch ensures seamless tonal shifts and consistent sound quality. If you’re experiencing dropouts or unexpected tone changes, it may be due to faulty wiring or a worn-out switch.
How to Rewire the Tone and Volume Pots
Start by detaching the back cover of the control cavity to expose the pots. Desolder the existing connections, paying close attention to the orientation of the wires for reassembly. For tone pots, the capacitor should be connected between the pot’s lug and the ground. Ensure the ground wire is securely attached to the back of the pot, or to the designated ground point. For volume pots, the input signal typically connects to the first lug, while the output leads to the switch or jack. Clean all contact points before soldering to ensure a solid connection.
When installing new components, use high-quality potentiometers with appropriate resistance values. Solder the ground connection to the back of each pot to minimize noise. If you’re using a push-pull pot for coil splitting or other advanced features, ensure the switch’s soldering is done correctly to avoid malfunction. Secure the leads and check the wiring path, confirming no short circuits. After everything is soldered, test the connections by turning the knobs and verifying smooth function.
Finally, use shrink tubing on exposed solder joints and double-check the connections before reassembling the cavity. Reattach the cover and perform a final check with the guitar plugged into an amp to ensure proper functionality.
Common Electrical Problems and Troubleshooting
If you’re facing issues with inconsistent sound or no output, start by checking the connections between the components. Loose or corroded solder joints often cause such problems. If any joint appears dull or cracked, reflow the solder and ensure a solid connection.
When encountering weak or noisy signals, inspect the potentiometers and switches. Dirty or worn-out components may introduce unwanted interference. Clean the contacts with a contact cleaner or replace faulty parts if necessary.
If the tone control is unresponsive, it’s likely due to a broken connection between the potentiometer and the tone capacitor. Check the continuity and resolder if needed. Additionally, ensure the capacitors are intact; faulty ones may affect the tone shaping.
Buzzing or hum issues are common signs of grounding problems. Check all ground connections, especially the bridge ground. If the issue persists, ensure the shielded cables are properly grounded and replace any damaged ones.
For intermittent volume issues, verify the condition of the volume potentiometer. Excessive wear on the potentiometer’s wiper can lead to uneven volume levels. In such cases, replacing the pot or cleaning it can resolve the issue.
Lastly, a humbucker pickup may sometimes produce weaker output if there is a misconnection in the hot lead or ground. Check for continuity between the pickup and the output jack, and replace the wiring if necessary.
