To ensure proper setup of your outdoor electrical system, always use wires rated for wet conditions. Make sure to choose cables with sufficient insulation to prevent damage from moisture. When planning the arrangement of fixtures, place them at intervals that allow light to cover desired areas without gaps.

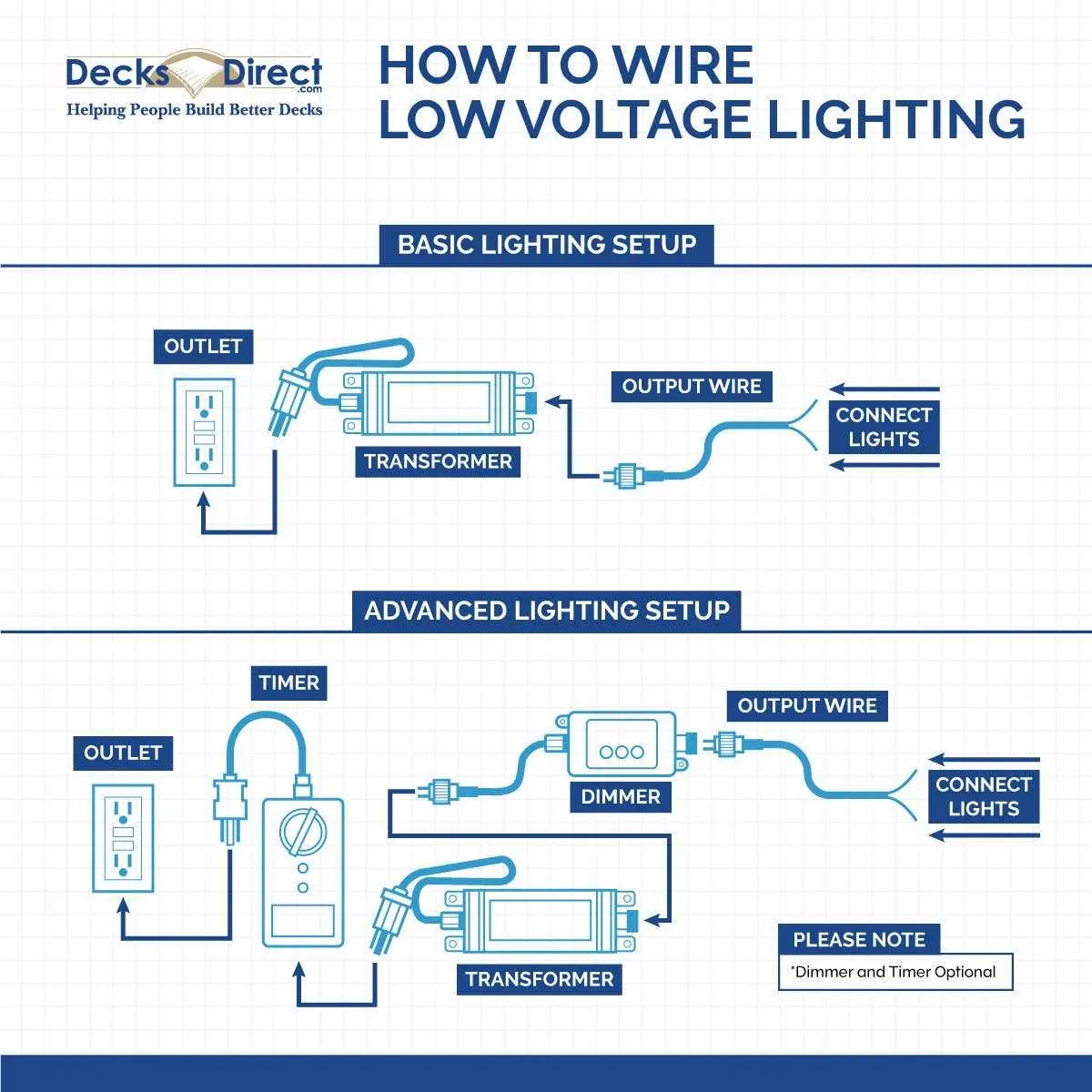

Start by laying out the power source: Use a weather-resistant outlet or junction box to house the main connections. This box should be positioned in a dry area, ideally close to your power supply, to make maintenance easier. From the power source, route cables underground or within protective conduits to ensure long-lasting performance.
Choose the correct gauge of cable: Larger gauge wires (lower numbers) are recommended for long-distance connections, as they minimize voltage drop. For shorter runs, a smaller gauge may suffice, but always calculate the load and length before deciding. Avoid overloading circuits, and always adhere to the manufacturer’s guidelines for safe operation.
Connect fixtures properly: Whether you are using 12V or 120V systems, ensure all connectors are tightly secured and insulated to avoid corrosion. Utilize water-resistant connectors or twist-on wire connectors to safeguard against moisture. Use high-quality, outdoor-rated junctions to splice wires and power multiple fixtures.
By following these steps, you will set up an efficient and safe system that enhances both the beauty and safety of your exterior spaces. Proper placement and correct wiring practices lead to optimal performance and longevity of your installations.
Proper Installation of Outdoor Illumination Systems
For optimal performance, begin by ensuring that each fixture is connected to a dedicated power source, preferably with a transformer capable of handling the combined load. Choose fixtures that are designed for outdoor use to withstand the elements.
Start by determining the total wattage required for all connected units and select a transformer that offers at least 20% more capacity than the sum total. This will allow for safe operation and future expansion.
Wire sizing plays a critical role. Use cables that are rated for outdoor use and suitable for the power rating. A thicker cable, such as 12-2 or 14-2, is ideal for longer distances to prevent voltage drop and ensure consistent brightness across all fixtures.
When routing the cables, avoid sharp bends and try to run them in areas that are shielded from direct sunlight and extreme weather conditions. Bury the wires about 6-8 inches deep to protect them from accidental damage and reduce exposure to the elements.
Connection points should be properly sealed using waterproof connectors to prevent moisture intrusion. For reliable connections, twist-on wire nuts or quick-connect terminals can be used, but make sure they are rated for outdoor conditions.
Test each component after installation to verify that the system is running as expected. It’s crucial to check for any inconsistencies, such as dim lights or uneven brightness, as this could indicate issues with the power supply or wiring configuration.
Remember: Always consult the manufacturer’s guidelines for specific installation requirements and ensure compliance with local electrical codes to guarantee safety and efficiency in your outdoor setup.

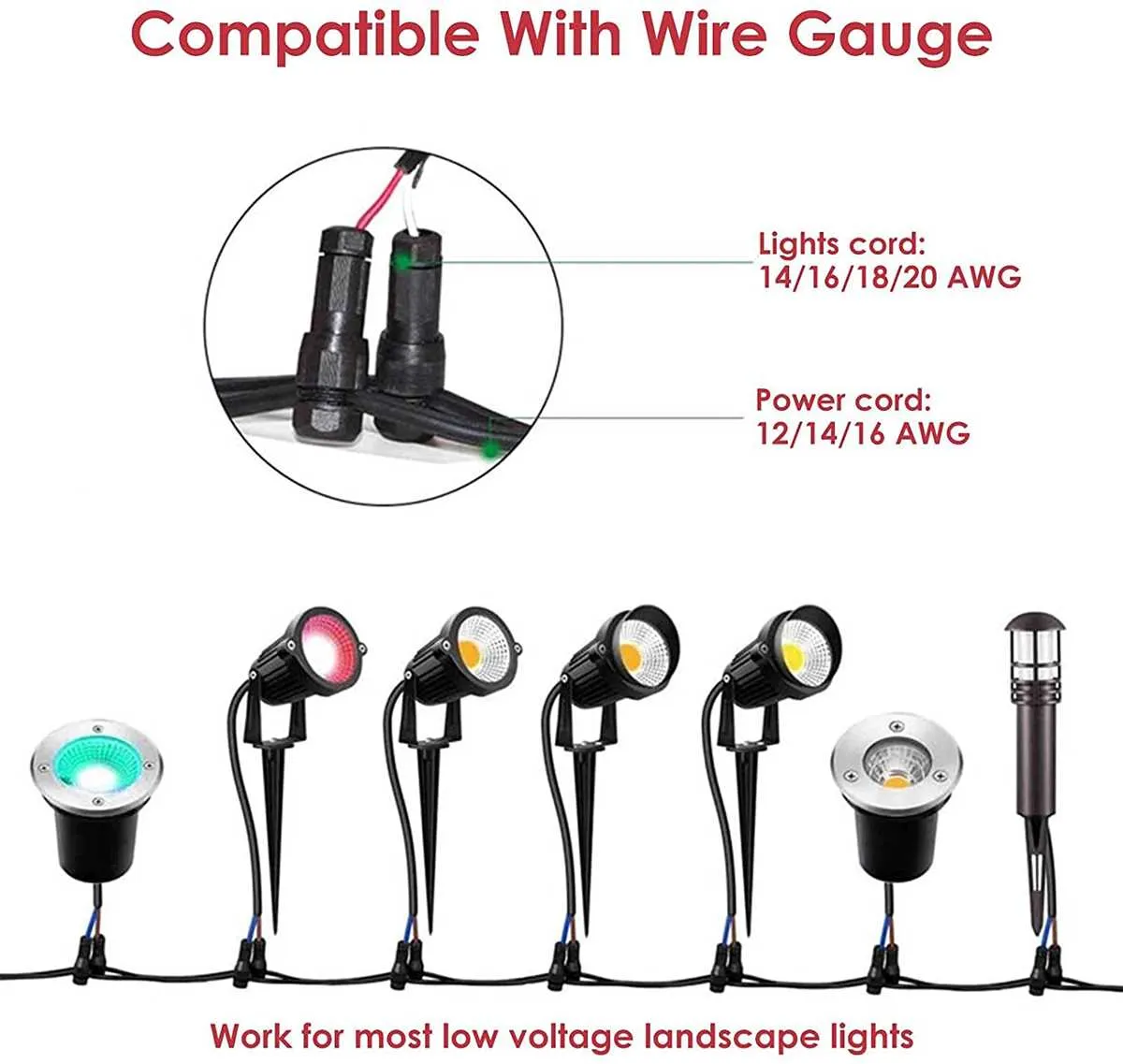

Choosing the Right Wire Gauge for Outdoor Illumination
Use 12 AWG wire for most outdoor systems that require a reliable power source over a long distance. This thickness ensures minimal voltage drop and can handle the current demand of most fixtures without overheating.
For smaller setups with shorter cable runs, 14 AWG may be sufficient. However, if the length exceeds 50 feet, upgrading to a thicker wire like 12 AWG will improve performance and reduce the risk of power loss.
When selecting a wire gauge, always factor in the total wattage of your system. Higher wattage systems demand thicker cables to maintain efficiency. Additionally, be mindful of environmental conditions like temperature and moisture, as these can affect the wire’s capacity to safely carry current.
In regions with frequent rain or high humidity, consider using cables with enhanced insulation and moisture resistance, such as those rated for direct burial.
How to Connect Multiple Fixtures in a Series
To link several outdoor lamps in a chain, maintain consistent voltage and ensure safe current flow by following these steps precisely.
- Use low-voltage cable rated for exterior use, typically 12-14 gauge copper wire.
- Start by connecting the power source to the first fixture’s input terminals.
- From the first fixture’s output terminals, run cable to the next fixture’s input terminals.
- Repeat the daisy-chain connection for all additional fixtures, ensuring polarity (+ and -) is consistent throughout.
- Secure all wire connections with waterproof connectors or solder and seal with heat shrink tubing to prevent moisture damage.
- Limit the total wattage on the circuit to the transformer’s capacity to avoid overload; check each bulb’s wattage and add accordingly.
- Test continuity and voltage drop after installation to confirm each fixture receives adequate power.
Adhere to local electrical codes and manufacturer instructions for safe and reliable operation.
Proper Grounding Techniques for Outdoor Illumination Systems
Always connect the grounding conductor to a dedicated copper grounding rod at least 8 feet long, driven vertically into the soil near the transformer or power source. Use a grounding clamp rated for outdoor use to ensure secure attachment.
Maintain continuity by connecting all fixture housings and metal components to the grounding wire. This prevents potential electrical hazards and reduces the risk of shock from stray currents.
Use insulated grounding wire with a minimum gauge of 12 AWG for runs up to 100 feet. For longer distances, increase the wire gauge to 10 AWG to maintain low resistance and reliable protection.
Verify all connections are corrosion-resistant by applying dielectric grease and using waterproof connectors or heat-shrink tubing. This prevents moisture infiltration that can degrade the grounding path over time.
Test the grounding system with a multimeter after installation to confirm a continuous path to earth ground, ideally showing resistance below 25 ohms for optimal safety.
Follow local electrical codes and regulations, which may require specific grounding methods or inspection by a certified electrician for outdoor installations.
