When installing a device that integrates both a control mechanism and a power outlet, ensure you follow the correct connection sequence to avoid safety hazards. The first step is identifying the input cables, typically marked with the supply voltage, and ensuring their proper connection to the source panel. It’s crucial to have a clear understanding of which wire controls the flow to the socket and which one powers the control element.
Step-by-step, begin by connecting the power source to the main terminal of the device, and ensure that the circuit is grounded properly to avoid short circuits. Double-check your grounding connections for consistency with safety codes. The controlled connection usually works by manipulating the connection to the socket, so verify that the live and neutral terminals are aligned correctly to avoid malfunction.
Next, focus on how the control mechanism integrates with the system. The mechanism should be wired to either the incoming or outgoing side of the socket, depending on your specific design. Some systems may require separate circuits for each, so pay close attention to your setup. Be mindful of the voltage ratings for each component involved, and test all connections thoroughly once the installation is complete.
Incorporating such a dual function setup requires precision; thus, ensure every step is carefully executed. Consulting the manufacturer’s instructions will also provide insights tailored to your specific device model, streamlining the process and enhancing overall safety and reliability.

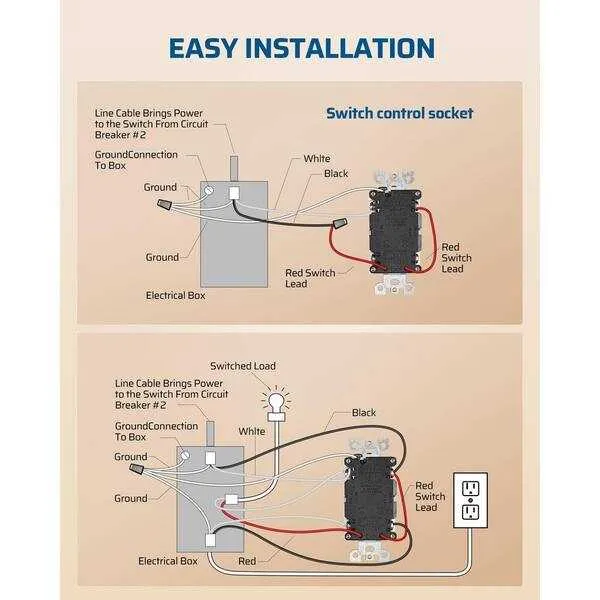

Electrical Connection for Combined Control and Power Socket
For a seamless installation, begin by ensuring that power is turned off from the main circuit panel. This ensures safety throughout the process. The primary task is to connect the power source, which typically consists of a black (hot), white (neutral), and green or bare (ground) wire, to the device. The black wire goes to the terminal of the control element, while the neutral wire should be linked to the other terminal on the same unit.
Next, the grounded wire connects to the metal box or the dedicated grounding terminal on the device. The second unit, which provides the power connection, receives its live feed from the terminal linked to the first part. The neutral wire from the second unit should be joined with the main neutral wire in the box. Properly securing all connections is crucial to prevent potential shorts or failures.
Ensure that both units share the same grounding path. Any loose connection can cause instability in the circuit. Once connections are made, secure the devices into their respective positions within the box. Test the circuit with the power turned back on, verifying that both the control and power points function as expected.
Understanding the Basic Setup for a Wall Control and Power Socket Combination
Ensure that the power is turned off at the breaker before working on any electrical project. Always double-check with a voltage tester for safety.
The primary goal of combining a wall control and power socket is to manage both functions within a single unit. In this setup, the control typically serves to interrupt the current flow to the connected device, while the socket allows for the direct supply of electricity. It’s crucial to maintain proper connections to ensure both functionalities work as intended.
When dealing with the power source, begin by connecting the live wire (usually black) to the terminal that controls the device. The neutral wire (white) should be linked to the socket’s neutral terminal. If there are additional ground wires (green or bare), they must be securely attached to the metal grounding screw on the unit.
Use a dedicated cable to extend the current from the control mechanism to the power socket, ensuring that it can handle the amperage of both systems. This often involves linking the neutral from the control to the socket’s neutral, and routing the live line through the terminal that controls the flow.
Check for any loose connections, as these can lead to malfunction or potential fire hazards. Proper insulation of the wires and their respective terminals is essential to prevent accidental short circuits. Also, verify that all components are rated for the expected load before finalizing the installation.
Lastly, test the unit by turning the power back on, checking the control’s functionality as well as the socket’s ability to provide current to any connected device. If either part doesn’t work as expected, revisit the connections and ensure all steps have been followed precisely.
Step-by-Step Instructions for Connecting a Control and Socket in a Single Box
1. Turn off the circuit breaker to cut power to the box. Always confirm with a voltage tester before starting work.
2. Remove the cover plate and unscrew the existing unit. Ensure there’s enough space in the electrical box to fit both devices securely.
3. Identify the incoming wires: typically, you will have a black (hot), white (neutral), and ground wire. These will be routed to different terminals in the box.
4. Strip 3/4 inch of insulation from the ends of the wires using a wire stripper. Keep the bare copper wire clean and undamaged.
5. For the control device, attach the black (hot) wire to the brass terminal. The white (neutral) wire is usually not needed here but should be connected to the neutral bar if present. The ground wire goes to the green screw.
6. For the socket, attach the black wire to the brass screw and the white wire to the silver screw. The ground wire attaches to the green screw on the socket.
7. Carefully loop the wire around the terminal screws in a clockwise direction to ensure a solid connection.
8. After both devices are connected, gently fold the wires into the electrical box. Avoid pinching any wire as you push them in.
9. Secure both devices by screwing them into place. Make sure the terminals are not exposed and the components are tightly secured to the box.
10. Attach the cover plate, ensuring it sits flush with the wall. Double-check that all screws are tight and the unit is stable.
11. Turn the power back on and test the setup. Check the functionality of both the control and the socket to confirm proper installation.
Common Mistakes to Avoid When Connecting Electrical Devices
Ensure proper grounding. Failing to connect the ground wire to both components can cause electrical hazards. Always use the green or bare copper wire for grounding.
- Incorrect wire connections – Double-check that the hot wire (typically black) is properly linked to the brass terminal, while the neutral wire (white) goes to the silver terminal. Misplacing these can lead to malfunctioning systems.
- Using the wrong gauge of wire – Choose the correct wire gauge for the amperage. Too thin of a wire can overheat, causing safety risks.
- Overloading the circuit – Ensure that the total wattage of all devices connected does not exceed the capacity of the circuit. Exceeding the rated load can cause fires.
Pay attention to the arrangement of cables within the box. It’s essential to keep wires organized and avoid unnecessary tension or bending. This will ensure longevity and proper function.
- Incorrect box size – Using a box that is too small can lead to crowded wires, which increases the likelihood of short circuits. Ensure the box has adequate space for all connections.
- Neglecting wire stripping length – Stripping the wire too short or too long can result in poor connections or exposed conductors. Always strip just enough to make a secure connection.
Finally, test connections before final installation. This helps confirm everything is set up correctly and prevents future issues.
