Electrical Control Circuit Design
For an efficient control system, always ensure that the current path is correctly routed through the operating device. When integrating an on/off mechanism, make sure the flow is interrupted by a dedicated controller, capable of either completing or breaking the loop depending on the user’s input.
Essential Wiring Steps: Connect the power source to the input terminal, leading directly to the device’s input contact. From there, route a wire to the controlling mechanism, which governs the current’s flow. Ensure that the output of this control device is correctly wired to the terminal that powers the output component.
Tips for Successful Integration: Double-check that the break in the current circuit aligns with the mechanism’s activation state. If possible, choose a configuration that minimizes energy loss and optimizes reliability for long-term performance.
Always verify connections are secure, and insulation is adequate to prevent short circuits. Incorporating a fail-safe can enhance the reliability of the setup. For safety, be sure to use devices rated for the system’s voltage and current specifications.
How to Wire a Basic Circuit for Control
To set up a basic circuit, start by ensuring your power source is off. Identify the two wires–live and neutral. The live wire carries current to the fixture, while the neutral wire completes the circuit. You need to connect the live wire to one terminal of the control mechanism and the other terminal to the fixture’s terminal. The neutral wire should connect directly to the fixture’s neutral terminal.
Next, use the correct gauge wire for the power rating of the device you’re working with. Ensure all connections are firm and well-insulated to prevent any short circuits or electrical hazards. Always double-check that your terminals are secure to avoid accidental disconnections.
For control, connect the device’s input terminals to the live wire going from the source. This allows you to control the flow of power to the fixture. Once set up, confirm the circuit is functional by turning the power back on and testing the device’s response to activation.
Common Mistakes in Wiring and How to Avoid Them
Ensure the power is off before starting any work on your electrical setup. Even small errors can cause major hazards. Incorrectly connecting wires to the wrong terminals can lead to malfunction or even sparks. Always verify the wiring layout before making final connections.
Double-check your grounding. A poor or absent ground connection can result in dangerous electric shocks or system failures. Make sure the grounding wire is securely attached to the designated point.
Avoid overloading circuits by connecting multiple devices to one control point. This can cause overheating and damage to the components. Use appropriate power ratings for each connection, and consider spreading out the load to multiple circuits if needed.

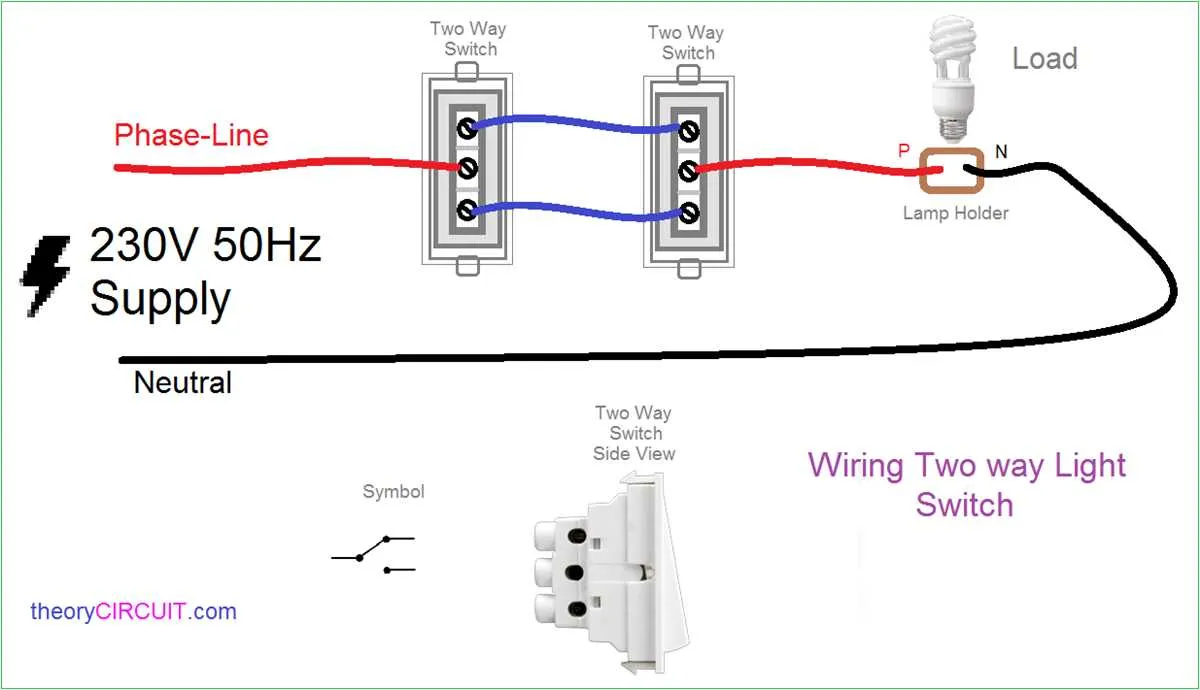

When working with a two-way setup, misidentifying the traveler wires can lead to improper functionality. Ensure the wires are clearly labeled and connected to the correct terminals to allow for proper operation.
Using incorrect wire gauges is a common issue. Ensure you use the correct thickness for the wire according to the power requirements of the system. Thin wires can overheat, while thick wires may be difficult to work with and cause confusion.
Be cautious about the polarity of the connections. Reversing hot and neutral wires can prevent the system from working correctly, or worse, cause damage to electrical components. Always follow the manual for clear instructions on terminal assignments.
Finally, avoid cutting corners on insulation. Exposed wires or improperly insulated connections can be a fire hazard. Always use appropriate insulation materials and ensure all wires are securely covered and protected.
Understanding the Role of Grounding in Electrical Circuits
Grounding plays a crucial role in ensuring safety and proper function in electrical systems. Here are key points to consider:
- Safety: Proper grounding prevents electrical shocks by providing a direct path for excess current to flow into the earth. This is vital when a fault occurs, such as a short circuit, as it helps avoid potential harm.
- System Stability: Grounding helps stabilize the voltage levels in circuits, reducing the risk of electrical surges that could damage connected devices.
- Code Compliance: Electrical codes require grounding for all fixed electrical installations. Not adhering to these guidelines can lead to legal and insurance issues.
Ensure the ground wire is correctly connected to the metal housing of electrical components, and check the continuity regularly to avoid faults in grounding that could compromise the system.
Always use a dedicated ground bus bar in the electrical panel to avoid overloading the system. This will distribute the grounding effectively across different parts of the circuit.
