Ensure a solid foundation for your exterior covering by carefully aligning the support beams and securing them at proper intervals. Use a high-quality sealant to prevent any future water infiltration. Once the frame is prepared, place the pre-cut sheets at a slight angle, ensuring they interlock seamlessly. This will provide maximum durability while allowing water to run off effectively.
Before proceeding, measure the distance between each fastener to avoid unnecessary gaps. The fasteners should be long enough to secure the sheets firmly, yet not too long to risk puncturing the surface. Make sure the materials are compatible with the underlying structure, especially if you’re working with different substrates such as wood or concrete.
Begin from one side and work your way across, layering each piece above the previous one to create a continuous, overlapping pattern. This arrangement enhances protection against environmental elements like wind and rain. Once all pieces are placed, double-check for any misalignment or gaps that could compromise the structure’s integrity.
Finally, inspect all areas of attachment and reinforcement. Any loose or weak points can undermine the strength of the entire covering. Consider using additional reinforcement in high-risk areas, such as corners and edges, to improve overall stability. Regular maintenance is essential to extend the life of your system and ensure it functions properly through all seasons.
Step-by-Step Guide to Installing a Metal Covering System
To ensure a secure and efficient setup of a metallic cover for your structure, follow these essential steps:
- Start by preparing the surface where the panels will be secured. Ensure that it is clean, level, and free of any debris.
- Install a protective underlayment, especially if you are dealing with extreme weather conditions. This layer acts as an additional barrier against moisture infiltration.
- Position the first panel at the lowest point of your structure, ensuring it is aligned properly with the edges. This will act as a guide for subsequent sections.
- Use the appropriate fastening system, which could include screws or clips, to secure the panels tightly to the framing structure. Ensure that fasteners are placed at designated intervals for stability.
- Overlap the edges of each panel to prevent water leakage. Make sure the overlaps are precise to maintain the integrity of the coverage system.
- Pay attention to the ridge and valleys where panels meet. Use specially designed flashing or trims to ensure a seamless connection that prevents water entry.
- Complete the edge trimming with appropriate flashing and ensure all joints are sealed to prevent wind or water damage.
- Inspect the finished work thoroughly to check for any loose connections or areas that might need additional reinforcement.
Following these detailed steps will result in a durable and secure protective system for your building, ensuring longevity and reliable performance.
Preparing the Deck for Proper Surface Coverage
Start by ensuring the deck is clean and free of debris, dirt, or any foreign materials that could hinder proper adhesion. Sweep the surface thoroughly, and inspect for any leftover nails or screws. These should be removed or hammered flat to prevent damage to the underlayment.
Check for structural integrity–inspect the decking for signs of damage, such as rot, mold, or warping. Replace any compromised sections with new, solid boards to provide a stable foundation. If there are any loose areas, secure them to avoid future movement or instability.
Install a moisture barrier to protect the underlying structure from water infiltration. A high-quality synthetic underlayment is recommended to offer long-term protection against leaks and condensation. Make sure to overlap the seams properly, sealing edges and joints with a waterproof adhesive or tape.
Ensure proper slope by checking the pitch of the deck. A minimum pitch of 3:12 is necessary for effective drainage. Use a level to confirm the slope, and if adjustments are needed, add shims or replace any uneven boards to create the proper incline.
Consider ventilation beneath the decking to reduce moisture buildup, which could lead to mold growth or premature degradation. Ventilation openings along the eaves and ridge line should be clear and unobstructed.

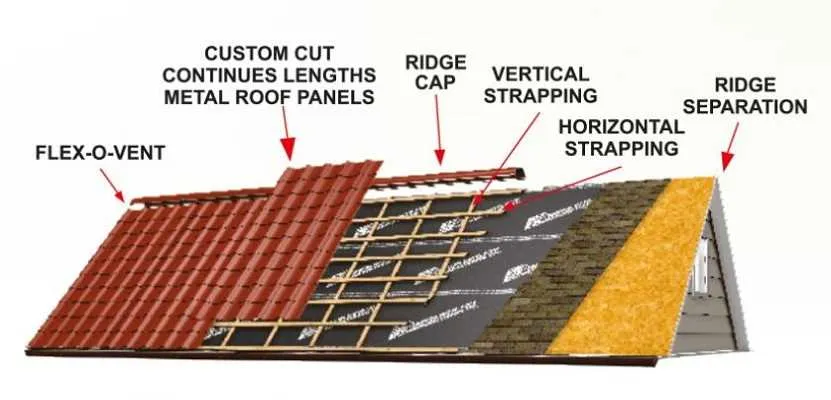

Step-by-Step Assembly of Metal Panels and Flashing
Start by securing the bottom edge with a starter strip, ensuring a 1-inch overhang beyond the eave to direct water into the gutter. Fasten using self-tapping screws every 12 inches along the strip.
Align the first cladding sheet flush with the rake edge, checking for squareness to avoid cumulative misalignment. Overlap each subsequent sheet by one ridge and fasten in the flat area, not on the rib, to ensure watertight contact.
Place screws 1 inch from the overlap edge and every 24 inches vertically. Always anchor through structural purlins or battens, not just sheathing, to prevent uplift under wind load.
When fitting edge closures, use foam inserts beneath the ridge and valley sections to block pests and wind-driven rain. Apply butyl tape between metal-to-metal contacts before installing end trims to seal gaps permanently.
For cap flashing, center it over the peak with 6-inch overlaps between sections. Use stitch screws every 12 inches along both sides, sealing with high-temp silicone at joints and terminations.
Common Mistakes to Avoid During Metal Roof Installation
Never use incompatible fasteners. Galvanized screws with aluminum panels cause galvanic corrosion. Always match the material of the fastener to the surface to prevent premature failure.
Incorrect panel alignment leads to leaks and buckling. Use chalk lines and start from a true square edge. Verify each segment for proper overlap and consistent reveal to ensure watertight integrity.
Skipping underlayment compromises weather resistance. Use a high-temperature synthetic membrane, especially over heated spaces. Avoid felt paper, which deteriorates under heat and moisture exposure.
Overtightening screws deforms washers. This breaks the seal and invites moisture ingress. Use a screw gun with adjustable torque and stop as soon as the washer is compressed evenly.
Improper flashing placement causes structural damage. Always install sidewall and headwall flashing under siding and over panels. Seal with butyl tape–not silicone–for long-term adhesion and flexibility.
Failing to allow for thermal movement leads to cracking. Use slotted holes and expansion joints on long spans. Avoid rigid anchoring at both ends of a run.
Neglecting edge treatment invites wind uplift. Use properly rated edge trims and secure with manufacturer-approved clips spaced according to uplift testing data.
