To ensure the optimal performance of your pool’s purification system, it’s essential to have a clear understanding of the different components involved. Each part plays a crucial role in maintaining water clarity, pressure regulation, and overall filtration efficiency. Properly identifying each section allows for easier troubleshooting and effective maintenance.
Start by checking the valve assembly. This component controls the water flow through the entire setup, making it vital for regulating the operational modes such as backwashing or filtration. Ensure that it’s free from blockages and operates smoothly to prevent system malfunctions.
Another key area to focus on is the water distribution unit. This part ensures that the liquid is evenly spread over the filtration medium, maximizing surface contact and improving purification effectiveness. If you notice reduced performance, inspect for any clogs or signs of wear.
Regular inspection of the mechanical pump is necessary. It’s responsible for circulating water throughout the system, maintaining the pressure required for the filtration process. Ensure the pump’s intake and outlet connections are sealed properly to avoid leaks and inefficiencies. Additionally, check the seals and gaskets for any signs of wear or deterioration.
Finally, don’t overlook the interior chamber housing. This area holds the media responsible for removing impurities. Periodically replace or clean the media as needed to maintain the flow rate and filtration power of the entire assembly. Keeping track of these components will lead to smoother operation and longer system life.
Key Components and Maintenance Tips for Your System
To ensure optimal performance, it is essential to understand the main components of your filtration unit. Regular inspection and maintenance can significantly extend its lifespan and improve efficiency. Here’s a breakdown of the critical elements you should be familiar with:
: The multi-port valve controls the flow of water through the system. Ensure it is securely fastened and the O-rings are in good condition to prevent leaks. : The container housing the media needs to be checked periodically for cracks or any signs of wear. A damaged tank can compromise the entire unit’s efficiency. : These hold the tank and other parts together. Over time, the clamps may loosen or corrode, leading to leaks. Tighten and inspect them regularly. : The filtration media must be replaced when it becomes too dirty or ineffective. Typically, the media needs to be changed every 5-7 years, depending on usage. : This part allows for the removal of waste water after backwashing. If the drain plug is clogged or damaged, it can cause drainage issues. Clean it periodically to prevent blockages. : Monitoring the pressure gauge can help you determine when it’s time for maintenance. If the pressure rises too high, it’s a sign that the system needs backwashing or cleaning.
Ensure all parts are checked for signs of wear and tear, and replace any components that show significant damage. This will prevent costly repairs and ensure the system continues running smoothly.

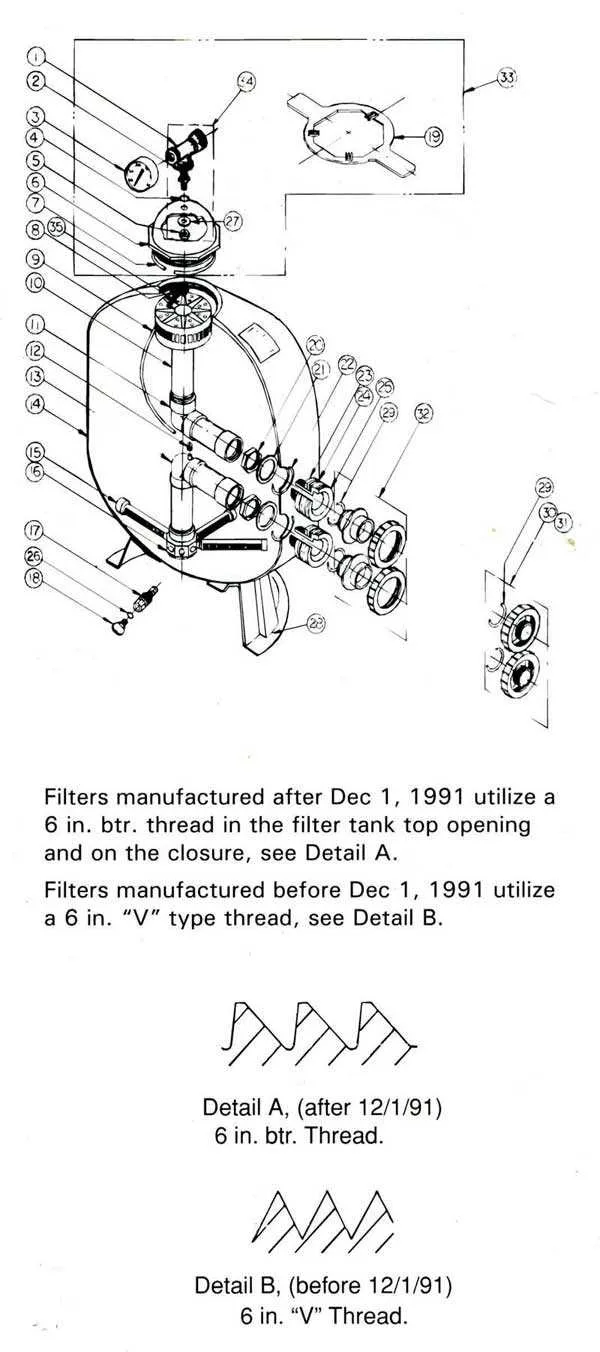

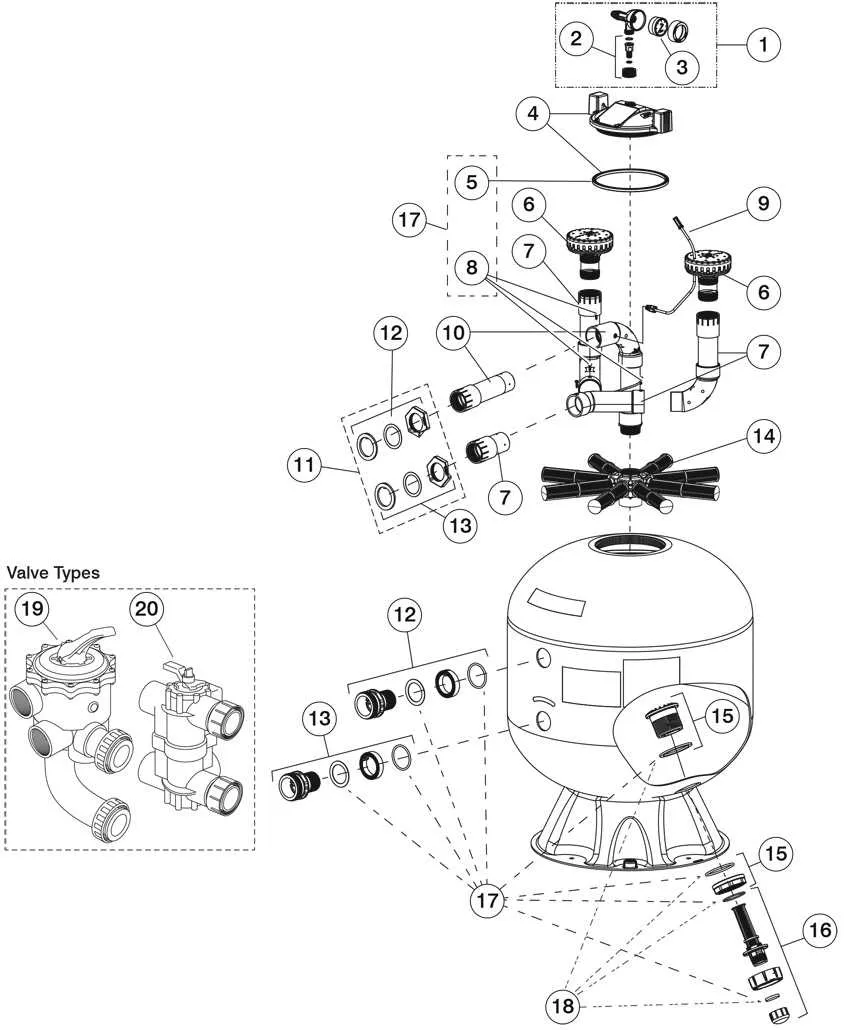

Identifying Key Components of a Pentair Sand Filter
Multiport valve: Essential for controlling water flow. This device allows you to select the desired function, such as backwash, rinse, or filter. Regular maintenance is crucial for smooth operation.
Pump housing: Houses the motor and impeller, responsible for circulating water through the system. Keep an eye on any leaks or unusual sounds that might indicate wear or damage.
Pressure gauge: A crucial tool for monitoring system health. It indicates the pressure within the unit, signaling when backwashing or maintenance is required. Check this gauge regularly to avoid system strain.
Base and tank assembly: The central body where media (e.g., sand) is held. Inspect for cracks or leaks, especially around the base, to ensure structural integrity.
Diffuser: Positioned at the bottom of the tank, this component distributes water evenly, preventing clogs and ensuring consistent filtration. Keep it clean and free of obstructions.
Drain assembly: Facilitates the removal of waste water during backwashing. Ensure that the drain hose is clear and properly positioned to avoid blockages.
Drain plug: Located at the bottom of the tank, this plug allows for draining during routine maintenance. Tighten it securely after use to prevent leaks.
How to Maintain and Replace Filter Components
Inspect regularly the system for signs of wear, such as leaks, corrosion, or blockages in the valve, pump, or any connecting hoses. These components should be checked for damage every 3-6 months to prevent malfunctions.
Replace the internal medium when it becomes compacted or loses its effectiveness. Typically, the medium should be replaced every 3-5 years, depending on usage. Signs of this include poor water clarity or increased pressure on the gauge despite routine cleaning.
Check the valve assembly for smooth operation. If it becomes stiff or leaks, it may need lubrication or complete replacement. Disassemble the valve carefully and inspect the O-rings; replace them if they appear brittle or damaged.
Clean hoses and connections thoroughly to avoid clogs. Disconnect all parts and flush them with water. If there’s any buildup, use a brush and non-abrasive cleaner to ensure unobstructed flow.
Ensure proper backwashing technique is followed to avoid overstraining the system. Perform the backwash only as needed, based on pressure gauge readings. Overbackwashing can degrade the internal medium and reduce efficiency.
Lubricate all moving parts, such as the multi-port valve handle, to maintain ease of operation and prevent seizing. Use a lubricant suitable for your system’s materials to avoid damage.
Understanding Common Issues and Troubleshooting Pool Filtration Systems
If your filtration unit is showing reduced efficiency or malfunctioning, the first step is to check the water pressure gauge. If it reads high, the system may be clogged, requiring a backwash to clean the media. Make sure the multiport valve is set to the correct position during this process. If backwashing doesn’t resolve the issue, inspect the internal components, particularly the manifold, as blockages in these parts can prevent proper water flow.
If the system continues to underperform, examine the pump for leaks. A loss of suction can indicate an issue with the pump seal or impeller. These should be replaced if worn or damaged. Also, check the pump’s motor for any unusual sounds or overheating, which may signal mechanical issues that need attention.
In cases of poor water clarity or inconsistent circulation, verify that the media inside the tank is not compacted. Over time, debris can cause the material to become dense and ineffective. Replacing the media may be necessary if it has reached the end of its lifespan, typically after several seasons of use.
Lastly, ensure that all connections are secure and that there are no cracks or fractures in the system housing, which could cause water to leak and compromise performance. Tighten any loose bolts or connections and replace any damaged components promptly to maintain optimal functionality.
